Note:
– Dimensions and weight are for reference only; actual product may vary.
Desription:

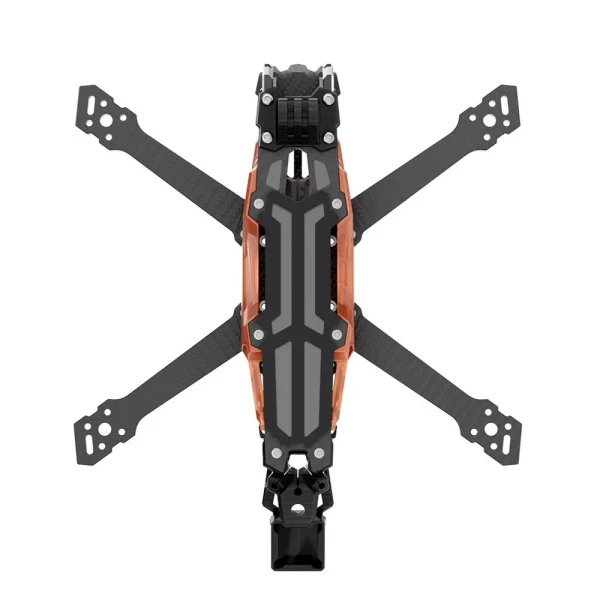

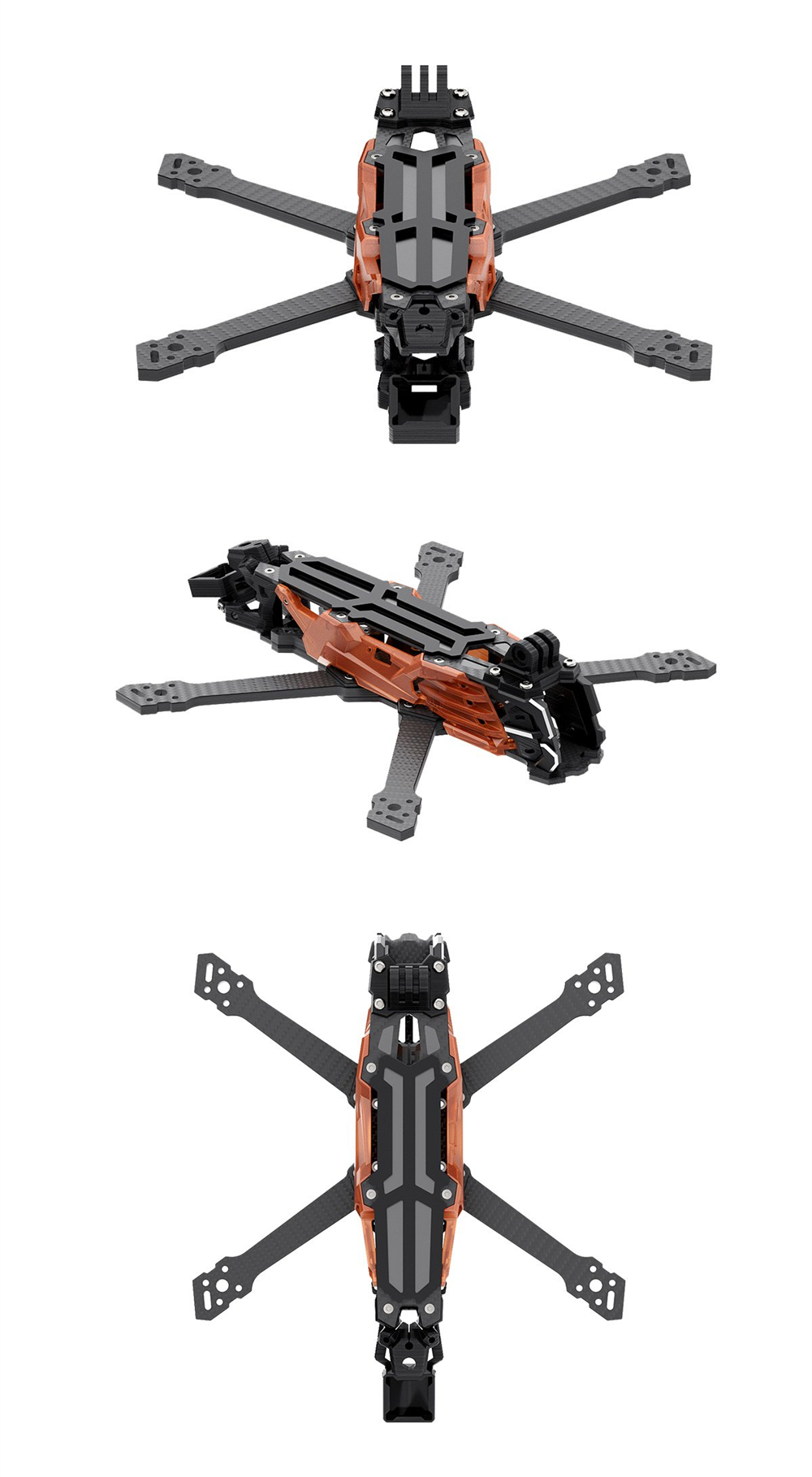

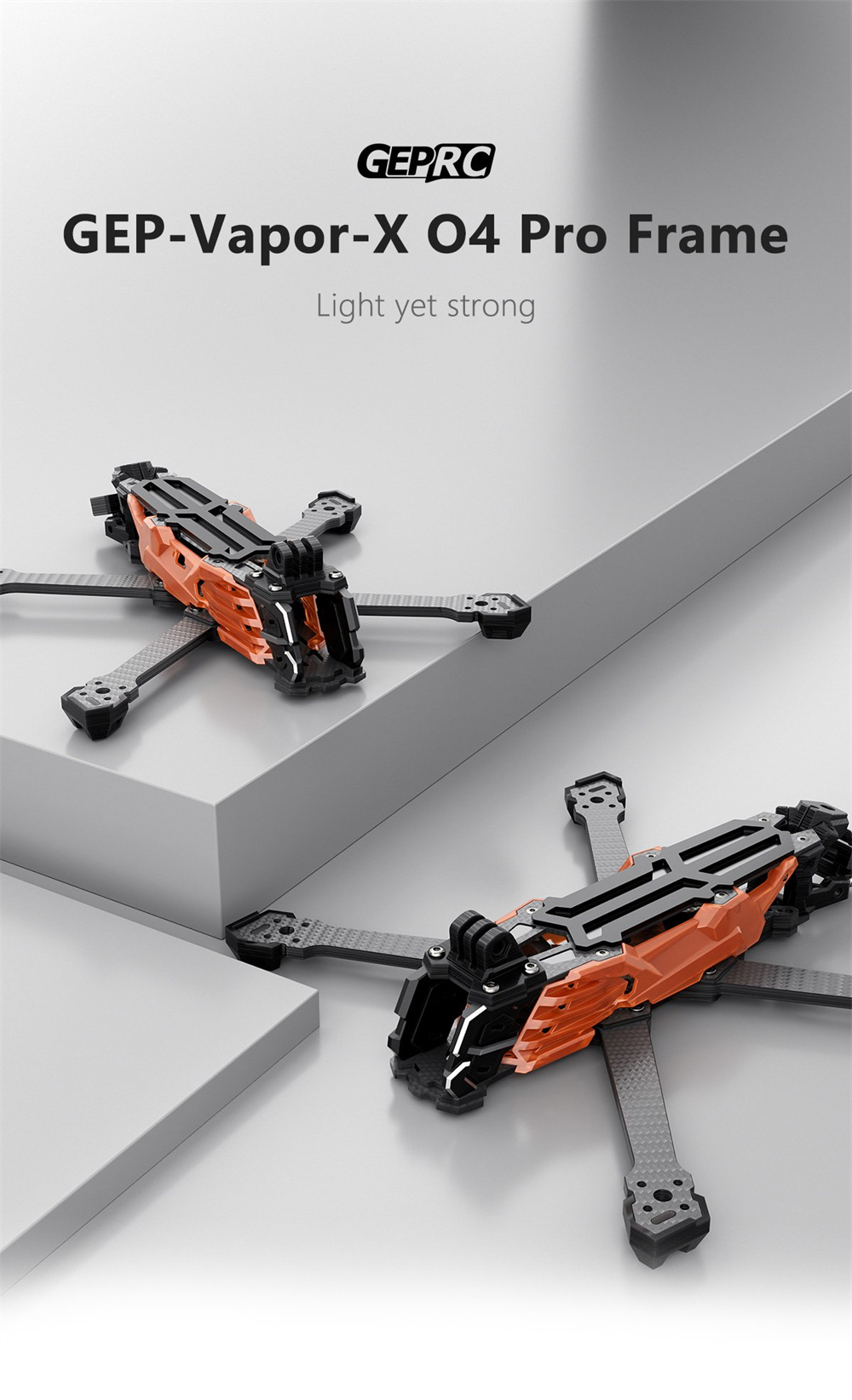

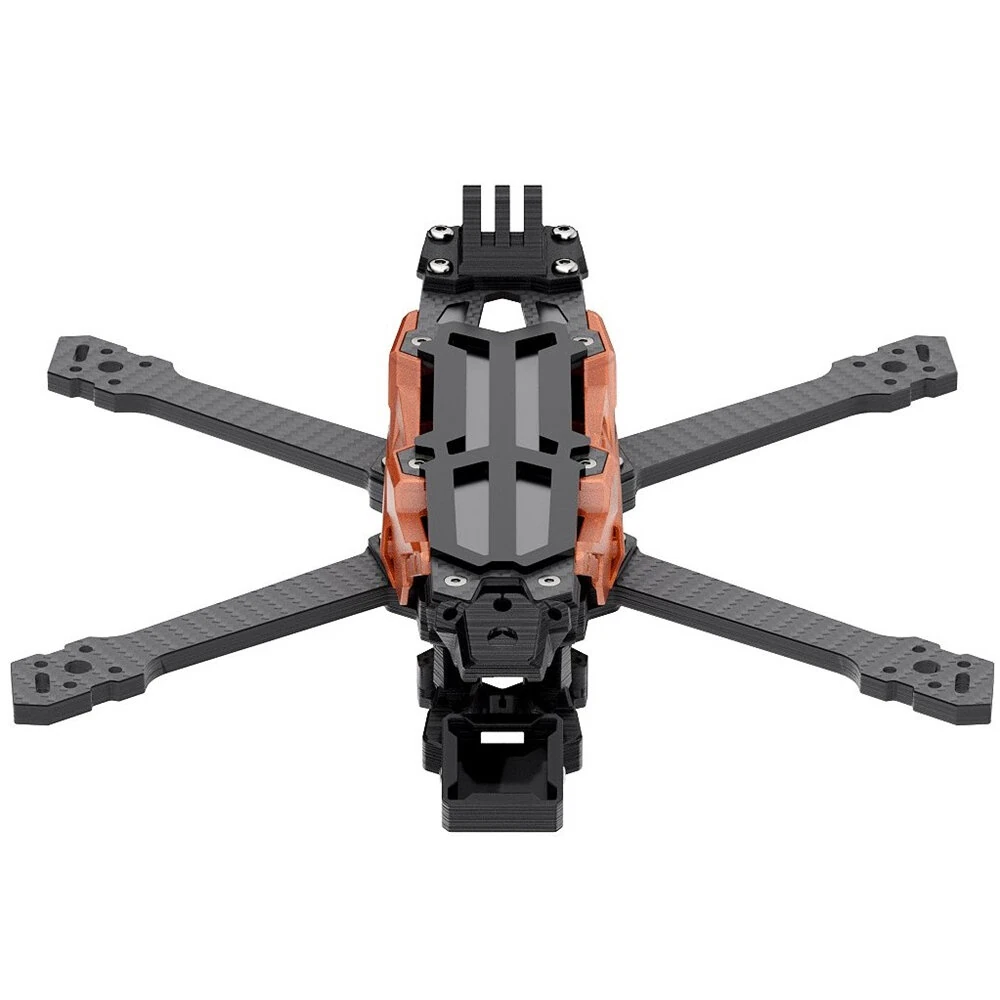

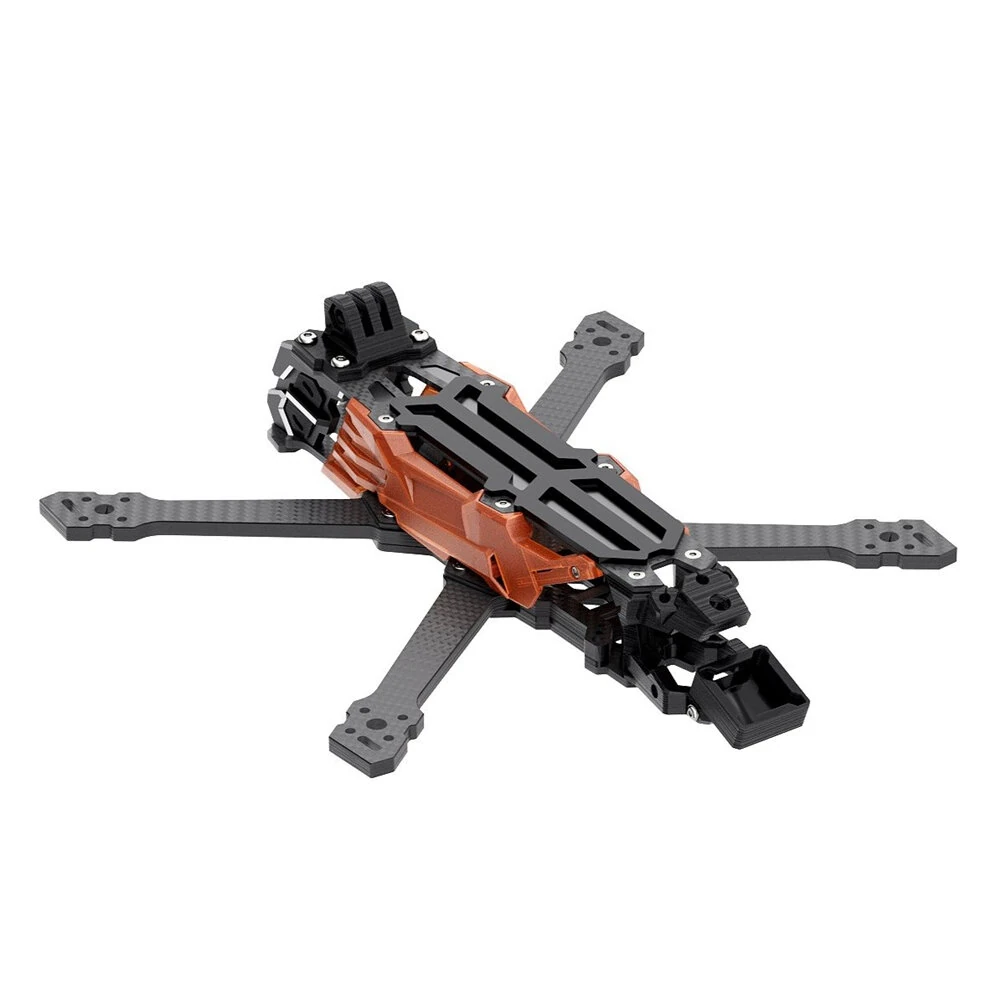

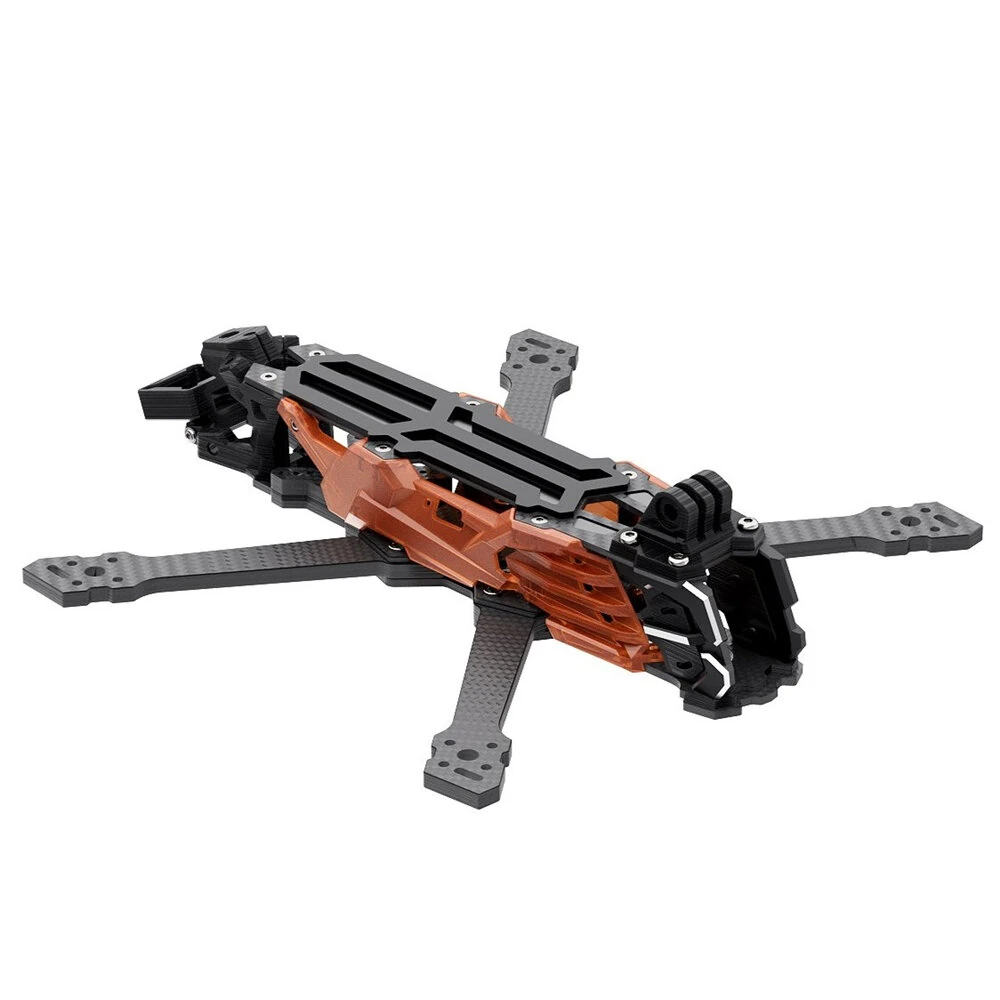

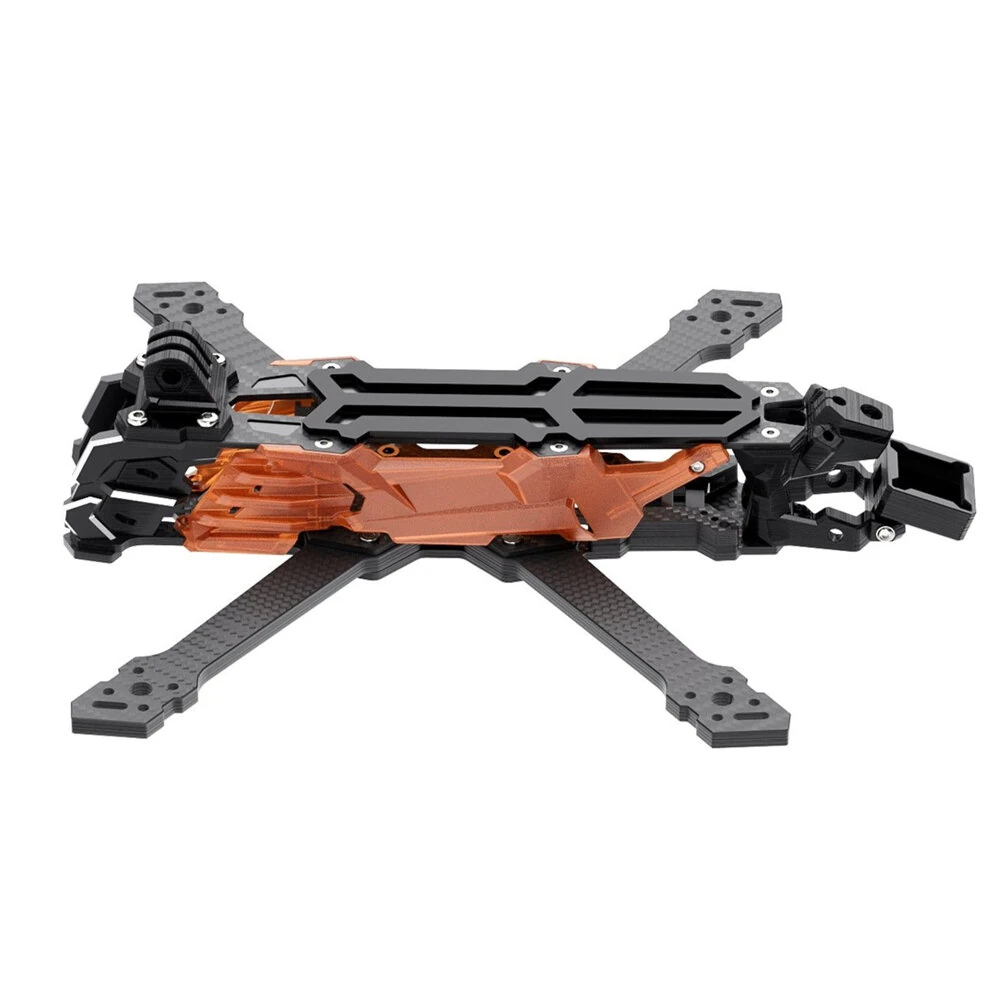

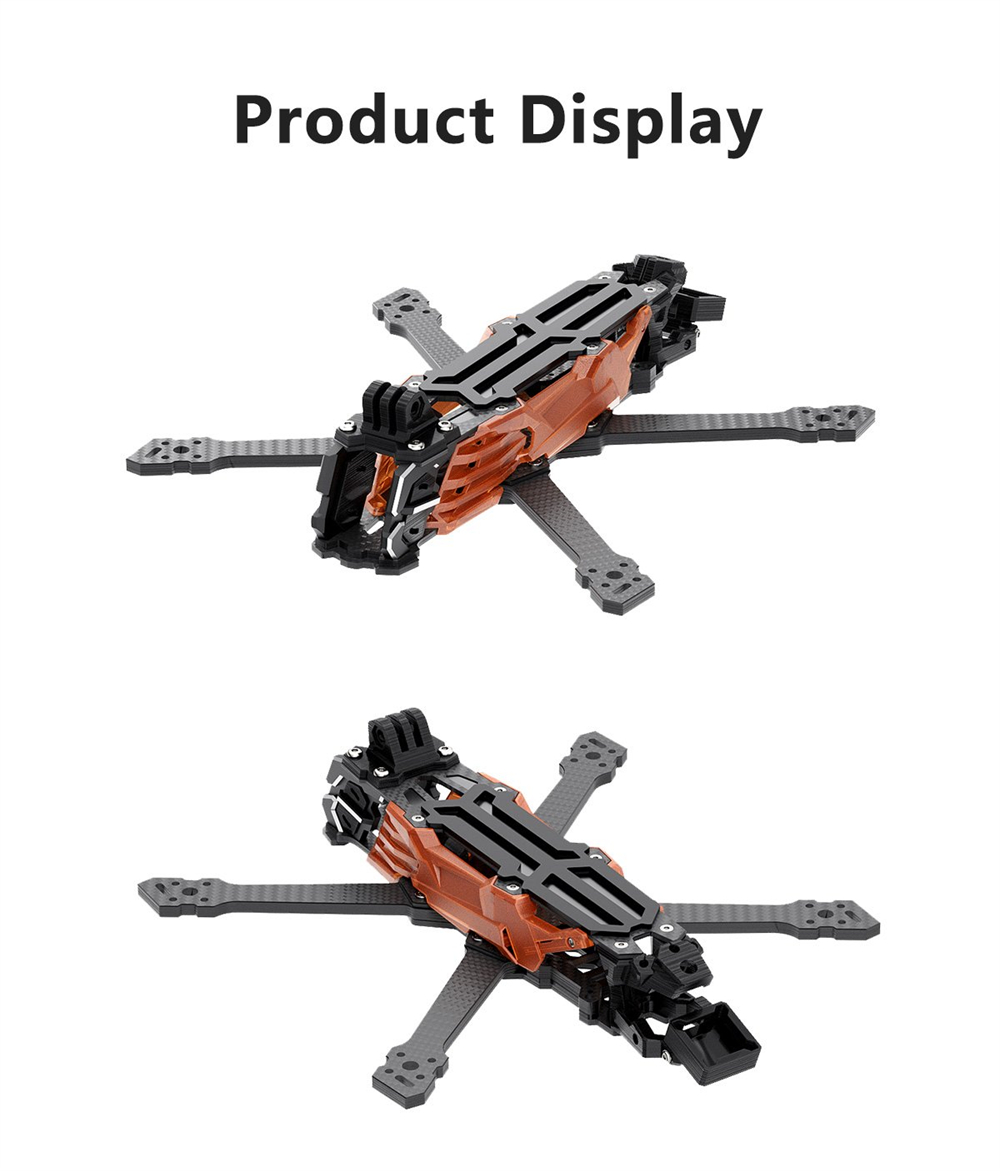

The GEPRC team presents the Vapor frame, designed specifically for the DJI O4 Air Unit Pro.

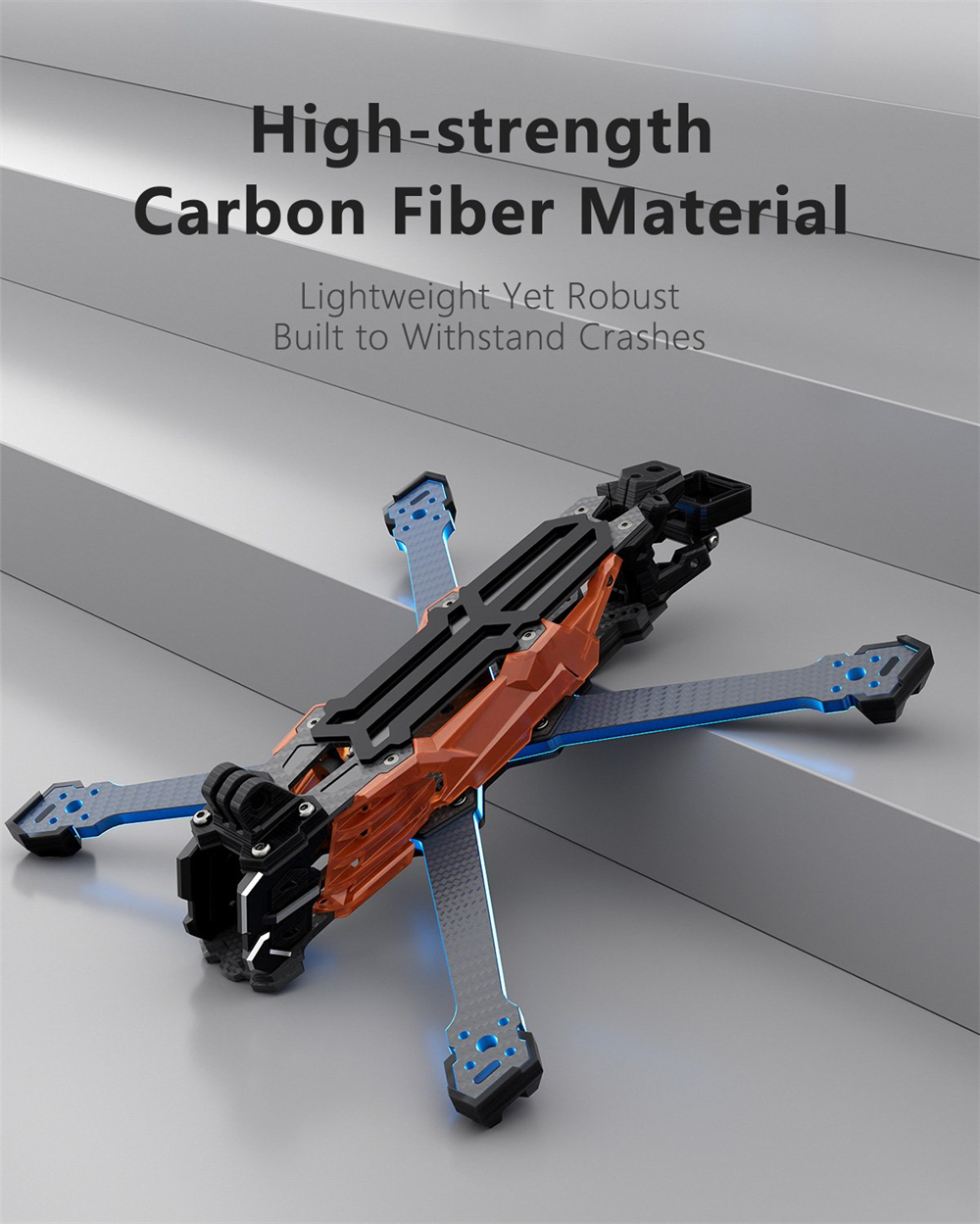

With redesigned aluminum camera parts and improved vibration-damping silicone, this frame offers better compatibility. The new mech-inspired side panels add a bolde, sharp look, enhancing the frame’s stylish design. Made from high-strength carbon fiber, it’s lightweight yet durabl, ensuring top-notch performance in any flight.
With its XH structure, the GEP-Vapor-X frame offers superior stability and precise handling.

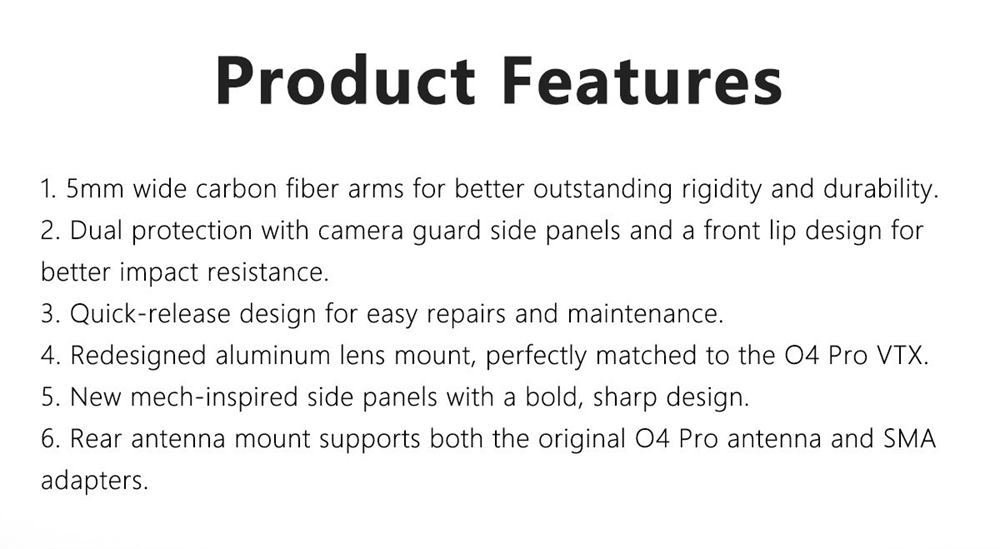

Feature:
1. 5mm wide carbon fiber arms for better rigidity and durability.
2. Dual protection with camera guard side panels and a front lip design for better impact resistance.
3. Quick-release design for easy repairs and maintenance.

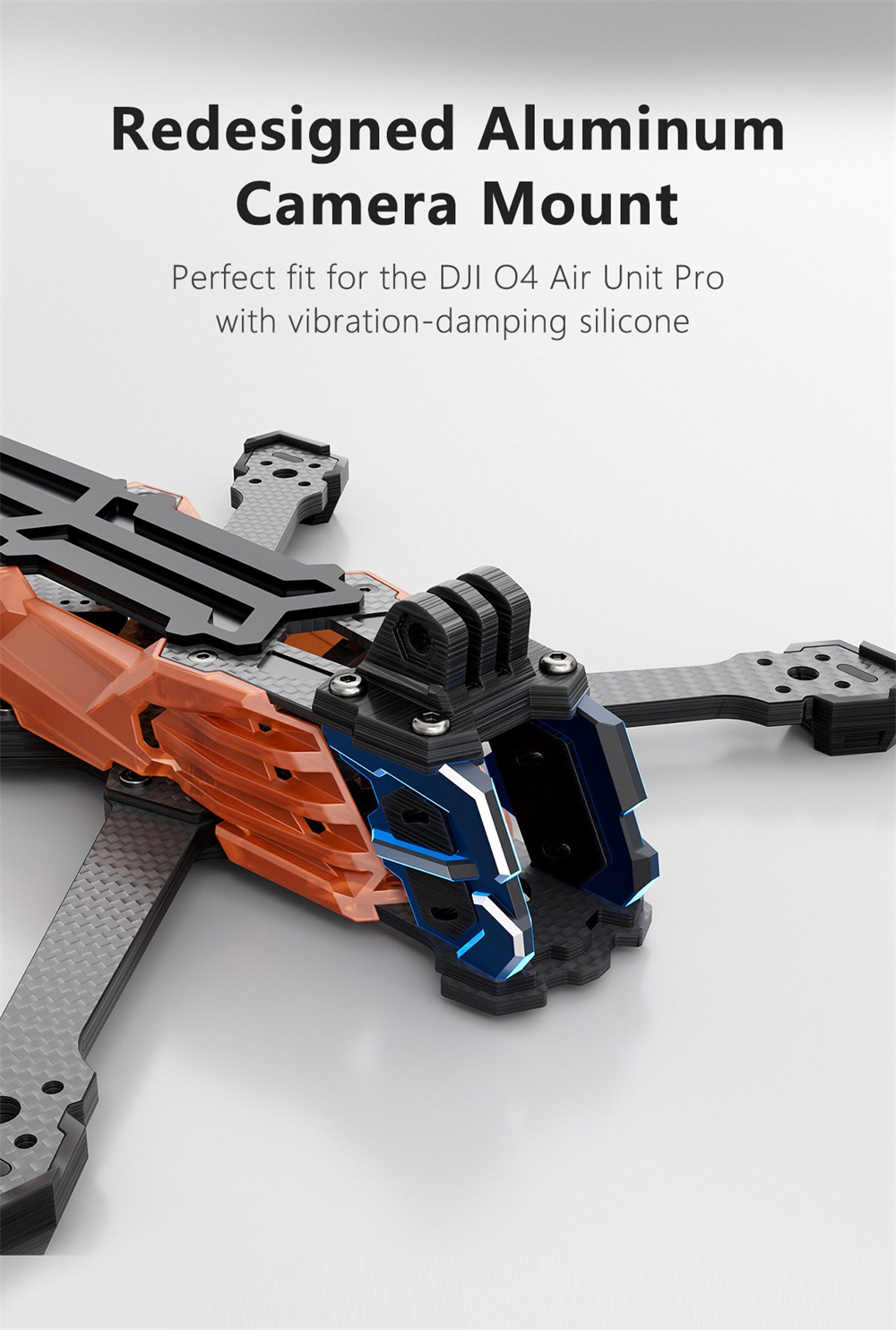

4. Redesigned aluminum camera mount, perfectly matched to the O4 Pro VTX.

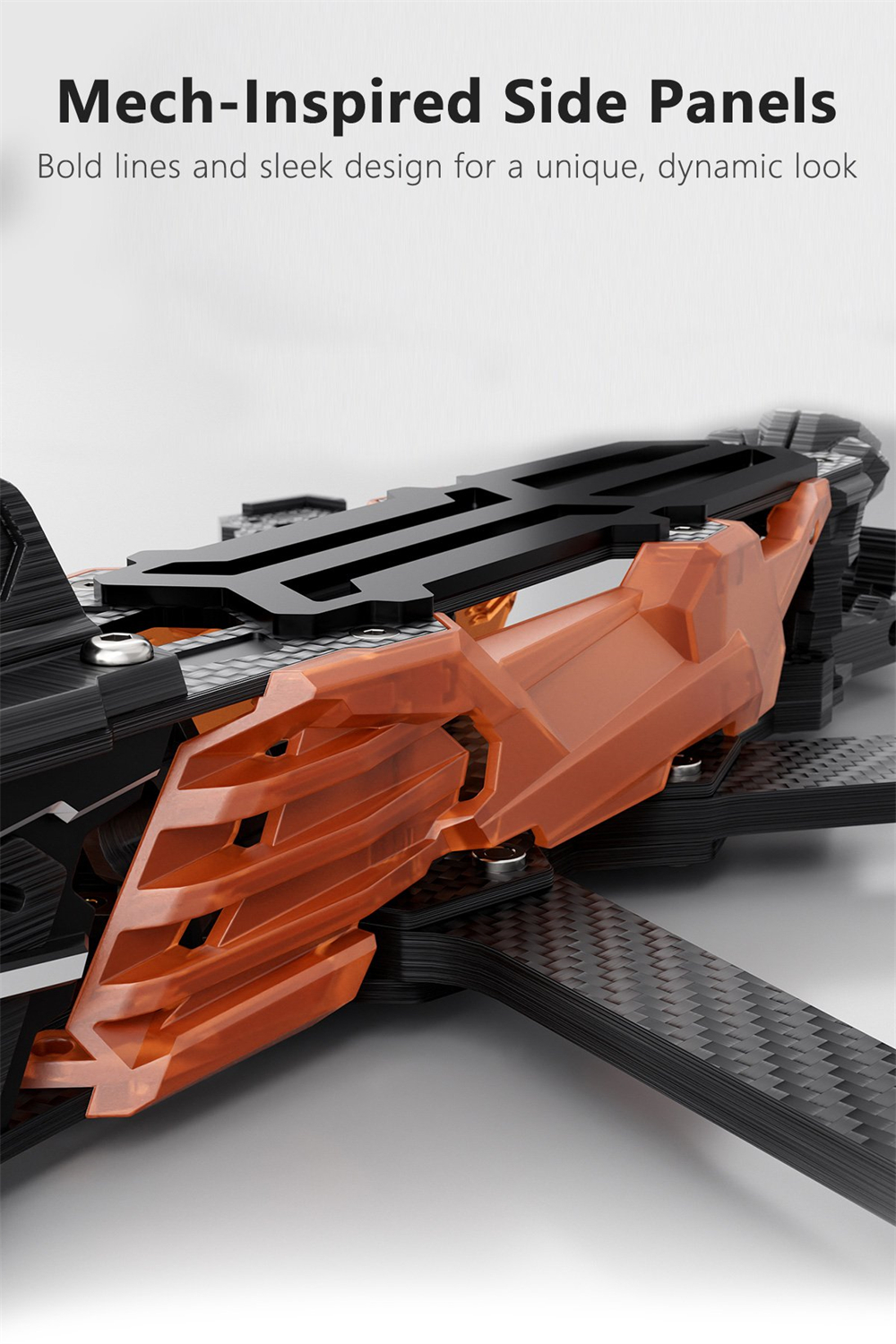

5. New mech-inspired side panels with a bolde, sharp design.
6. Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.

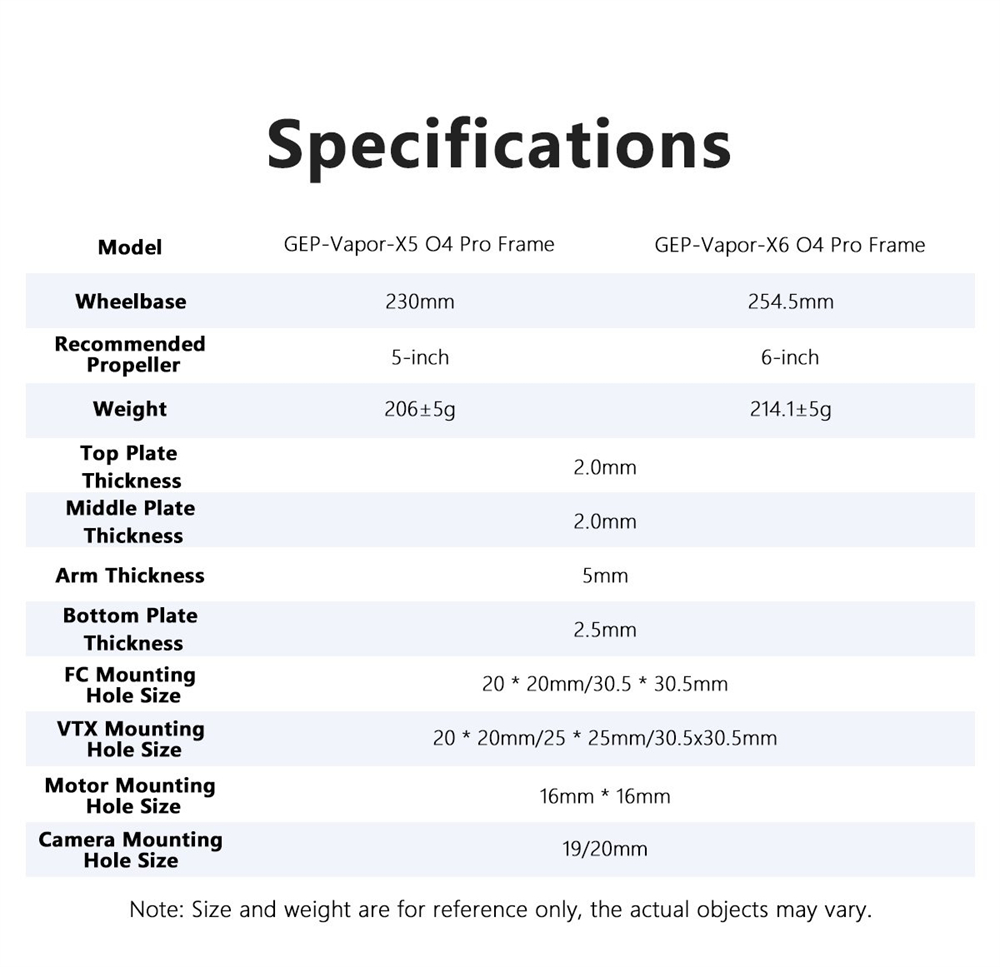

Specification:
Brand: GEPRC
Model: Vapor X5 / X6
Item Name: 5 Inch / 6 Inch 6S Frame Kit

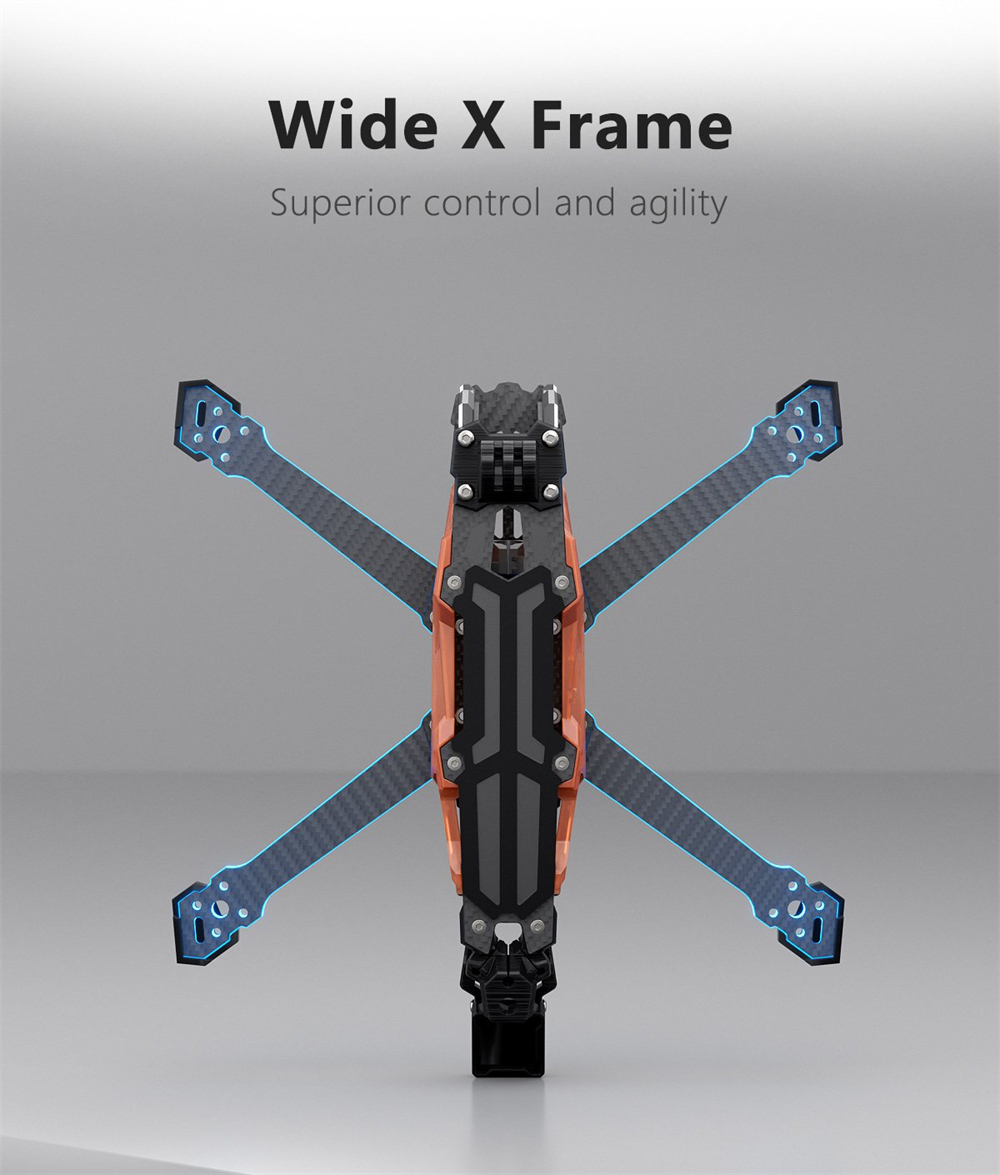

Type: Wide X
|
Model: |
Vapor X5 Frame |
Vapor X6 Frame |
|

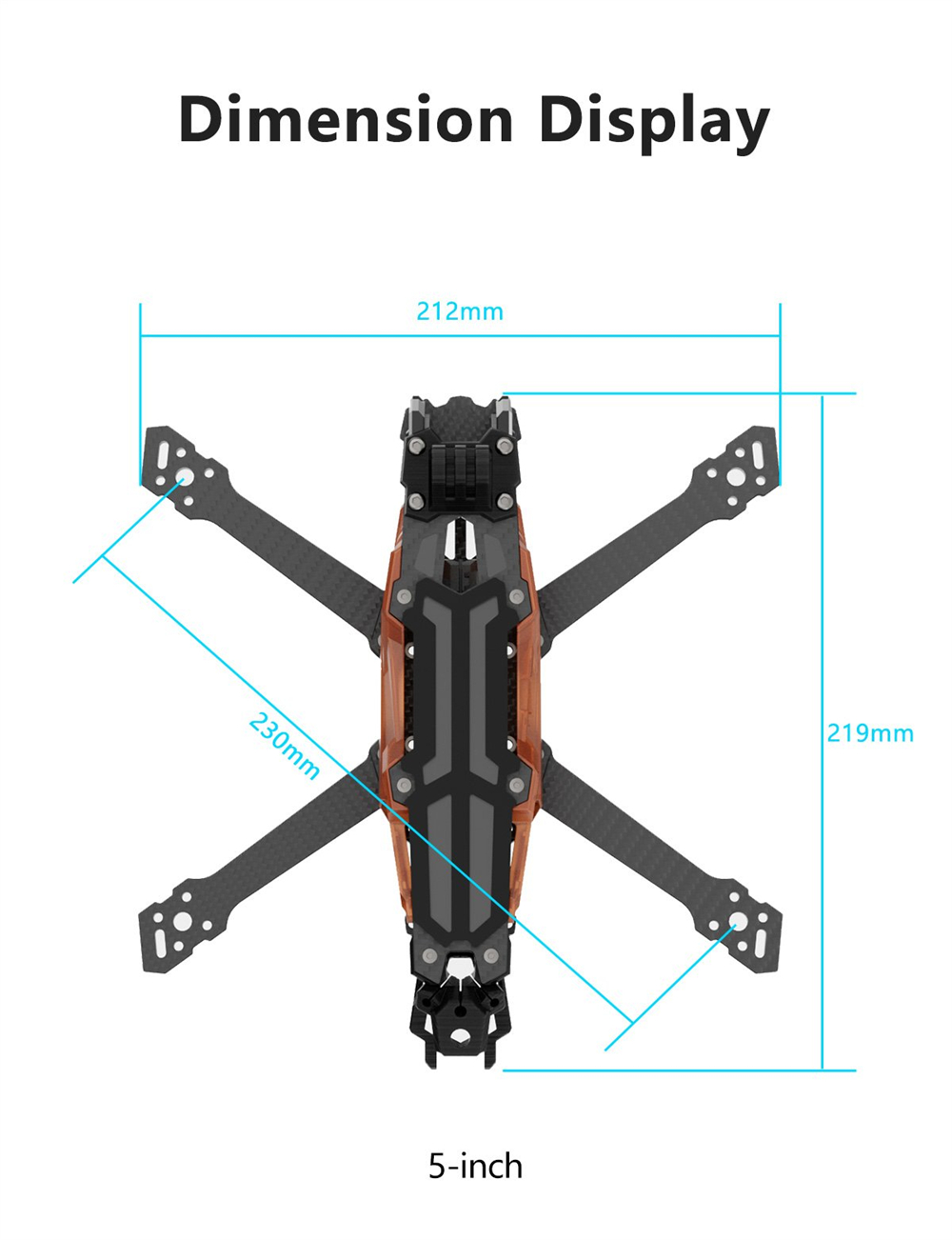

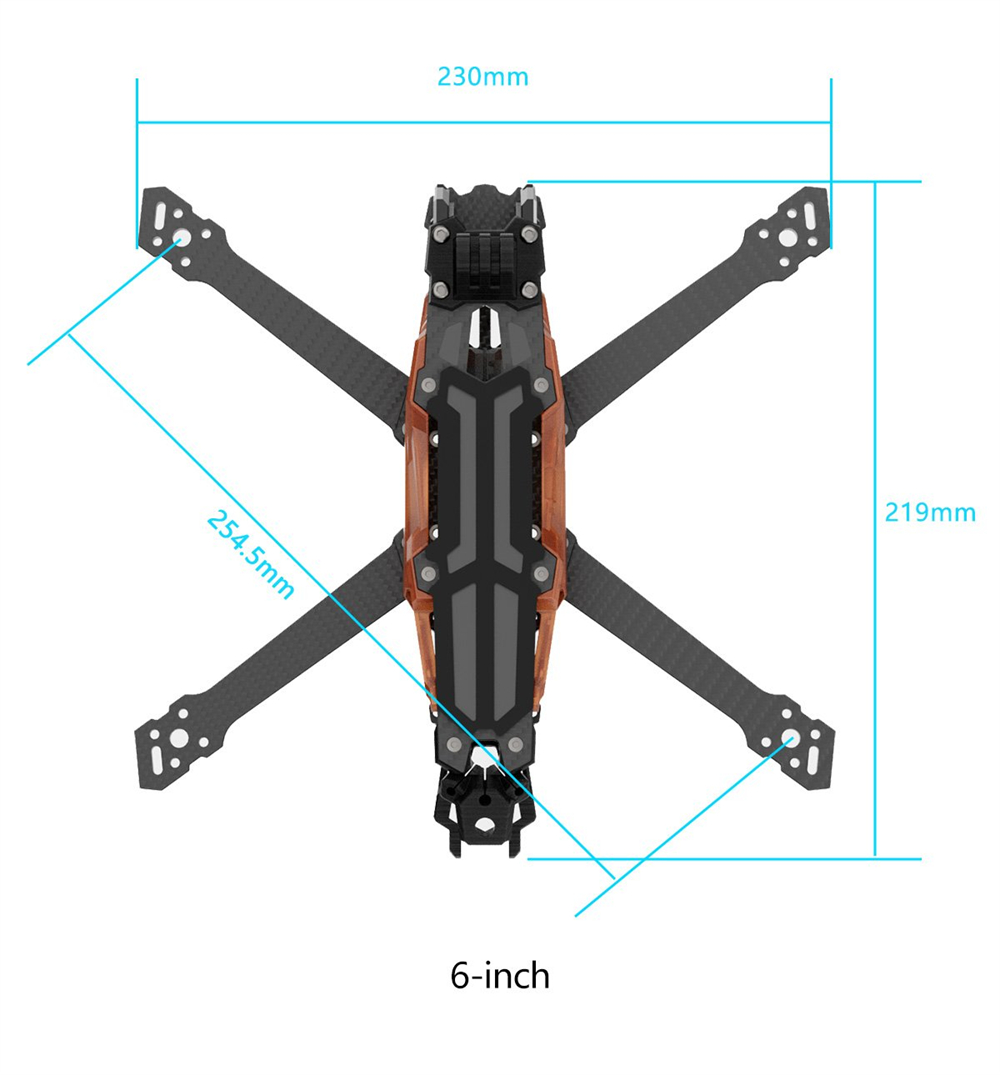

Wheelbase: |
230mm |
254.5mm |
|
Recommended Propeller: |
5 Inch |
6 Inch |
|
Weight: |
206±5g |
214.1±5g |
|
Top Plate Thickness: |
2.0mm |
|
|
Middle Plate Thickness: |
2.0mm |
|
|
Arm Thickness: |
5.0mm |
|
|
Bottom Plate Thickness: |
2.5mm |
|
|
FC Mounting Hole Size: |
20x20mm / 30.5×30.5mm |
|
|
VTX Mounting Hole Size: |
20x20mm / 25x25mm / 30.5×30.5mm |
|
|
Motor Mounting Hole Size: |
16x16mm |
|
|
Camera Mounting Hole Size: |
19mm / 20mm |
|
Recommand Pars (Not Included):
FC&ESC: Geprc TAKER F722 BLS 60A V2 Stack
Camera&VTX: DJI O4 Air Unit PRO
Motor: GEPRC SPEEDX2 2207 1960KV / GEPRC SPEEDX2 2407E 1750KV
Propellers: GEMFAN 5136 / HQprop 6X3.5X3
Battery: GAONENG GNB 6S 22.8V 1300mAh / CNHL MiniStar 22.2V 1800mAh 120C 6S LiPo Battery / CNHL Black Series V2.0 6S 22.2V 1500mAh
GPS: GEP-M10 GPS

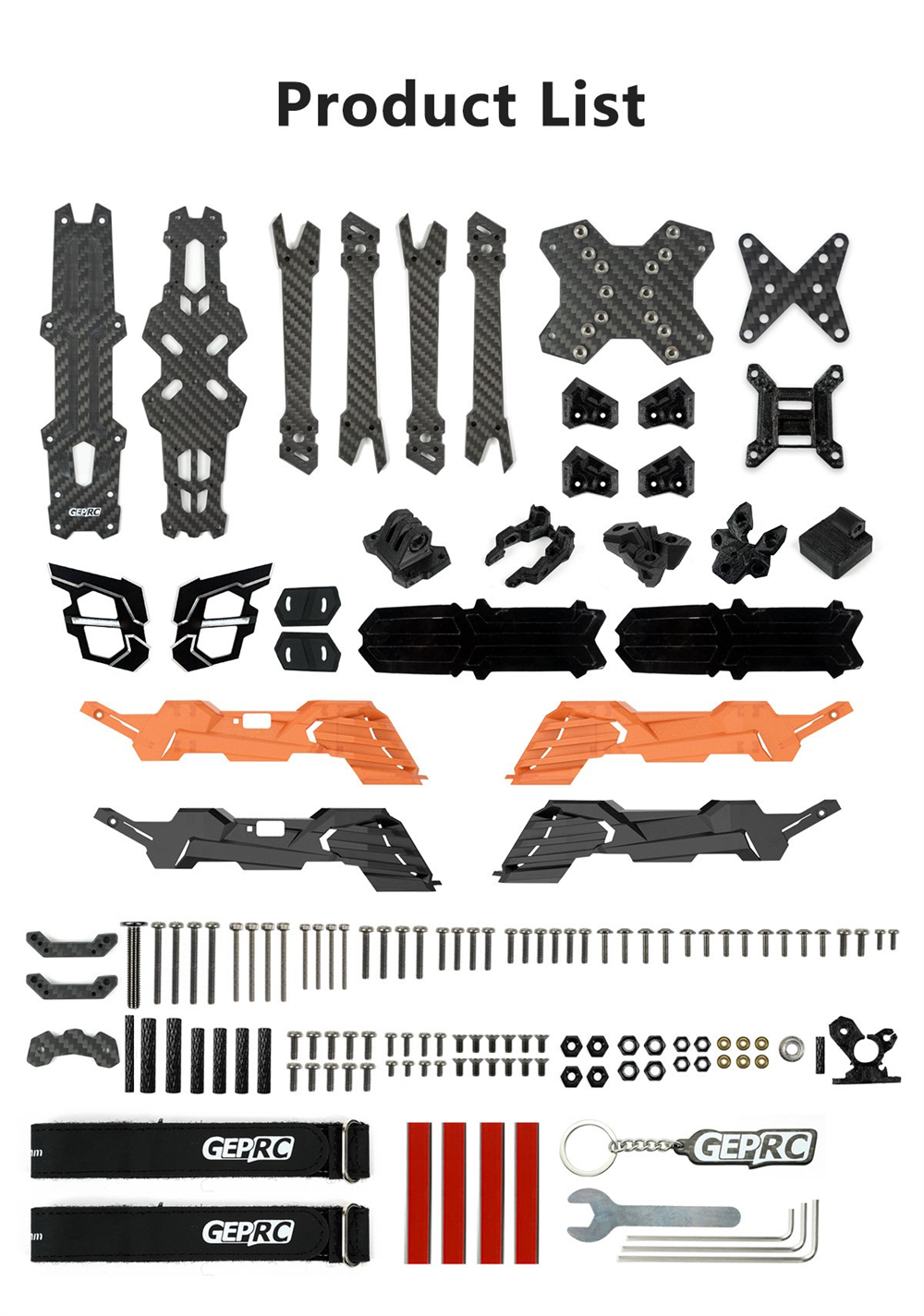

Package Included:
|
Model |
Included |
|
Vapor X5 Frame Kit |
1 x Vapor X5 Frame 2 x M20*250mm battery straps 2 x Battery silicone Pads 1 x Set of screws 1 x Printout package 1 x L-shaped screwdriver (1.5mm) 1 x L-shaped screwdriver (2mm) 1 x L-shaped screwdriver (3mm) 1 x M8 wrench |
|
Vapor X6 Frame Kit |
1 x Vapor X6 Frame 2 x M20*250mm battery straps 2 x Battery Silicone Pads 1 x Set of screws 1 x Printout package 1 x L-shaped screwdriver (1.5mm) 1 x L-shaped screwdriver (2mm) 1 x L-shaped screwdriver (3mm) 1 x M8 wrench |
