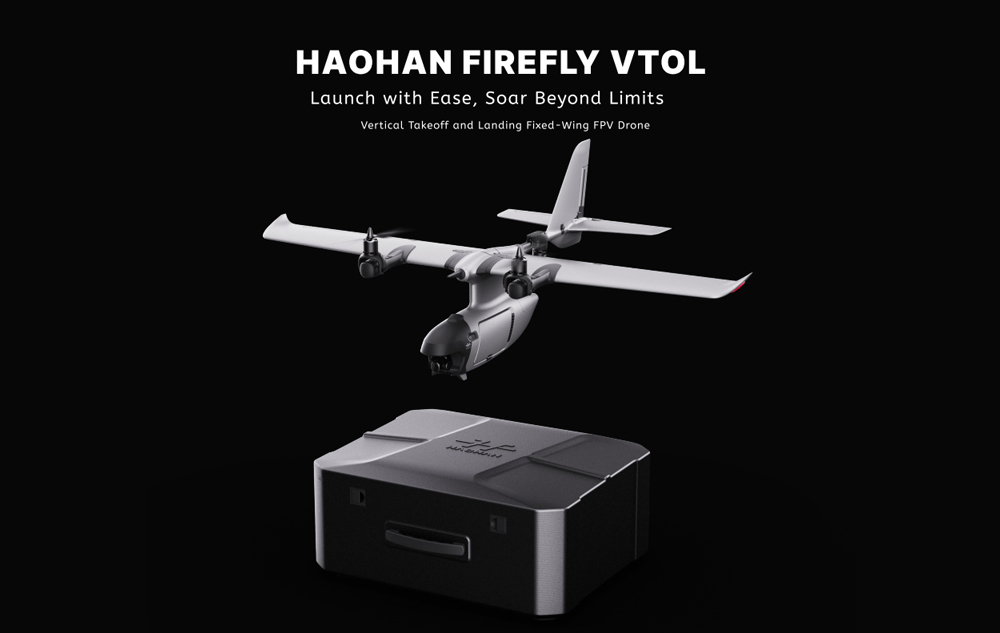

HaoHan FireFly VTOL Vertical Takeoff and Landing Modular and Multi-Mount FPV Patrol Drone Fixed-Wing FPV UAV Drone RC Airplane PNP/Semi

HaoHan FireF1y VTOL Vertical Takeoff and Landing Modular Multi-Mount FPV Patrol Drone Fixed-Wing FPV UAV Drone RC Airplane PNP/Semi

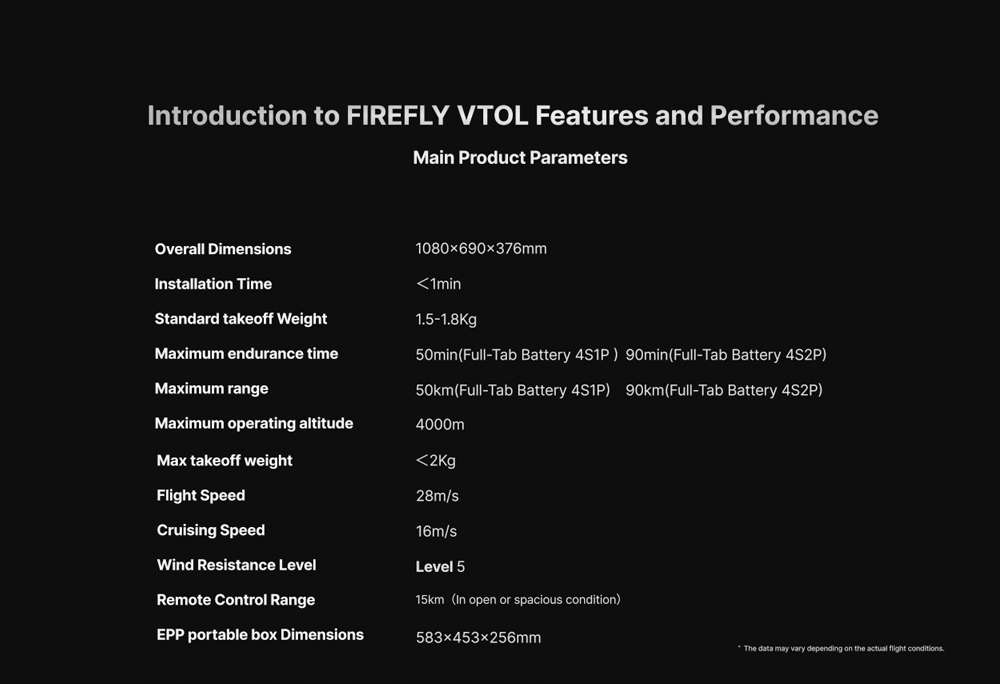

Specification:
Model: FireF1y VTOL Vertical Takeoff and Landing Fixed-Wing FPV UAV PNP/SEMI
Installation Time: <1min
Flight Speed: 10m/s-27.7m/s
Cruising Speed: 15.8m/s
Standard takeoff Weight: 1.5-1.8Kg
Max takeoff weight: <2Kg
Maximum operating altitude: 4000m
Wind Resistance Level: Level 5

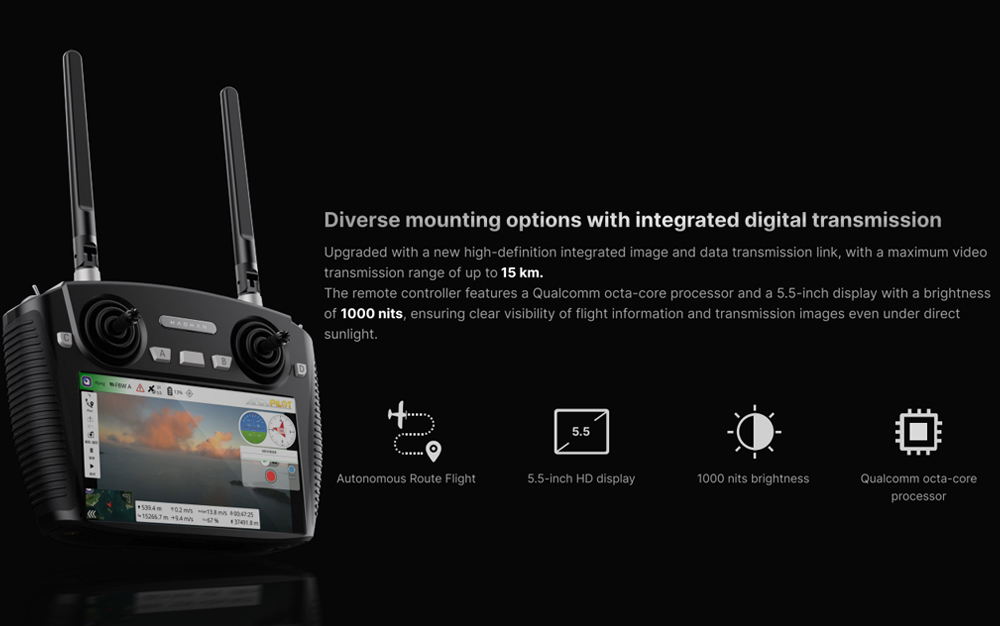

Remote Control Range: 15km (In open or spacious condition)

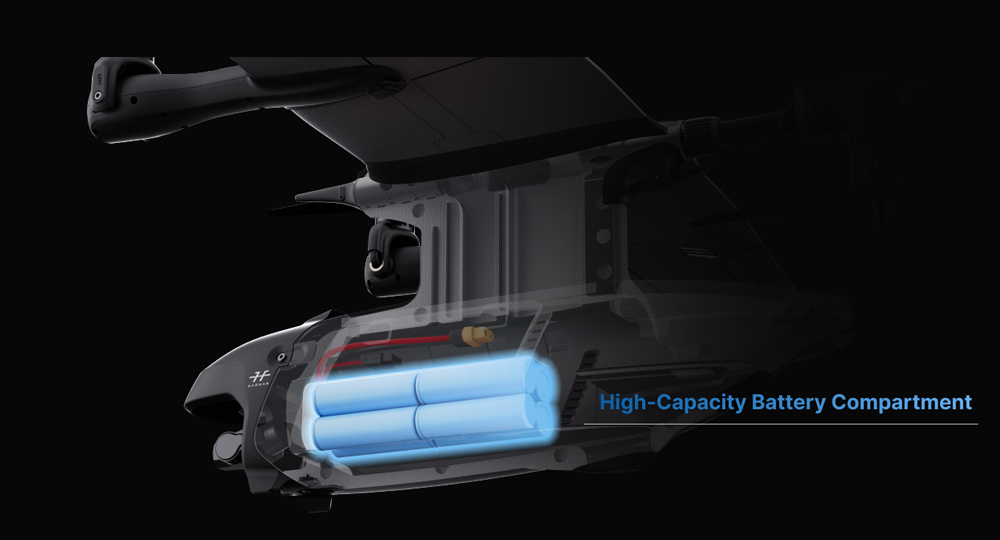

Maximum endurance time: 50min(Full-Tab Battery 4S1P ) 90min(Full-Tab Battery 4S2P)
Maximum range: 50km(Full-Tab Battery 4S1P) 90km(Full-Tab Battery 4S2P)
Overall Dimensions: 1080×690×376mm

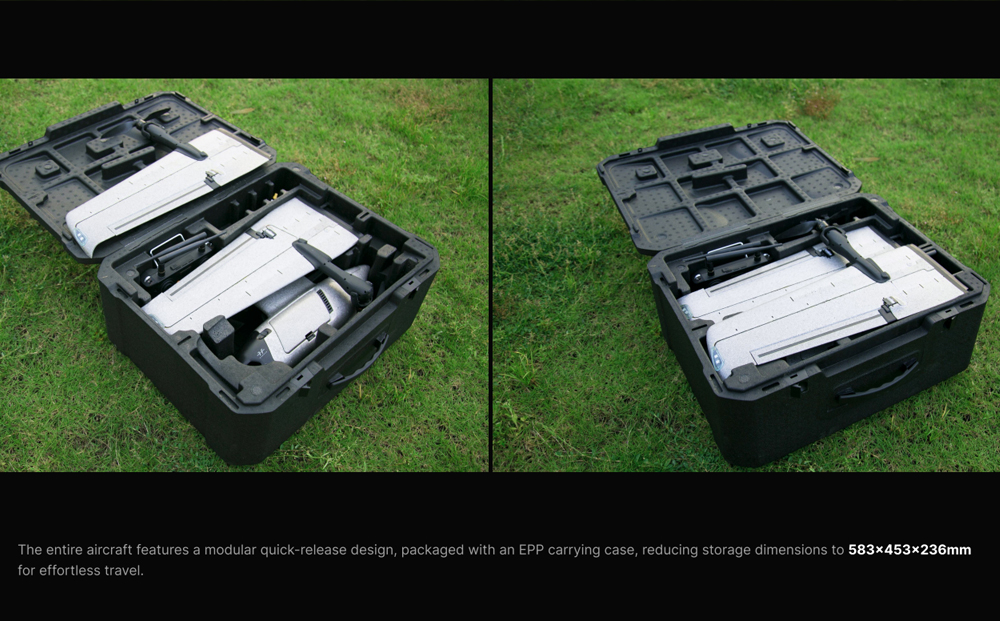

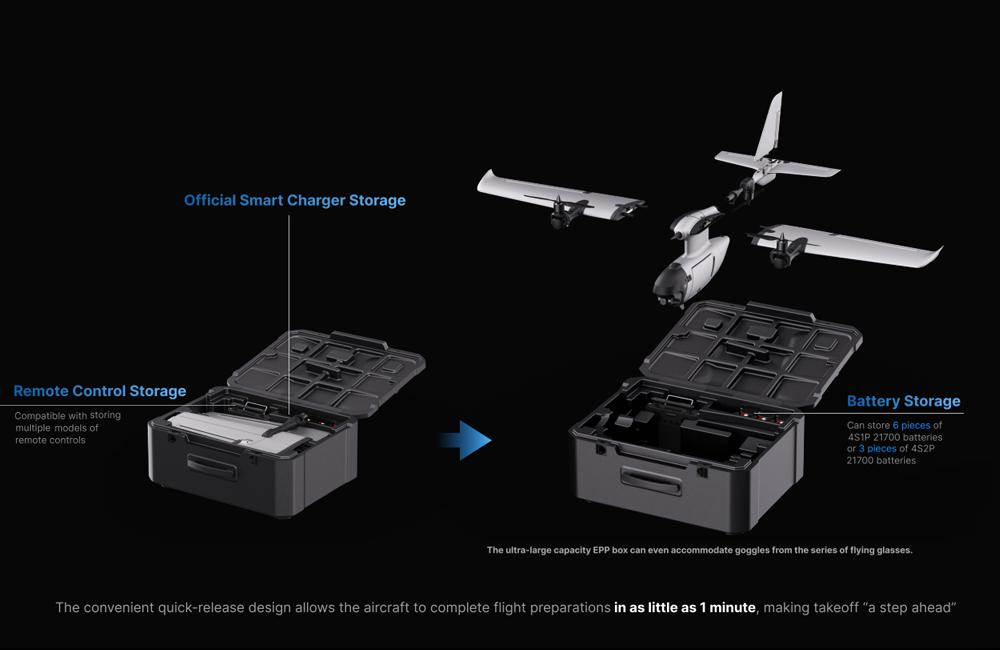

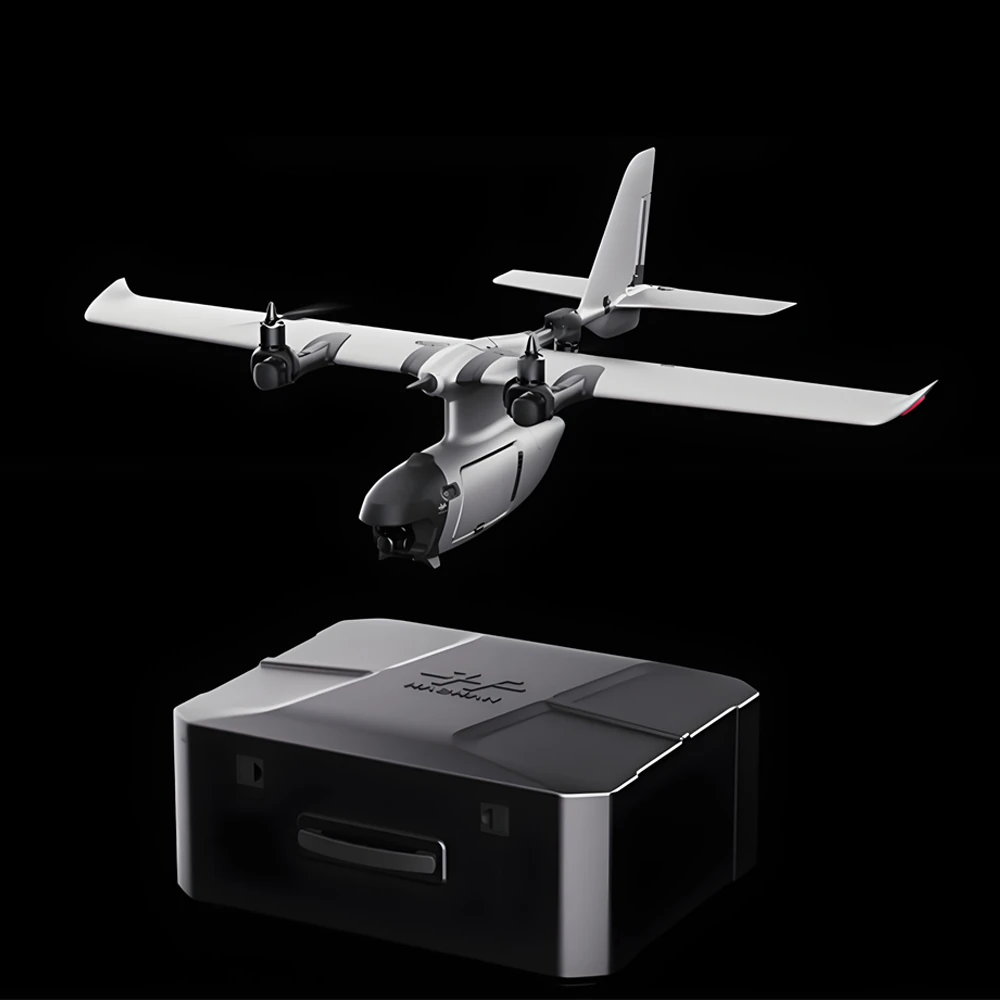

EPP portable box Dimensions: 583×453×256mm

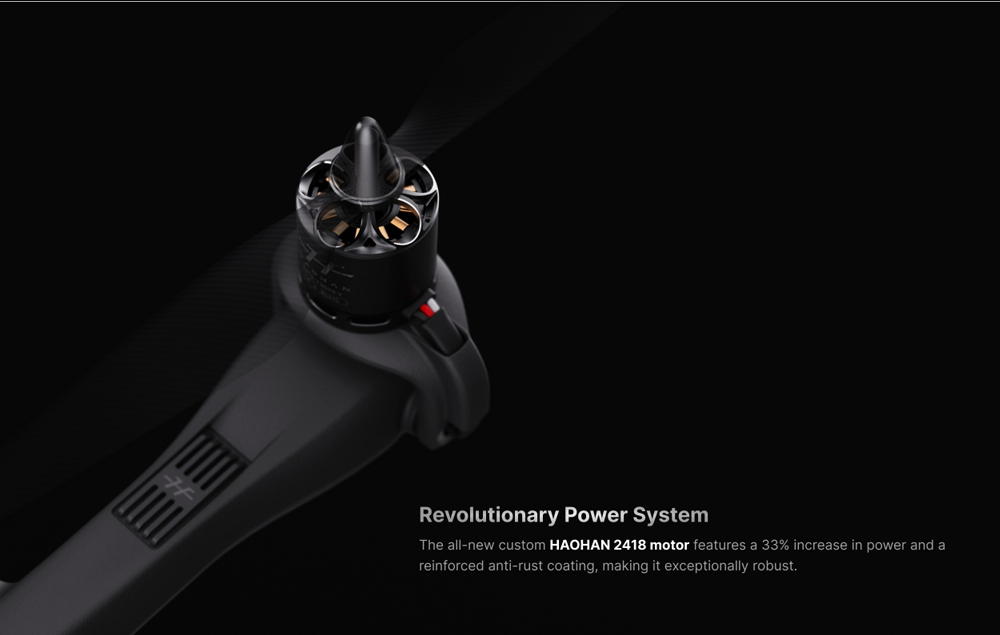

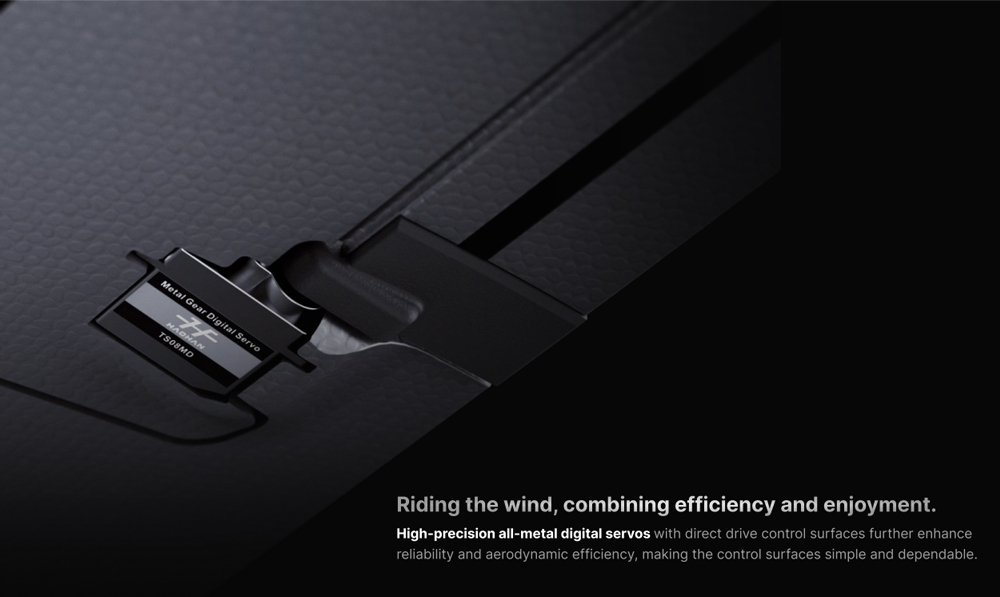

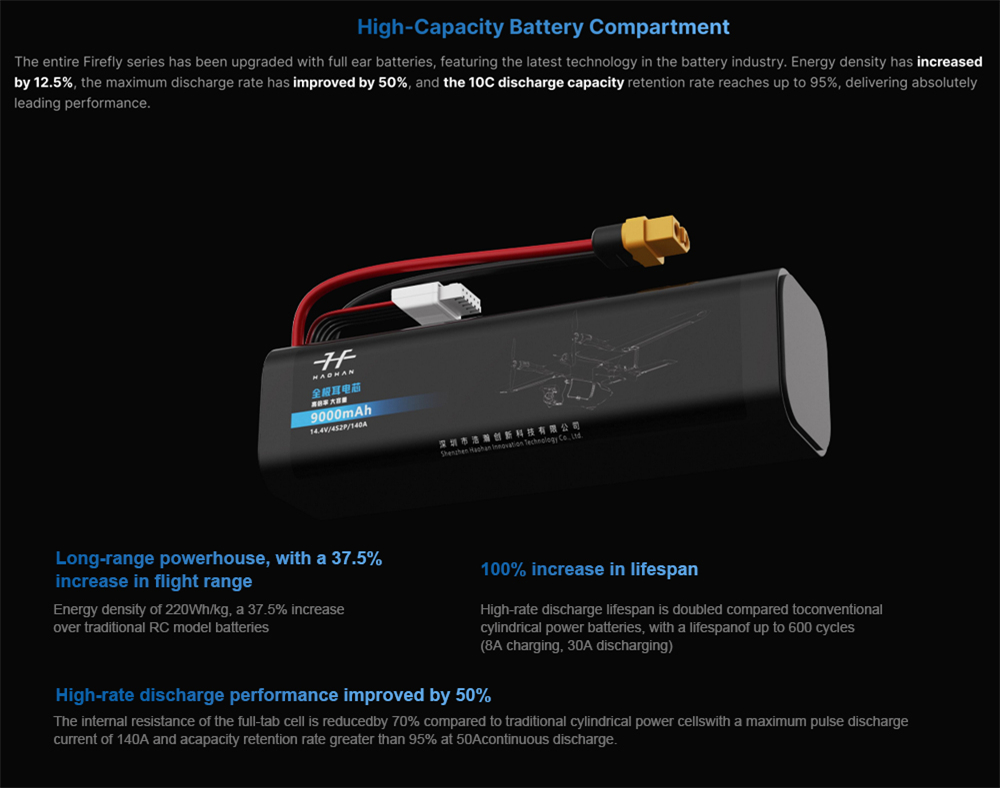

Motor 2216: 1100KVESC: 30APNP Empty Weight: 750gSEMI Empty Weight: 800gPropeller: 1×Carbon fiber PropellerEPP Case Dimensions: 583*453*265mmPackage Dimensions: 600*500*280mmServos: 4pcs 13g metal gear servoRecommended battery: 4S1P 21700 4S2P 21700

Flight Controller Specifications:MCU: 168MHz STM32F405RGT6IMU: ICM42688-P (SPI)Barometer: DPS310 (I2C)OSD: AT7456E (SPI)Blackbox: MicroSD slot (SPI)6x UARTs, 1x Softserial_Tx option (INAV/BF)11 PWM outputs (8 Dshot compatible with BF/ArduPilot)1x I2C4x ADC (VBAT, current, RSSI, airspeed)1 spare PINIO3 XT30ESC power outputsBuilt-in inverter for SBUS input on UART2-RX

PMU Specifications:Input: 9-36V (3-8S battery)PDB: 3x 35A (maximum 3x 50A)BEC: 5V 1.5ABEC: 12V 2ALDO 3.3V: 200mACurrent sensor: 220A, 3.3V analog-to-digital converter (INAV/BF scale 150,ArduPilot 66.7 A/V)Battery divider 1K:20K (INAV-2100, BF-210, ArduPilot BATT_VOLT_MULT 21.0)Dimensions: 33 x 55 x 19 millimetersWeight: 10g

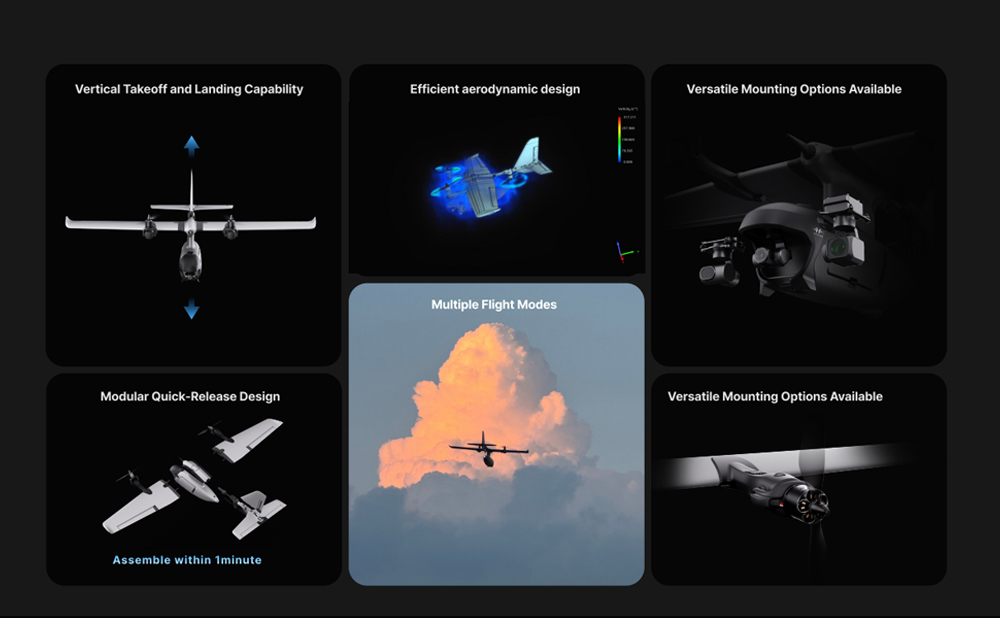

Feature:

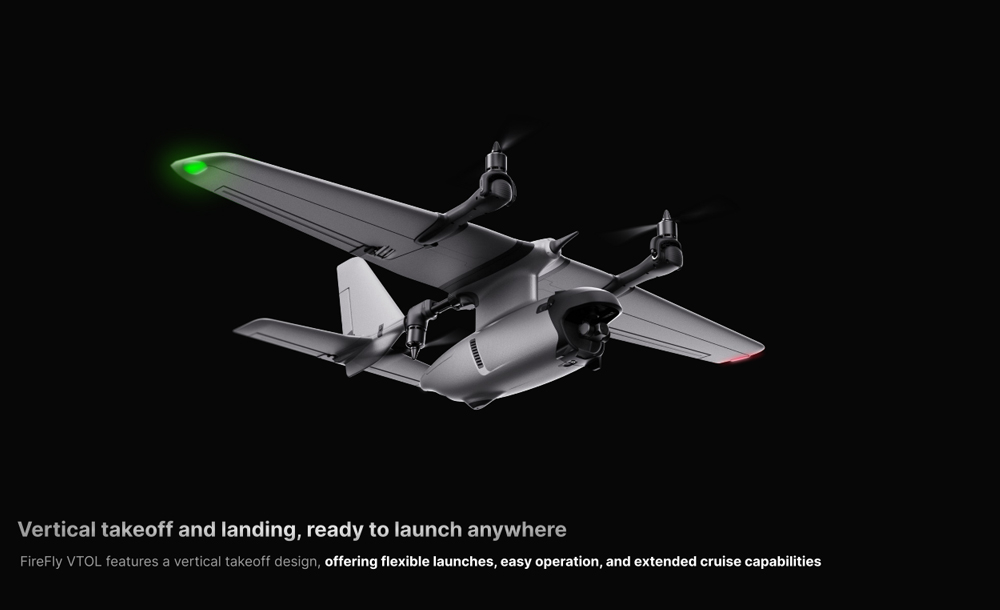

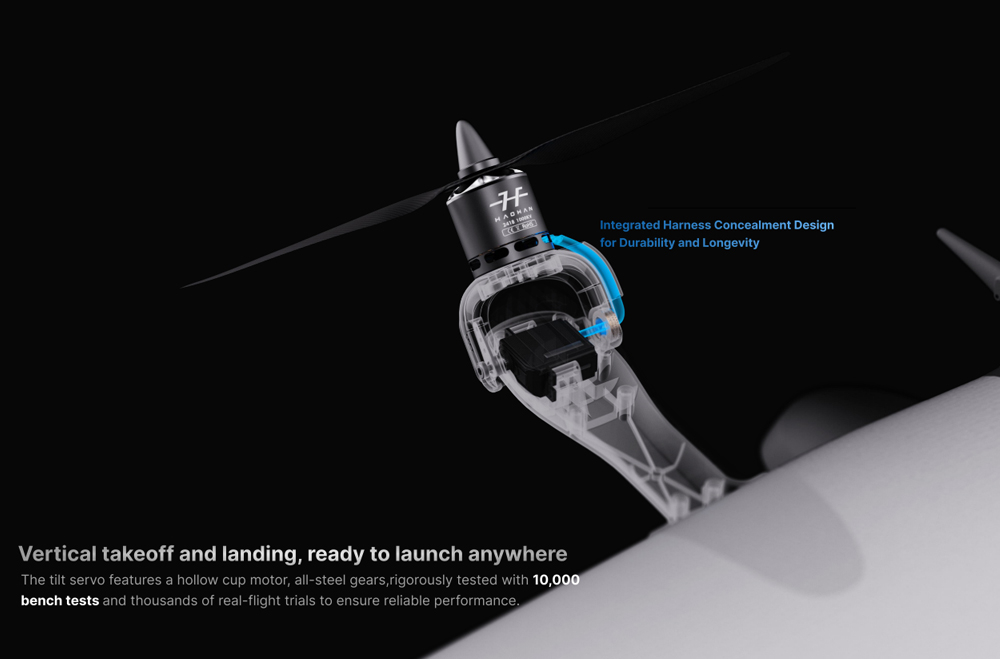

– Effortless Vertical Takeoff and Landing: The FireF1y VTOL PNP/SEMI UAV simplifies aerial launch with its vertical takeoff and landing capability, providing flexibility for various environments.
– Robust Wind Resistance: Engineered to withstand Level 5 wind conditions, ensuring stable and reliable flight even in challenging weather.

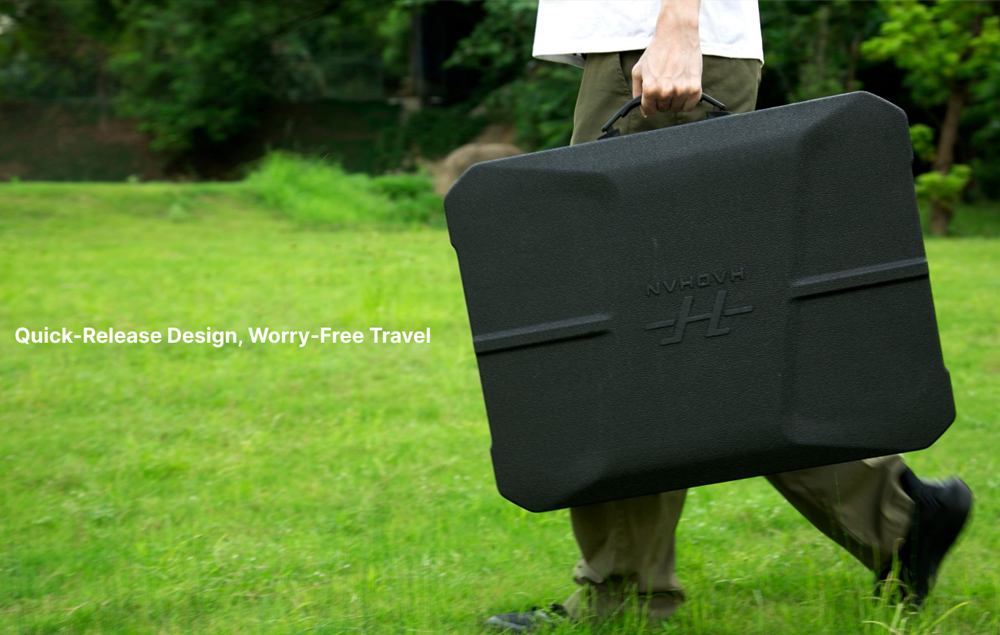

– Quick and Easy Assembly: Modular quick-release design allows for set up in under a minute, perfect for on-the-go operations.

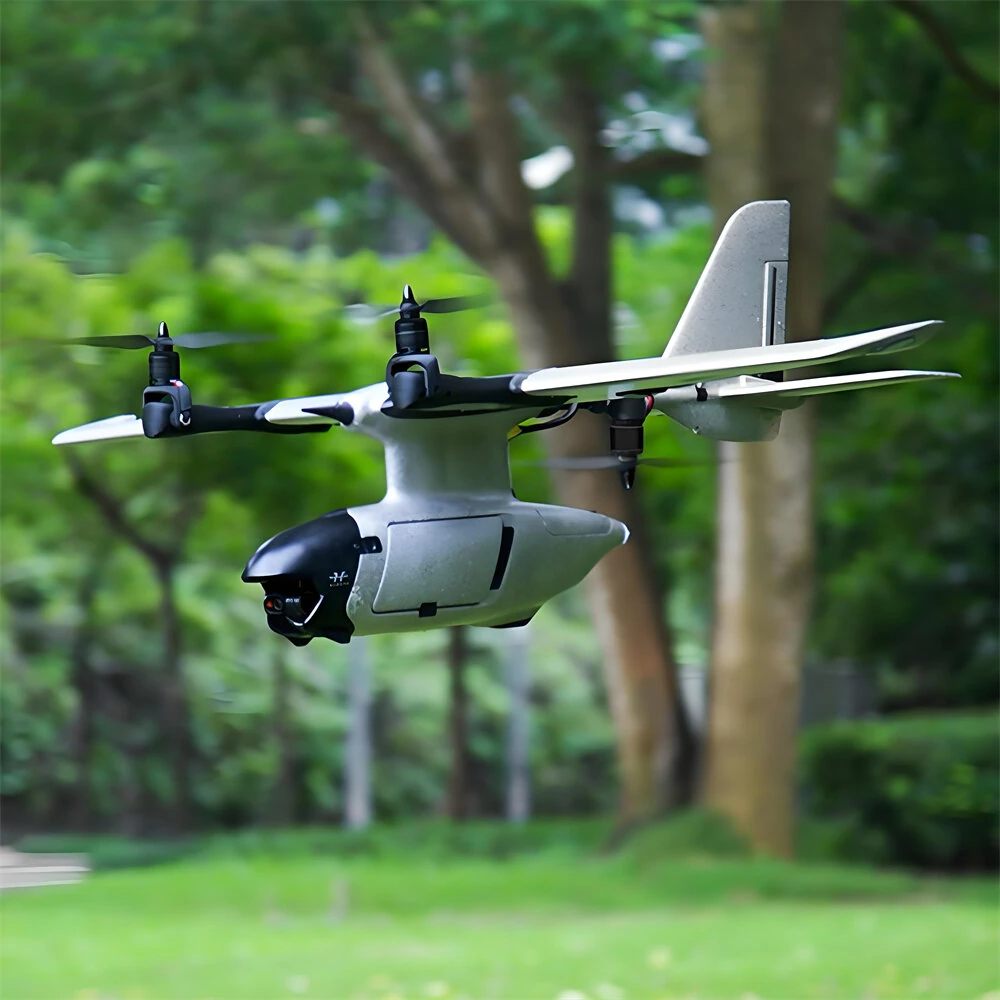

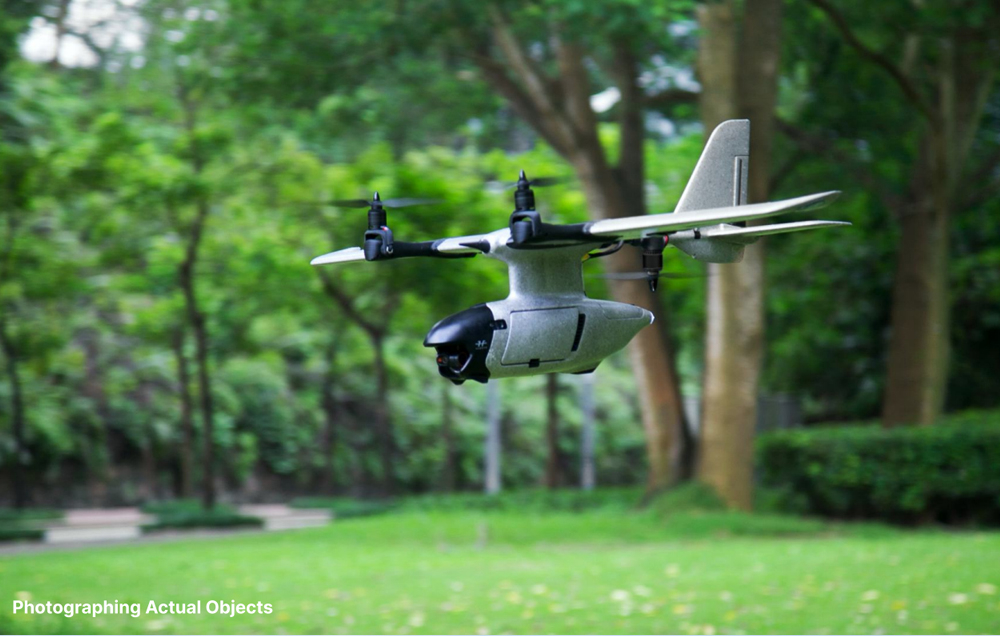

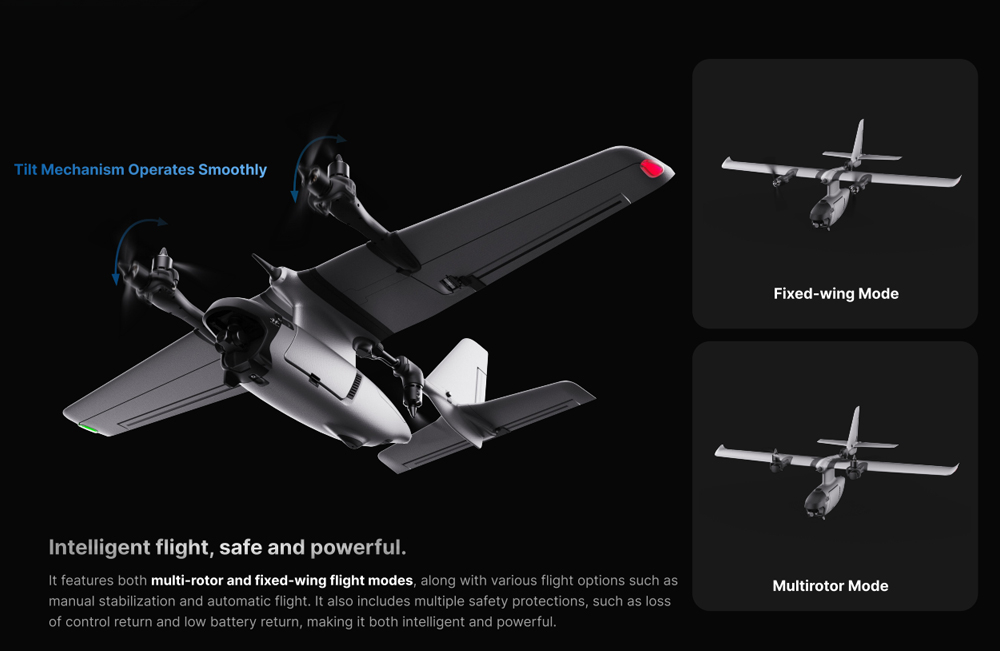

– Multiple Flight Modes: Seamlessly switch between fixed-wing and multi-rotor modes, offering versatility for different missions.
– Extended Flight Time and Range: Achieve up to 90 minutes of flight time and a maximum range of 90km with the Full-Tab Battery 4S2P, ideal for long-duration missions.

Package included:

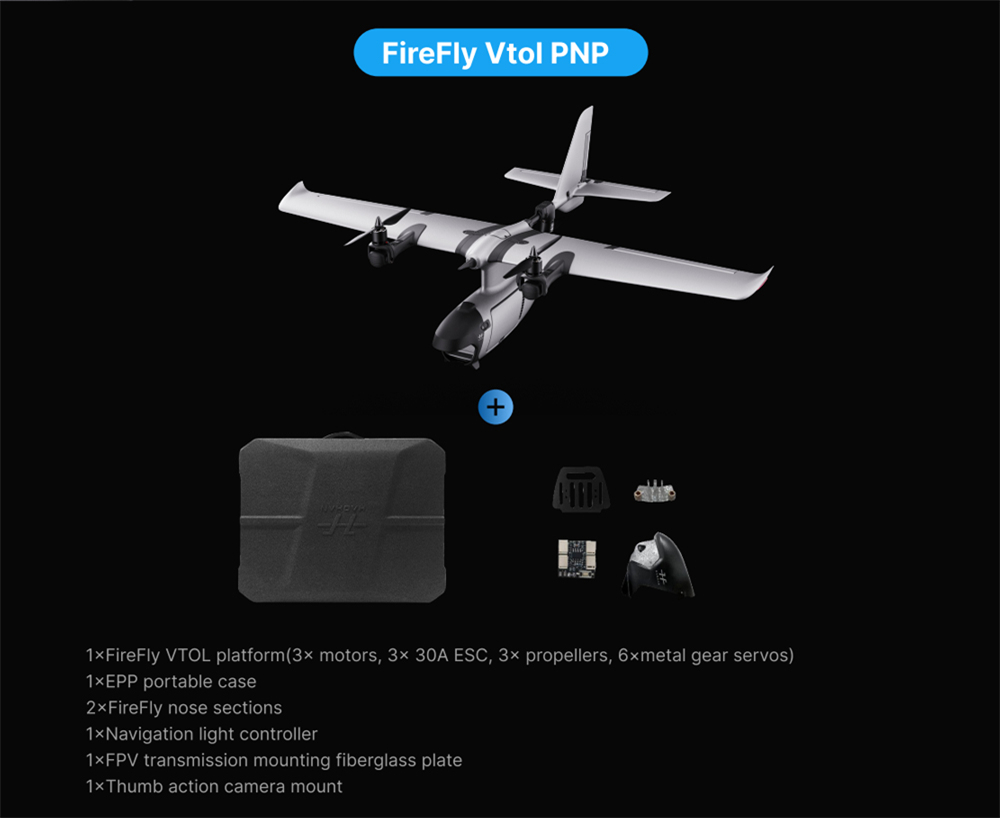

FireF1y VTOL PNP:
1× FireF1y VTOL platform(3× motors, 3× 30A ESC, 3× propellers, 6xmetal gear servos)
1x EPP portable case
2× FireF1y nose sections
1x Navigation light controller
1x FPV transmission mounting fiberglass plate
1× Thumb action camera mount

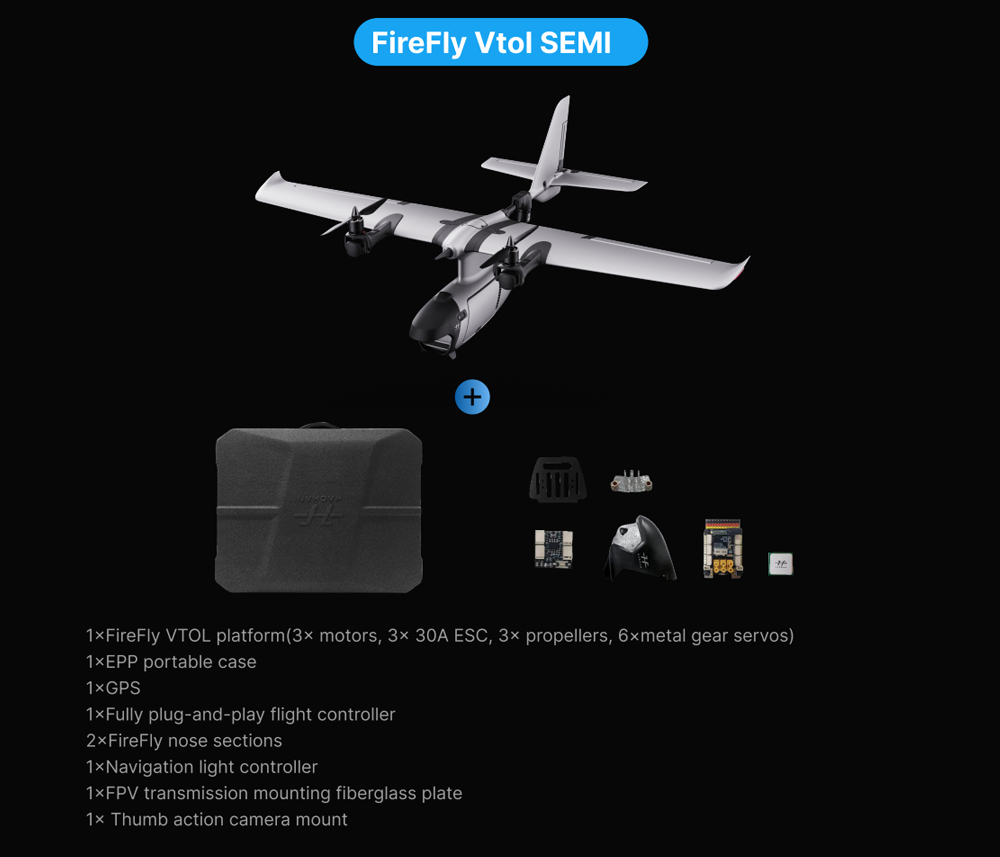

FireF1y VTOL SEMI:
1× FireF1y VTOL platform(3× motors, 3× 30A ESC, 3× propellers, 6×metal gear servos)
1x EPP portable case
1× GPS
1x Fully plug-and-play flight controller
2× FireF1y nose sections
1× Navigation light controller
1x FPV transmission mounting fiberglass plate
1× Thumb action camera mount
