Introduction:

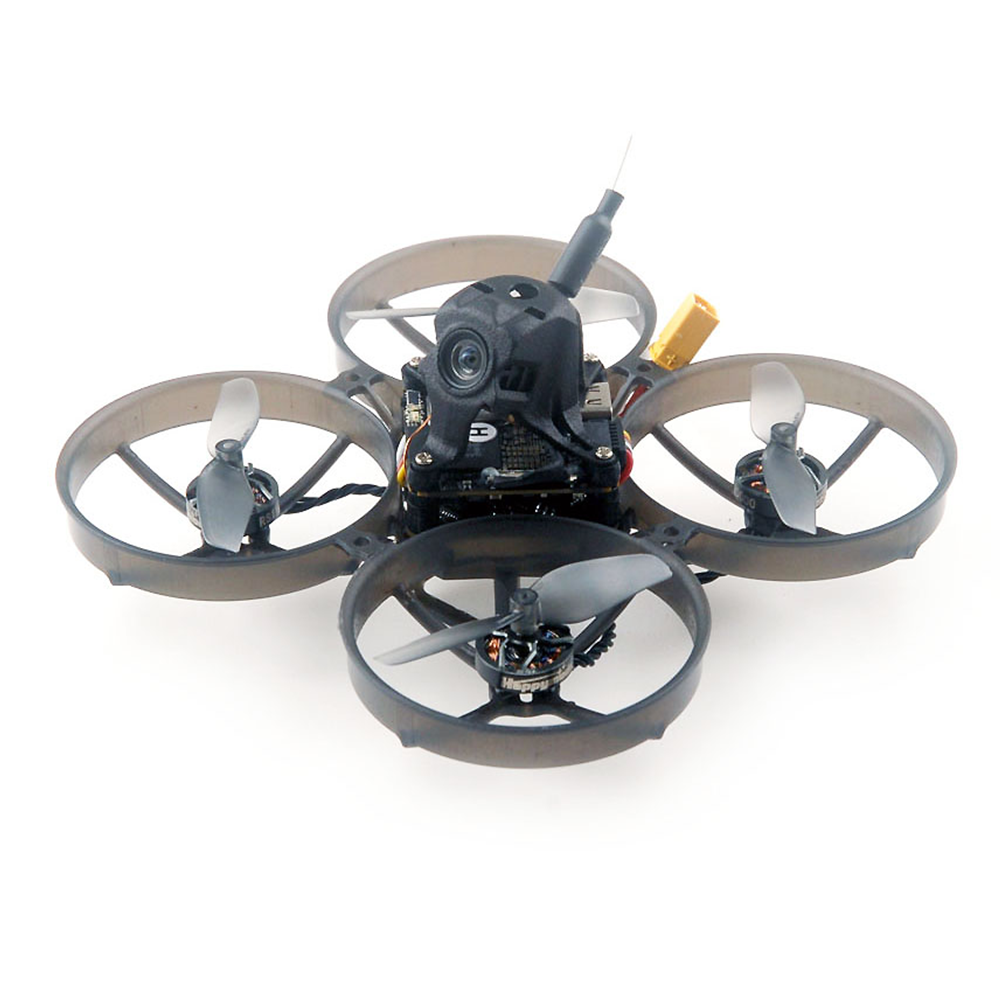

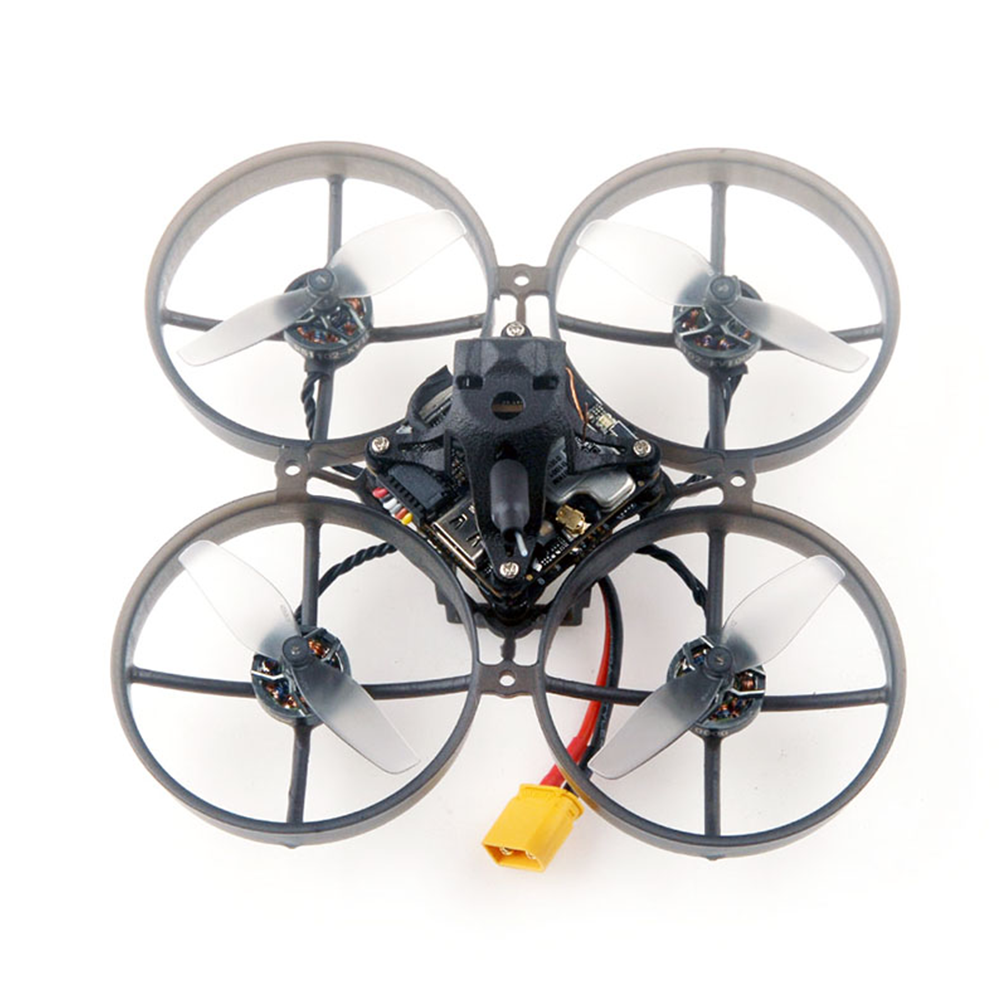

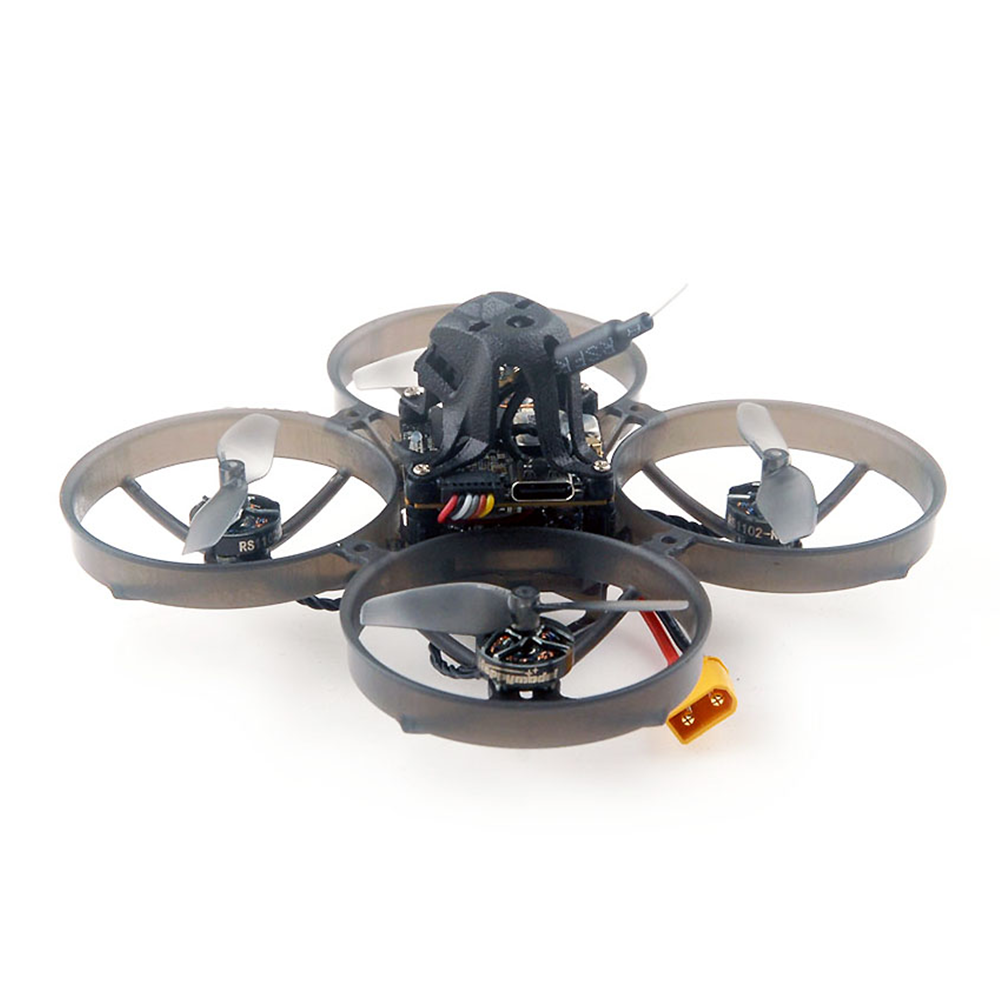

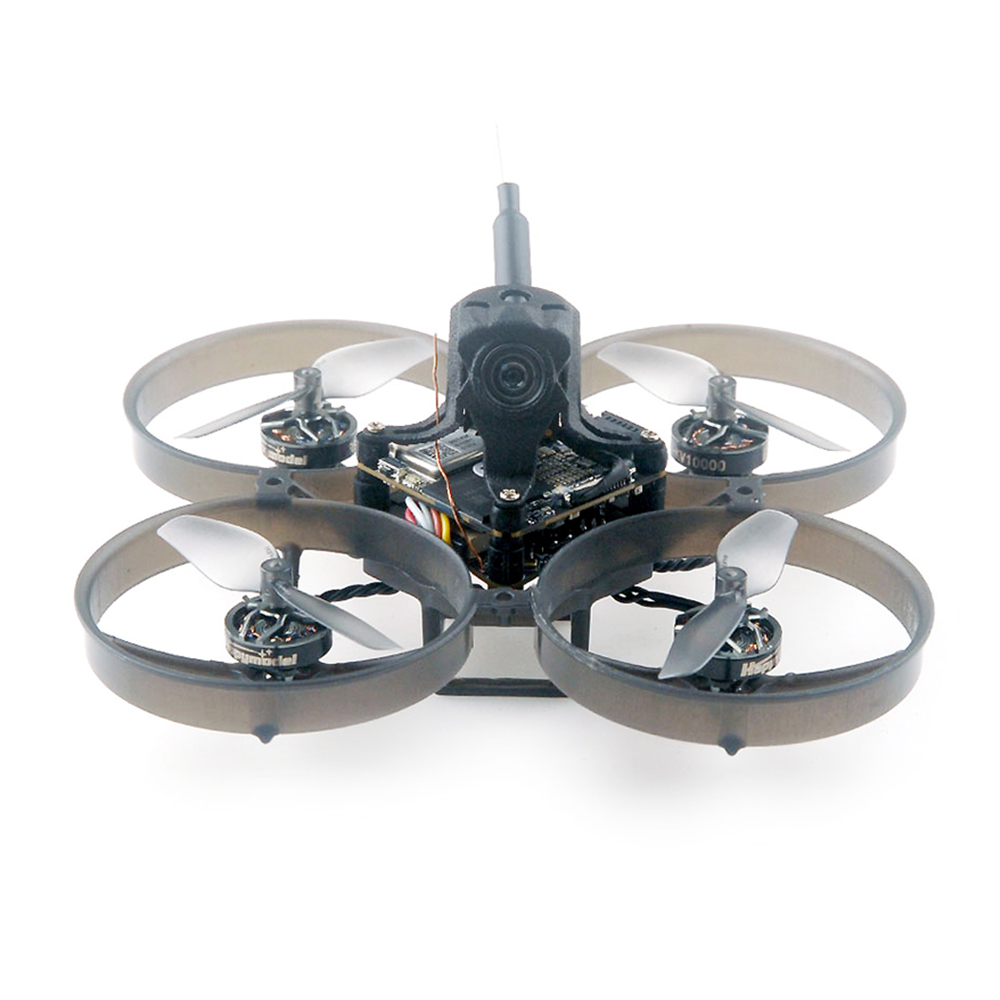

The Happymodel Mobula7 O4 micro FPV whoop comes out now . It comes with the new DJI O4 air unit which would provide excellent and unbelievable FPV footage. And the new Happymodel RS1102 KV10000 motor and HQPROP 45mm propellers ,bring a powerful and smooth flying experience. This would be a good option for indoor and backyard FPV flying.
Features:
– Equipment with New DJI O4 air unit
– 2S battery support Powerful and Smooth freestyle flying
– UART ExpressLRS receiver support stable control link
– Lighter and small for indoor FPV
Specifications:
Brand: Happymodel
Model:
Item Name: DJI O4 2S FPV Drone
|
Motor |
Mode: RS1102 KV10000 |
|
Propellers |
Weight:0.25g |
|
Flight controller |
MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in current meter sensor , current meter scale 470 |
|
Onboard 4in1 ESC |
Power supply: 1-2S LiPo/LiPo HV Firmware target: Z-H-30 |
|
Onboard UART ExpressLRS 2.4GHz Receiver |
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz |
|
DJI O4 Air Unit |
Weight: Air Unit (camera module included): Approx. 8.2 g Transmission Module: 30×30×6 mm (L×W×H) Camera Module: 13.44×12.36×16.50 mm (L×W×H) Camera Cable Length: 50mm Coaxial Cable: 50 mm 3-in-1 Cable: 50 mm Operating Frequency: 5.170-5.250 GHz 5.725-5.850 GHz Operating frequency varies by region. Refer to local regulations. Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE) 5.8 GHz: <30 dBm (FCC) <14 dBm (CE) <30 dBm (SRRC) Live View Quality: 1080p at 30/50/60/100fps |
Recommend Battery(Not Include): GNB 2s 380/450/550mah
Package Includes:
|
Item Name |
Qty |
|
Happymodel M80 Frame |
1 |
|
CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4 |
1 |
|
RS1102 KV10000 brushless motor |
4 |
|
HQPROP 45MMX2 bi-blade propellers(4cw+4ccw) |
1 |
|
DJI O4 Air unit |
1 |
|
Canopy |
1 |
|
Screw driver |
1 |
