Specifications:
Brand Name: Happymodel
Model: X12 ELRS Pro
Item Name: X12 ELRS Pro AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX
Betaflight firmware target:
betaflight_4.4.0_STM32F411
VTX antenna: U.FL

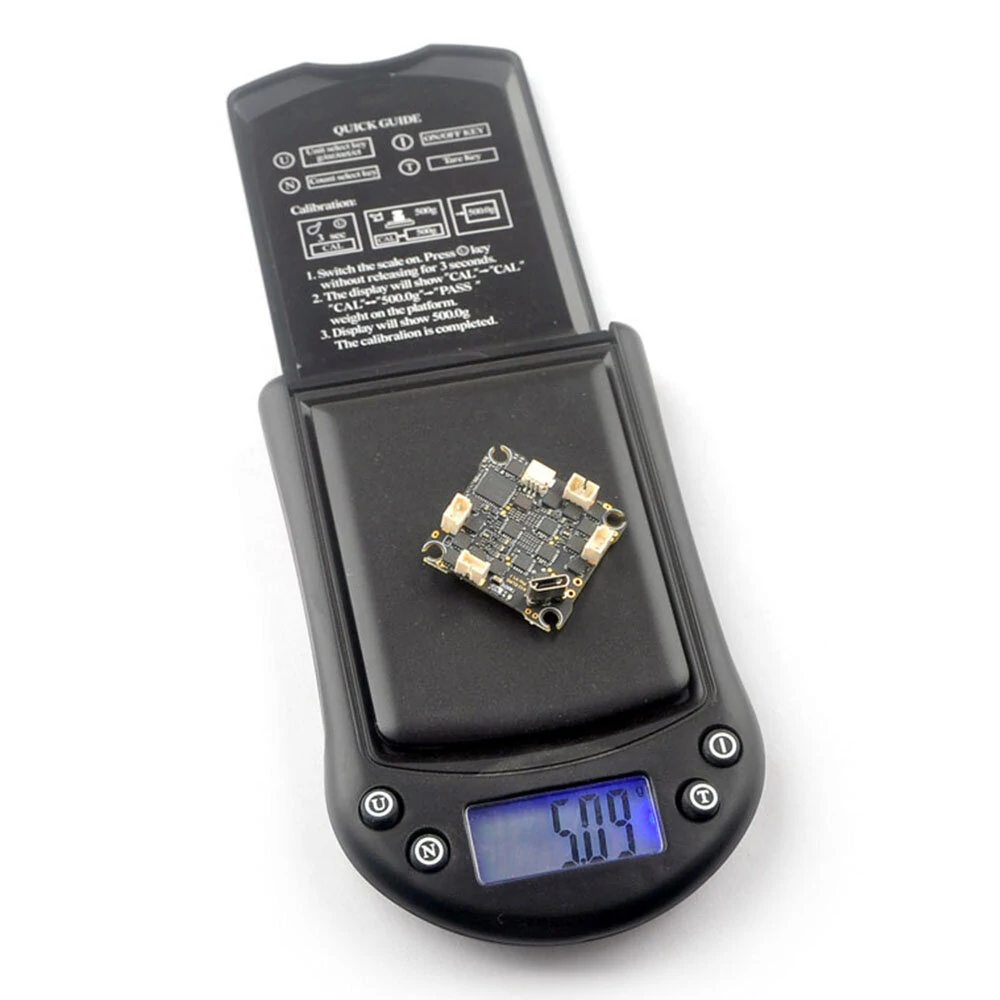

Weight: 5.1g
Size: 30x30x8mm
|
Flight controller |
X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4 Built-in Betaflight OSD(SPI Control) Built-in current meter sensor , current meter scale 470 |
|
Onboard 4in1 ESC |
Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Recommend ESC Startup power value to min1100/max1200 |
|
Onboard UART ExpressLRS 2.4GHz Receiver |
Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 Antenna : SMD antenna Receiver protocol: Serial_based CRSF Compatible with ExpressLRS V3.x.x TX Module Could flash single ELRS receiver firmware by Wifi ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx |
|
Onboard 5.8g OPENVTX |
Firmware version: OPENVTX MSP VTX PIT Mode support Channels:40ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U.FL |

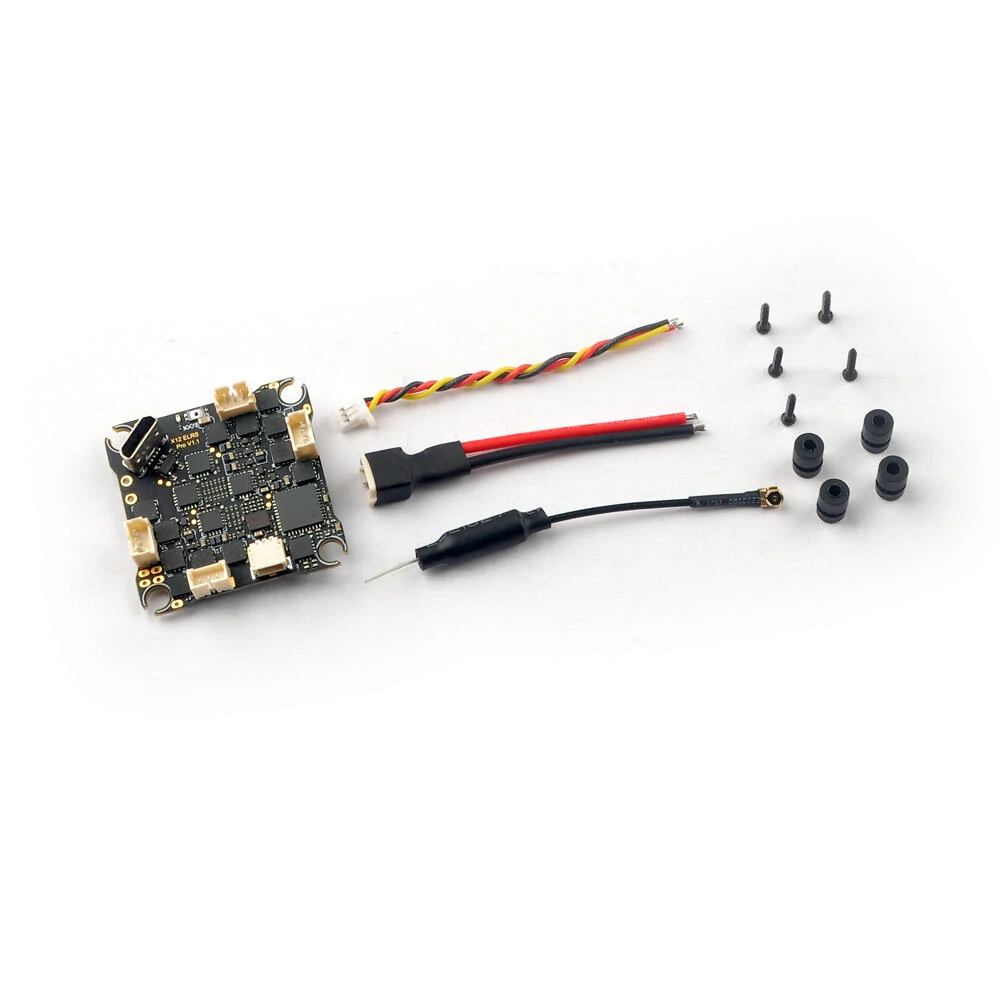

Package Inlcuded:
1x X12 ELRS Pro v1.1 5IN1 AIO Flight Controller
1x Antenna
1x Connection Cable
1x Plug Connector Cable
1x bag of Screws
