Note:This product does not include a camera, which needs to be purchased separately.

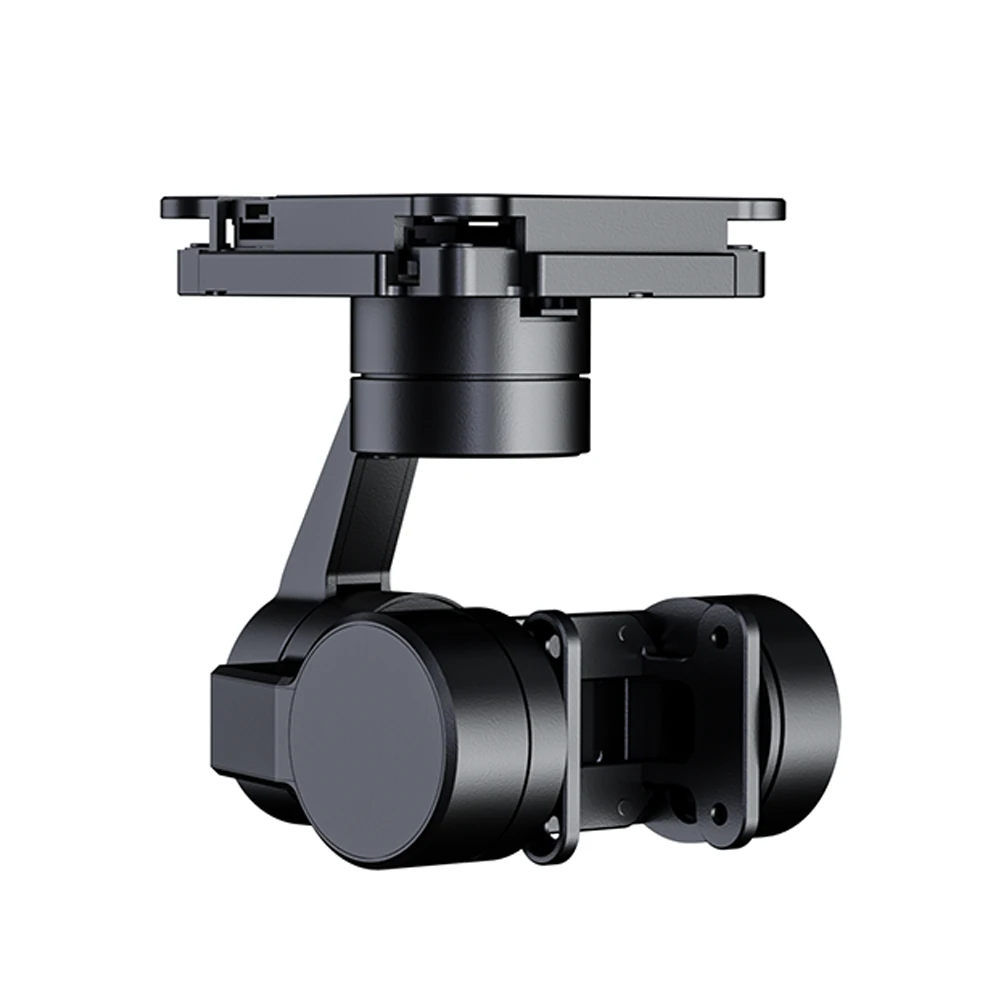

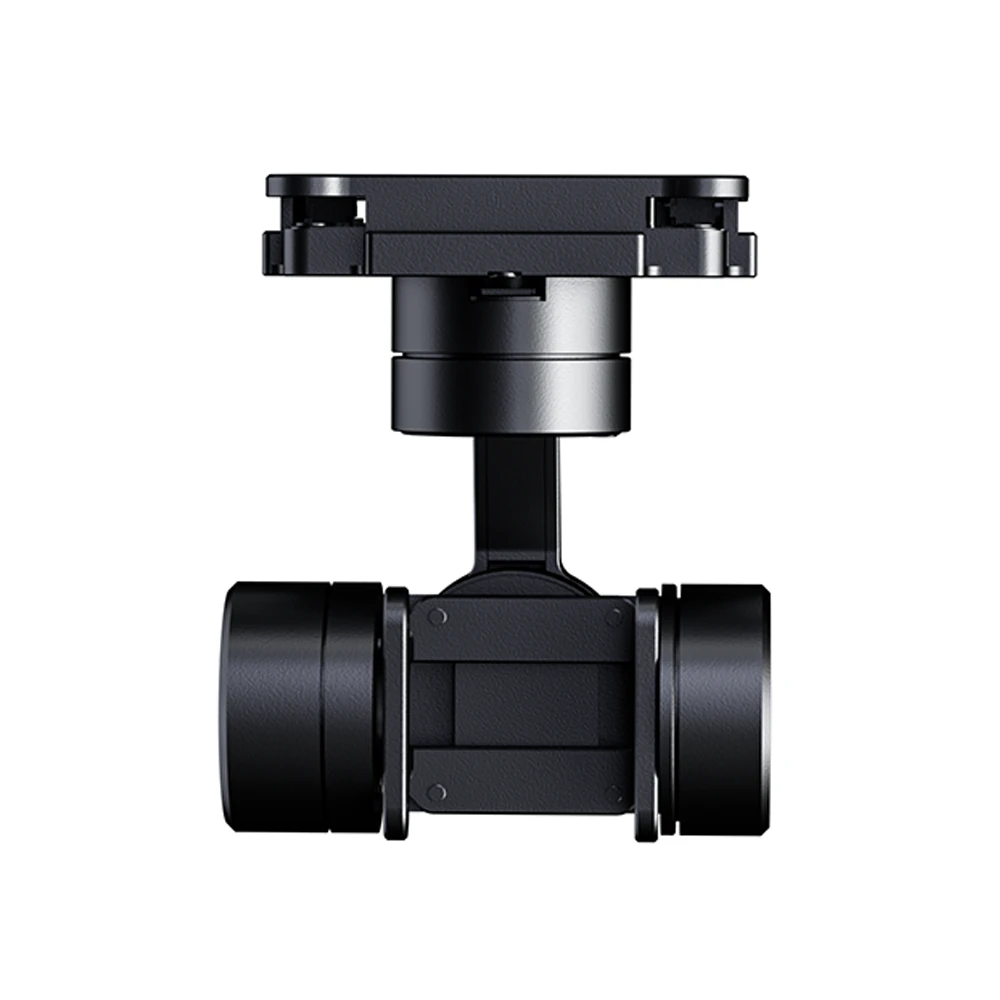

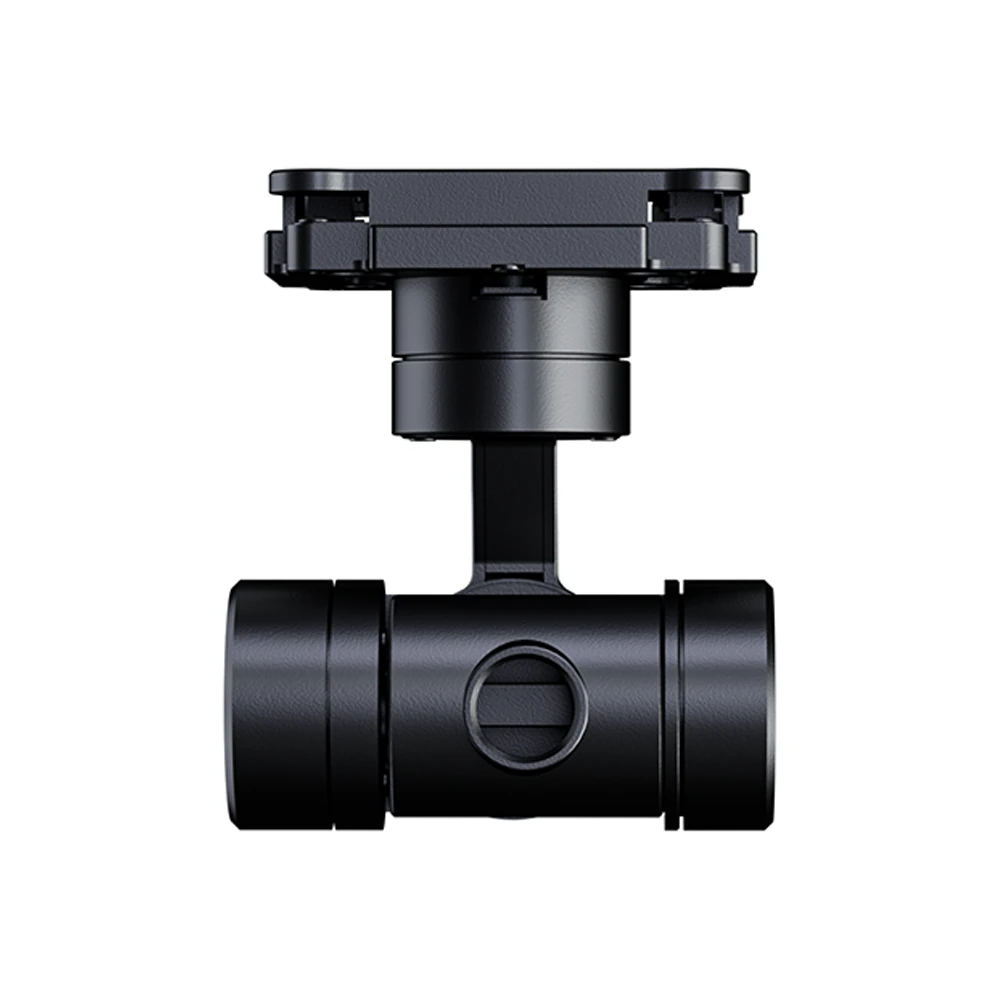

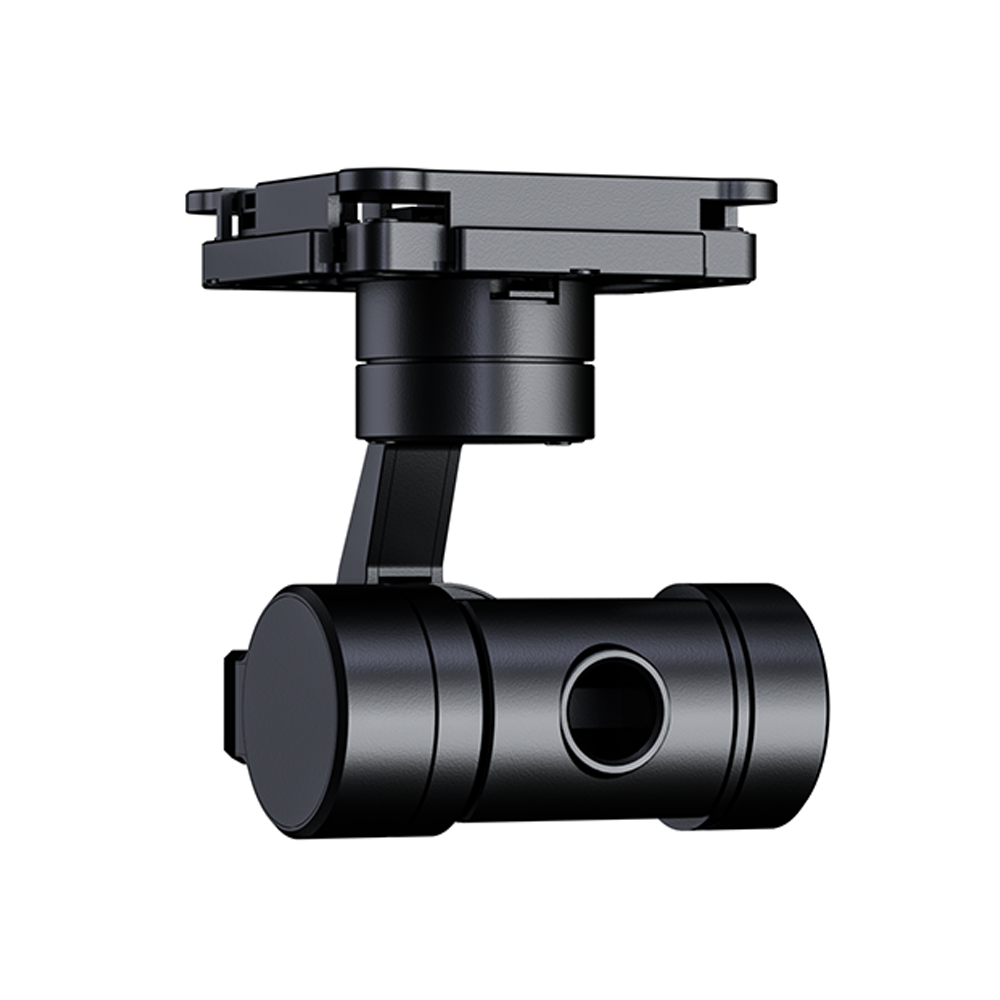

Description:G-port is a three-axis gimbal component developed by HEQ for fixed-wing FPV and drone enthusiasts. G-port has high stability and supports upright and inverted installation. It can be installed with O4 series only, supports sbus, pwm, mavlink input, and is compatible with a variety of flight platforms, allowing players to quickly build their own personalized gimbal camera.
Specification:
| Brand: | HEQ |
| Model: | G-PORT 3-axis Mechanical Gimbal DJI O4/O4 PRO Air Unit |
| Gimbal Angle: | Pitch: -135° to 45°Yaw: -135° to 135°Roll: -45° to 45° |
| Support Control Methods: | sbus, pwm, mavlink |
| Support Camera Types: | DJI O4/ O4 Pro Only |
| Power Supply Range: | 12v~18v |
| Weight: | DJI O4 Air Unit: 75gDJI O4 Air Unit Pro: 71g |
Download
| G-Port Gimbal serial communication protocol | The serial communication protocol of G-Port and G12 is the same |
| G-Port Manual | Please download according to your needs |
If you need to know more about gimbal head tracking for DJI O3, please click Here to learn more.
Package included:1 X G-port Gimbal Assembly3 X G-port Cable1 X Bracket Carbon Plate4 X Shock-absorbing Ball6 X Matching Screws1 X Certificate of Conformity1 X Instruction Manual
