HMRC 1.3GHz 8CH 25mW/800mW 7-36V FPV Transmitter Receiver Module Video Transmission Set for RC Drone Airplane Long Range

Description

Specifications:

Model: 1.3G VTX transmitter module/1.3G receiver module

Video Input Format: CVBS PAL/NTSC

Frequency Band: 1060-1380MHz

Channels: CH5-1240, CH1-1080, CH2-1120, CH3-1160, CH4-1200, CH6-1280, CH7-1320, CH8-1360

Transmit Power: 25mW/800mW

Input Voltage: DC 7-36V (3-6S Lipo)

Dimensions: 45mm × 21.5mm × 6.5mm
Weight: 8g (VTX only)

Features:

Operates at a stable 1.3GHz frequency across 8 distinct channels.
Seamless integration with the IRC VTX control protocol.
Powerful transmission with lossless 800mW output.
Versatile power input options ranging from 7-36V (ideal for 3-6S Lipo batteries).
Package includes a dedicated transmitter antenna for enhanced signal clarity.

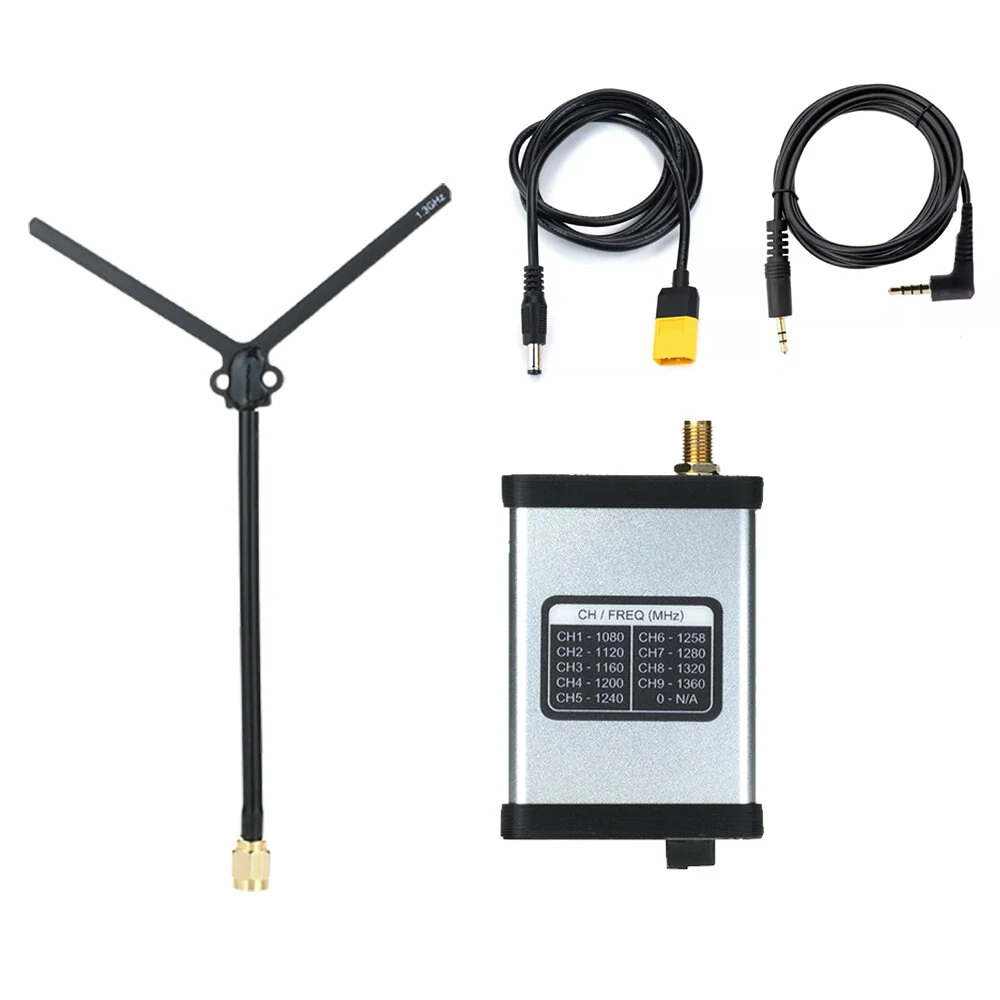

Package included:

1.3G 800mW VTX transmitter set:

1x 1.3G VTX

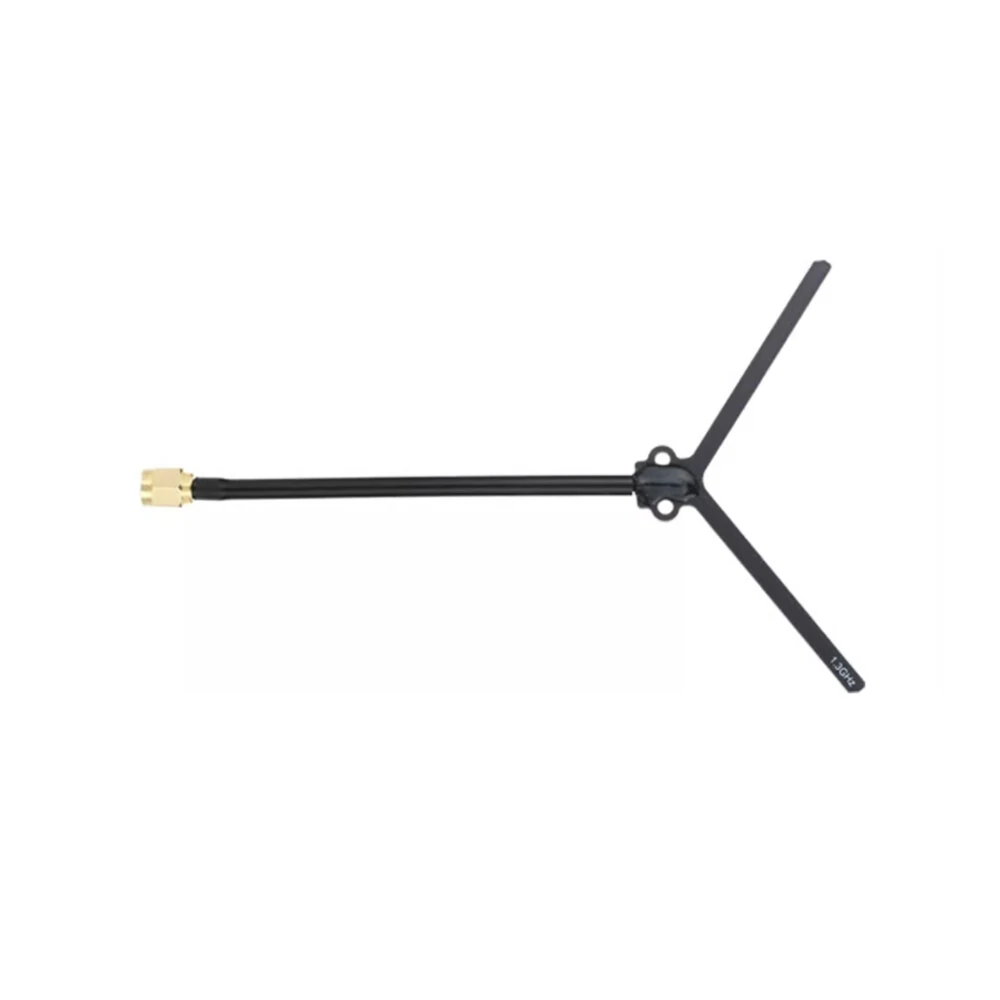

1x 1.3G Y-type antenna

or

1.3G VRX receiver set:

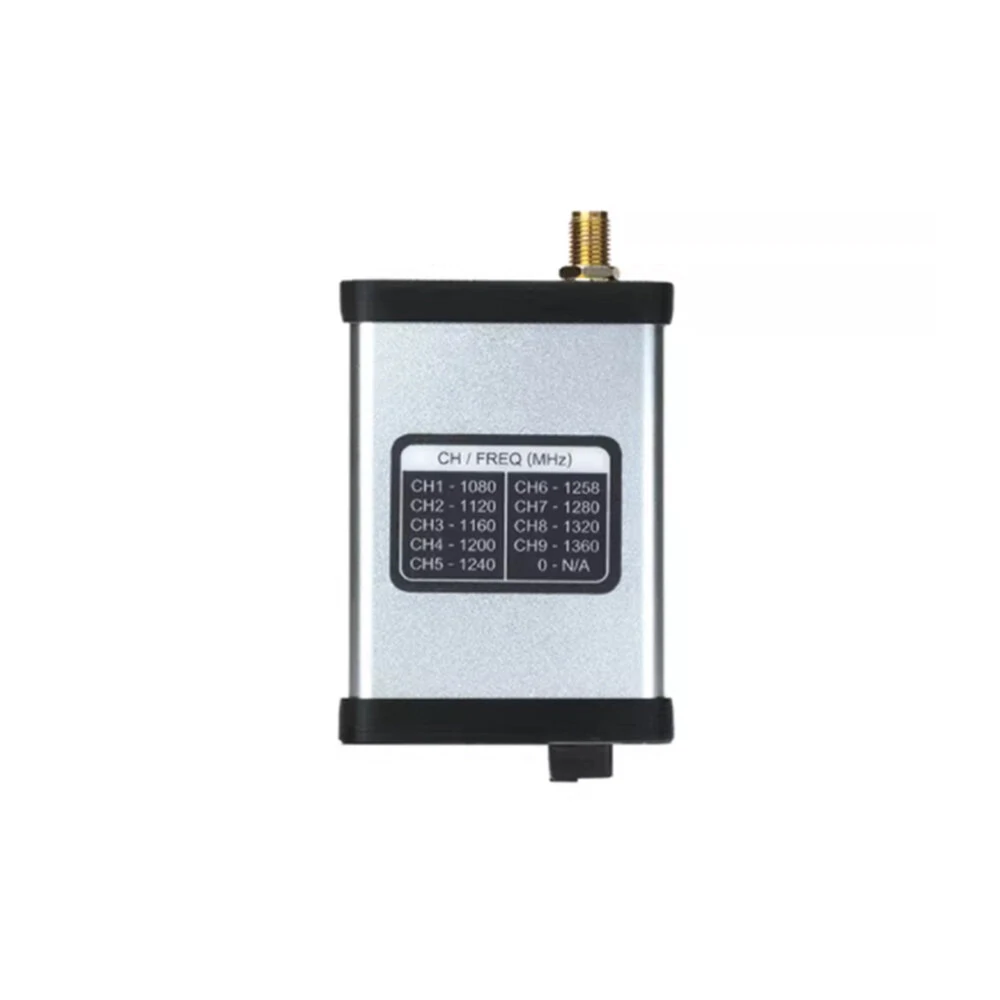

1x 1.3G receiving module

1x 1.3G Y-type antenna

1x Power cord

1x 3.5mm video cable

or

1x 1.3G 800mW VTX transmitter set

1x 1.3G VRX receiver set
