HobbyWing Brushless Motor and ESC MAX10 G2 80A 140A 3652 3665 G3 Motor For 1/10 RC Car Parts

Description

Description:

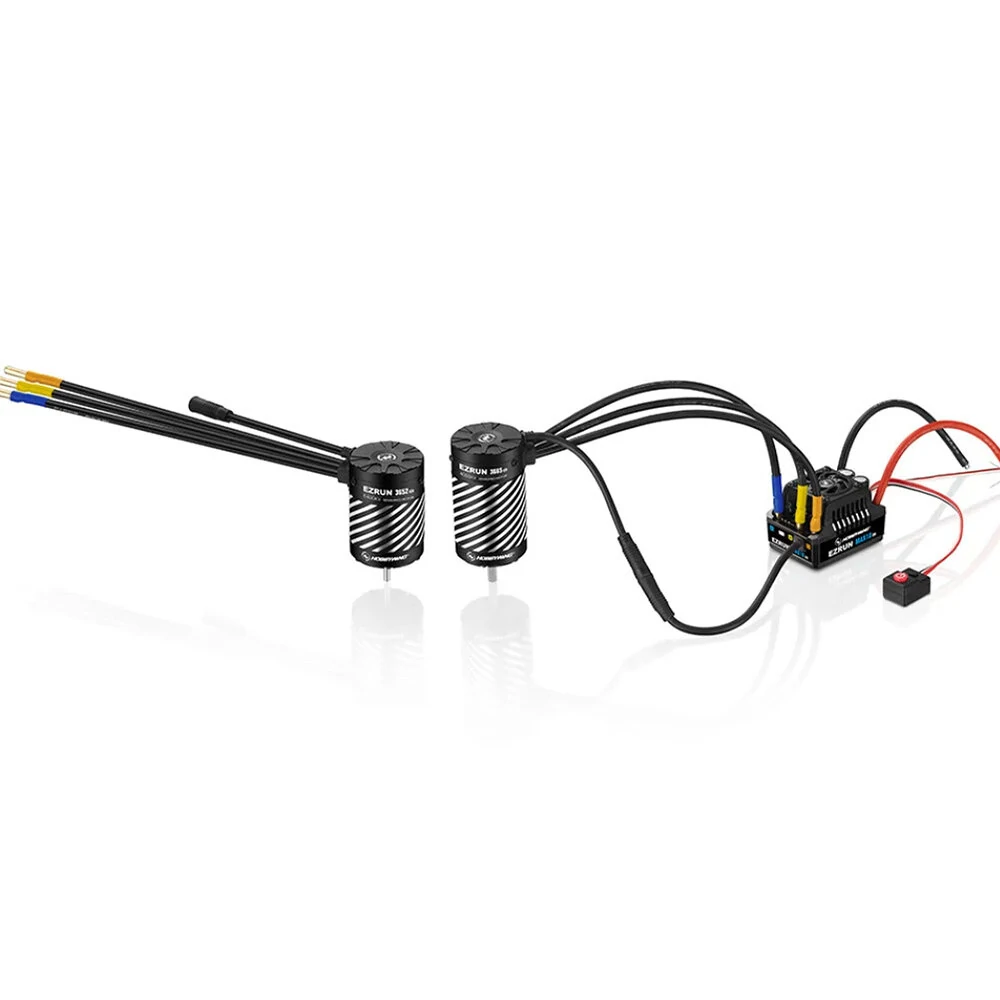

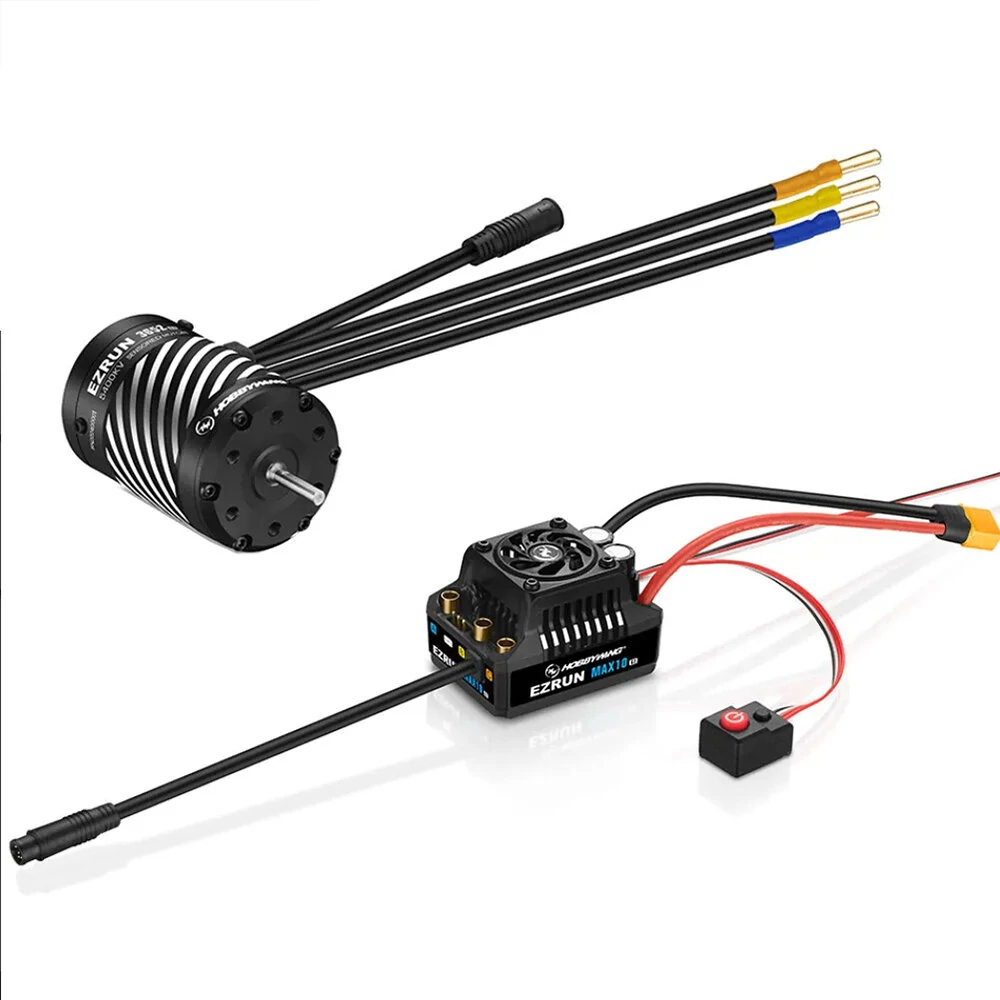

HobbyWing EZRUN G3 Brushless RC Motor 3652 3665 and MAX10 G2 ESC 80A 140A suitable for For 1/10 Scale RC Truck Car.The change of a sensored motor,increases performance.The EzRun 3652/3665 SD G3 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve motor temperature protection and perfectly matches.Compared with the previous generation motor, the output power and efficiency are increased by more than 3%. Under the same load temperature is effectively reduced.

Specification:
Brand name: HobbyWing
Iterm Name: EZRUN G3 Brushless Motor
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 4
O.D.(mm): 37

3652SD
Length (mm): 53
Shaft Diameter (mm): 3.175(0.125in)
Weight (g): 228g
Front Bearing: D13*D5*T4
Rear Bearing: D11*D5*T5
Applications: 1/10thOn-road/Off-road Short Course Truck(Light-duty)

3300KV
LiPo Cells: 2-3S
No-load Current(A): ≤3.9A

4100KV
LiPo Cells: 2-3S
No-load Current(A): ≤5.0A

5400KV
LiPo Cells: 2S
No-load Current(A): ≤6.8A

3665SD
Length (mm): 65.8
Shaft Diameter (mm): 5
Weight (g): 304g
Front Bearing: D16*D5*T5
Rear Bearing: D11*D5*T5
Applications: 1/10thShort Course Truck Truggy/Monster

2400KV
LiPo Cells: 2-4S
No-load Current(A): ≤5.2A

3200KV
LiPo Cells: 2-3S
No-load Current(A): ≤7.1A

4000KV
LiPo Cells: 2-3S
No-load Current(A): ≤8.2A

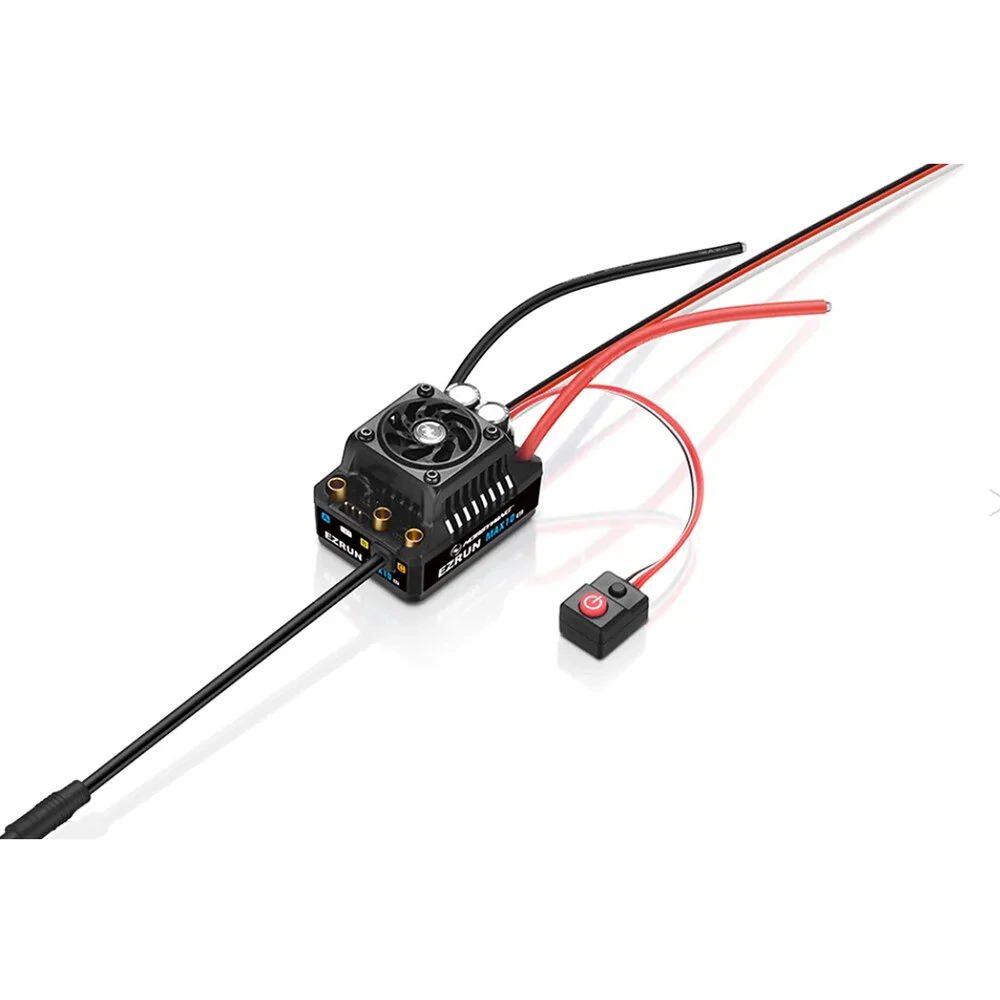

Iterm Name: EzRun MAX10 G2 ESC
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof

80A
Cont/Peak Current: 80A/520A
Input Voltage: 2-3S Lipo
BEC Output: 6/7.4V,5A

140A
Cont/Peak Current: 140A/880A
Input Voltage: 2-4S Lipo
BEC Output: 6/7.4V,5A

Features:

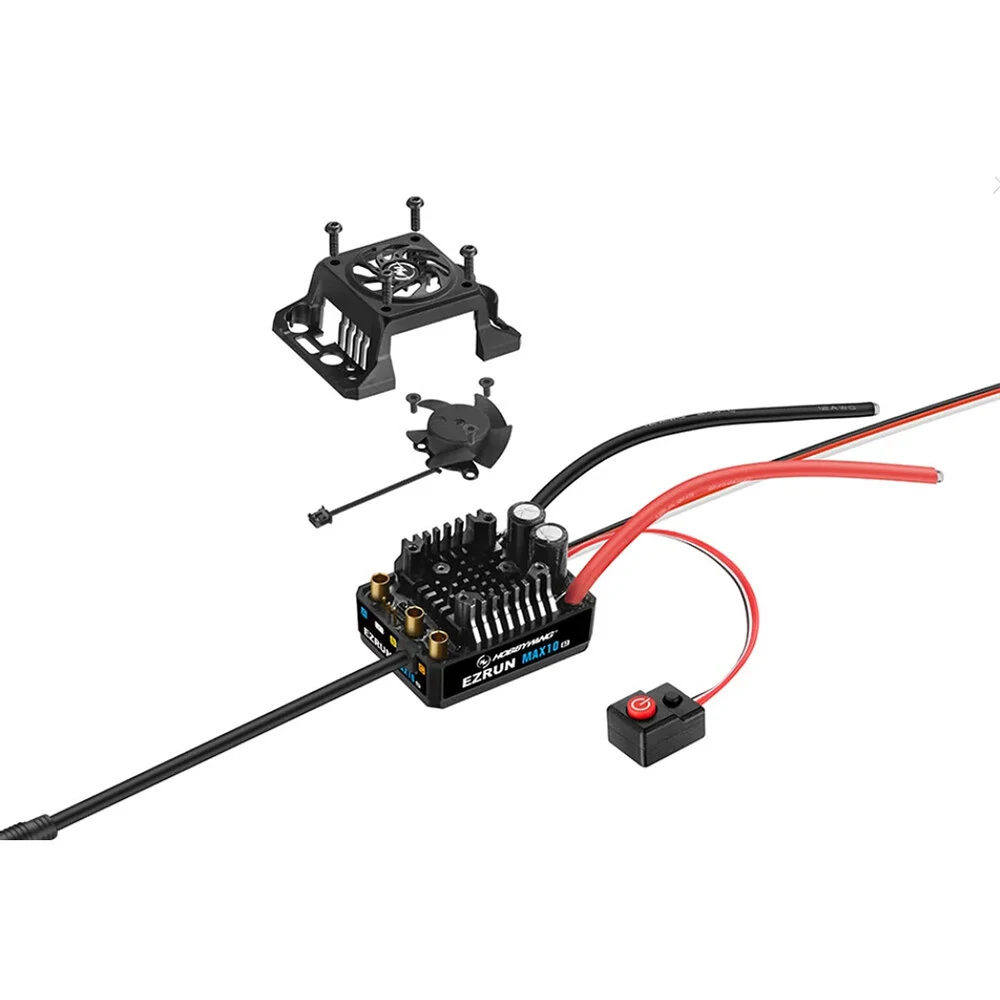

1.Hobbywing ESC: Hobbywing EZRUN MAX10 G2 80A/140A ESC has Smart technology .Patented frameless fan increases heat dissipation effectiveness.Large capacitor built-in, double explosion-proof. Smart freewheeling technology, higher efficiency

2.RC ESC Application: The MAX10 ESC suitable for 1/10 RC Car Monster Trucks On-road/Off-road Short Course Truck

3.4S ESC: Input Voltage: 2-4S Lipo/140A 2-3S Lipo/80A

4.Brushless ESC: Supports Turbo timing adjustment of up to 32 degrees,and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more.Turbo timing adjustment 32Degrees.The speed is significantly increased up to 25%

5.Sensored ESC: The Ezrun Max10 G2 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of throttle response and perfectly matches the Ezrun 3652/3665 SD G3 motors.Note: Overheating protection is ONLY possible when it is paired with Hobbywing Ezrun, 3652 3665 G3 motor.

Package Included:
1x ESC
OR
1x Motor
