Specifiation:

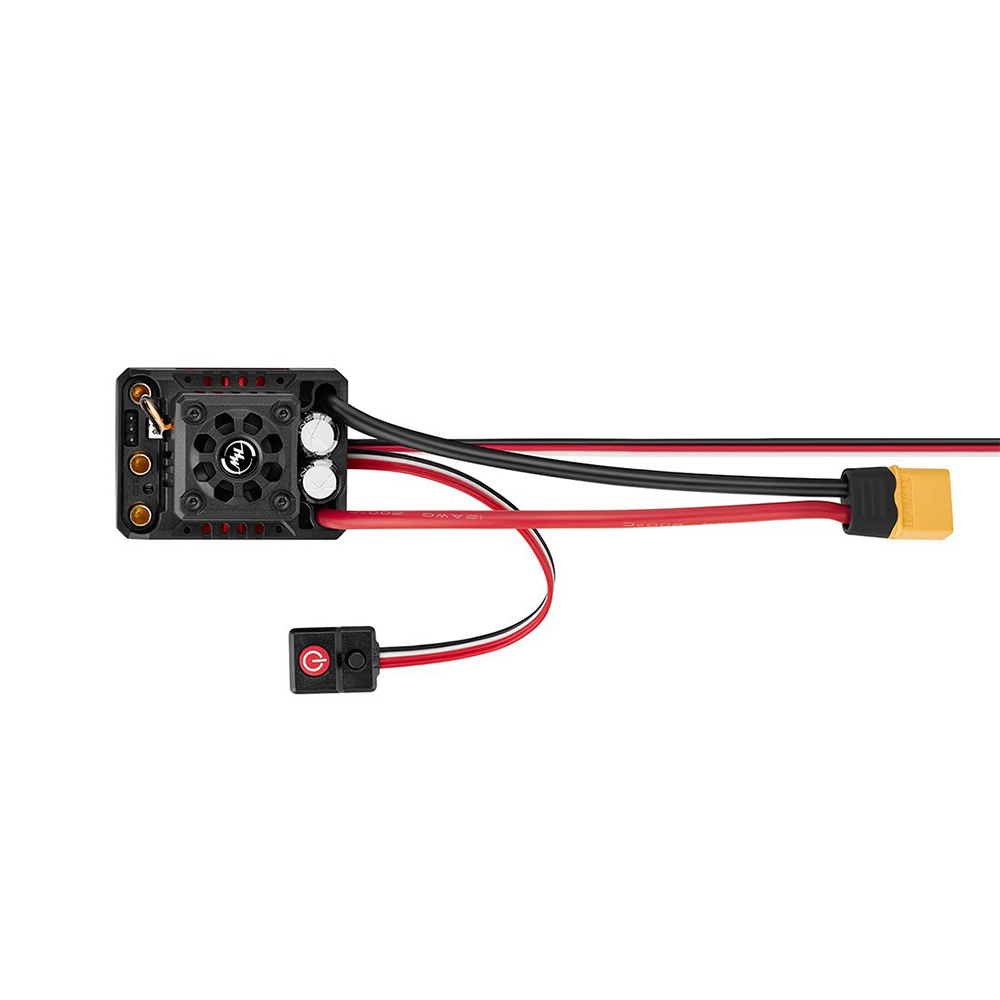

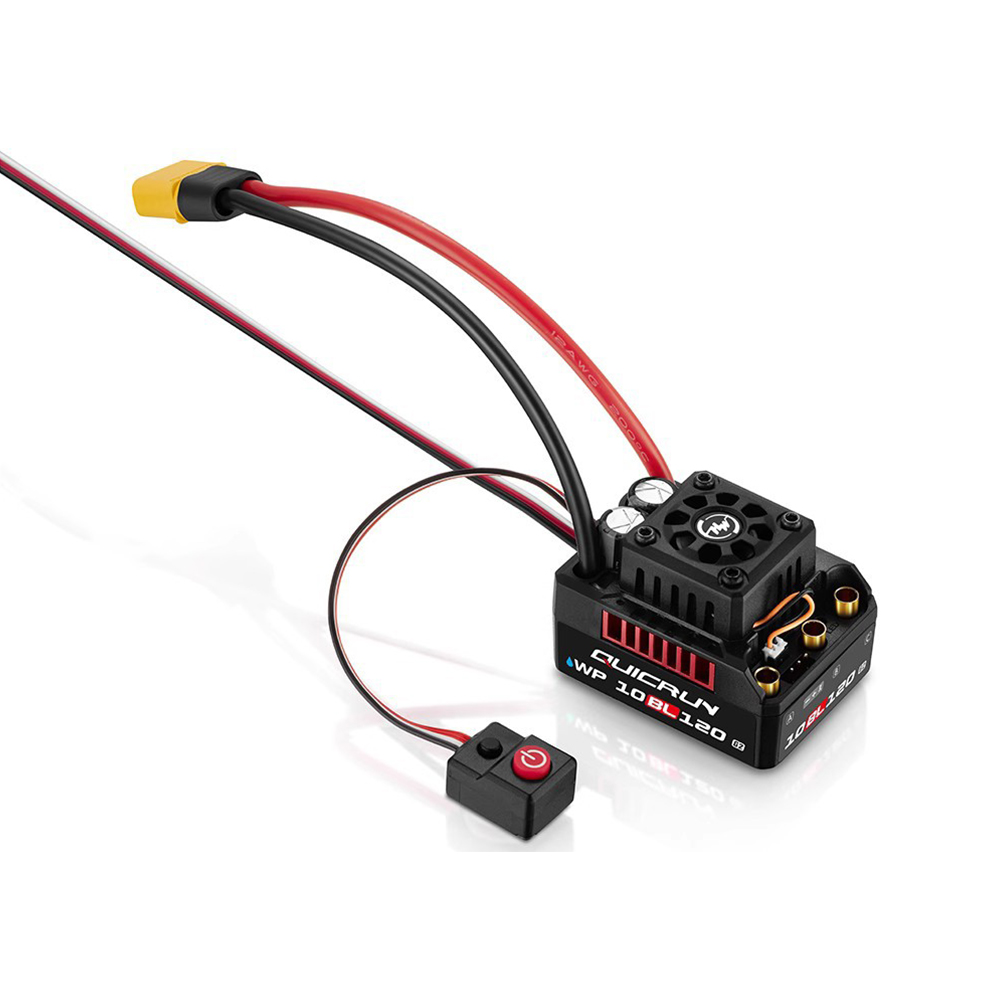

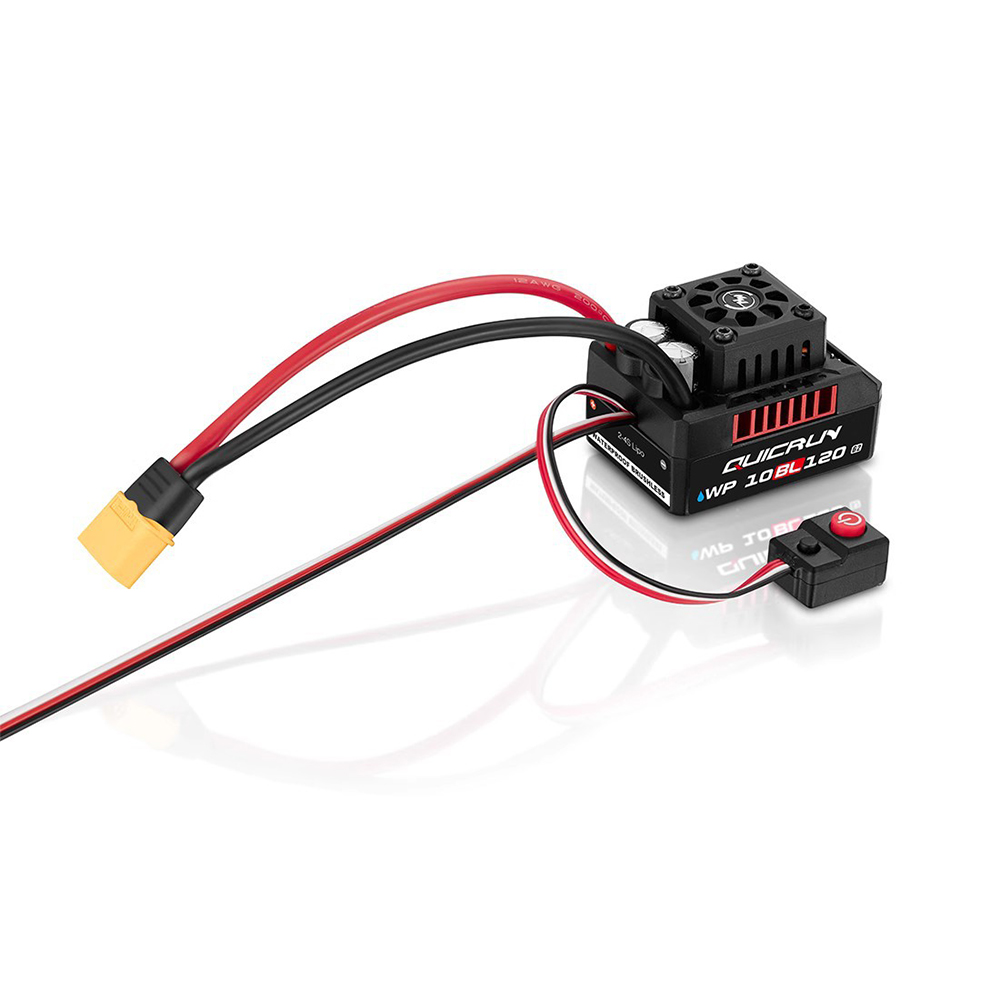

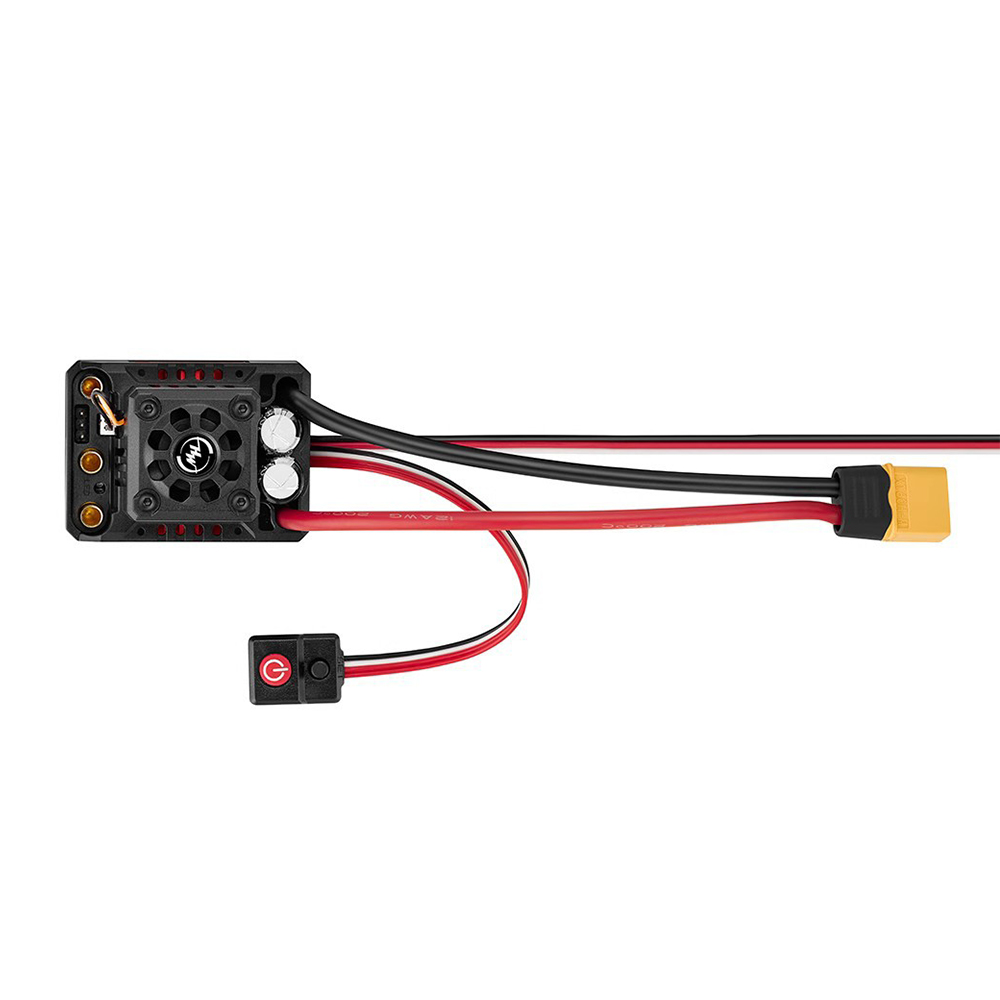

Product Name: QUICRUN WP 10BL120 G2
No.: 30107200
Type
Scale: 1/10th
Brushed / Brushless: Brushless
Sensored / Non-sensored: Non-sensored
Waterproof: Waterproof
Basic Parameters
Continuous / Peak Current: 120A/760A
Number of Battery Cells: 2S-4S Lipo
BEC Output: Switching Mode 6V/7.4V @5A
Wires and Plugs
Power Cord: Black-12AWG-150MMmm*1 Red-12AWG-150MMmm*1
Output Plug: 4.0 Gold Female Plug
Fan
Size: 25x25x10mm
Supported Voltage Range: 5-7.4V
Power Supply Method: Power Supply from BEC
Parameter Programming Method
SET Button of ESC: Not Supported
LED Setting Box: Supported
LCD G2 Setting Box: Supported
OTA Programmer: Not Supported
Programming Interface: Independent programming port
Firmware
Firmware online upgrade: not supported
Dimensions and weight
Dimensions: 52.8*39.8*38.2mm
Weight: 119g (including wire plug)
Application
Supported motor types: sensorless brushless motor/sensored brushless motor (only works in sensorless mode)
Applicable models: 1/10 short truck/truck/monster truck
Applicable motors: 3652, 3660 size motors
Features:
1.Excellent waterproof and dustproof performance, it is easy to deal with various climatic conditions and harsh environment.
2.Smart freewheeling technology makes the esc have higher driving efficiency and lower operating temperature, and the stability and reliability of the esc are further improved.
3.Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, current protection, capacitor overheat protection.
4.It has an independent programming port. When connecting the program card, it is not necessary to pull the throttle cable out of the receiver, which is more convenient to use.
Package Included:
1x Hobbywing QuicRun WP-10BL120 G2 120A ESC 4S Waterproof 3652 3660 SL Motor
