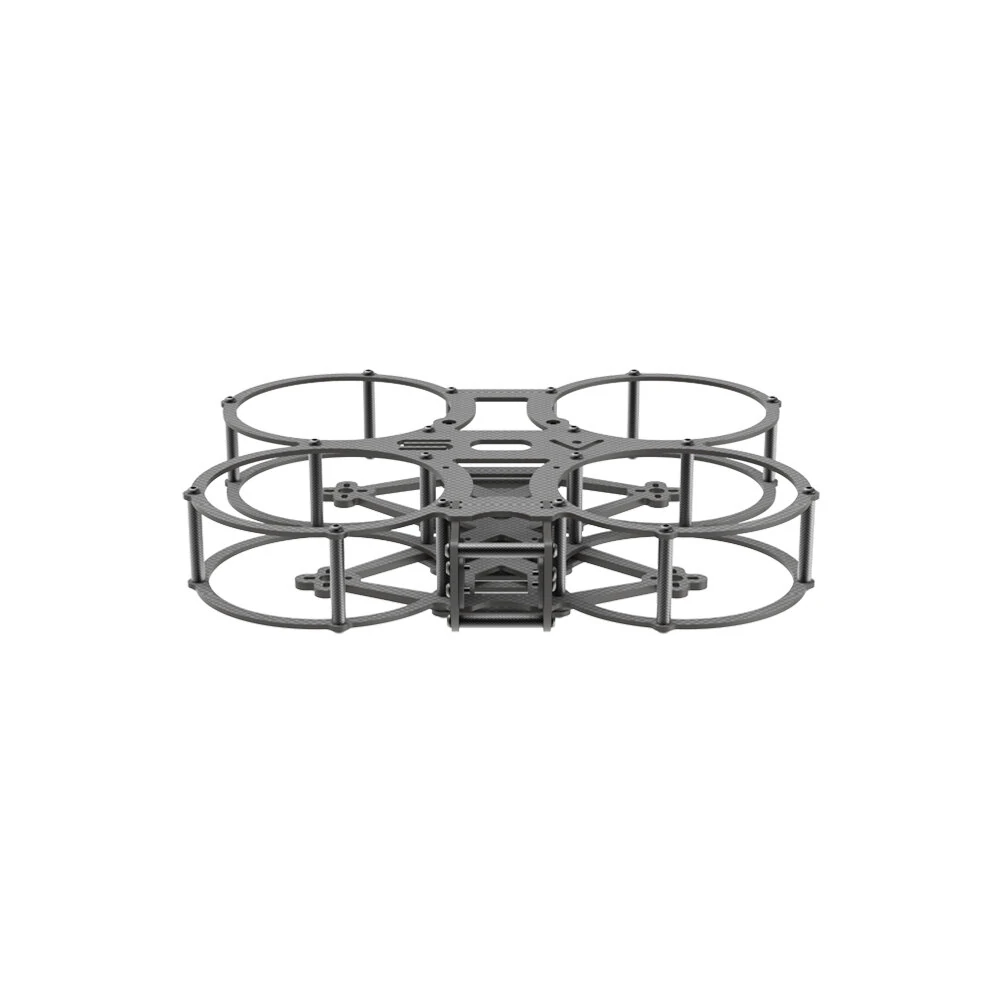

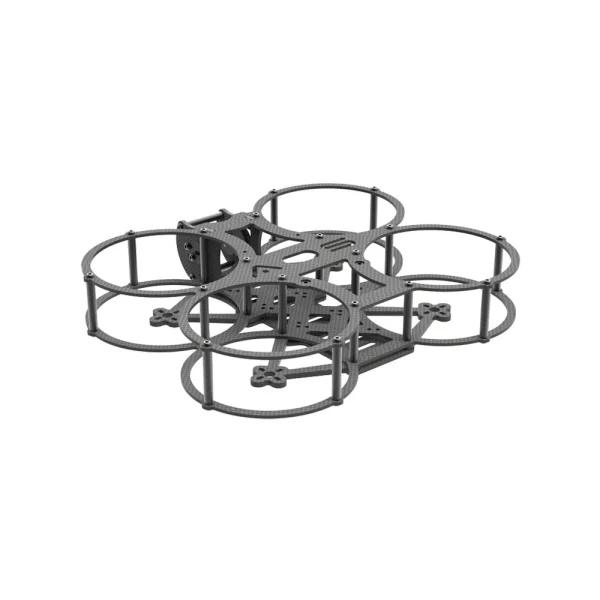

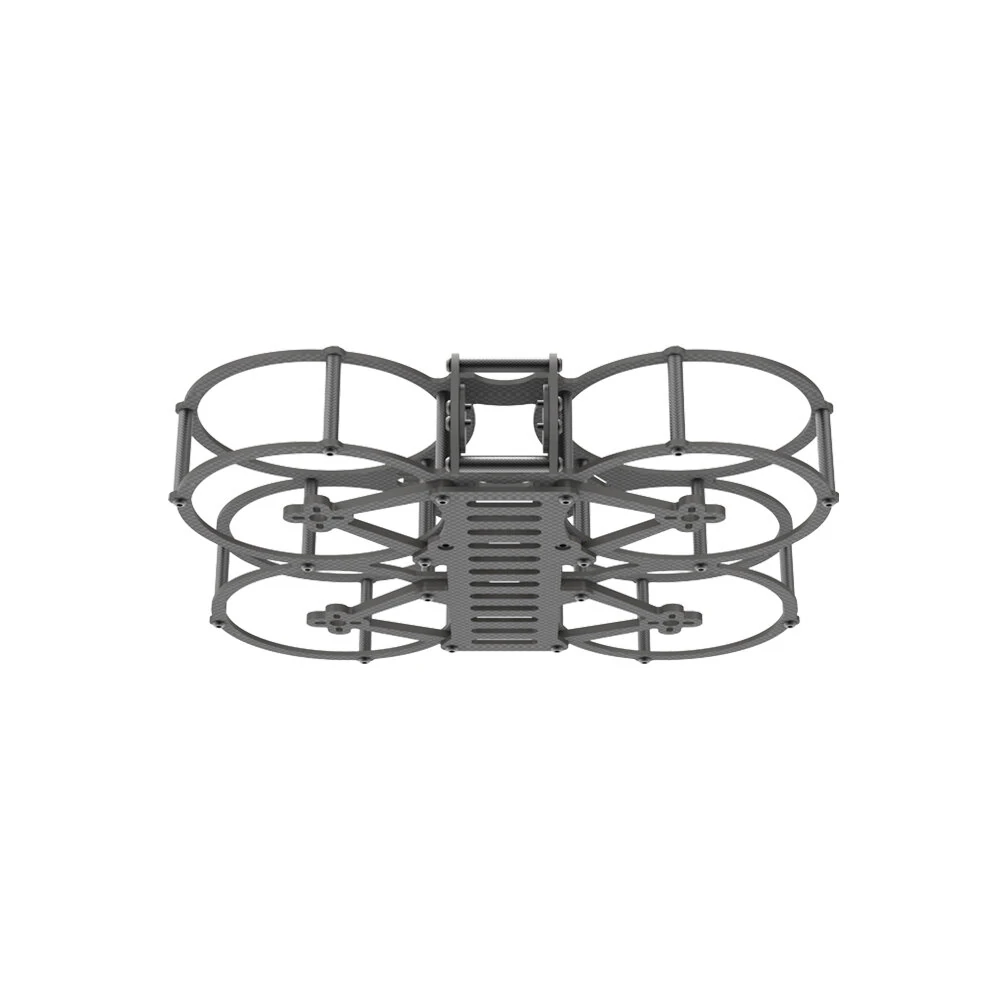

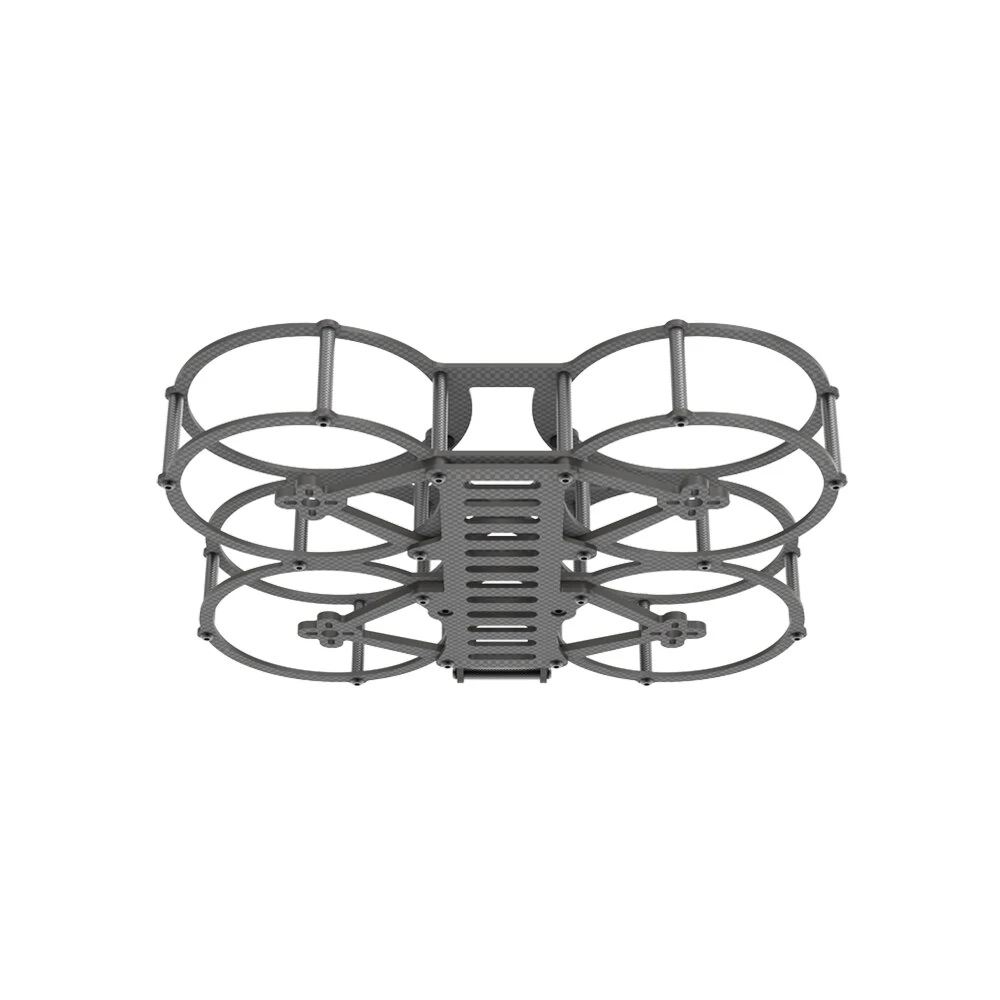

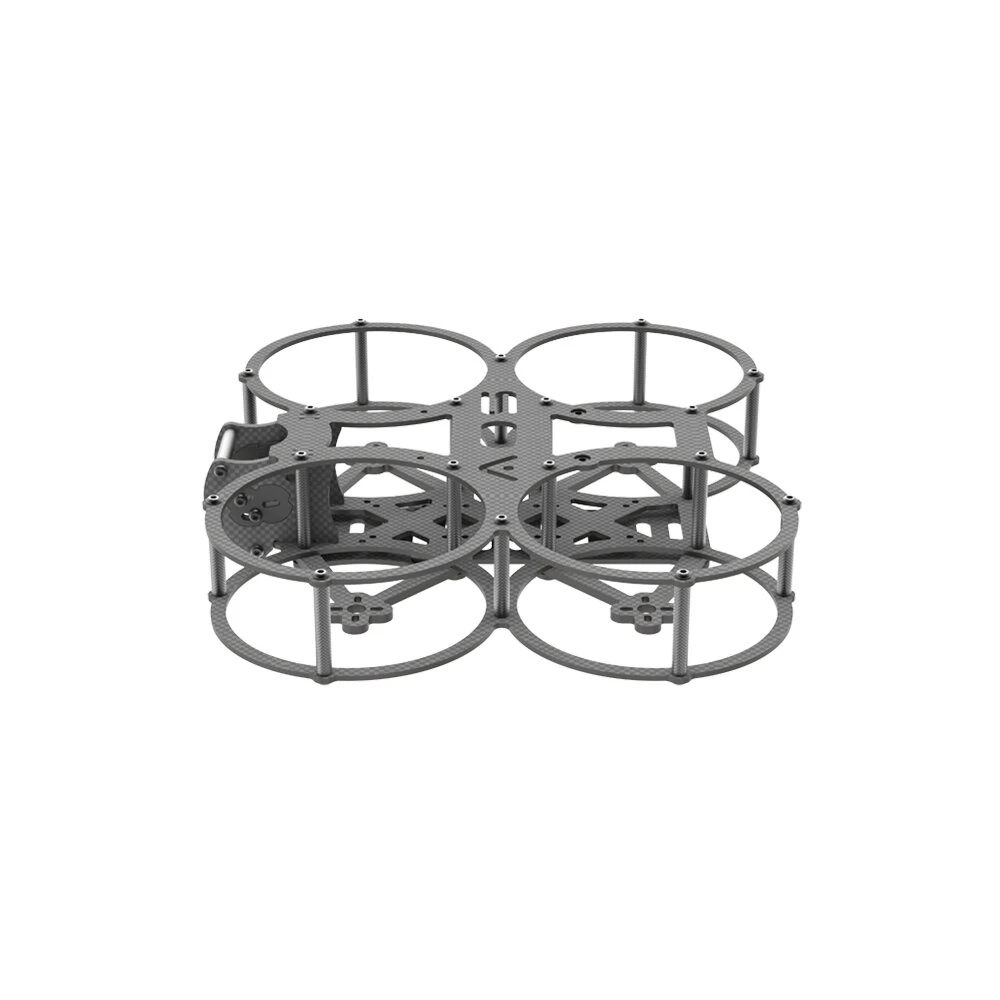

iFlight AOS Cine25 EVO 125mm Wheelbase 2.5mm Arm Thickness 2.5 Inch Frame Kit Support DJI O3 Air Unit for DIY CineWhoop RC Drone FPV Racing
$64.99
- Description
- Additional information
Description
Notice: Comes unassemble. Need build by yourself.
Description:
The latest version of this frame is the AOS Cine25 EVO. It has updated camera plates to support the DJI O3 Air Unit as well as all other 19-20mm FPV cameras.
Features:
-Designed for 2.5 inch props, no props in view.
-2.5 mm Truss Arms.
-Up to two 25.5 or 20 mm stacks (front and rear).
-One 25.5 or 20 mm stack (center).
-32x32mm M2 mounting holes in top plate with installed press-nuts for GoPro
-XT30 pass through top plate.
-Captive battery strap slots for lengthwise or toilet tank mounting.
-Fits 19-20mm FPV cameras including DJI O3.
-Recommended motor size 1404.
-9×9 mm motor mounting.
-Standoffs, carbon and hardware included.
Specifications:
Product Name: AOS Cine25 EVO Frame Kit
Frame wheelbase: 125mm
Frame Dimension: L99*W75.5*H32 mm / L175*W151*H32 mm (with propguard)
Arm Thickness: 2.5mm
Top Plate Thickness: 1.5mm
Bottom Plate Thickness: 1.5mm
Upper Plate Thickness: 1.5mm
Motor Mounting: 9x9mm
VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
Recommend Parts ( NOT Included):
FC & ESC: 25.5×25.5mm GHF411AIO BMI F4 OSD FController with 5V 10V BEC AIO 40A B_S 4In1 ESC
Brushless Motor: iFlight XING 2 1404 3000KV 3800KV 4600KV 2-4S Motor
Propeller: iFlight Nazgul Cine 2525 2.5×2.5 2.5 Inch 3-Blade Propeller
5.8G VTX: EWRF VTX 5.8Ghz 40CH 25/200/650mW Adjustable FPV Transmitter 20X20mm
HGLRC Zeus nano VTX 25/100/200/350mW 5.8Ghz 40CH Tramp Protocol With Microphone
FPV Camera ( Analog): Caddx Ratel 2 1/1.8 Inch Starlight 1200TVL 2.1mm Lens FPV Camera
HD Digital: DJI O3 Air Unit HD Digital System
Lipo Battery: ZOP Power 14.8V 850mAh 100C 4S LiPo Battery XT30 Plug
Packing List:
1 x AOS Cine25 EVO Frame Kit
1 x Screw Bag
1 x Battery Strap
Additional information
| Weight | 0.2 lbs |
|---|---|
| Model | Frame Kit |
