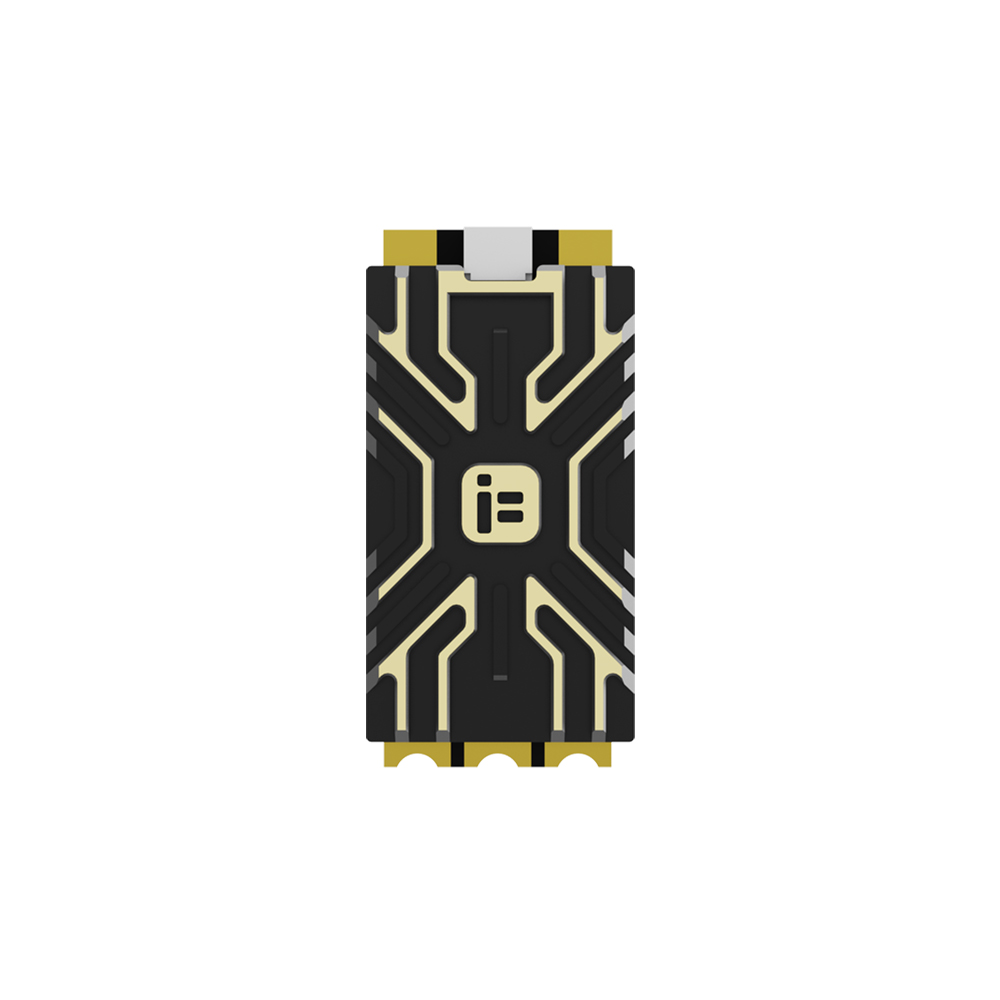

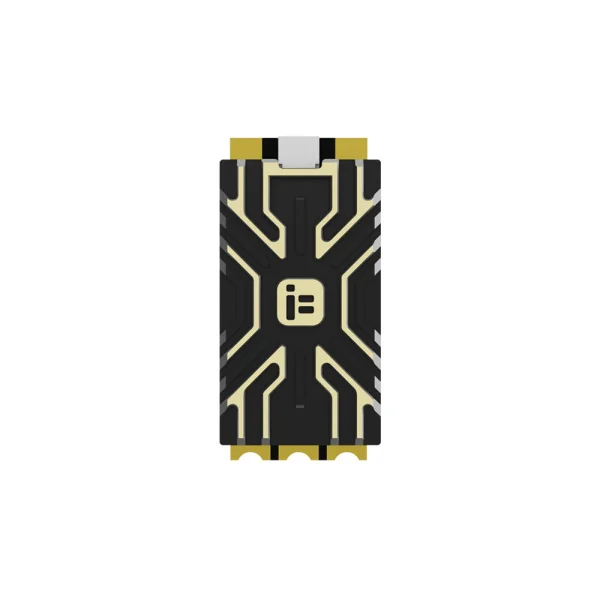

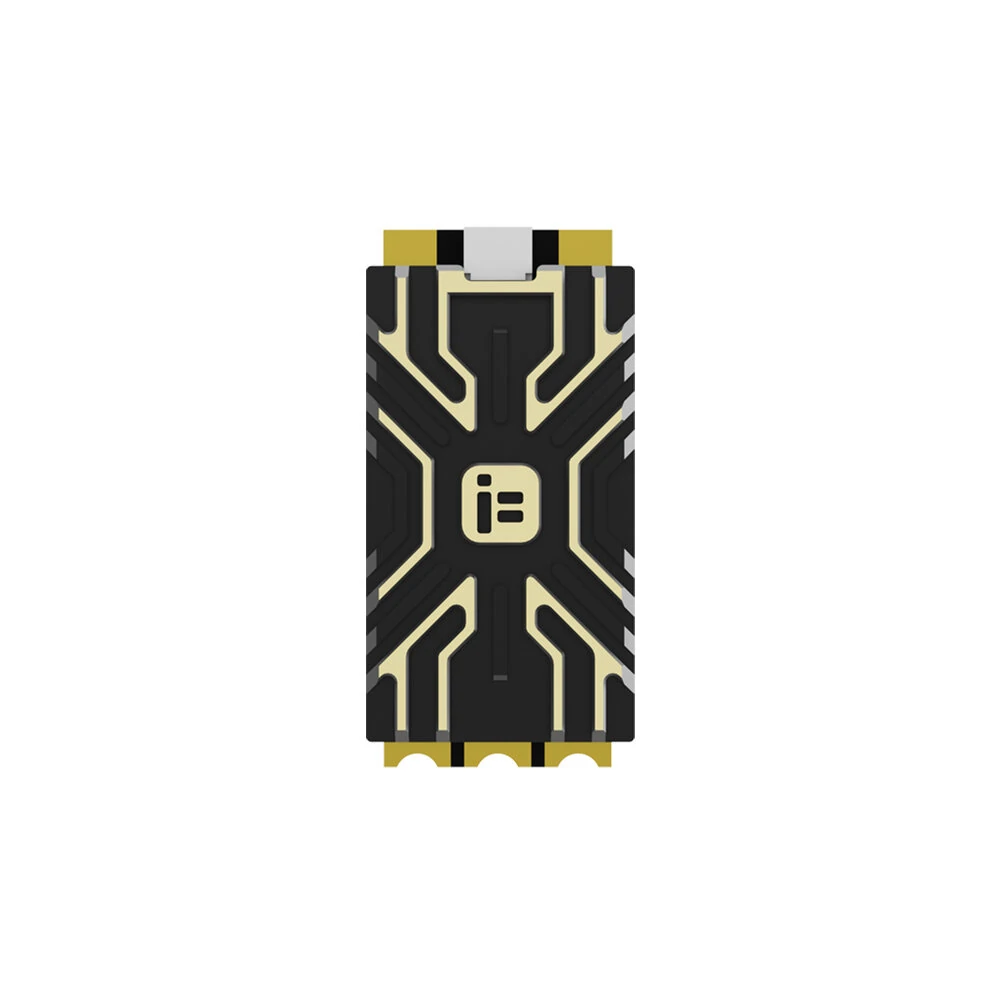

iFlight BLITZ E80 80A 2-8S BLHeli_32 Single Brushless ESC Support Current Sensor Telemetry output Brake on Stop for Taurus X8 Pro Cinelifter X-Class Multi-Rotor RC Drone

Specifications: ( Diagram Picture)
Brand: iFlight

Model: BLITZ E80
Product Name:  80A 2-8S Single Brushless ESC
Input Voltage: 2-8S
Max. Continuous Current: 80A
Max. Burst Current: 100A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Dimensions: L40 x W17 x W10mm
Weight: 9.5g(±2)
Protocol: DShot DShot150/300/600/MultiShot/OneShot PWM Drive

Features:

Powerful Input Voltage Range: Designed for flexibility with a 2-8S input (max 8S).

Superior Load Capacity: An 80A 8-layer 4OZ copper PCB provides excellent operating load capacity.

High Quality Capacitors: 11 pieces of MLCC total 420UF Low ESR capacitors deliver lower ripple and stability.

Top Grade NTMFS5C430NL MOSFET: Ensures stability and reliability.

User-Friendly Design: The rational layout includes large soldering pad, countersinks, and semicircle orifices for easy energizing.

Package Includes:
1 x BLITZ E80 Single ESC
1 x 50V 470UF capacitor
1 x Power cables & ESC signal wires
