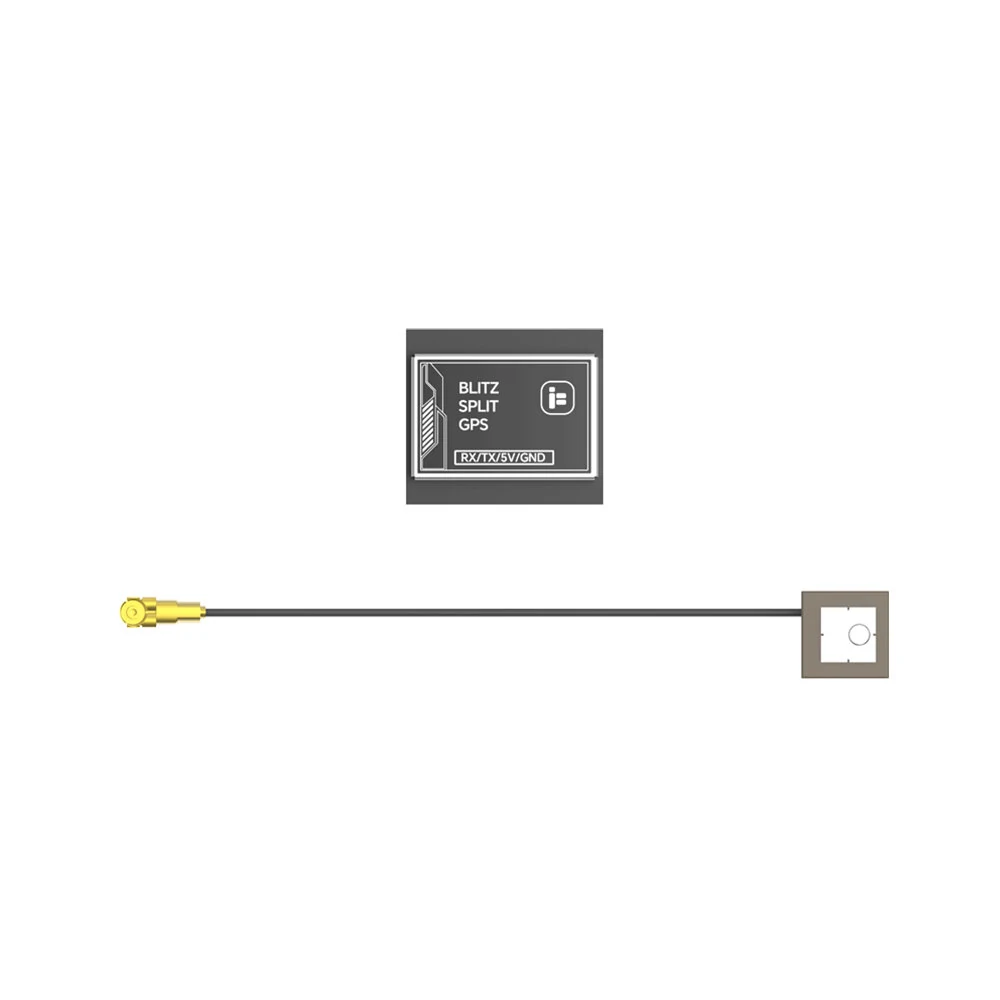

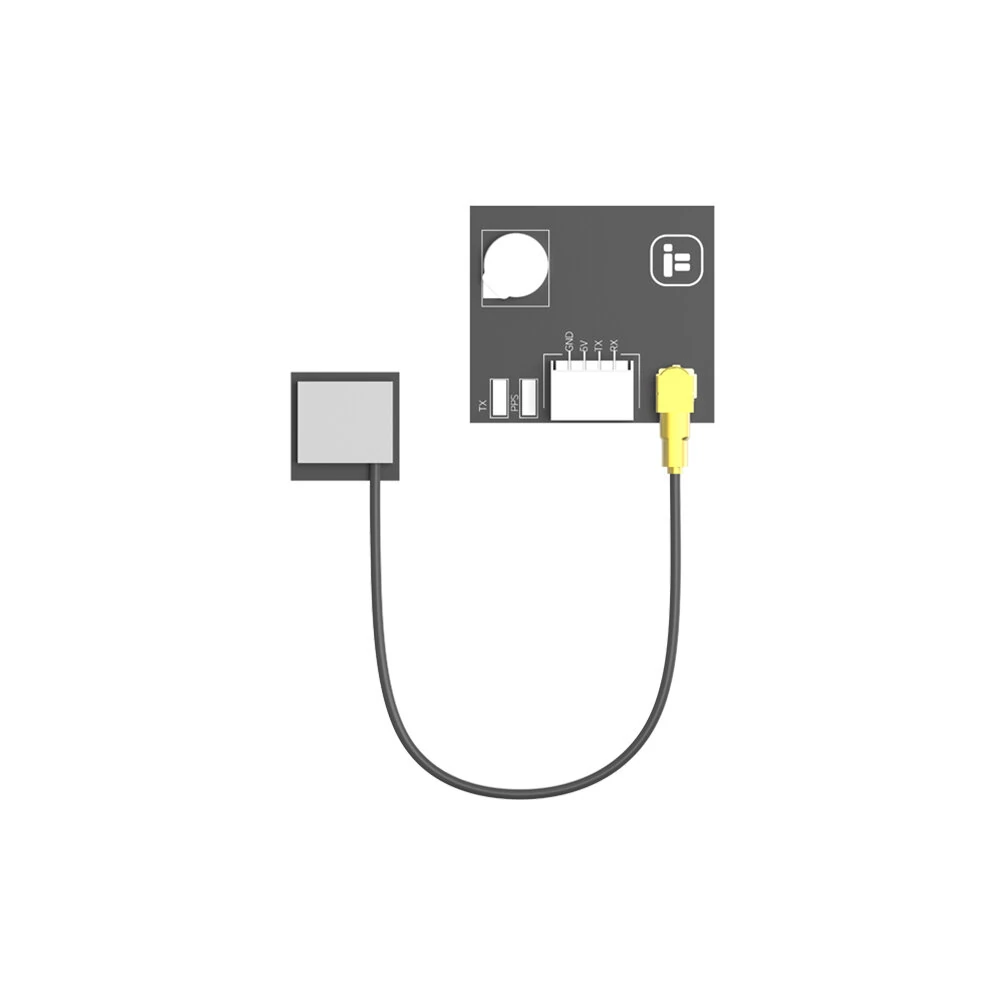

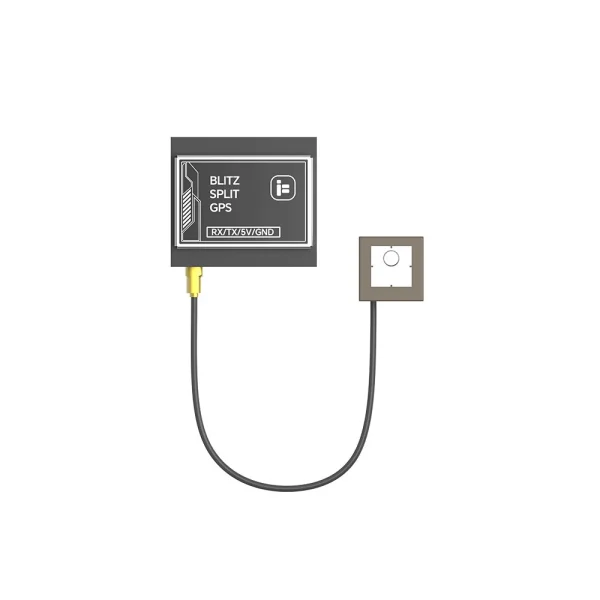

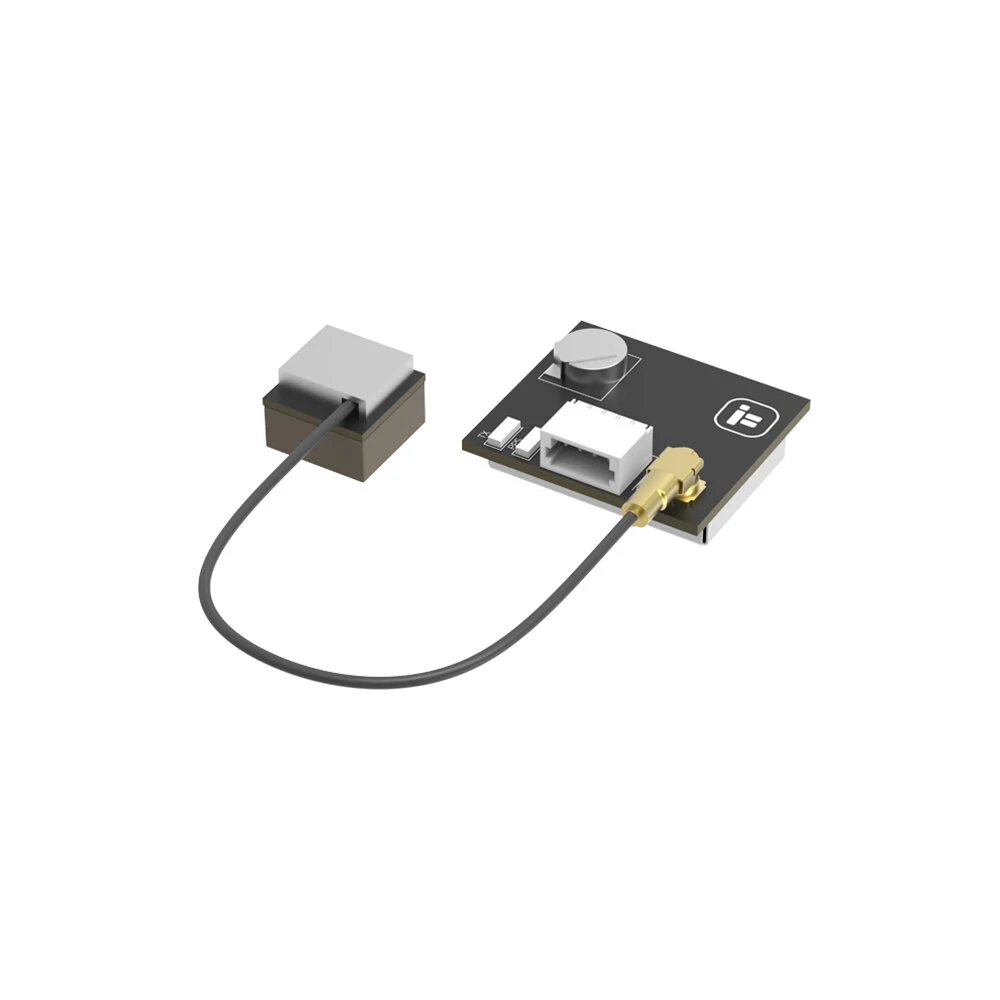

iFlight BLITZ SPLIT GPS Module M10 Chip Built-in Flash for Defender25 RC Drone FPV Racing

Specifications:
Brand: iFlight

Model: BLITZ SPLIT GPS
Chip: UBLOX M10
Baud Rate: 4800bps-115200bps (Default – 115200bps)
Sensitivity: Tracking: -167dBm
Cold Start: 60s
Hot Start: 1s
Maximum Height: 50000m
Maximum Speed: 500 m/s
Speed Accuracy: 0.05 m/s
Maximum Acceleration: ≦ 4G
Refresh Rate: 10 Hz
Dimensions: 18 x 16 x 7 mm
Weight: 1.8 g
Input Voltage: 3.3-5.5 V, Current 40mA
GPS Pin Definition: RX/TX UART

Features:

UBLOX M10 Chip: This GPS module utilizes the UBLOX M10 chip for optimal performance and reliability.

Fast Start-up Time: The built-in farad capacitor allows for a faster hot start, saving you time.

Onboard LNA: The onboard Low Noise Amplifier improves signal reception quality and enhances GPS performance.

High Refresh Rate: The 10 Hz refresh rate ensures that your GPS data is always up to date.

Compact and Concealable Design: The split antenna design allows the antenna to be hidden inside the drone, maintaining a sleek and aerodynamic look.

Package Includes:
1 x BLITZ SPLIT GPS
1 x Cable set
