Note: This product is PNP and BNF version optional, you can clink here to buy the RTF version.
Description:

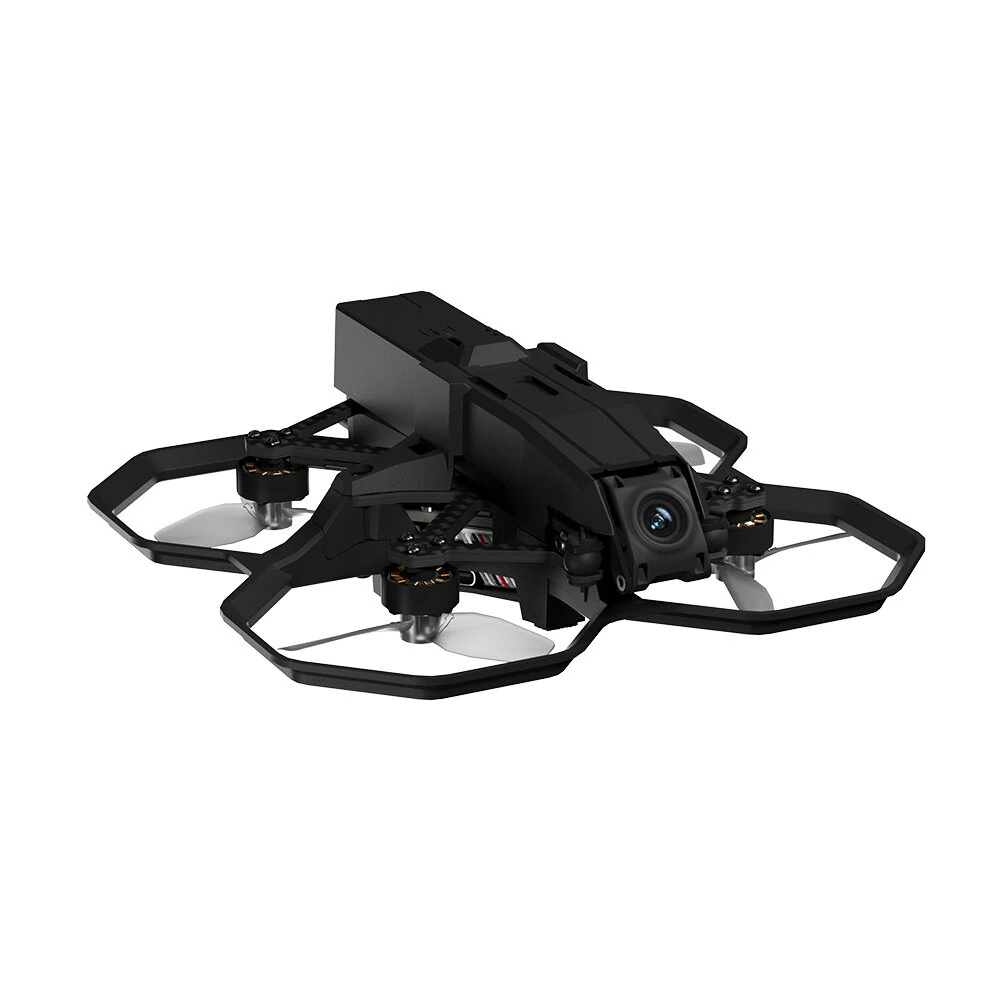

iFlight’s newly upgraded Defender series, a lightweight cinewhoop equipped with the DJI O4 Air Unit. Featuring a compact 2-inch palm size, easy to carry. With low flight noise, it enables indoor filming without disturbance.
Supports Type-C charging adapter for fast charging, making it convenient for outdoor use. The prop guard can be quickly disassembled with only 4 screws, allowing for more agile flight. Perfect for indoor flying, short trips, camping, and everyday shooting scenarios. Experience a new level of FPV cinematic flight.
Highlights:
– 4K HD Video Recording:
Built-in DJI O4 Air Unit 4K recording in a lightweight 2-inch frame with stabilization and Gyroflow support. With large storage capacity and low-latency, long-range video transmission, it ensures smooth first-person view footage for a more immersive flight experience.
– Lightweight and Portable:
Designed with a compact palm-sized frame, this device easily fits in a pocket for convenient portability. Its ultra-lightweight build and low flight noise make it ideal for undisturbed indoor flying, while its versatility allows it to navigate complex and narrow environments.
– Enhanced Flight Performance:
With hover throttle as low as 25%, this device provides ample power for effortless flight. It offers up to 7.5 minutes of flight time, extending creative possibilities and ensuring a smooth and enjoyable flying experience.
– Quick-Release Prop Guard for Seamless Switching:
The prop guard enhances safety by preventing accidents during crashes, while its quick-release design allows for seamless switching. Removing the prop guard increases agilty, enabling dynamic freestyle maneuvers for more advanced flying techniques.
– Podded Camera Structure:
The customized O4 camera mount features an independent podded structure to minimize vibration, ensuring raw footage remains as smooth as possible. It also provides high-quality gyro data for in-built or post-processing stabilization, delivering jello-free results.
– Plug-in battery with Automatic Power-On:
Simplifying operation, the device automatically powers on when the battery is inserted, making it user-friendly and ready to fly in seconds.
Specifications:
Brand: iFlight
Model: Defender 20 Lite
Item Name: 2S 2 Inch HD Cinewhoop FPV Racing Drone
|
Item |
Specification |
|
FPV Racing Drone |
Product Name: Defender 20 Lite O4 2S HD Flight Electronics: F411 AIO Video Transmission: DJI O4 Air Unit Frame wheelbase: 87mm Motor: Defender 16 1103 14000KVmotors Prop: Defender 20 Lite 2020*3 props Weight: 69±3g Takeoff Weight: Approx. 108±3g (With 600mAh Battery) Dimensions (L×W×H): 125*125*44.5mm Max Speed: 75km/h (Manual Mode) Maximum Takeoff Altitude: 2000 m Max Hover Time: Approx. 6.5-7.5 mins(with 2S 600mAh battery) Max Wind Speed Resistance: Level 3 Operating Temperature Range: -10° to 40° C Antennas: Single Antenna GNSS: N/A Receiver: PNP/ELRS 2.4G(Optional) |
|
Video Transmission |
Product Name: DJI O4 Air Unit Image Sensor: 1/2-inch CMOS Sensor Lens: FOV: 117.6° ISO: 100-6400 (Auto); 100-12800 (Manual) Video Resolution: 1080p/100fps H.265 Video Format: MP4 Max Video Bitrate: 100 Mbps Color Mode: Normal Mode Live View Quality: 1080P@30/50/60/100fps Operating Frequency: 5.170-5.250 GHz; 5.725-5.850 GHz Transmitter Power (EIRP): .1 GHz: <23 dBm (CE); 5.8 GHz:<30 dBm (FCC)<14 dBm (CE)< 30 dBm (SRRC) Max Video Transmission Range(With DJI Goggles 3/DJI Goggles N3): 10 km (FCC), 6 km (CE), 6 km (SRRC) Communication Bandwidth: Max 60 MHz Antenna: Single antenna Built-in Storage: 23GB Supported SD cards: Not supported Operating Temperature: -10° to 40° C Weight: Air Unit (camera module included): Approx. 8.2 g Dimensions: Transmission Module: 30×30× 6 mm (L×W×H) |

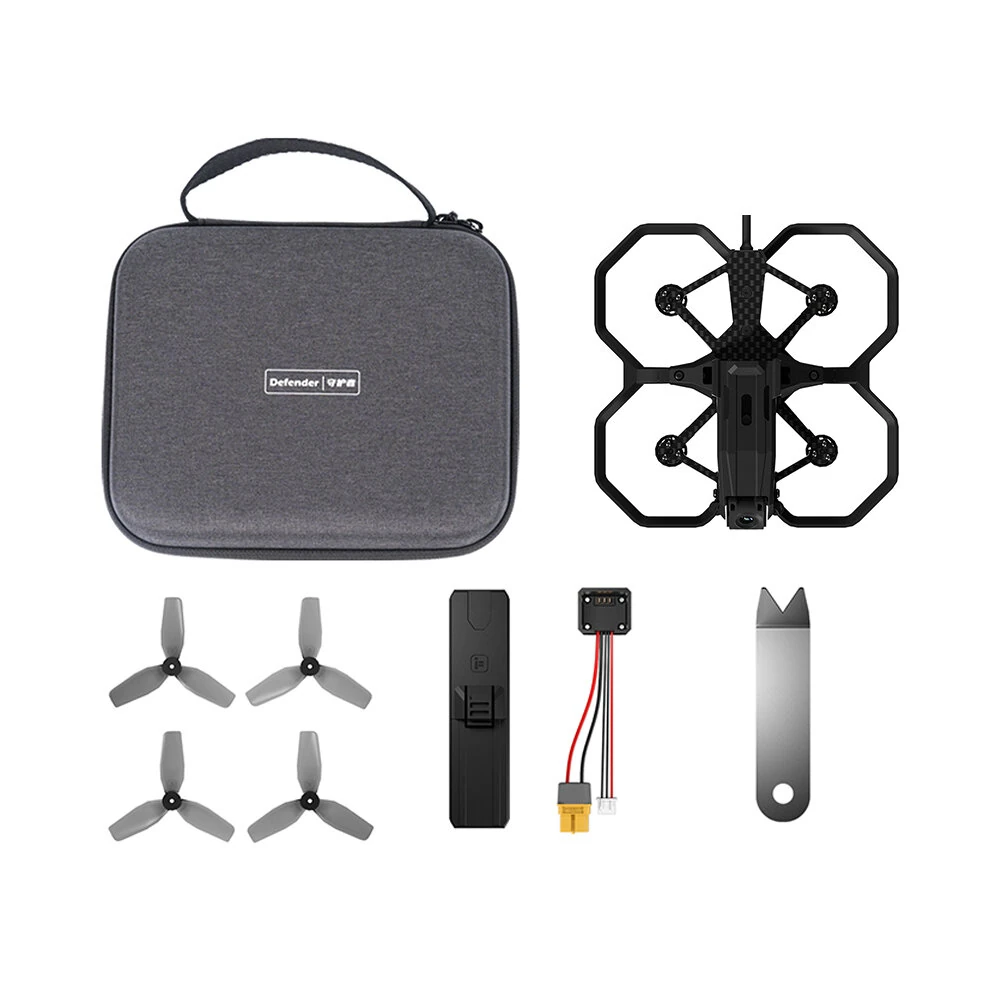

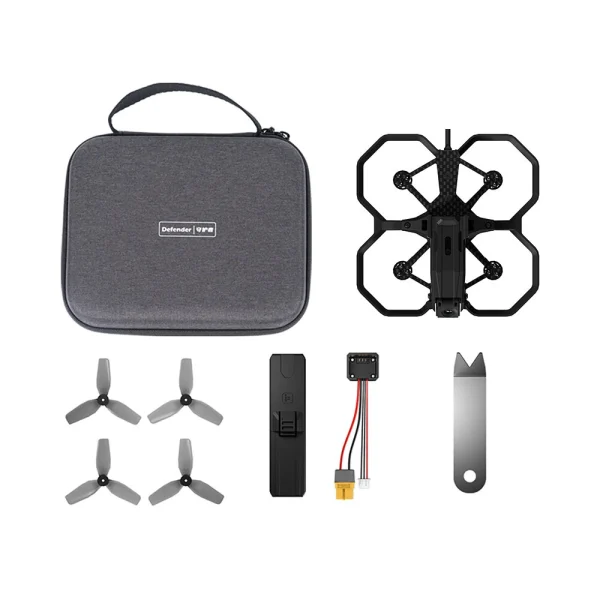

Package Included:
|
Model |
Included |
|
PNP(without receiver) / BNF(with ELRS 2.4G Nano receiver) |
1x Defender 20 Lite Frame1x Defender 25 F411 AIO1x DJI O4 Air Unit1x Defender 20 Lite 600mAh 95C 2S Battery4x Defender 16 1103 14000KV Motor2x Defender 20 Lite 2020*3 Propeller CW 2x Defender 20 Lite 2020*3 Propeller CCW 1x Defender 20 Lite 3-Port Charging Adapter 1x Propeller Removal Tool 1x Defender 20 Carrying Case |
|

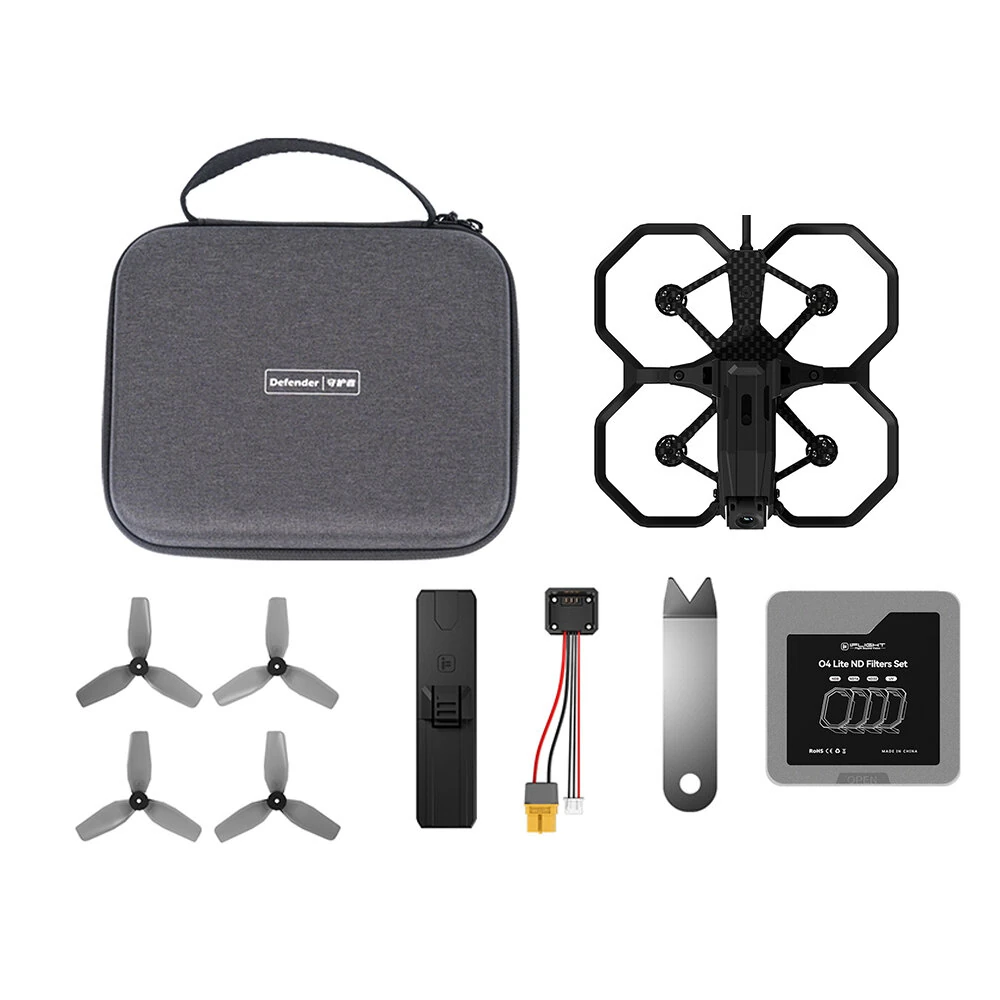

PNP(without receiver) +Filter / BNF(with ELRS 2.4G Nano receiver)+Filter |
1x Defender 20 Lite Frame1x Defender 25 F411 AIO1x DJI O4 Air Unit1x Defender 20 Lite 600mAh 95C 2S Battery4x Defender 16 1103 14000KV Motor2x Defender 20 Lite 2020*3 Propeller CW 2x Defender 20 Lite 2020*3 Propeller CCW 1x Defender 20 Lite 3-Port Charging Adapter 1x Propeller Removal Tool 1x Defender 20 Carrying Case 1x Filter for O4 |
