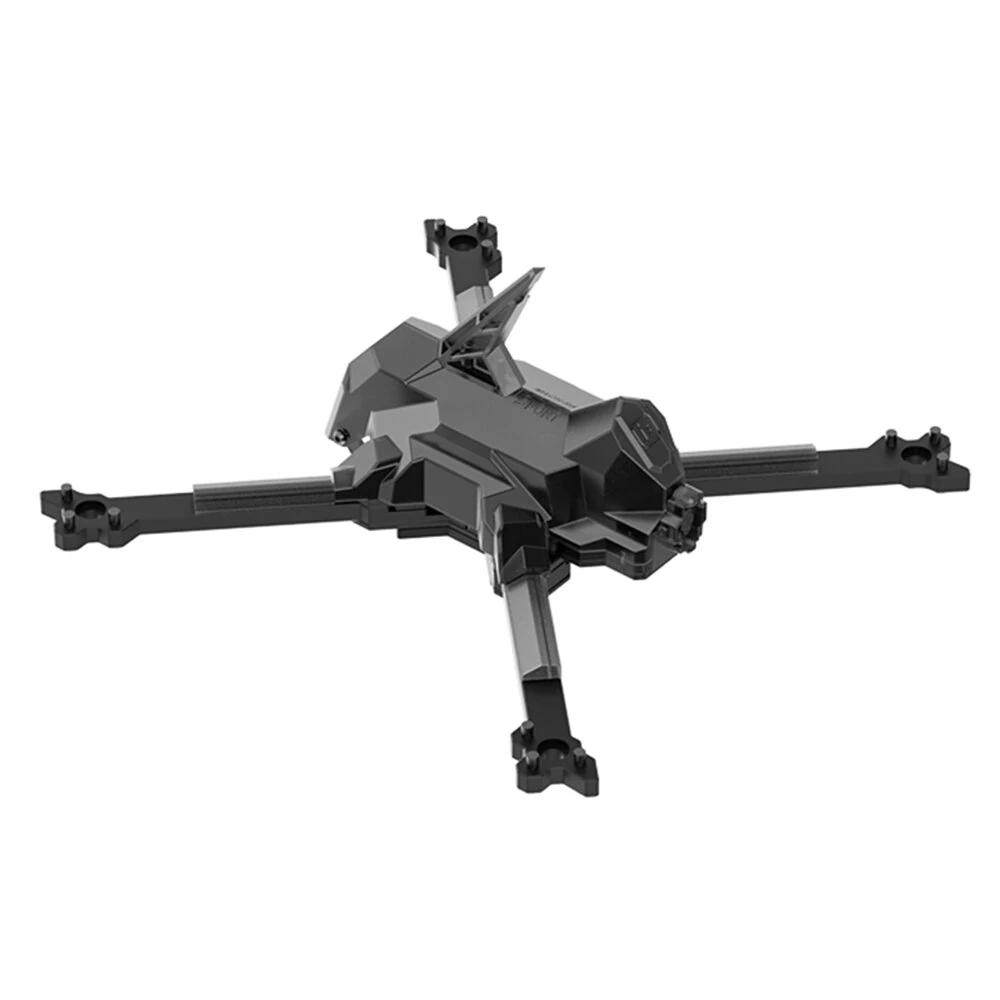

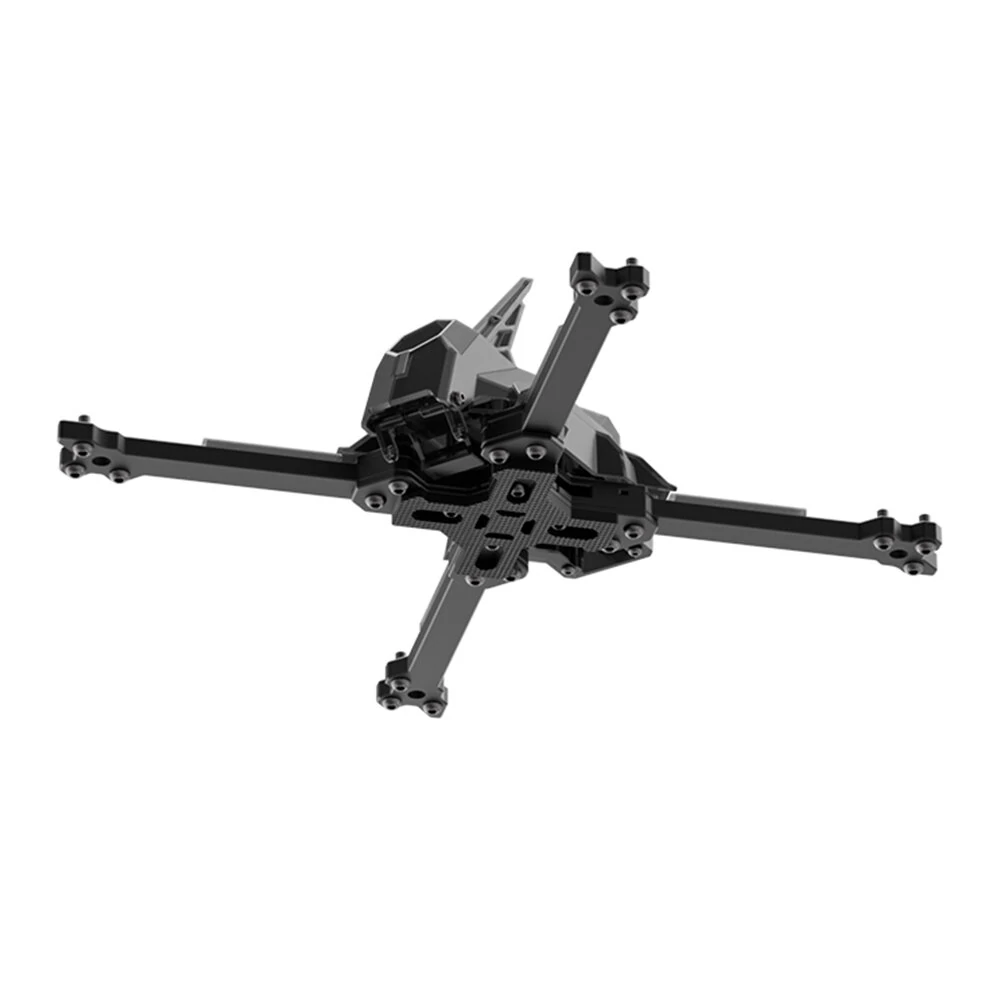

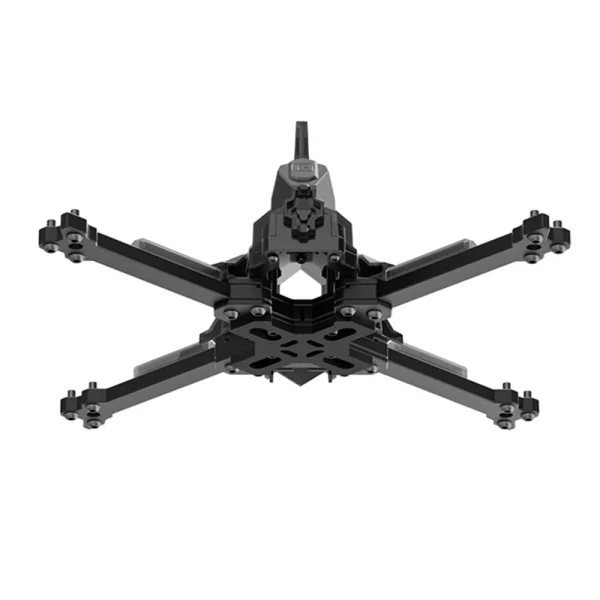

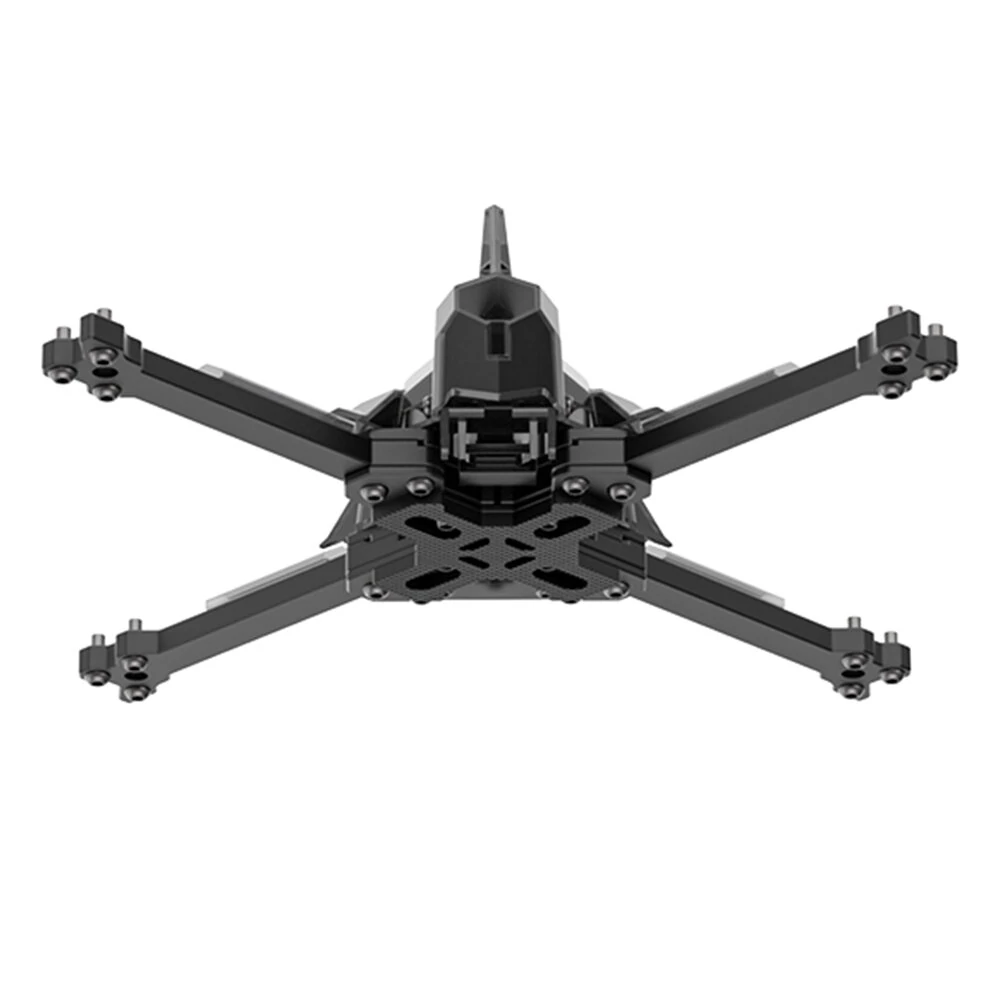

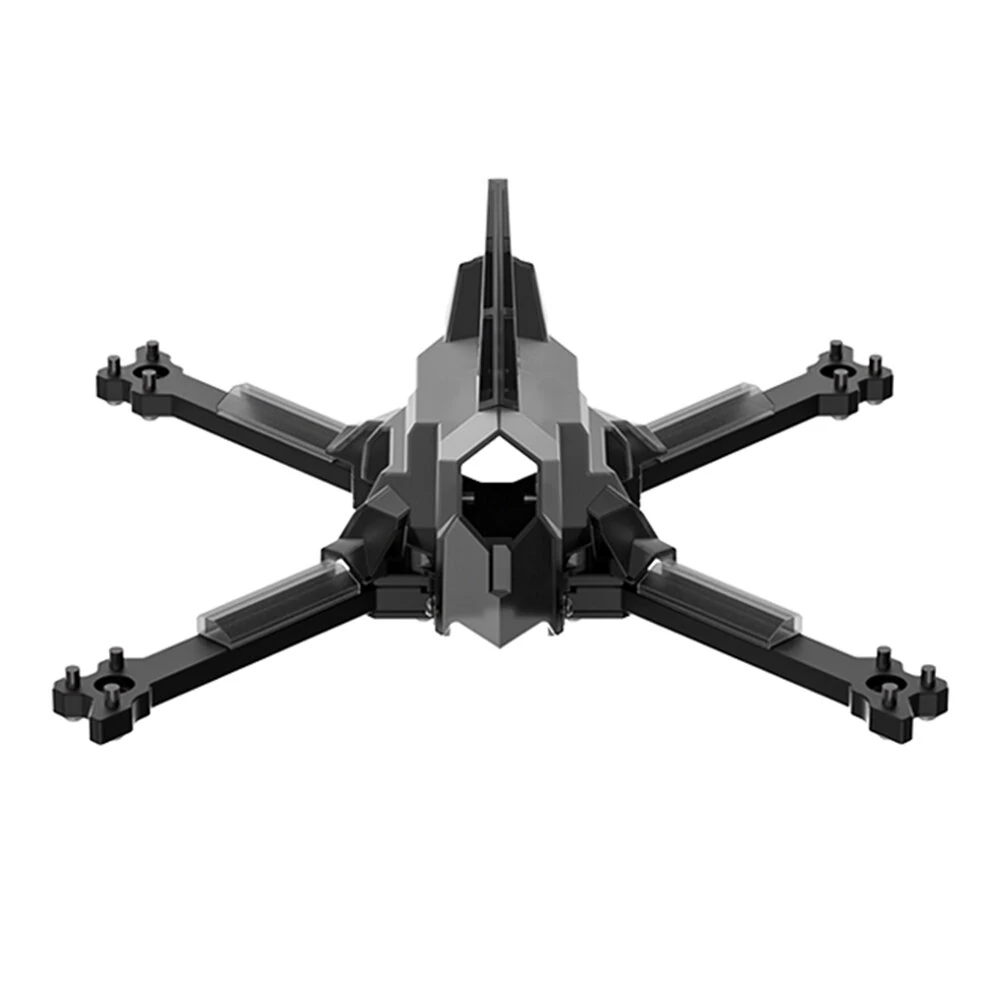

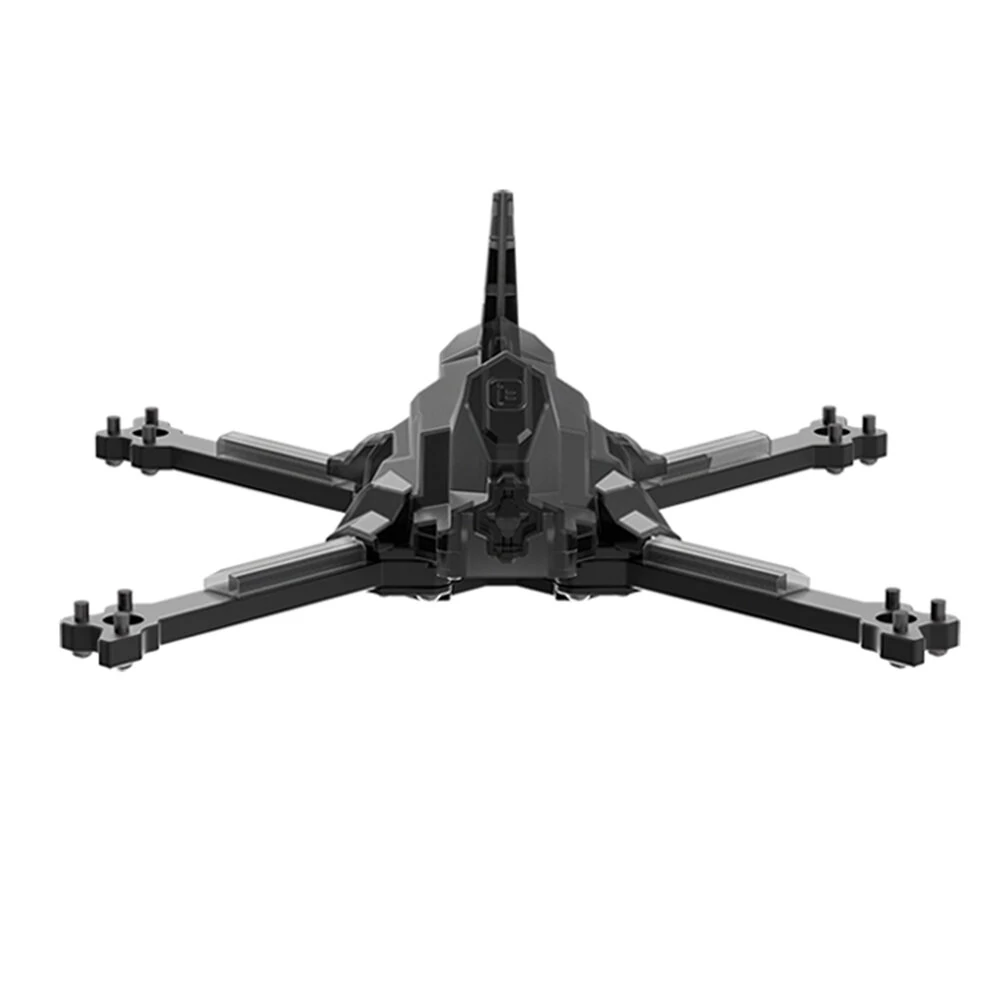

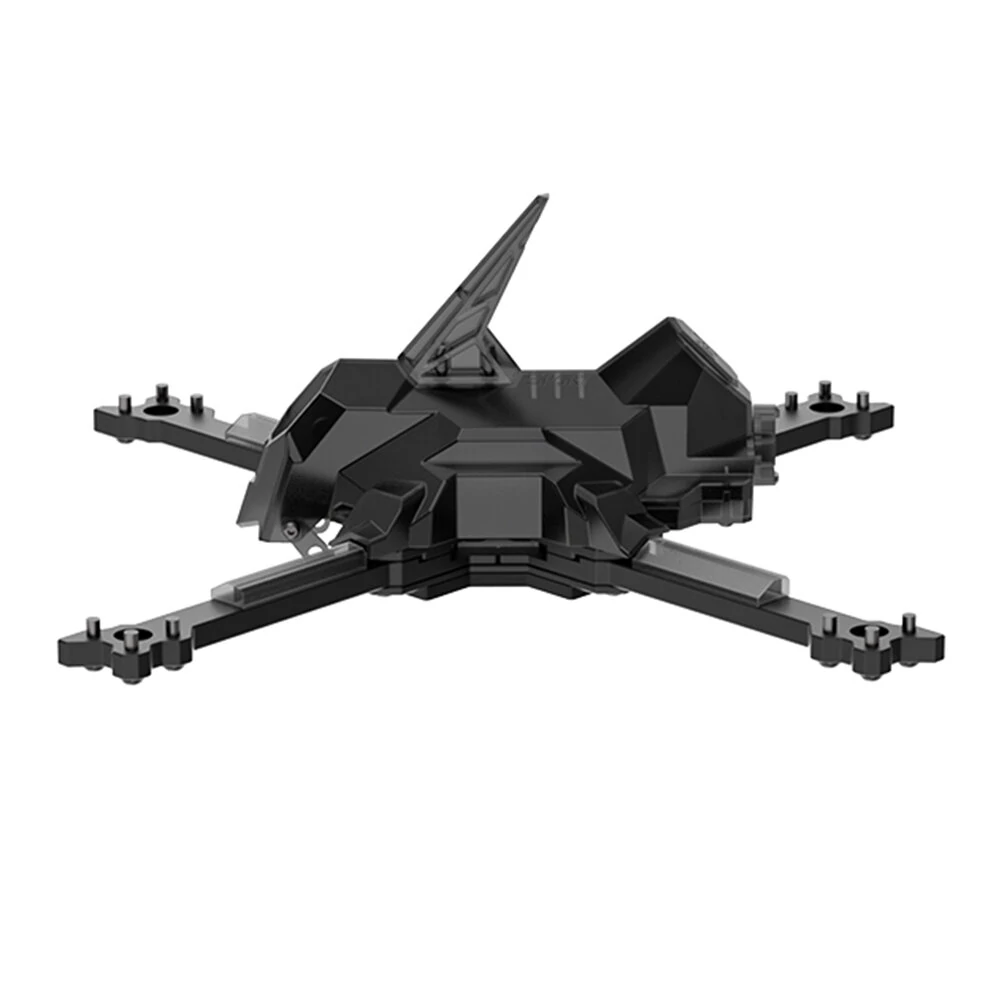

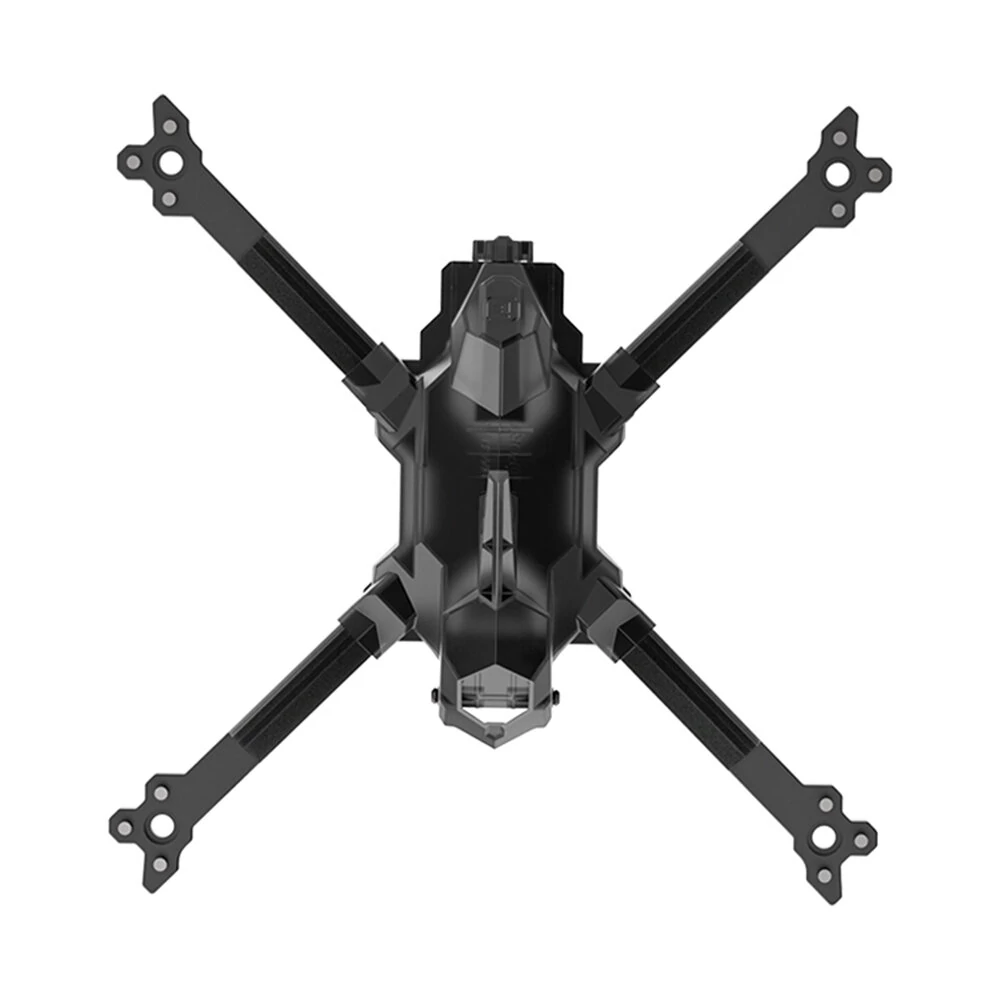

iFlight Mach R5 Sport 210mm Wheebase 5 Inch X Tpye Frame Kit for DIY RC FPV Racing Drone

Notice:

Comes unassembled. Need build by buyers.

Specifications:
Brand: iFlight

Model: Mach R5 Sport
Name: 210mm Wheebase 5 Inch X Tpye Frame Kit
Rack: X Type
Motor diagonal distance: 210mm (wheelbase)
Frame size (L*W*H): 148*148*51mm
Base plate thickness: 2mm
Arm thickness: 5.5mm
Medium plate thickness: 4mm (including sinking groove 2mm)
Internal space height: 25mm
Motor circlip hole diameter: 6mm
Camera side panel spacing: 14*14mm
Fly tower installation height: 25mm
Image transmission installation height: 25mm
Flight control installation hole distance: 20*20/Φ3mm
VTX installation hole distance: 20*20/Φ3mm
Motor mounting hole distance: 16*16/Φ3mm/3 hole shape
Recommended motor: 22-23-24-25 series motor

Application: Original Replace Frame for iFlight Mach R5 Sport Analog FPV Racing Drone

Features:
-5 Inch racing frame for an exhilarating flying experience.
-Designed for speed and agilty, perfect for racing enthusiasts and adrenaline seekers.
-Durabl and lightweight construction for long-lasting performance and easy transport.

The fllowing Parts are Compatible ( NOT Included):

FC & ESC Stack: iFlight BLITZ Mini F7 V1.1 FC & E55R 55A 2-6S BL_S 4in1 ESC

Brushless Motor: T-MOTOR VELOX V3 V2207 2050KV 6S Motor

Propeller: HQ Freestyle Prop 5X4.3X3V2S 5043 3-Blade Propeller

VTX: HGLRC Zeus VTX PRO 5.8G 40CH PIT/25/400/800/1600mW

FPV Camera: Caddx Ant Lite 1/3” CMOS 1.8mm 1200TVL

Lipo Battery: TATTU R-LINE 3.0 6S 22.2V 1400mAh 120C 6S1P LiPo Battery XT60

Package Included:
1* Mach R5 Frame
1* Full Set Of Injection Molding Parts
1* Screw Package
1* Power Cord + Plug
4* Special Motor Cable
2* Battery Anti-Slip Mat
2* Battery Ties (20*250mm)
