Note:
– Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
Description:

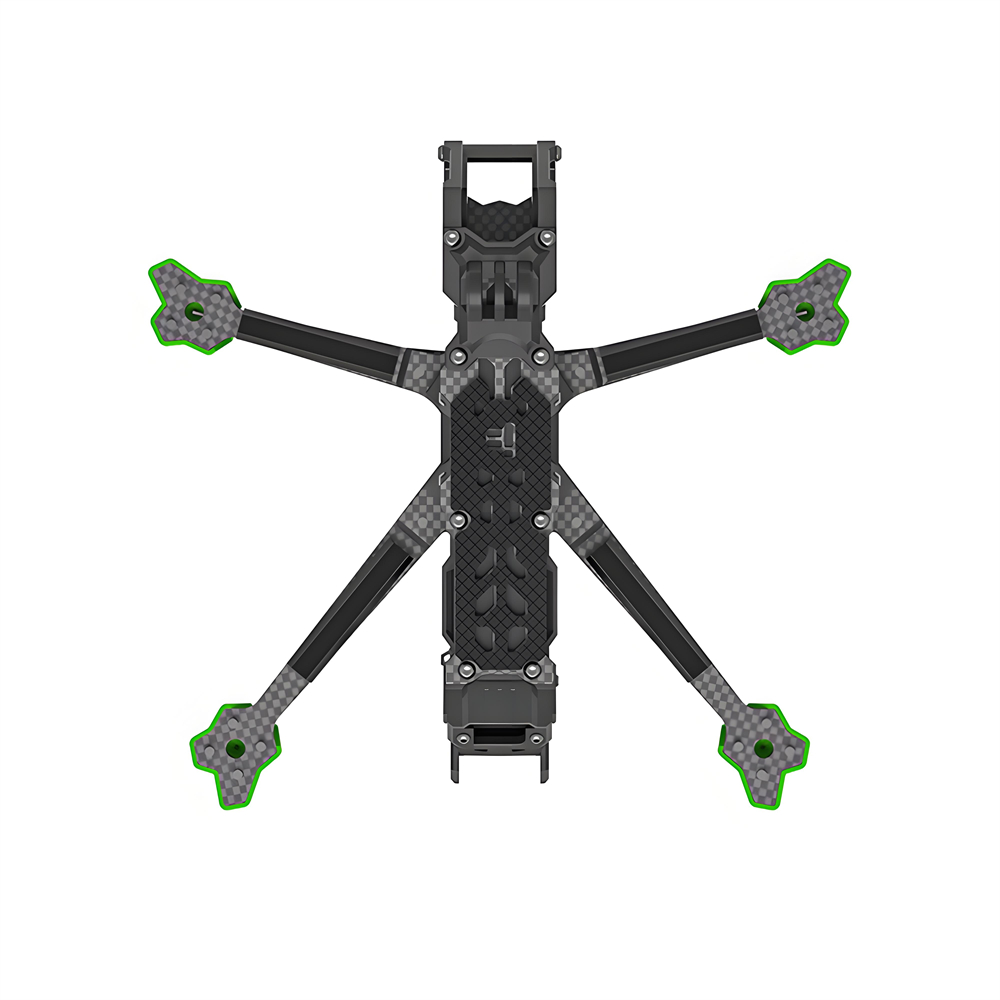

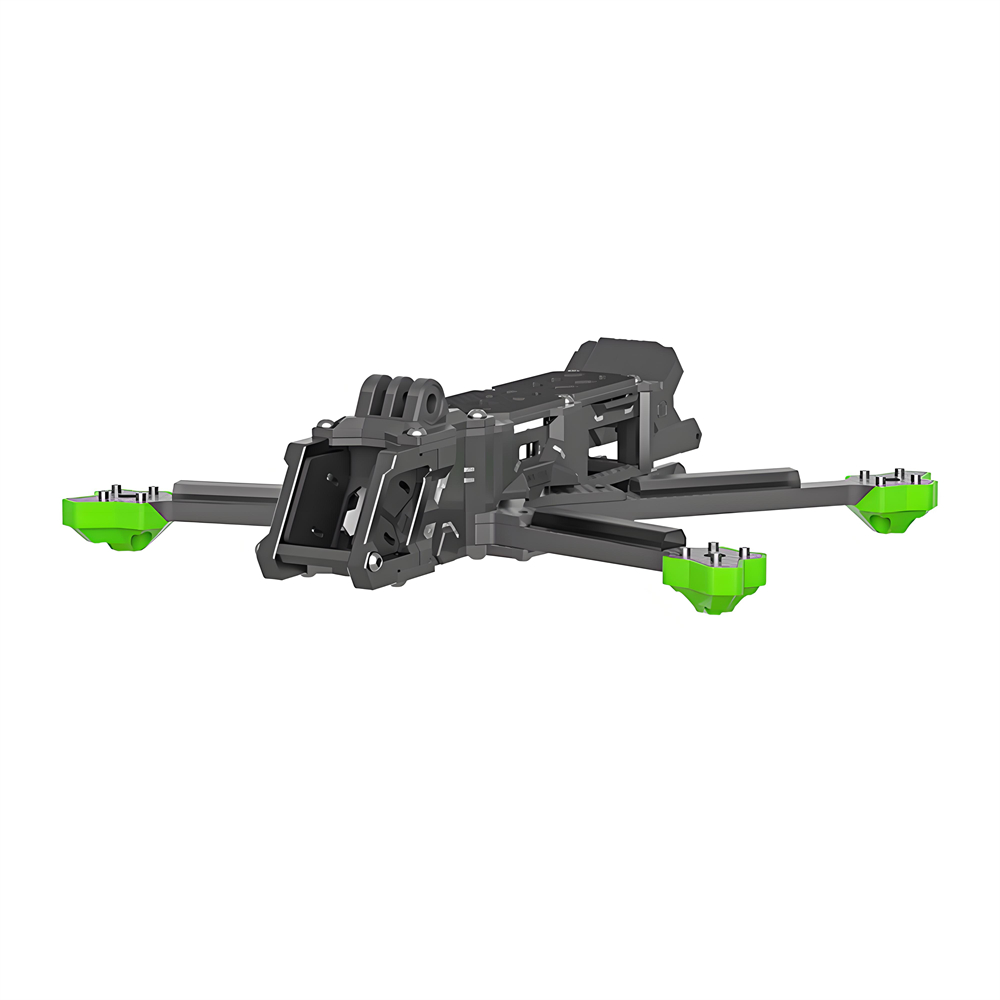

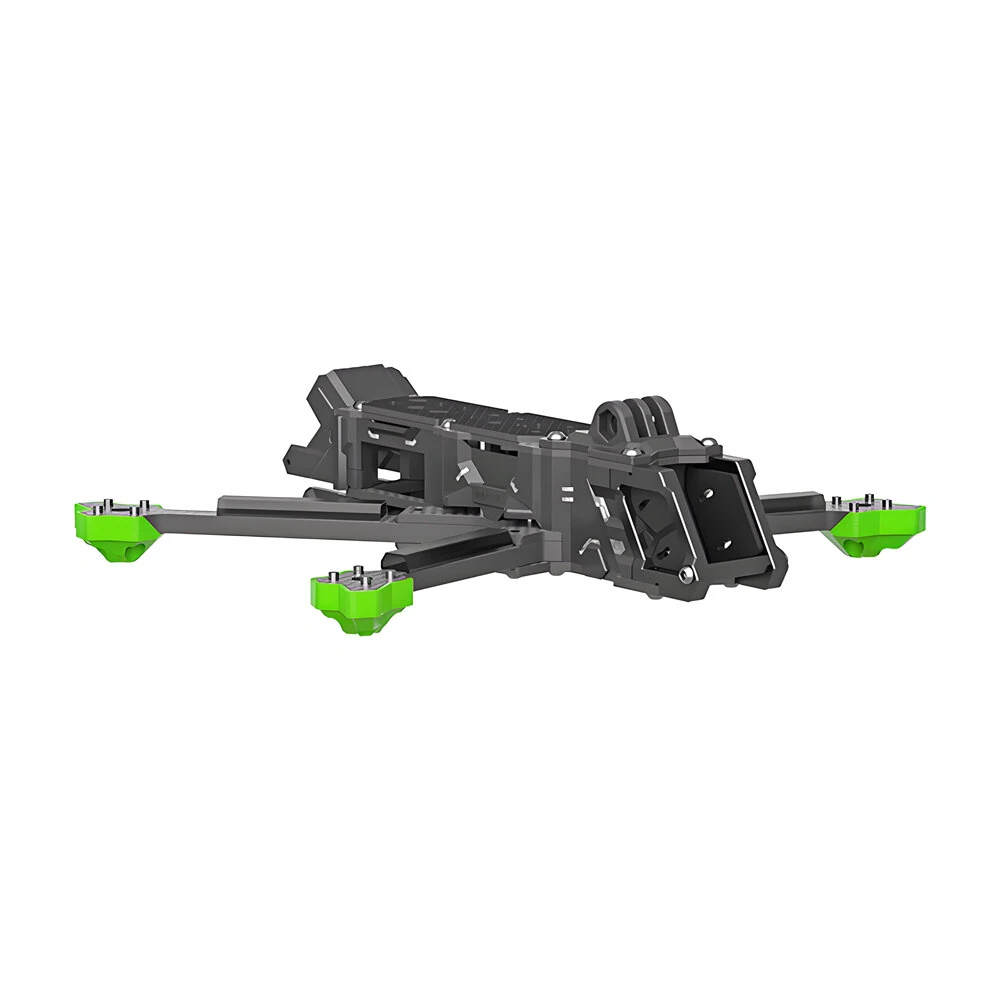

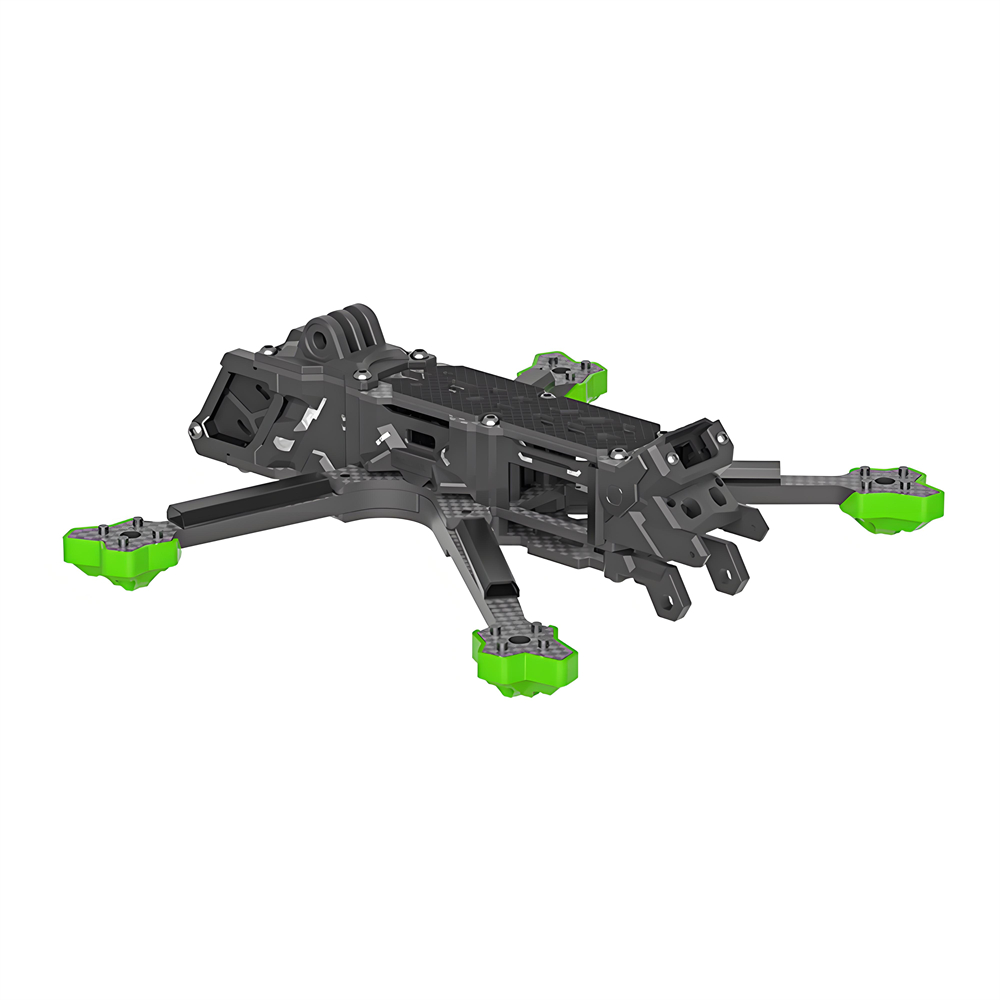

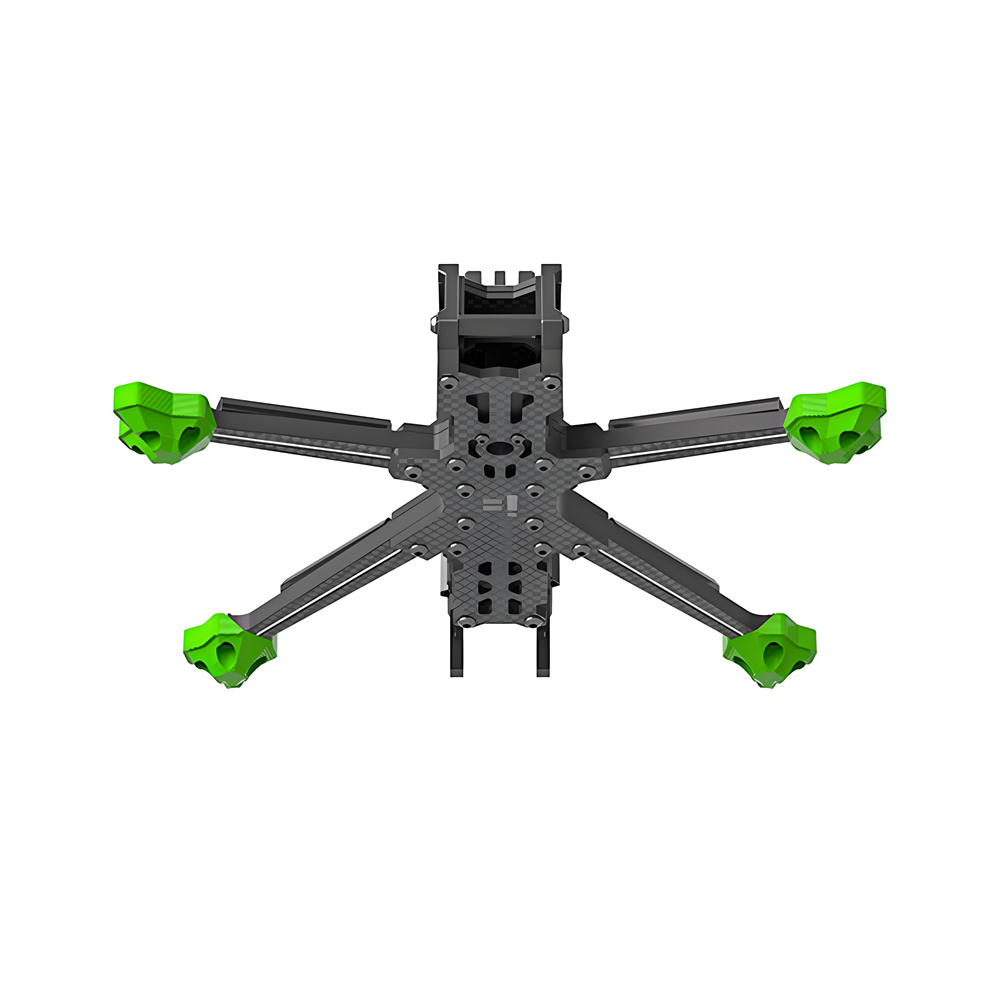

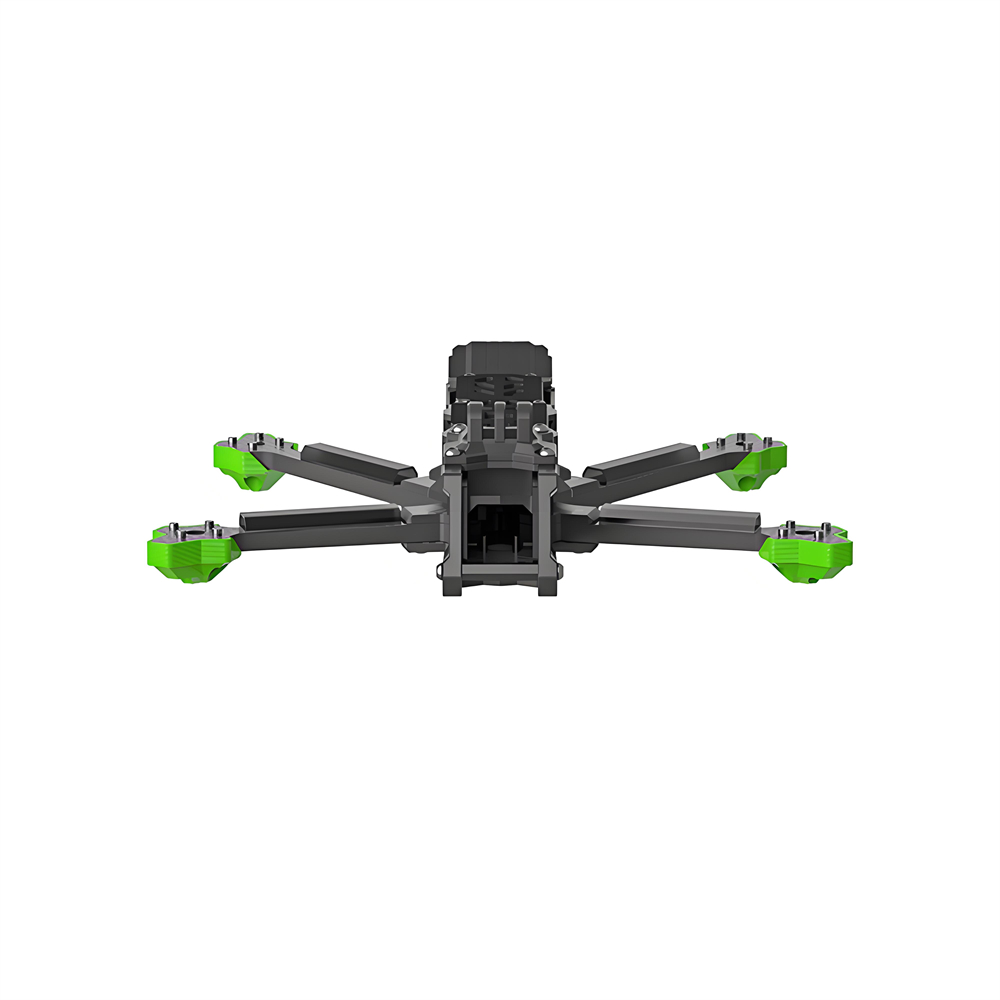

Say goodbye to dirty electronics after every crash! Our innovative frame minimizes contamination on your flight controller and ESCs, helping to prevent failures and short circuits. Designed with strategic airflow for superior cooling and cleanliness, it delivers outstanding performance without compromising weight. Compatible with the DJI O4 Pro Air Unit, it features illuminated side panels and 360-degree TPU protective parts, providing enhanced protection and versatility for your flying experience.
Features:
– DJI O3 to O4 was upgraded for the DJI O4 Pro Air Unit:
– New Camera Mount for DJI O4 Pro Air Unit
– New Silicone side panels
– Different Screws
Specificaiton:
Brand: iFlight
Model: Evoque F5D V2Product Name: 5 Inch O4 Pro Freestyle Frame Kit
Frame wheelbase: 223mm (DeadCat)
Frame Dimension: L190*W136*H36 mm (DeadCat)
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Maximum Flight Stack Height: 22mm
Maximum VTX Height: 22mm
Motor Mounting: 16x16mm
Flight Stack Mounting: 20*20/Φ3mm
VTX Mounting: 25.5*25.5/Φ2mm
Weight: 249±5g
Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
Recommanded parts:(Not Included):
FC&ESC: BLITZ Mini F722 E55 4-IN-1 2-6S 55A Stack
VTX&Camera: DJI O4 Pro Air Unit
Motor: XING2 2207 1750KV
Propeller: Nazgul F5 5.1 Inch 3-blade
Battery: 1480mAh 6S LiPo Battery
Package Included:
1 x Evoque F5D V2 O4 Frame Kit
2x IPEX to RP-SMA Antenna Pigtails
1 x Dual Antenna TPU
1 x GPro TPU Base Mount
1 x Screw Bag
4 x TPU Arm guard
2 x Anti-slip Battery Pad
2 x Battery Strap
