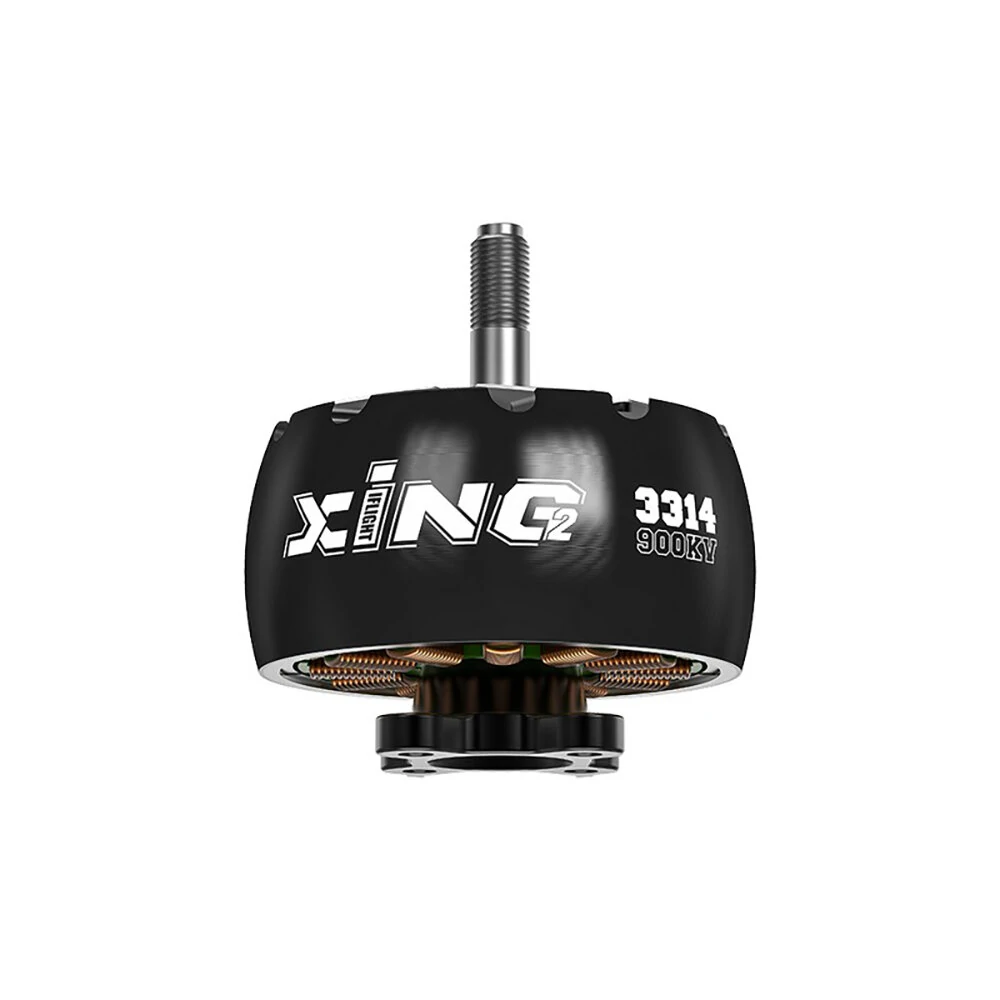

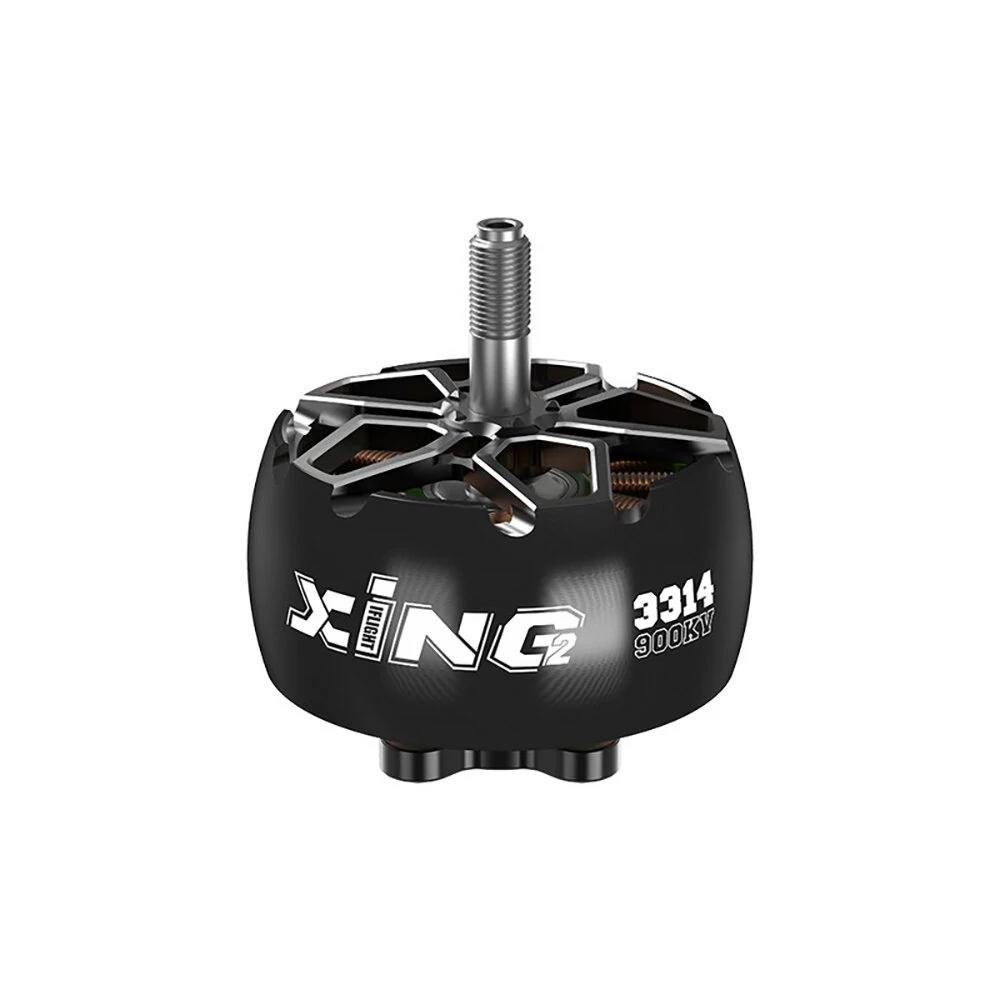

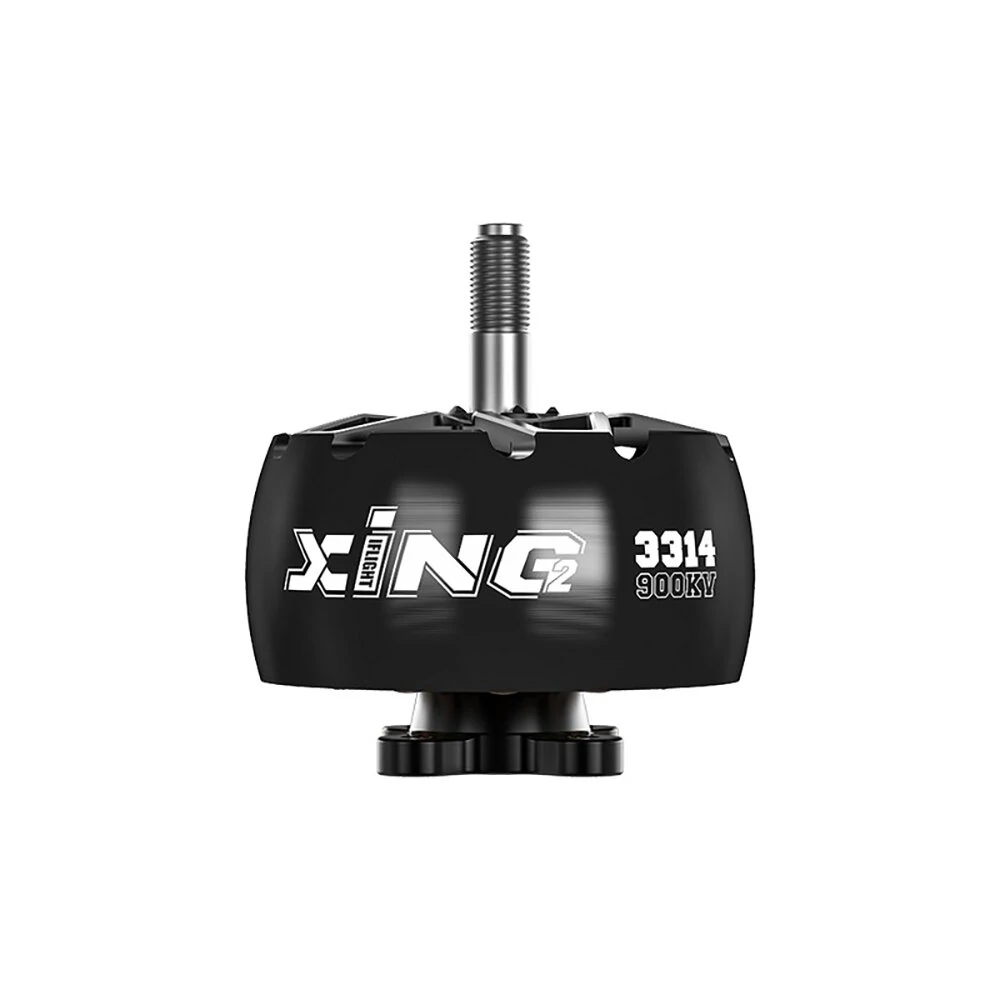

iFlight XING2 3314 900KV Cinelifter Brushless Motor for Nazgul XL10 V6 DIY 9 Inch 10 Inch RC Drone FPV Racing

Specifications: ( Test Table)
Brand: iFlight
Model: Xing2 3314
KV: 900KV
Weight (with wire): 129g
Dimensions: φ41.9*29.8mm
Interphase Resistance: 36.5Ω
Input Voltage: 24V
Peak Current: 58.48A
Max Wattage: 1366.1W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Lead: 400mm/16AWG
Magnet Type: N52H Curved
Configuration: 12N14P
Bearing Type: NMB
Bearing Specification: φ1155
Winding: Single Strand Copper Winding

Features:

Upgraded XING series motor ensuring a smoother and more powerful performance than ever before.

Equipped with new center slotted N52H curved arc magnets to drastically reduce motor response time.

Resolves FPV flight controller’s motor bottleneck by offering rapid translation response during braking and acceleration.

Utilizes high-quality materials and advanced design to minimize magnet air gap and stator lamination, resulting in greater efficiency and enhanced power.

Designed for a swift PID loop reaction, giving pilots the precise, locked-in feeling they desire.

Package Included:
1 x XING2 3314 Brushless Motor
4 x M3x10 screws
1 x M5 Flange Nut
