Description:
| Basic information |
Brand:JJRCModels:JJRC-C8810
Model:1/18Speed:28km/h |
Power system |

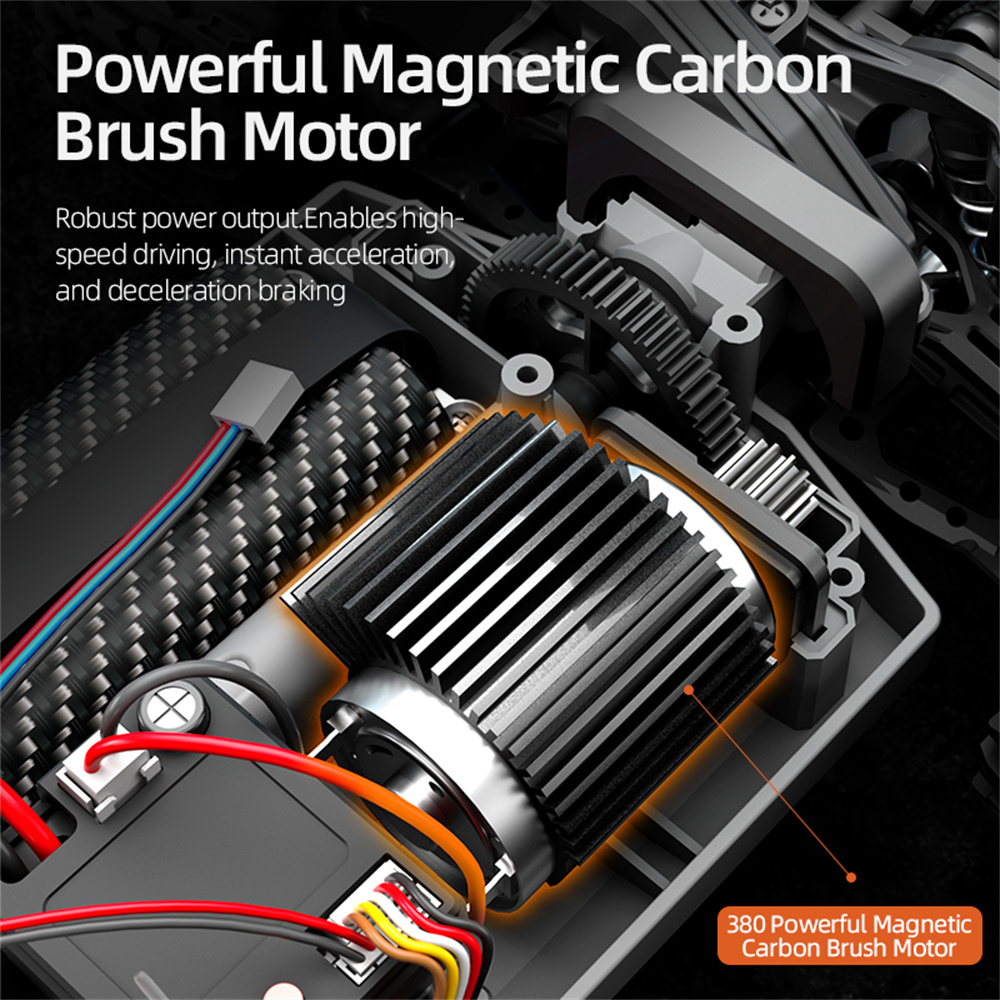

ESC/Receiver: 25A 2S Integrated Control(Splash-proof) Motor:RC380 Brushed Servo:5-wire, 17g |
| TransmitterFrequency:2.4 GHZBattery: 3XAA battery(not included) Weight:190g
|

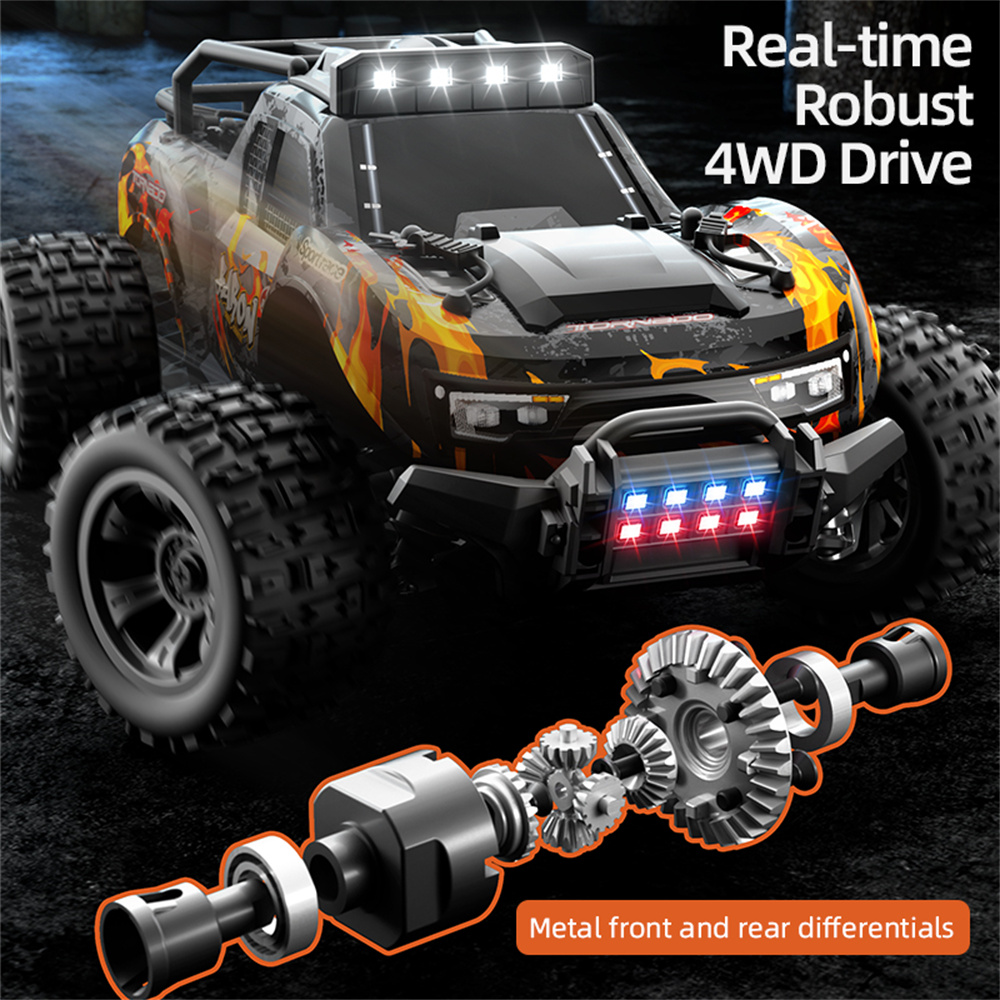

Battery:7.4V 1500mAH Lion T plug | othersCharge time:3-3.5hUsing time:30-45minControl distance:≥80mProtection Functions:Charging Protection;Stall Protection;Overheat Protection;Low Voltage Protection Remote Control Category: Full-Proportional Control Differential Structure: Metal Differential (Planetary Gear) |

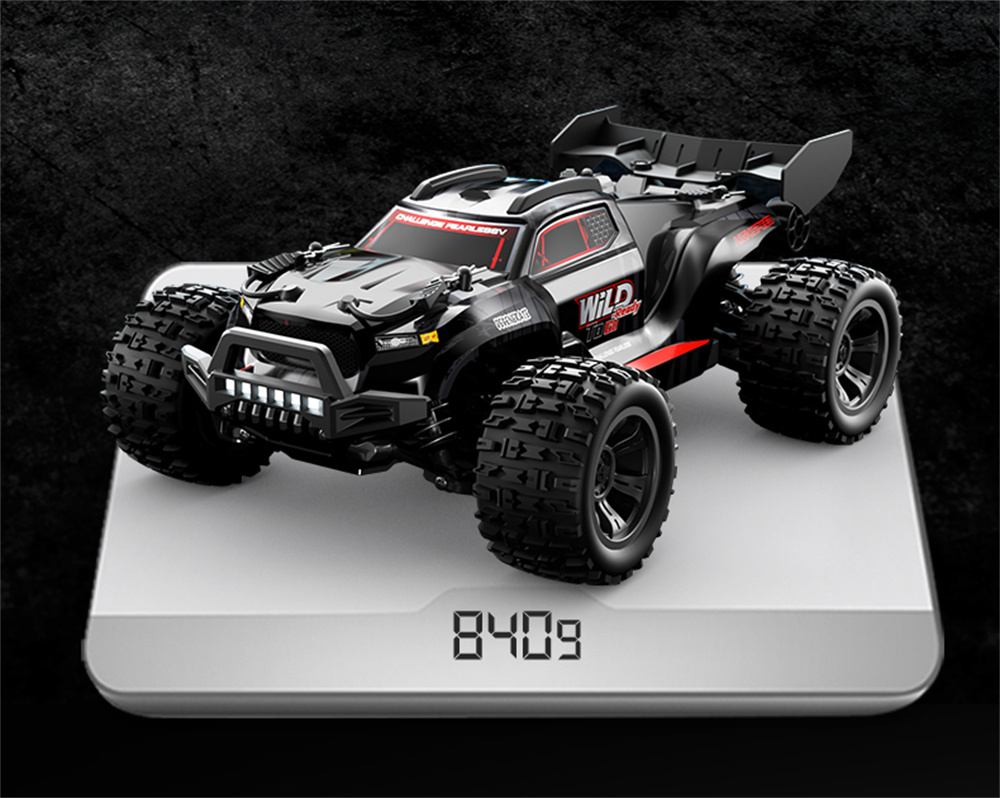

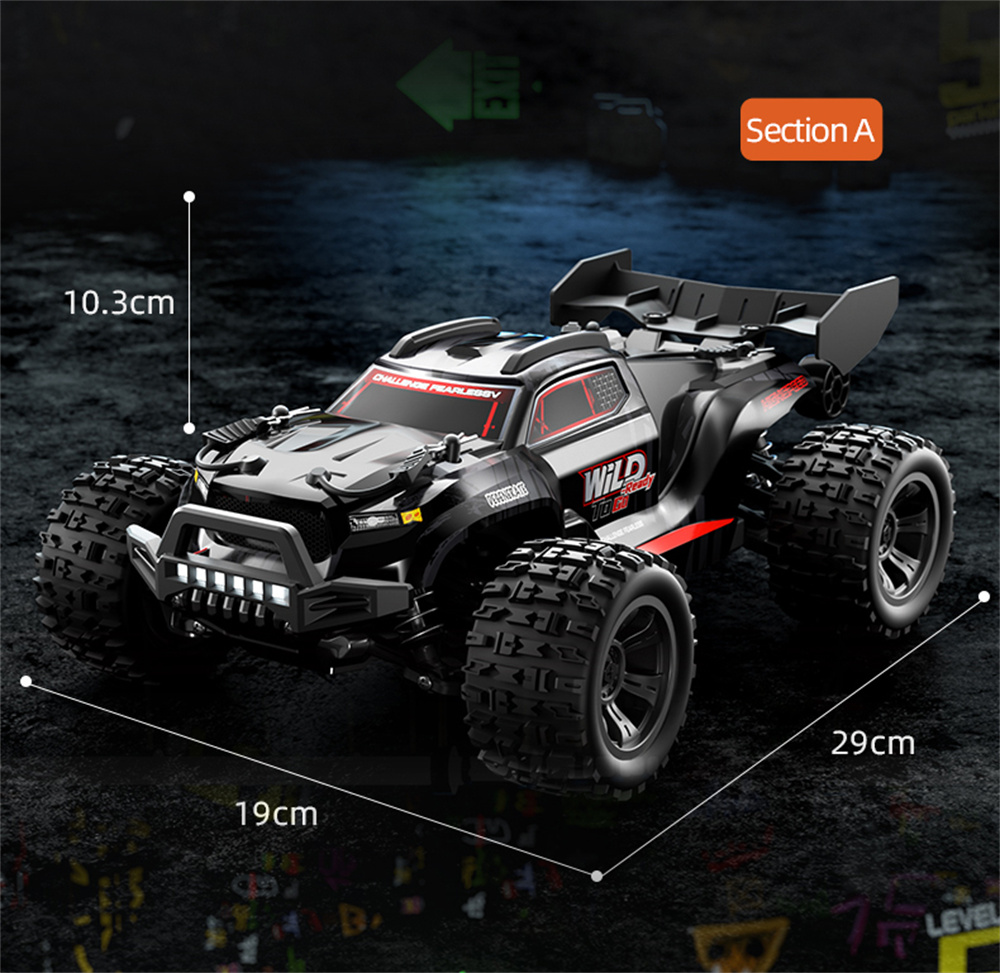

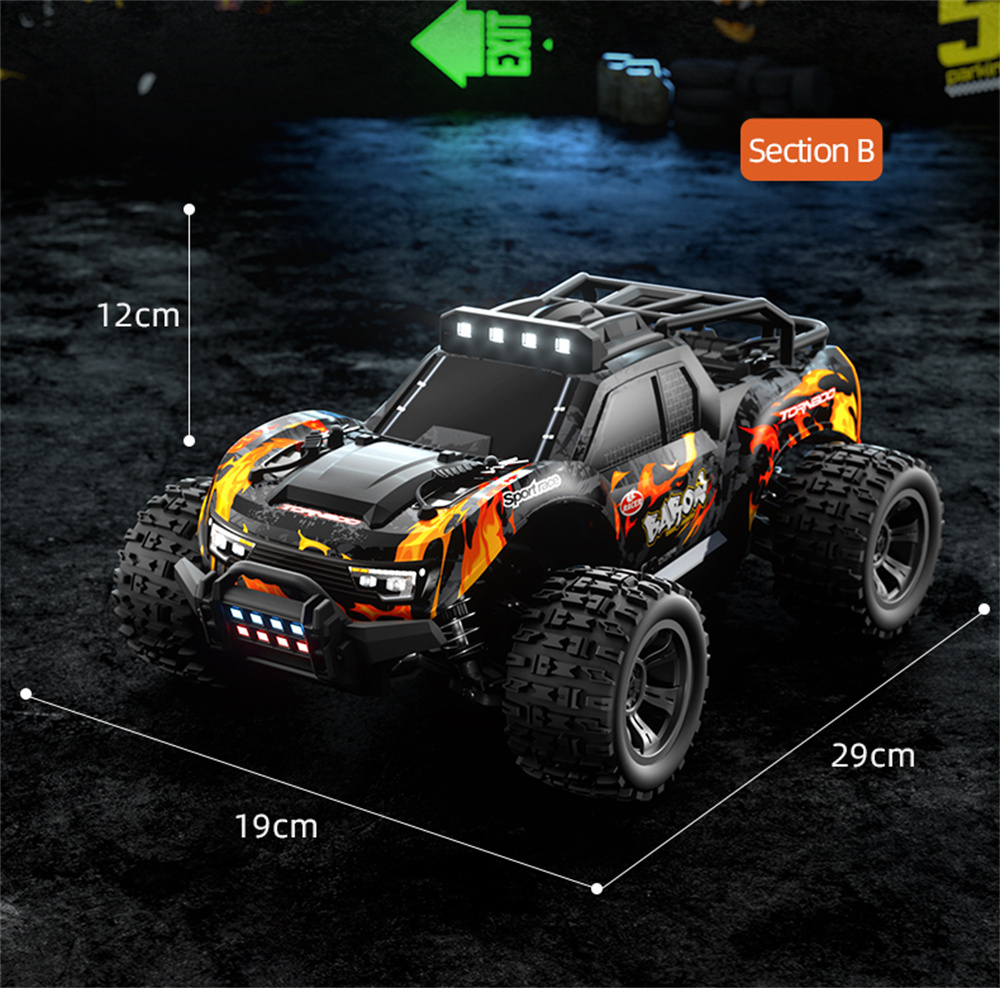

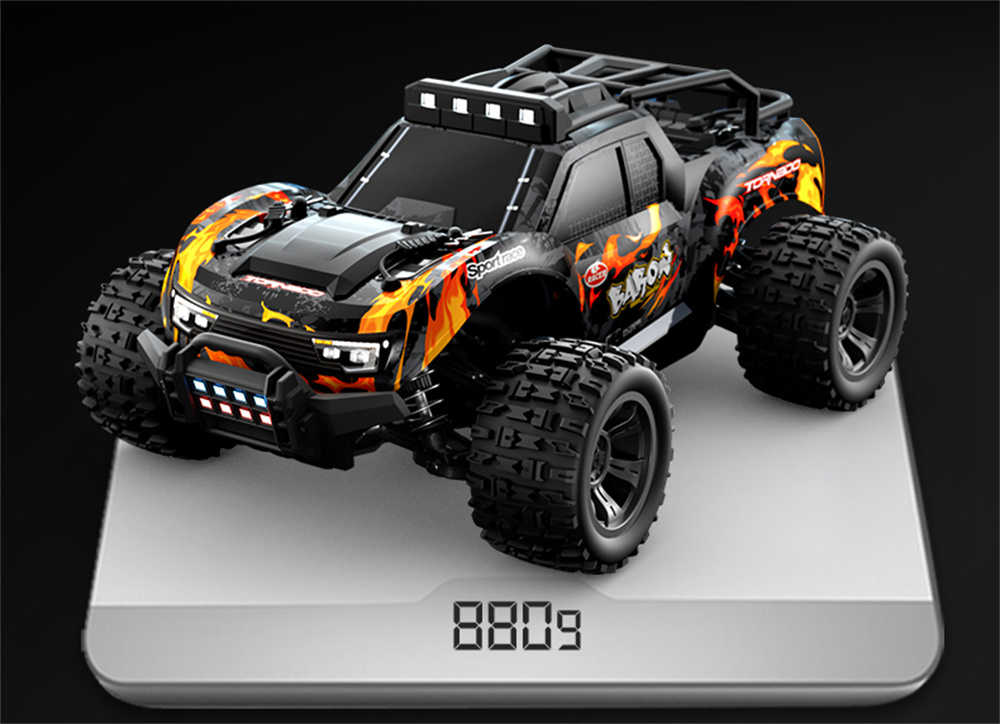

DimensionProduct Dimensions: 29 * 19 * 10.3 cm / 39*19*12CM Remote Controller Dimensions: 12.6 * 8.2 * 18.5 CM / Color Box Dimensions: 30.5 * 17.5 * 22 CM Wheelbase: 165mm Track Width: 155mm Wheel Diameter: 67mm Car Body Weight: 840g Packaged Weight:1500g |
Feature:

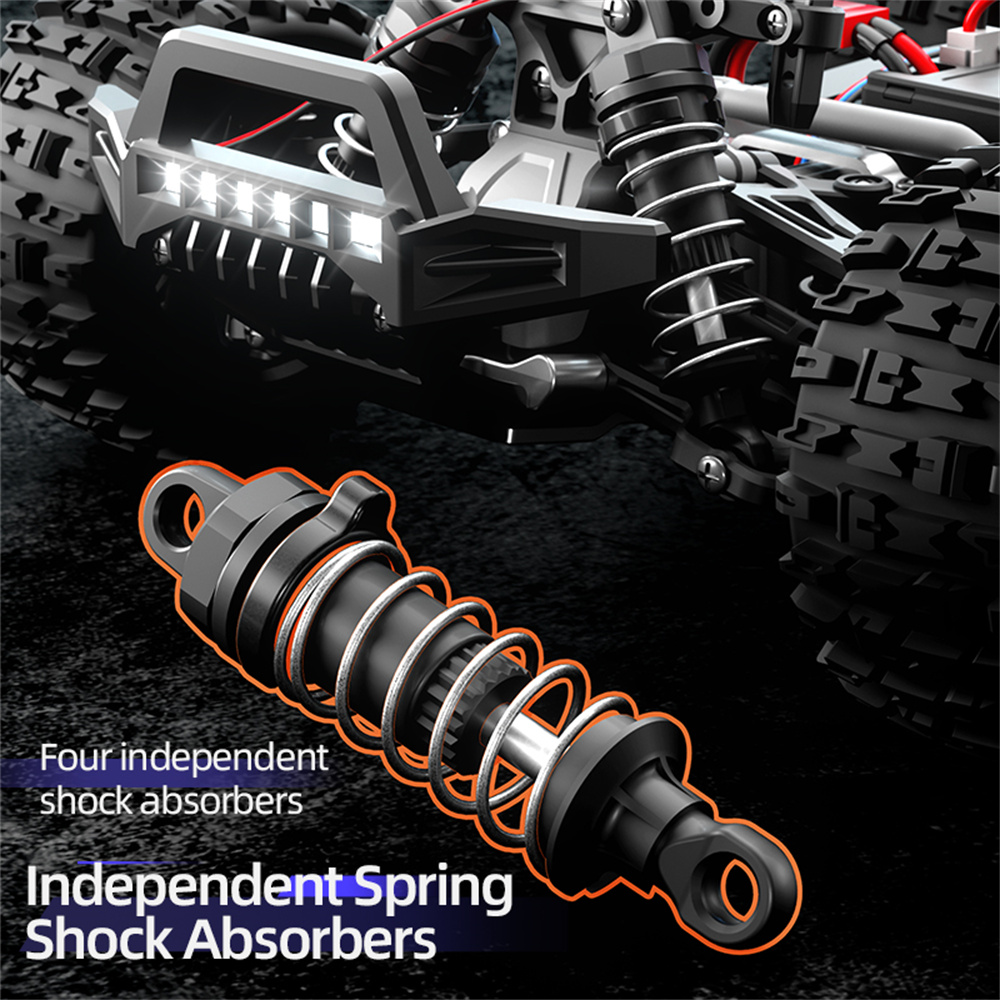

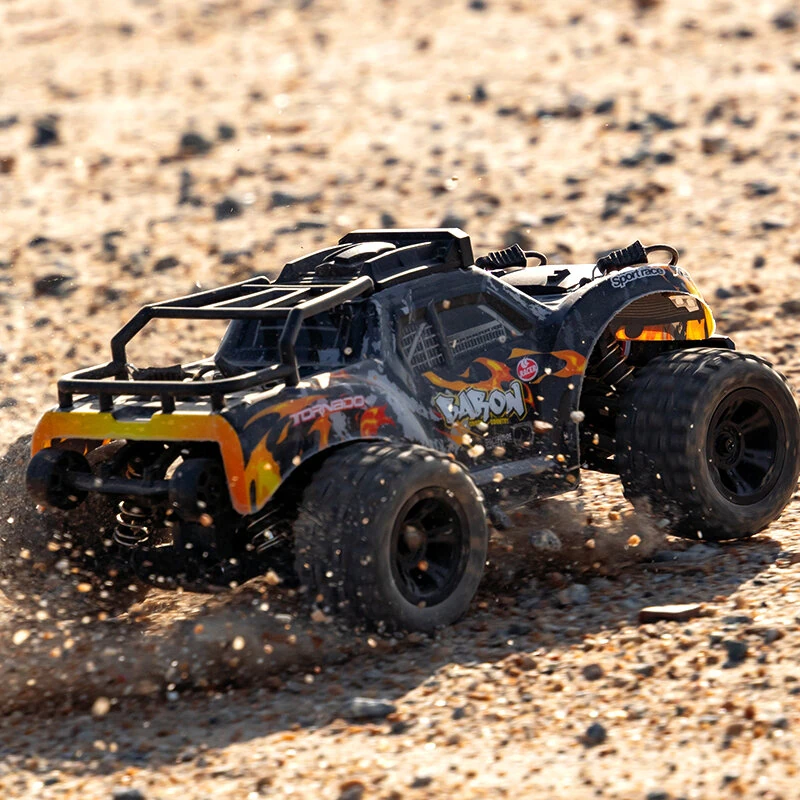

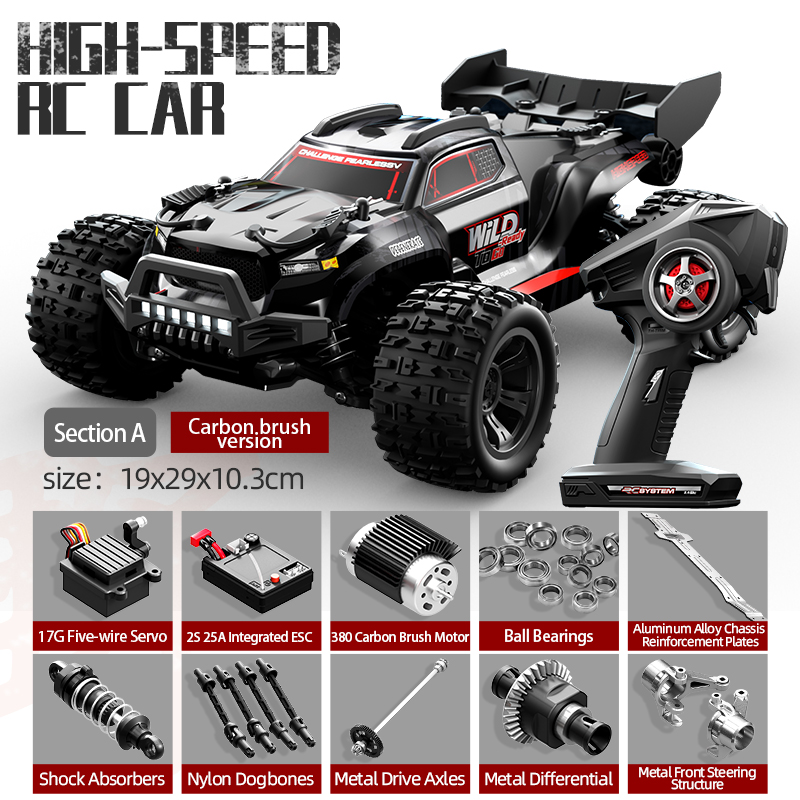

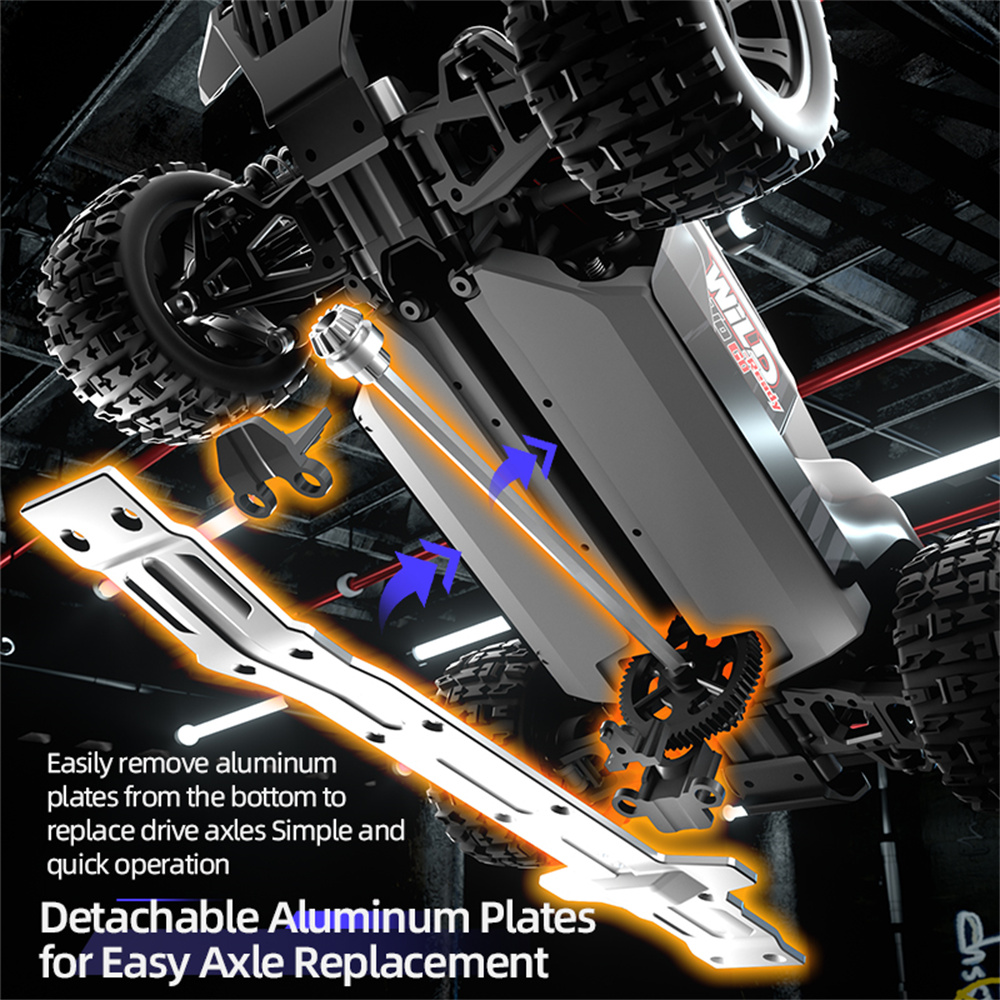

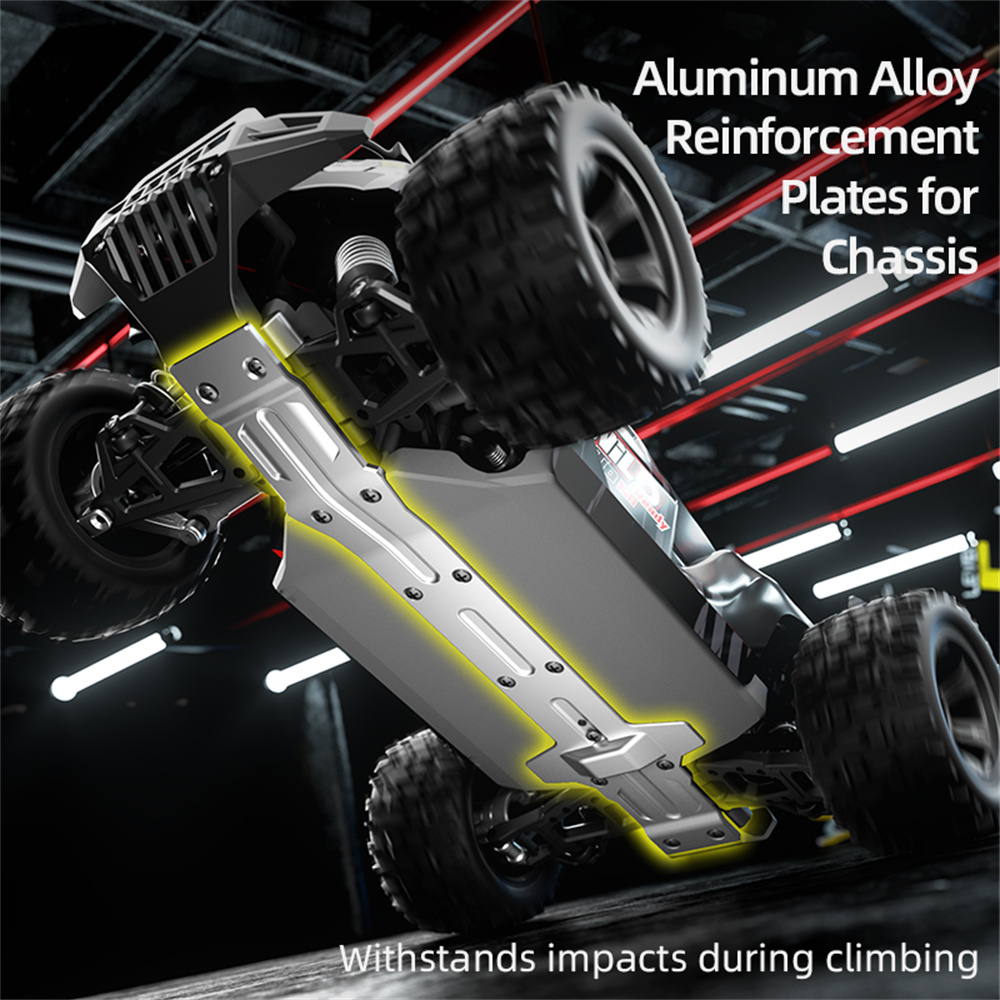

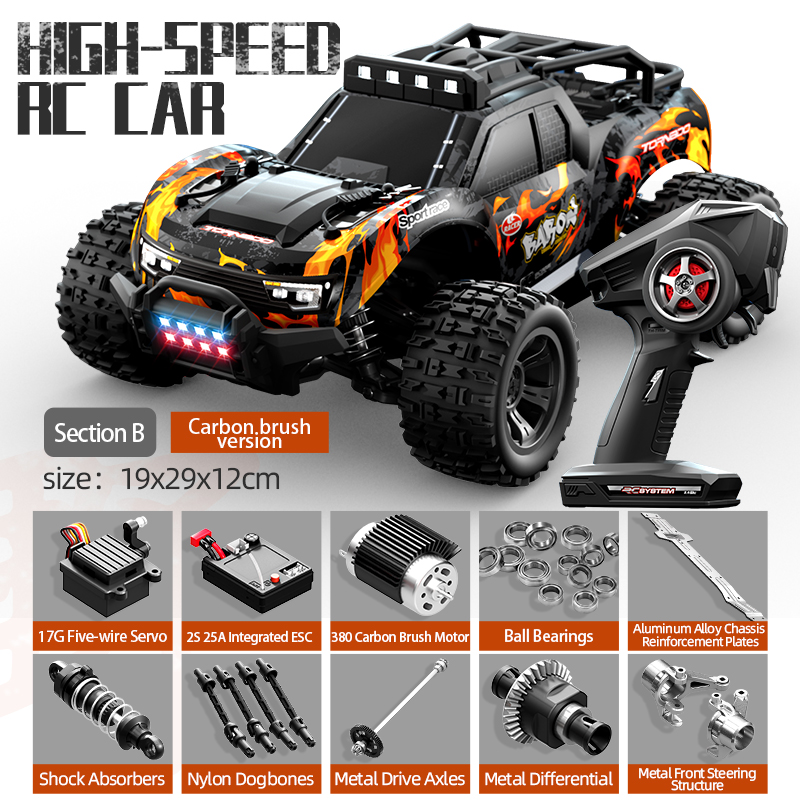

1. It adopts simulation structure design, has the control feeling of real car, realizes full-proportional stepless speed change, high-speed driving, sudden acceleration, deceleration, braking, reversing, left turn, right turn;2. Applicable sites: flat land, sand, mud, grass.3. Four-wheel drive: front and rear upright spring shock absorber, double wishbone independent suspension system;4. Remote control system: 2.4G full-proportional synchronous remote control system. Full-proportional throttle/steering;5. Electric adjustment: 2.4G splash-proof four-way 30A integrated electric adjustment/receiver;6. Drive shaft structure: front wheel cross ball head universal joint drive shaft, rear wheel split dog bone drive shaft;7. Servo parameters: five-wire 17G servo;8. Battery parameters: 7.4V, 18650-1500mAh Li-ion battery (T plug);9. Ball bearings: 15 ball bearings are used throughout the vehicle;10. Metal parts: metal underbody reinforcement plate, metal differential, metal gear, metal steering knuckle, metal front and rear arm bracket, metal middle drive shaft;11. Car shell: The car shell is made of high-toughness explosion-proof PVC car shell; the car shell comes with anti-lost silicone buckles;12. Lights: Equipped with LED headlights; (three gear modes: always on, slow flash, fast flash);13. Other equipment: equipped with head-up wheels;14. Other equipment: simulated tires with strong grip
Notes:
1.Charging Protection: Constant current and constant voltage balanced charging with overcharge and overcurrent protection for the battery.
2.Motor Anti-Stall Protection: The motor stops working when overloaded.
3.High-Temperature Protection: When the operating temperature exceeds the set limit, the drive control circuit stops working. It resumes operation once the temperature drops to a safe level.
4.Low Voltage Cutoff Function of the ESC: When the battery voltage falls below approximately 6.3-6.4V, it automatically disconnects to prevent over-discharge damage to the battery.
Package included:
1*RC Car
1*Controller
1*Rechargeable battery(built-in)
1*Charger
