Specification:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (11.1V): 0.12 sec/60°
Operating Speed (14V): 0.10sec/60°
Stall Torque (11.1V): 38 kg.cm
Stall Torque (14V): 47 kg.cm
Dimensions: 40X20X37mm
Weight: 73 g

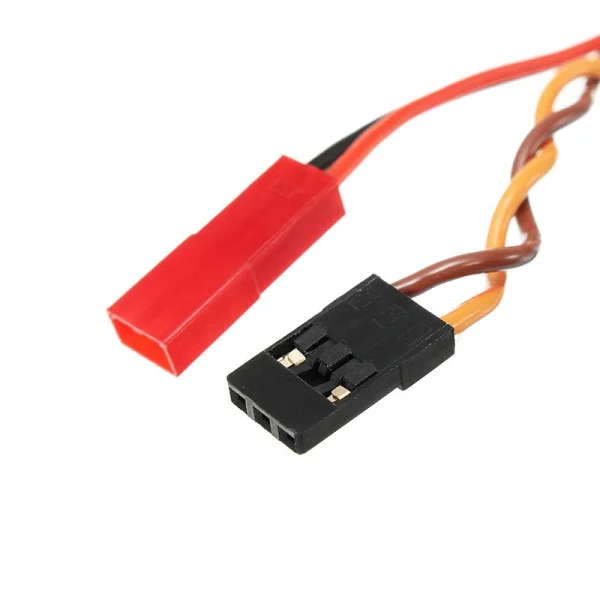

Connector Wire Length: JR 265 mm
Bearing: 2BB
Feature:
– 12V High voltage
– High performance programmable digital brushless standard servo
– High-precision Taiwan-made steel gears with hard anodizing
– Full CNC aluminium Shell structure
– Dual ball bearings
– Waterproof
Package include:

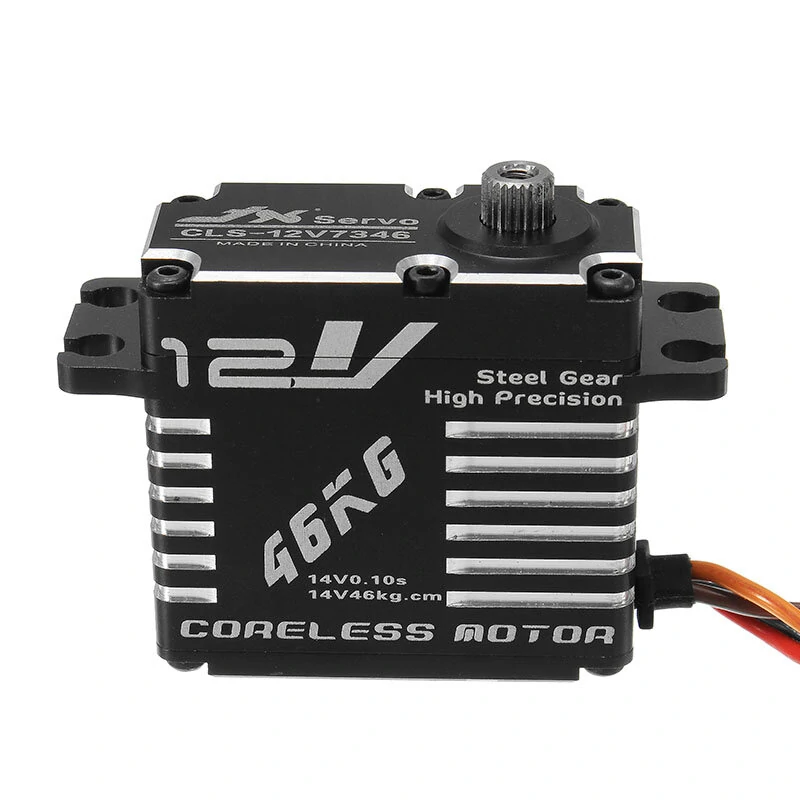

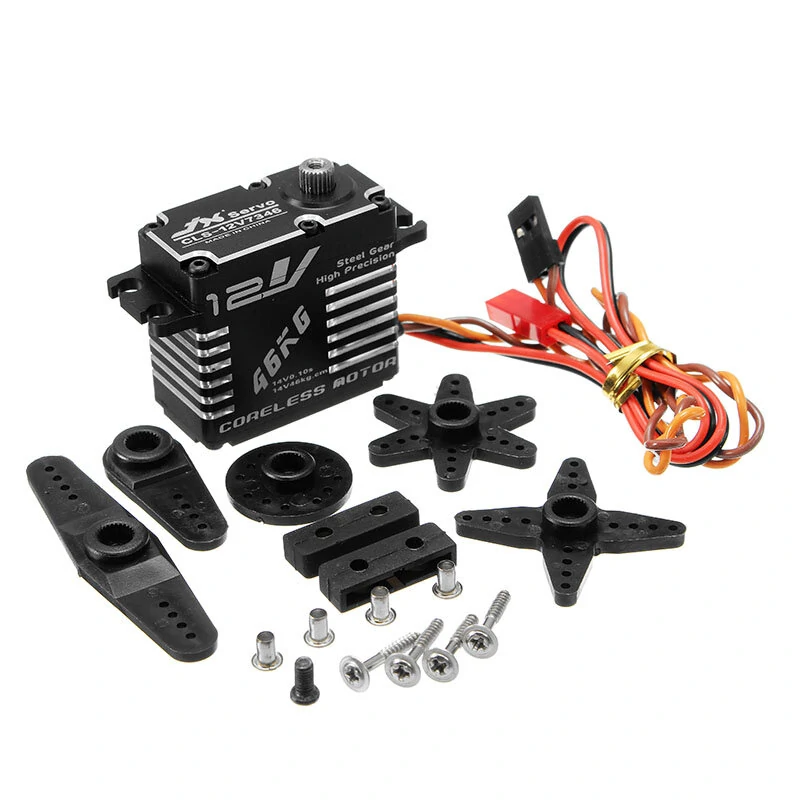

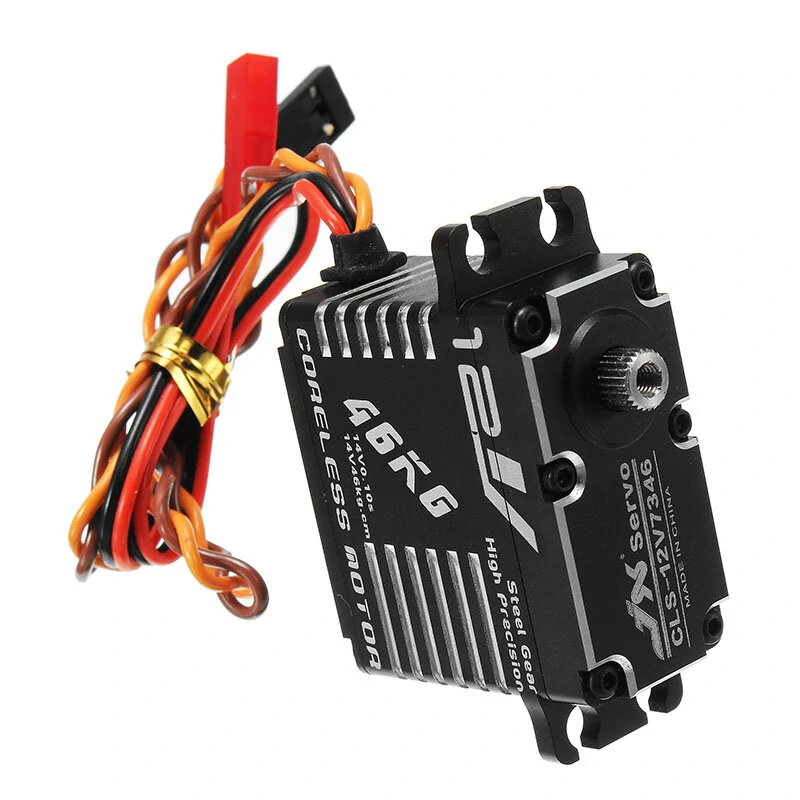

1x JX CLS-12V7346 46KG Servo
,
,
,
,
,
