Specification:
Working frequence: 1520us / 330hz
Motor: coreless motor
Operating Voltage: DC4.8-7.4V
Operating Speed (4.8V): 0.14sec/60°
Operating Speed (6V): 0.12 sec/60°
Operating Speed (7.4V): 0.1 sec/60°
Stall Torque (4.8V): 0.85kg.cm
Stall Torque (6V): 1.05 kg-cm
Stall Torque (7.4V): 1.2 kg-cm
Dimensions: 19.8×8.2×21.5
Weight: 5.6g
Connector Wire Length: JR 150 mm (5.91in)
Features:
1. High-quality metal gear ensures durability and long-lasting performance.
2. Digital servo technology provides fast and precise control for accurate movements.
3. Lightweight design helps to reduce the overall weight for better performance.
4. High-voltage capability allows for efficient power delivery and improved responsiveness.
5. Suitable for a wide range of applications, including RC toys and aircraft.
Package Included:

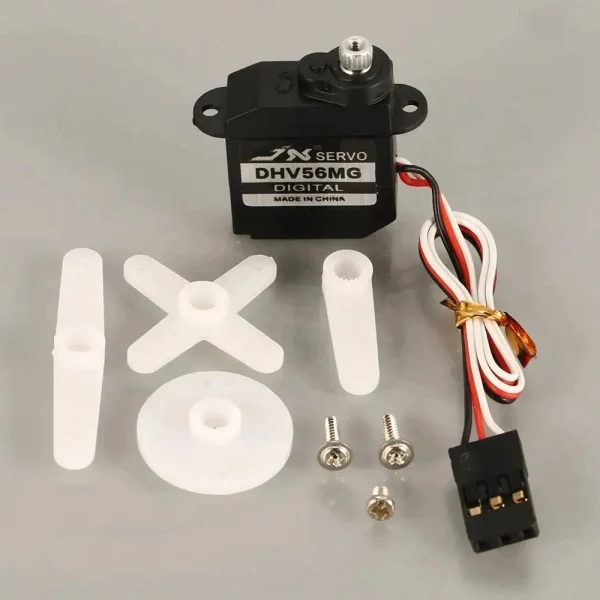

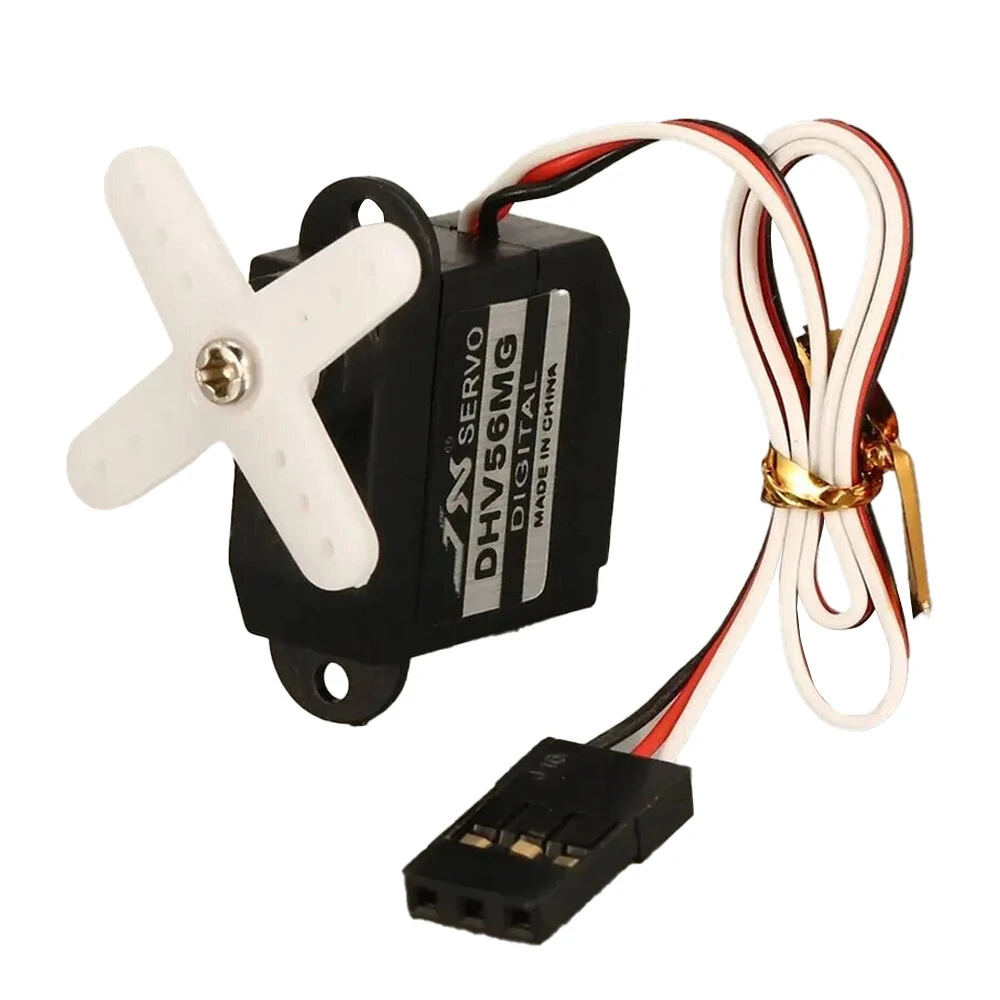

1 set x JX DHV56MG 5.6g 1.2Kg Mini Steering Metal Gear Digital Coreless Servo
