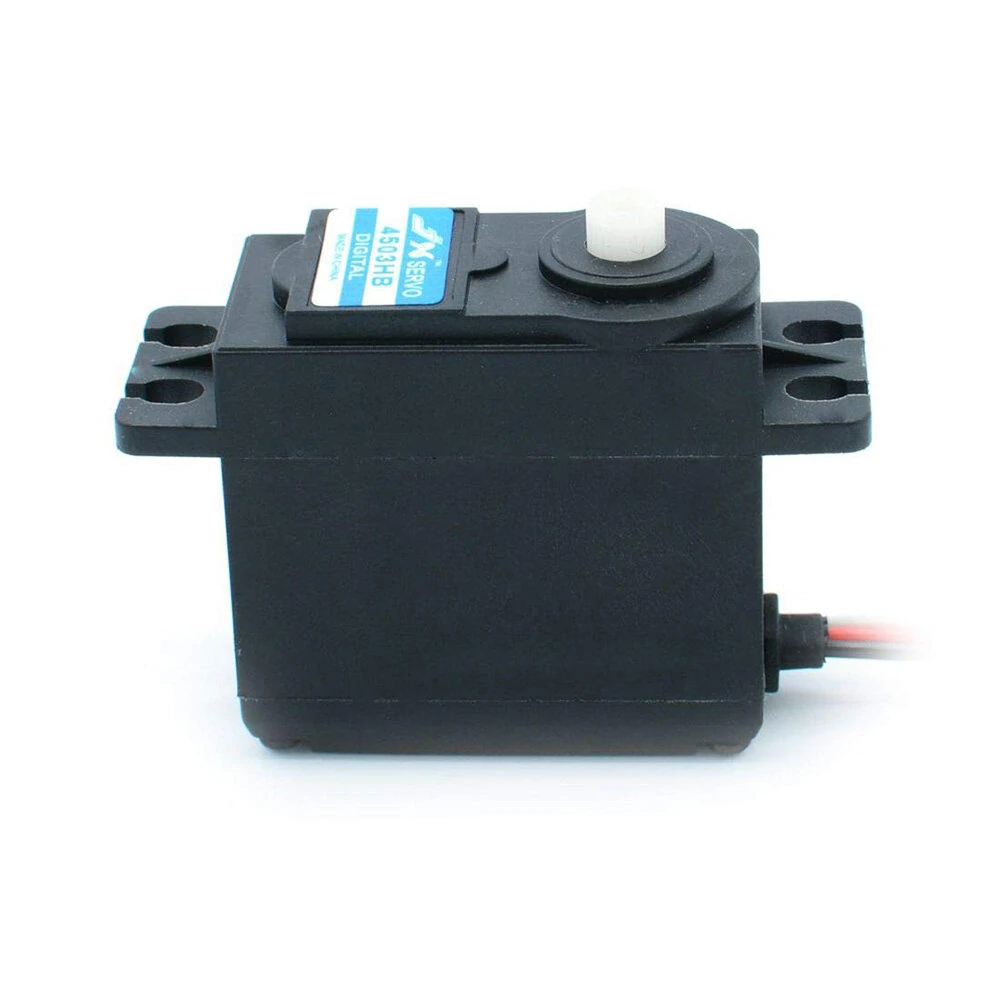

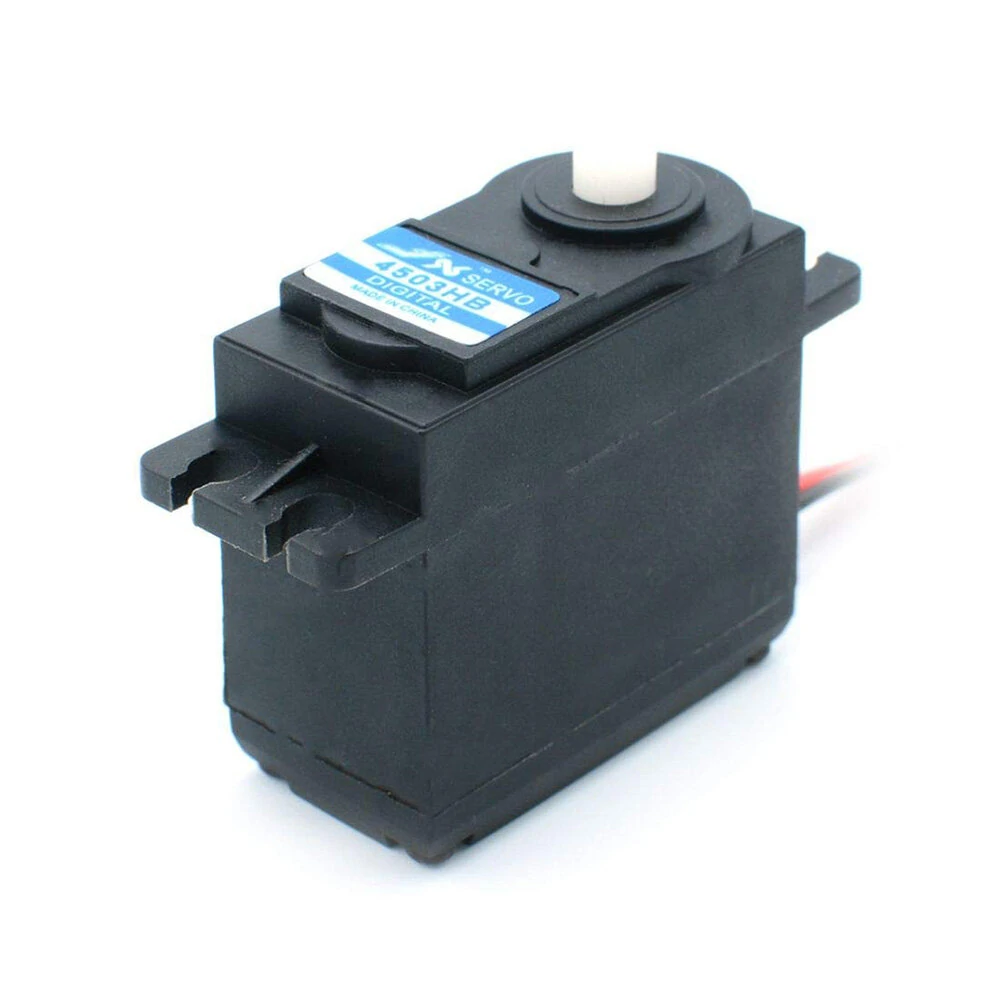

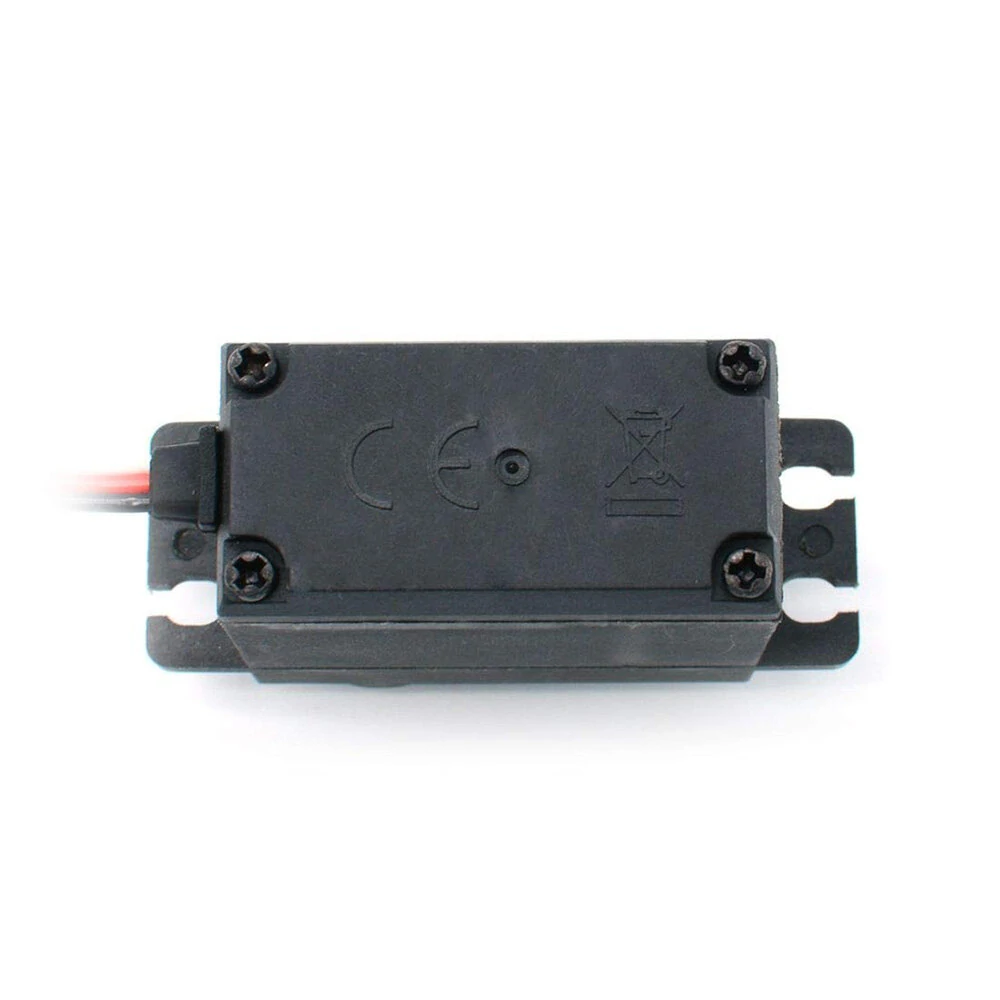

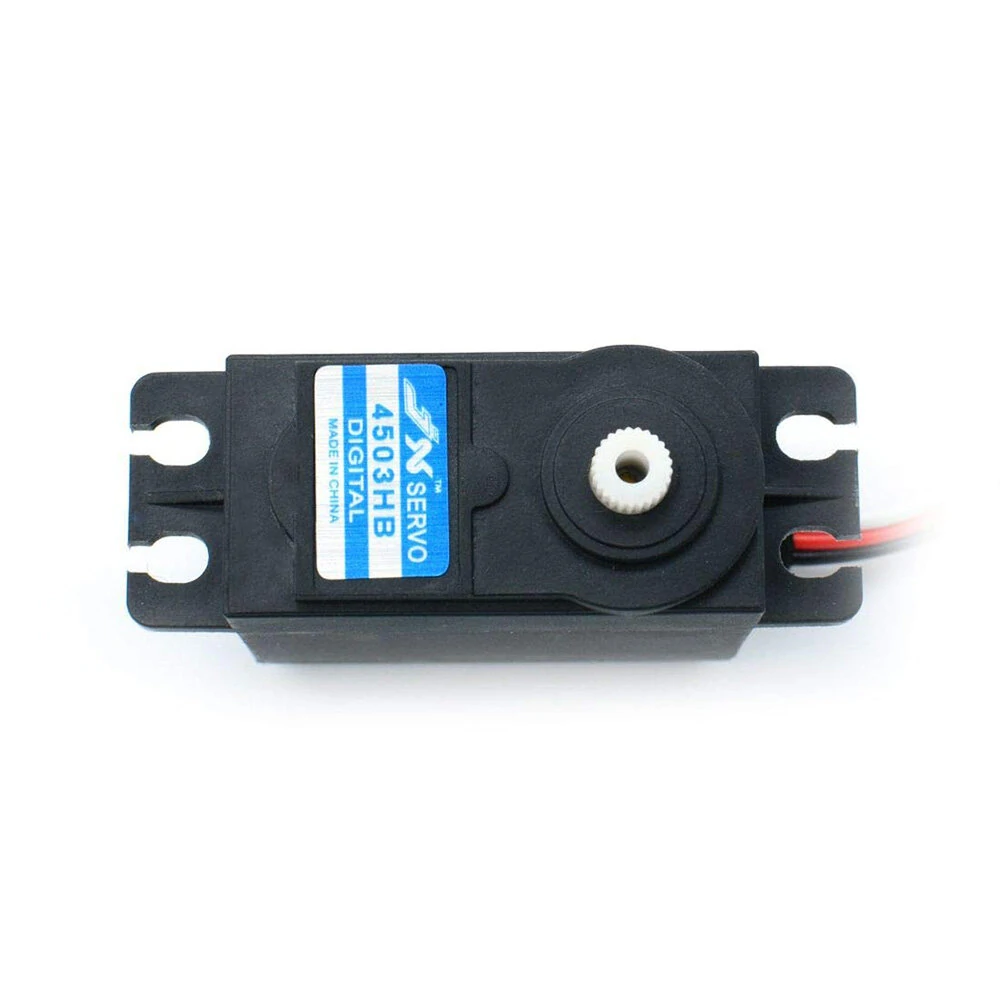

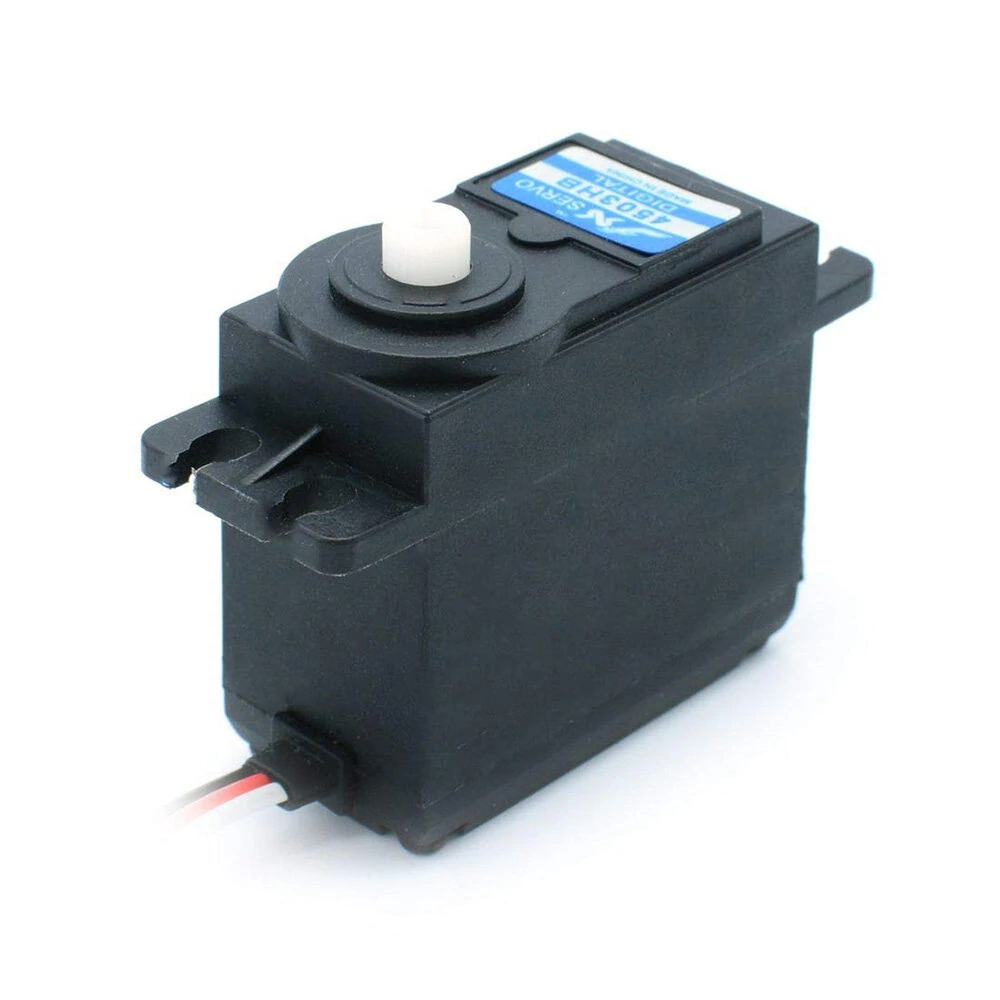

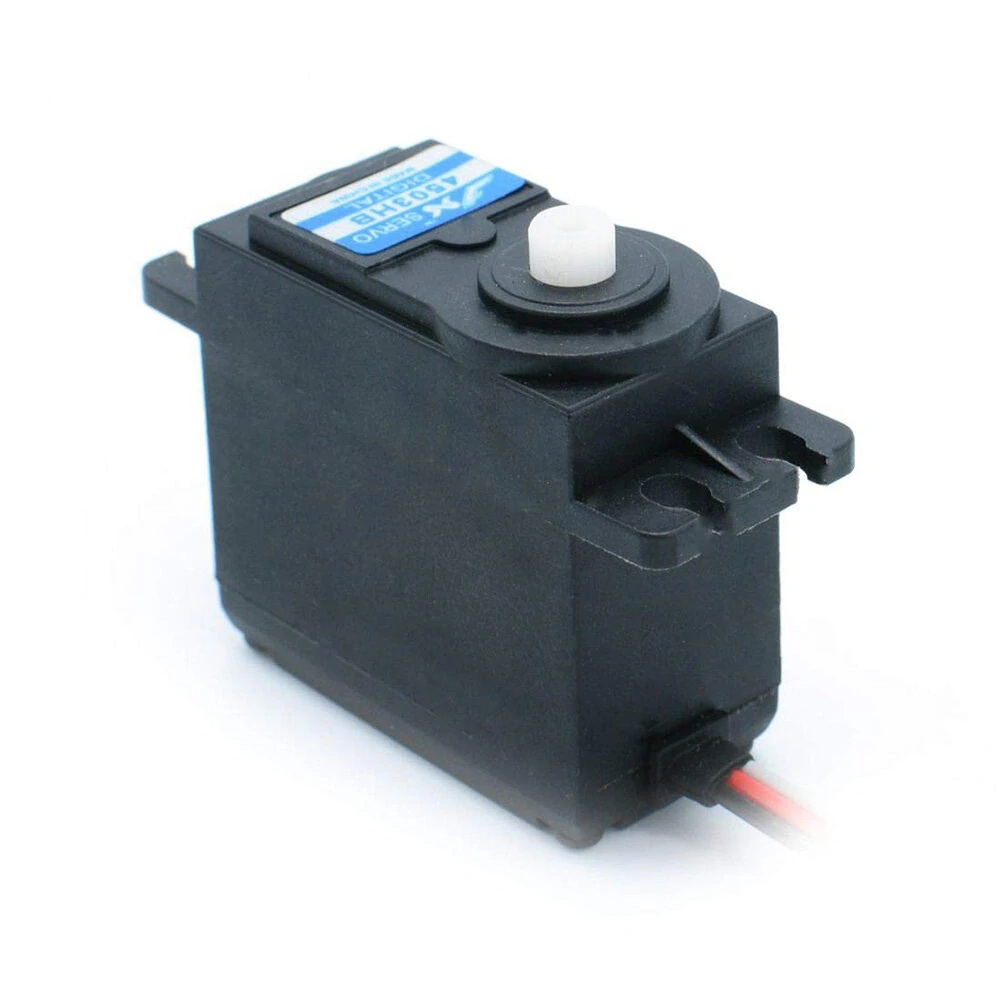

JX Servo PDI-4503HB Plastic Gear 120 330Hz Digital Standard Large Torque Servo for Helicopter Drone Tank Car Robot Accessories

Description

Specifications:
Brand: JX
Model: PDI-4503HB
Product name: Digital Core Plastic Gear servo
Working voltage: DC4.8-6.0v
Working temperature: -20℃ to +60℃
Dead setting: 2?s
Maximum pulse width: 900-2100?s subtle
Maximum angle: 120°
Working frequency: 330Hz
Motor or motor: Core Motor iron core motor
Operating speed (4.8v): 0.15sec/60°
Operating speed (6.0v): 0.12sec/60°
Torque (4.8v): 3.25kg/cm(45.13oz/in)
Torque (6.0v): 3.95kg/cm(54.58oz/in)
Size: 40.5mm*20.2mm*38mm
Weight: 45.5g (1.60oz)
Cable length: JR 265MM (10.43inch)
Gear material: Plastic Gear
Bearing: 2BB double ball bearing
Applicable to: RC car models, fixed-wing aircraft, helicopters, small robots, manipulators and other models

Features:
– High-quality plastic gears ensure durability and smooth operation.
– Provides precise and accurate control for various applications.
– Digital technology ensures fast response and excellent performance.
– Compatible with a wide range of RC models and other applications.

Package Included:
1x Servo

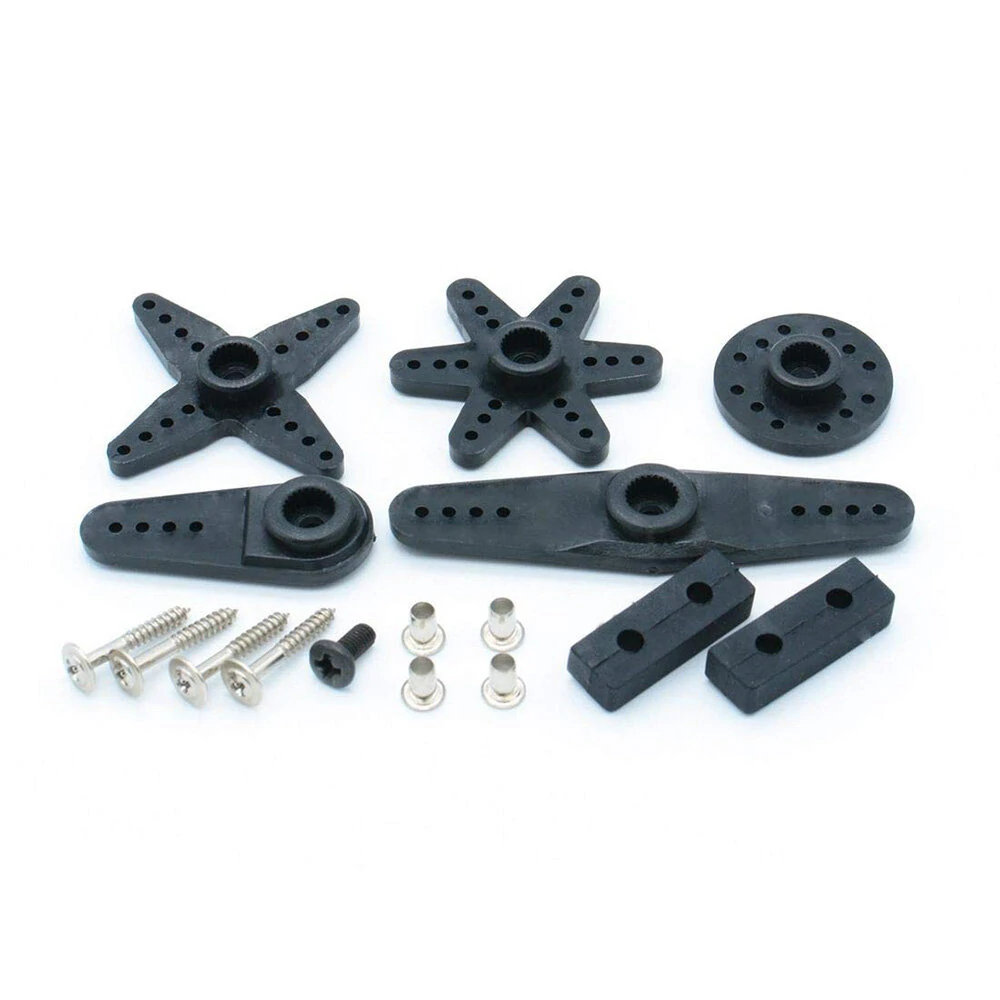

1x Servo Spare Parts Set
