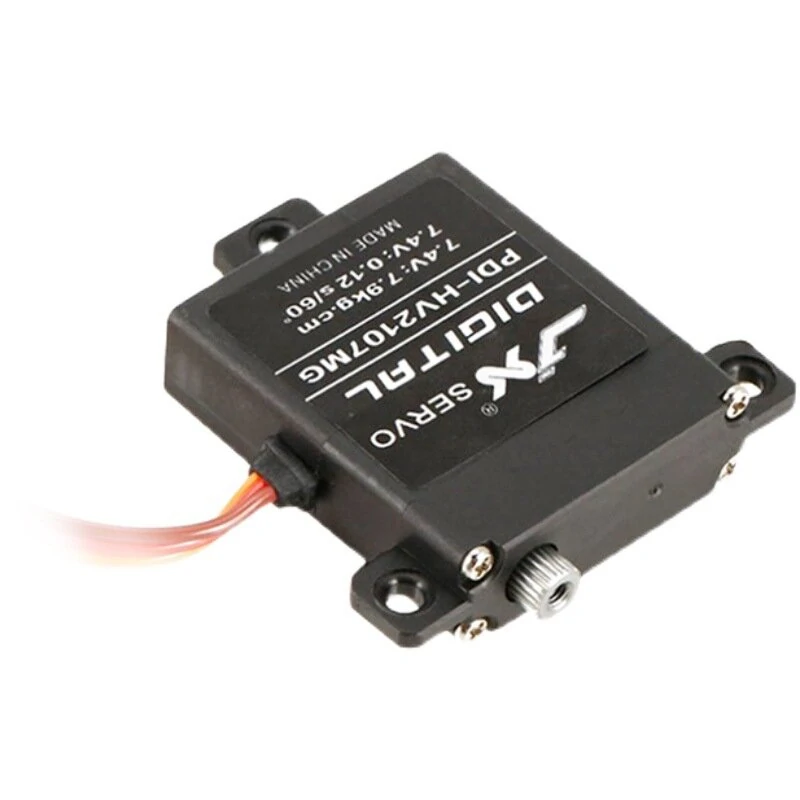

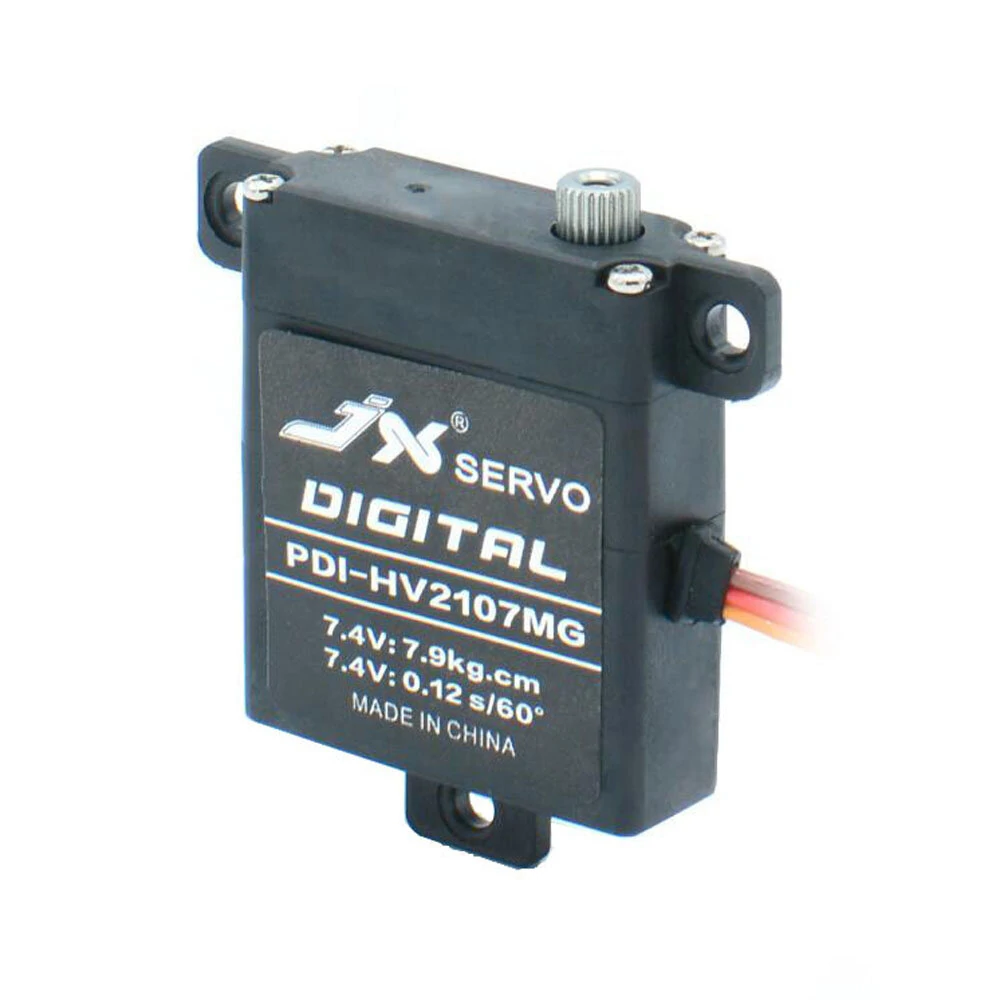

JX Servo PDI-HV2107MG 21g High Torque Digital Standard Servo For RC Model

Specifications:

Brand Name: JX
Item Name: PDI-HV2107MG 21g High Torque Digital Standard Servo
Dead Band: 2μs
Control System: +Pulse Width Control
Working Frequency: 1520μs / 330hz
Operating Voltage: DC 6~7.4 V
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.14sec/60°
Operating Speed (7.4V): 0.12sec/60°
Stall Torque (6V): 6.8 kg.cm
Stall Torque (7.4V): 7.9 kg.cm
Potentiometer Drive: Direct Drive
Dimensions: 30.0X10.0X35.5mm / 1.18 X 0.39 X 1.40 in
Weight: 21g (0.74oz)
Connector Wire Length: JR/Futaba 220 mm
Bearing: 2BB

Features:

High-Performance Design: Engineered to deliver a powerful and reliable performance, this digital standard servo is perfect for RC models requiring precision and strength.

High Stall Torque: Offering a high stall torque of up to 7.9 kg.cm at 7.4V, this servo ensures robust operation in demanding scenarios.

Precision Crafted Gears: High-precision aluminium gears with hard anodizing for enhanced durability movement.

Speed and Efficiency: The servo operates at remarkable speeds, going as fast as 0.12sec/60° at 7.4V, allowing for quick and responsive maneuvers.

Sturdy Build: Features a CNC aluminium middle shell and dual ball bearings, resulting in a resilient and long-lasting build.

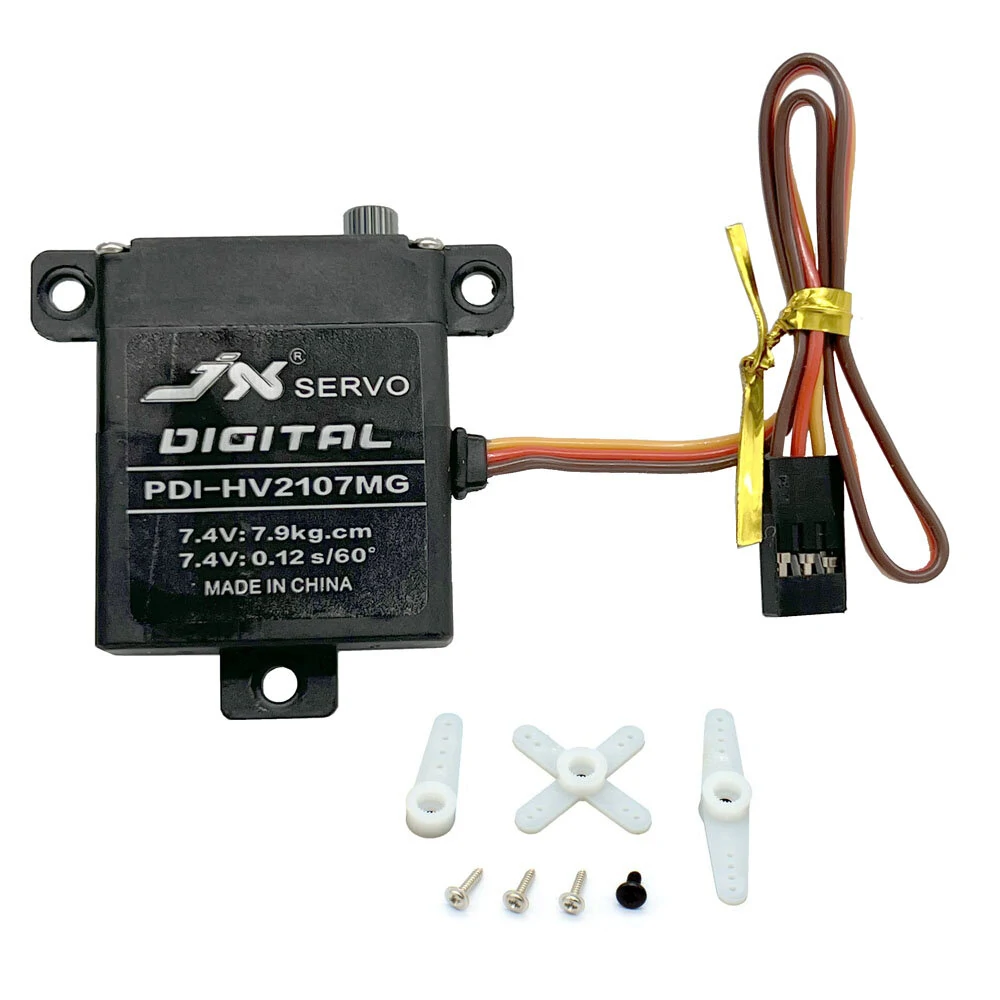

Package Included:

1 x PDI-HV2107MG 21g High Torque Digital Standard Servo
1 x Accessories Bag
