KK2.1.5 PLUS KK2 Flight Control Board Flight Controller VTOL V-Tail Self-Balancing Aerobatics for FPV Racing Drone RC Airplane

Description

Overview:

The KK2.1.5 PLUS Flight Controller is equipped with an integrated power distribution board (PDB), on-board switch, and buzzer for streamlined installation and convenience.

The advanced self-balancing feature ensures smooth and stable flight, making it ideal for both beginners and experienced drone enthusiasts.

Powered by a reliable Atmega module and features gyro from InvenSense Inc., and accelerometer from Anologue Devices Inc.

The flight controller accepts firmware updates, offering compatibility with V1.19S1PRO or OpenAeroVTOL 1.5/1.6  for enhanced performance and features.

All settings and adjustments can be made directly on the flight controller’s built-in LCD screen with four buttons, eliminating the need for a separate computer unless a firmware upgrade is necessary.

Specifications:

Item Name: KK2.1.5 PLUS

Dimensions: 52mm x 52mm x 12mm

Weight: 19g

Integrated Module: Atmega

Gyroscope: InvenSense Inc.

Accelerometer: Anologue Devices Inc.

Self-Balancing Feature: Yes

Input Voltage: 2-6S lithium battery or ESC-BEC 5V, but it is not allowed to provide two power supplies to flight control at the same time

Output BEC: 5V 2A

Receiver Signal: 1520us (5 channels in total)

Signal to ESC (Servo): 1520us

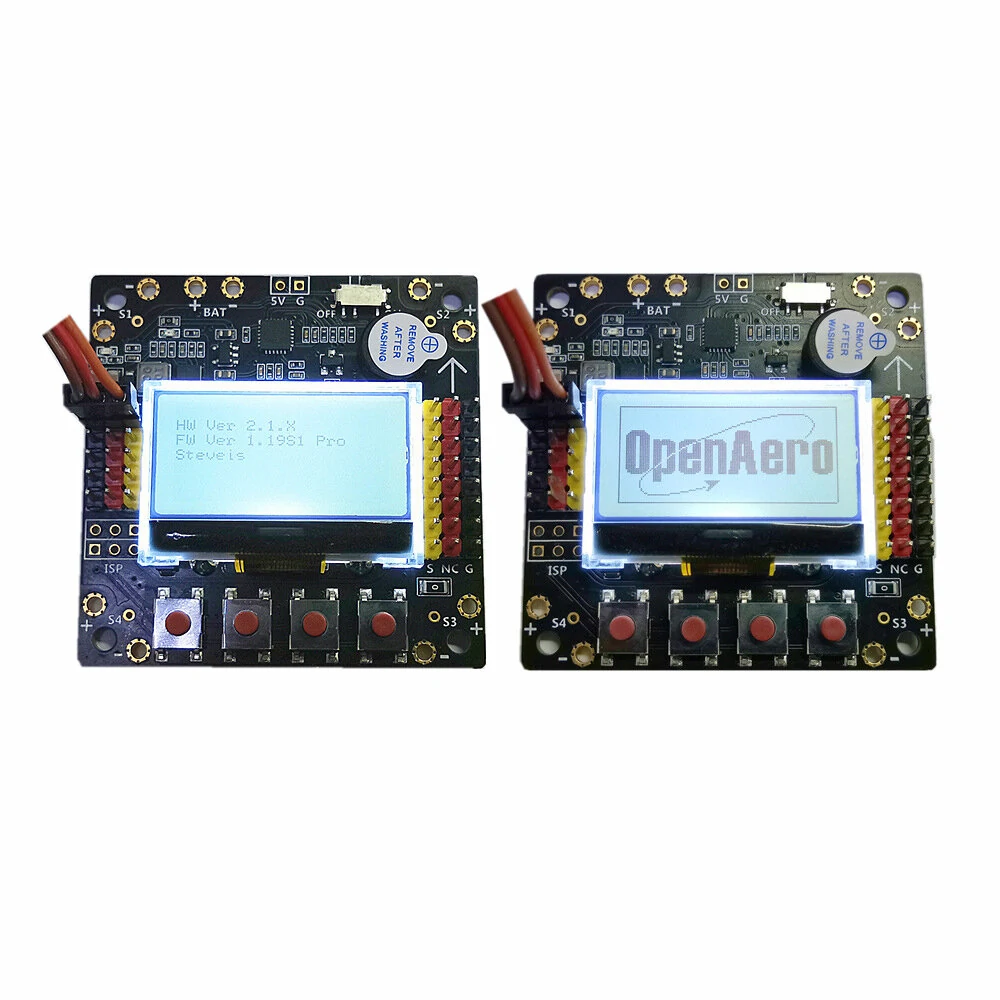

Firmware: V1.19S1PRO or OpenAeroVTOL 1.5/1.6 (Flash via USB Programmer)

Default Firmware: V1.19S1PRO

Built-in Airplane Mode:

Twin-rotor Tri-rotor

Y6 four-axis + four-axis X

Six axis + Six axis X

Eight-axis + Eight-axis X

X8 +X8 X

H8 H6

V8V6

Aero 1S Aileron

Aero 2S Aileron

Flying wing

Single axis 2M 2S

Single axis 1M 4S

V-tail four-axis

English Manual, Click Here

Flight Controller Version Included:

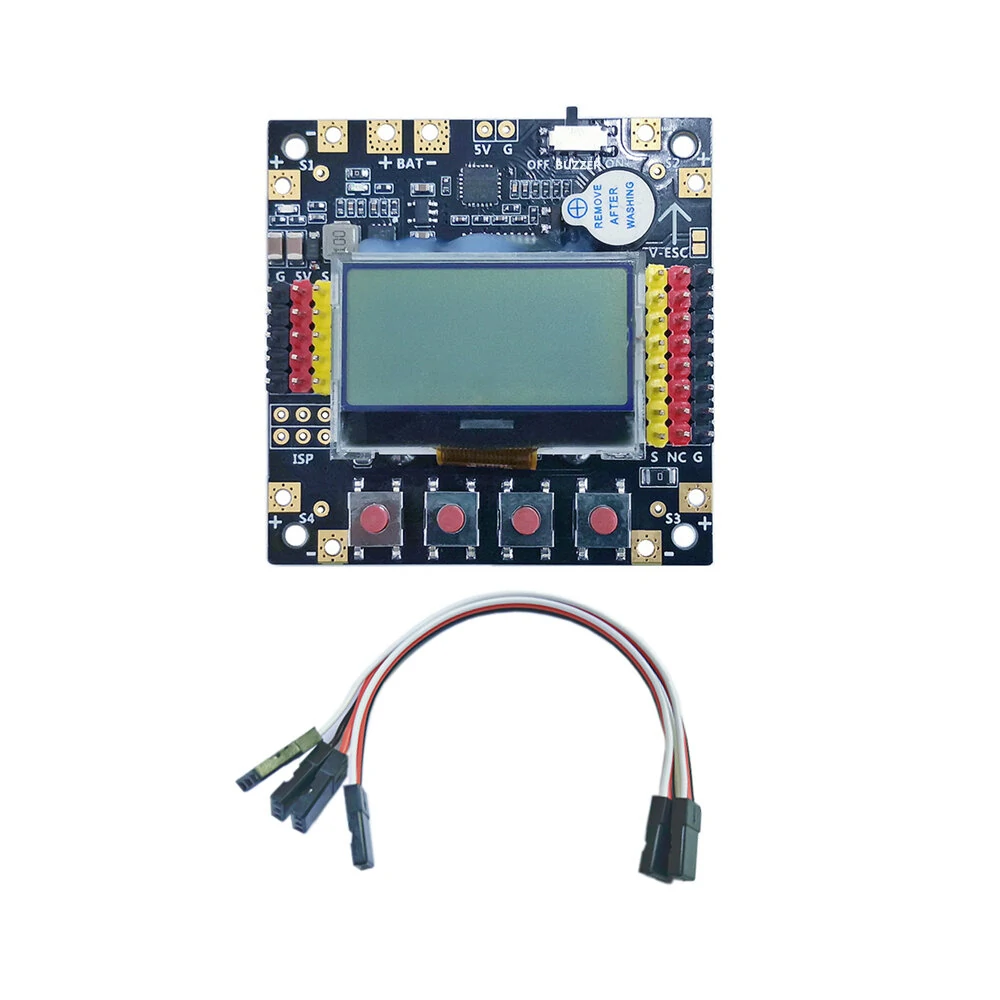

1x KK2.1.5 PLUS Flight Control

1x Cable

Flight Controller + USB Programmer Version Included:

1x KK2.1.5 PLUS Flight Control

1x USB Programmer

1x Cable
