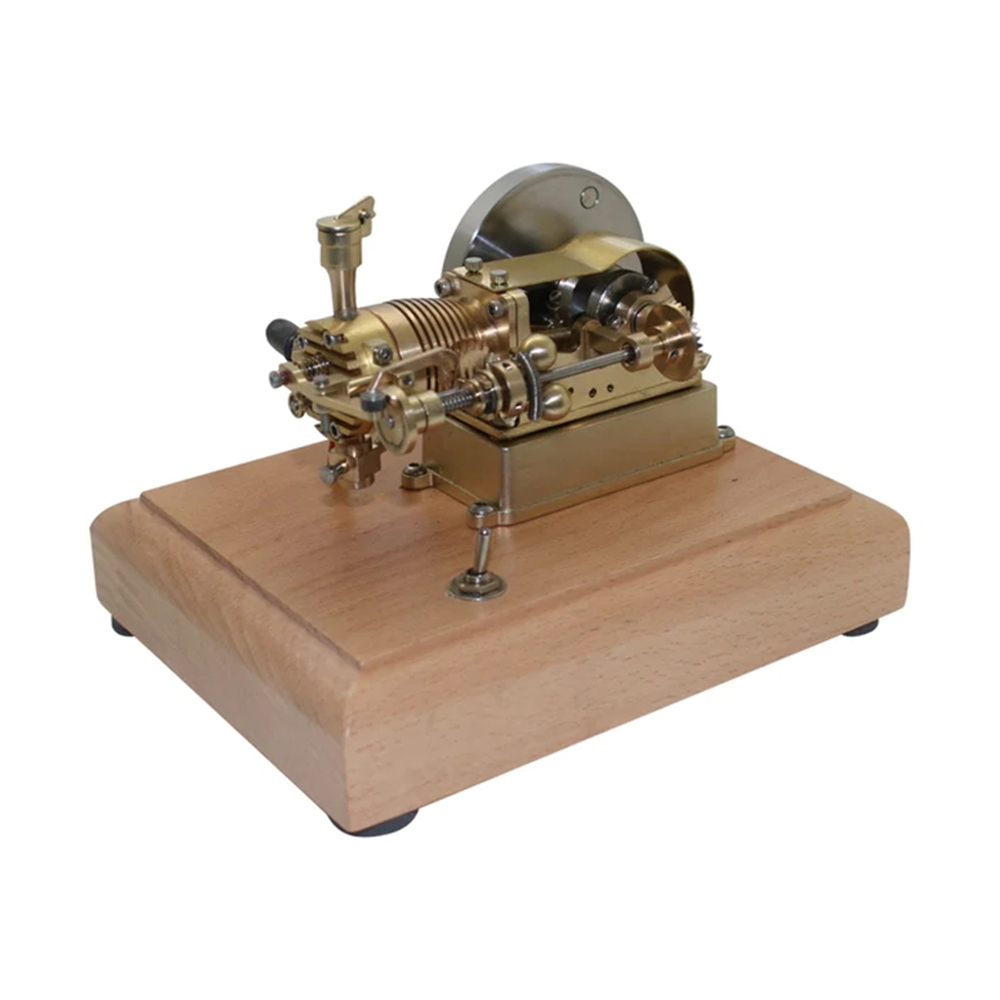

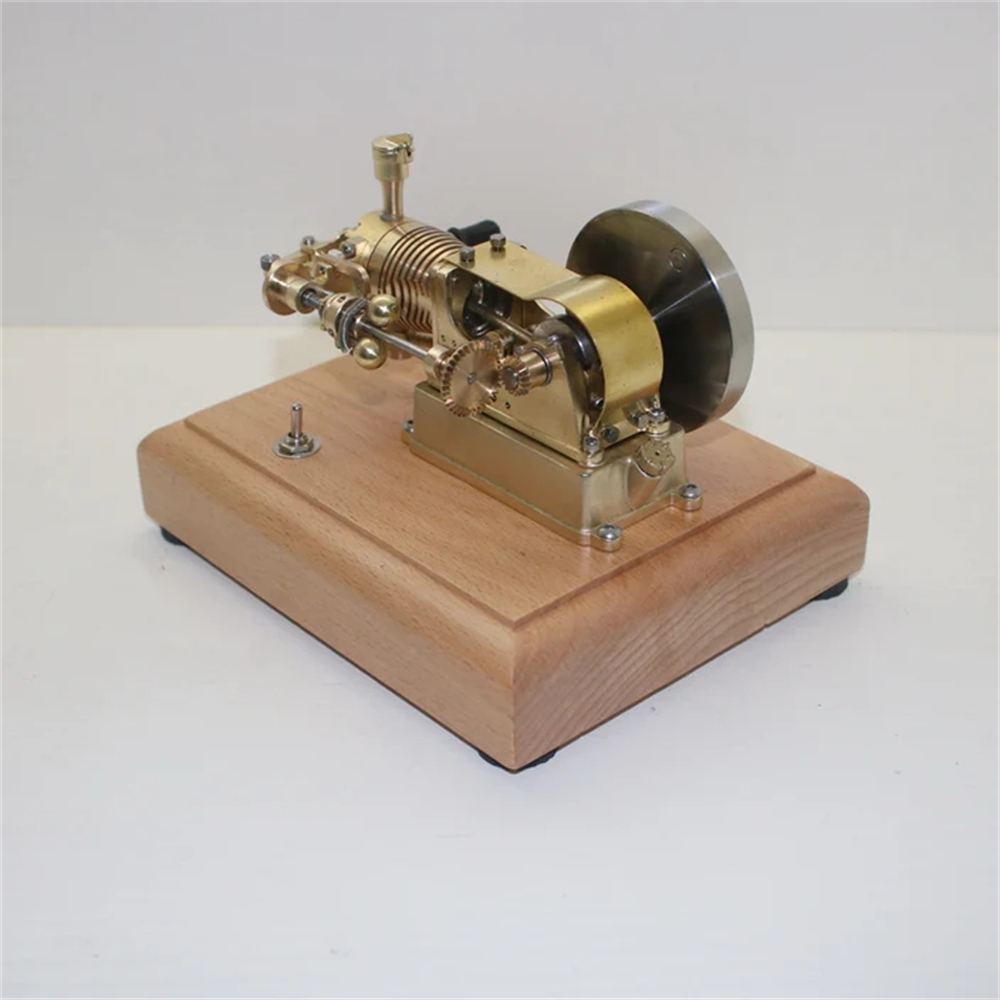

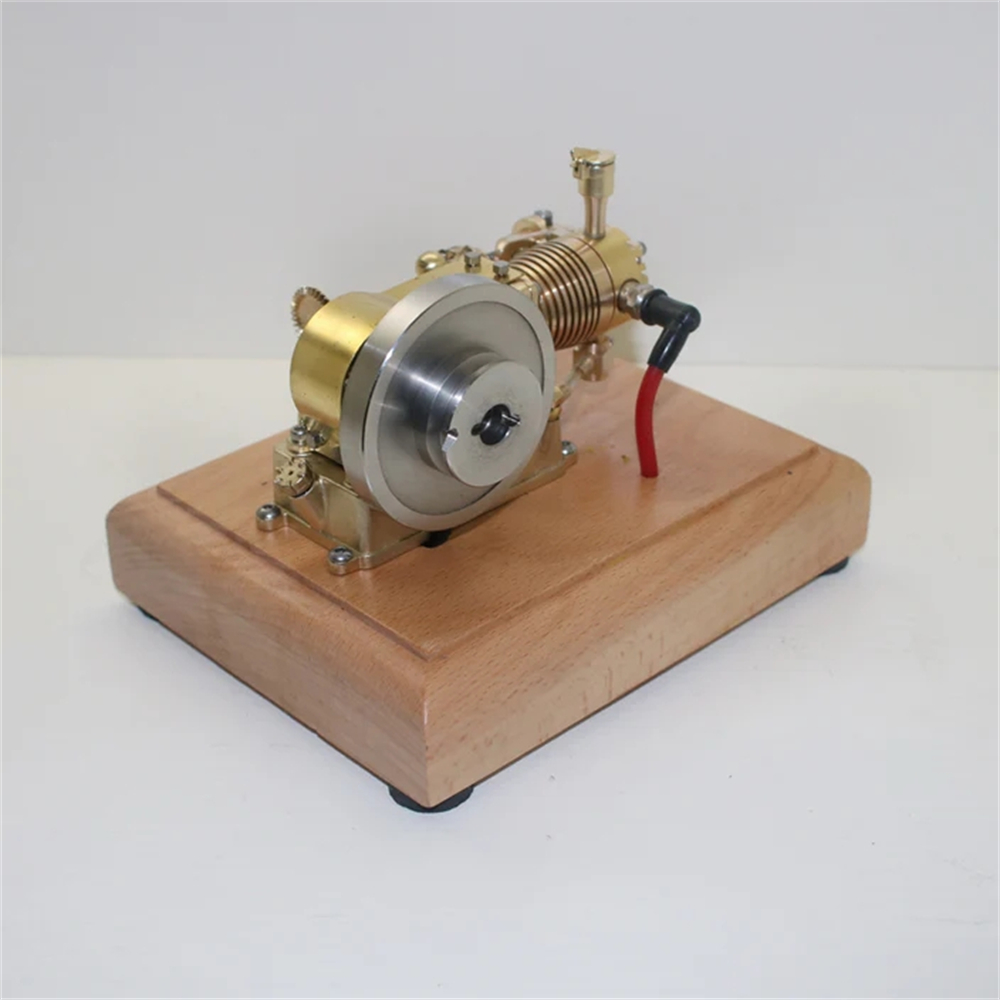

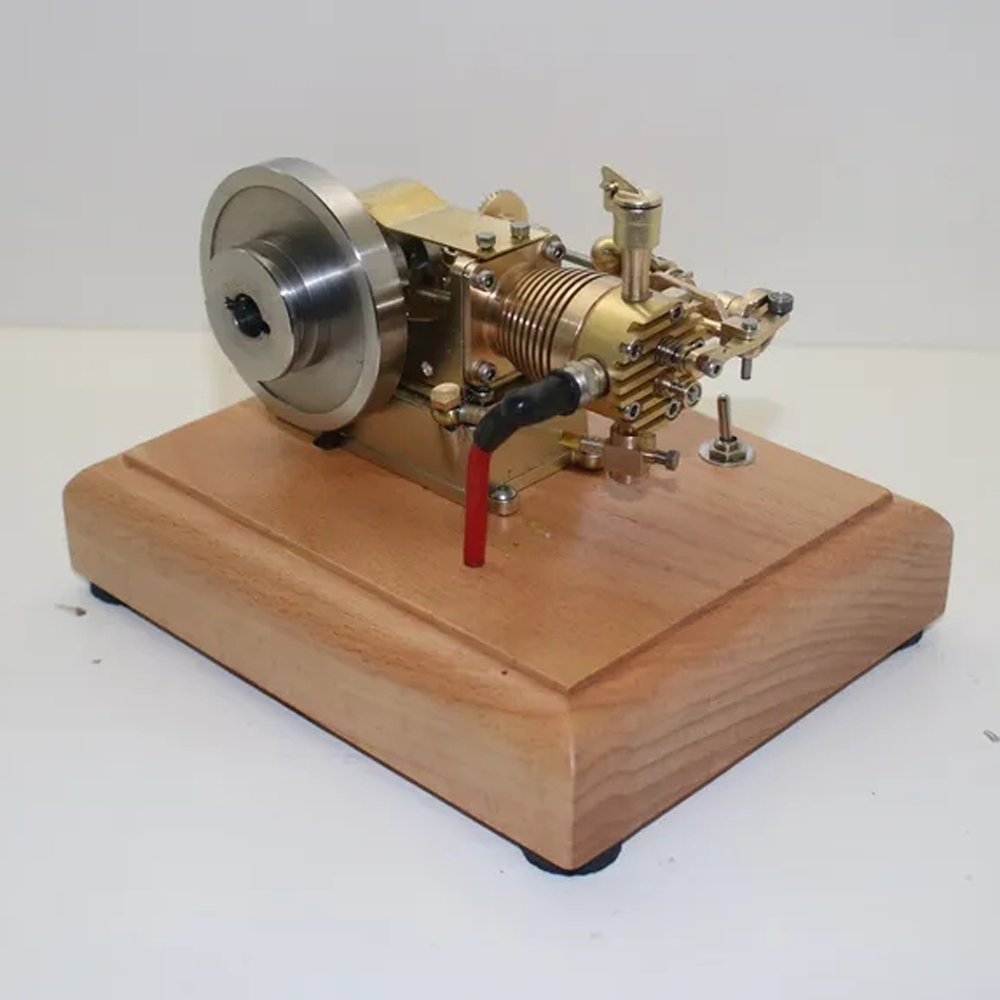

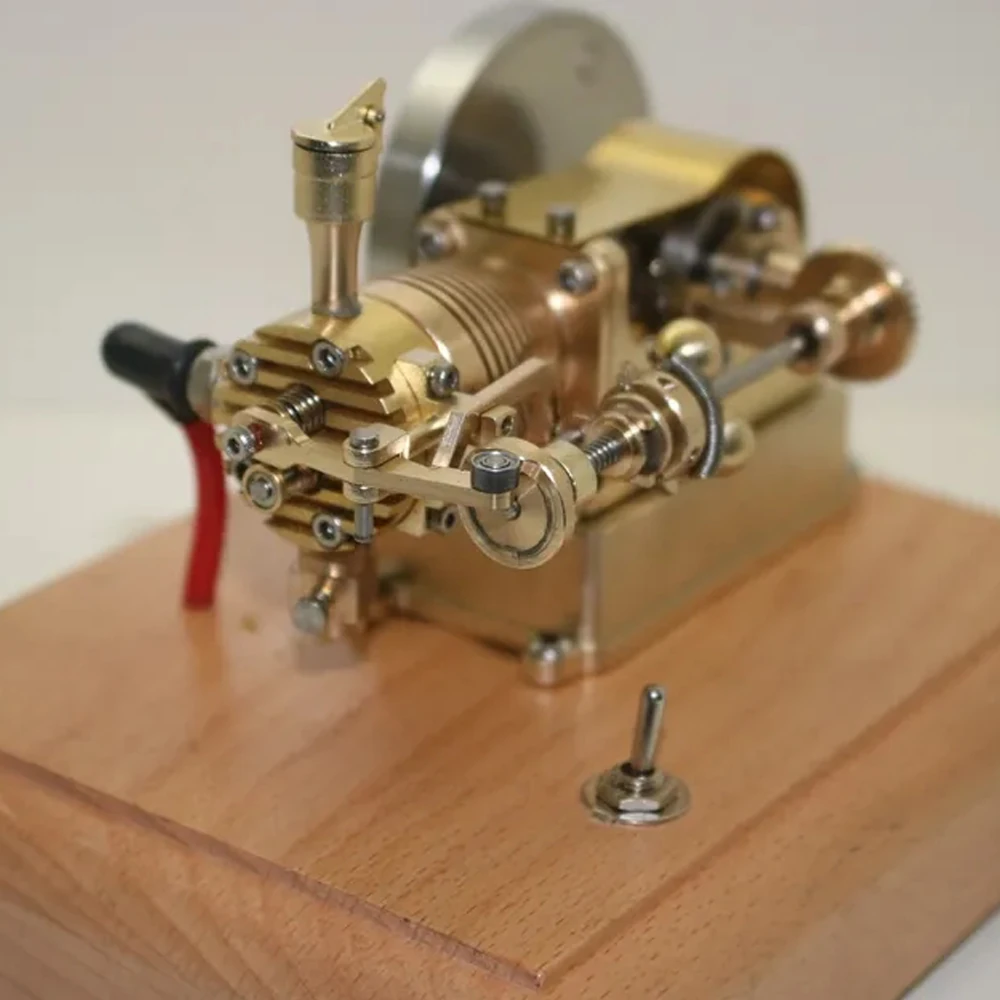

M20 1.6cc Mini Horizontal ICE Single Cylinder 4-Stroke Gasoline Engine Internal Combustion Engine Model with Speed Limiter

Features:
1.Mini Micro Engine:This is a horizontal Hit and Miss engine with speed limit and wind cooling mechanism, crafted from brass and stainless steel with a wooden base for easy placement and handling.
2.Exquisite Workmanship:The excellent desktop model engine comes with exposed gear transmission mechanism for eyecatching charm of the mechanical operation of the engine. It will be appreciated for uniqueness, stability and umcompromising performance.
3.Perfect Model Gift:The historic vintage engine makes a perfect addition for model enthusiasts and collectors for their spare time and excellent personalized gift for mechanical fans for birthdays and Christmas.

Engine Start Methods:
1. Check engine circuitry from the wooden base, connect the fuel tank fuel tube, and install 3 AA batteries (4.5V).
2. Fill 95# gasoline into the tank. Rotate the flywheel clockwise on the right side of the engine (the surface of the power switch) for several times to make the mixed fuel enter the cylinder. Make sure there is no air in the fuel tube.
3. Turn on the power switch, then quickly turn the flywheel clockwise to start the engine on the right side (power switch surface).

Precautions:
1. The machine will not start if the ignition device and the cylinder compression is normal, in that case the carburetor oil needle adjustment is needed.
2. After tightening the main oil needle on the carburetor, loosen the 1/4 ring and start the flywheel to make the mixing ratio of gasoline and air normal.
3. The power switch should be turned off when the machine stops running.

Specifications:
Item No.: M20
Item Name: Mini Horizontal ICE Single Cylinder 4-Stroke Gasoline Engine Internal Combustion Engine Model
Material: Brass + Stainless Steel + Wood
Color: Gold
Displacement: 1.6cc
Bore: 1.3cm
Stroke: 1.2cm
Ignition Power Supply Voltage: 3 * AA Batteries(Not Included)
Start Method: External Force(Electric Drill) or Hand Pulling
Wood Base Size: 15 x 12 x 3cm
Engine Dimensions: 12 x 8 x 7.5cm
Engine Weight: 900g
Package Dimensions: 20 x 20 x 20cm
Package Weight: 1300g

Package included:
1x Mini Horizontal ICE Single Cylinder 4-Stroke Gasoline Engine Internal Combustion Engine Model
