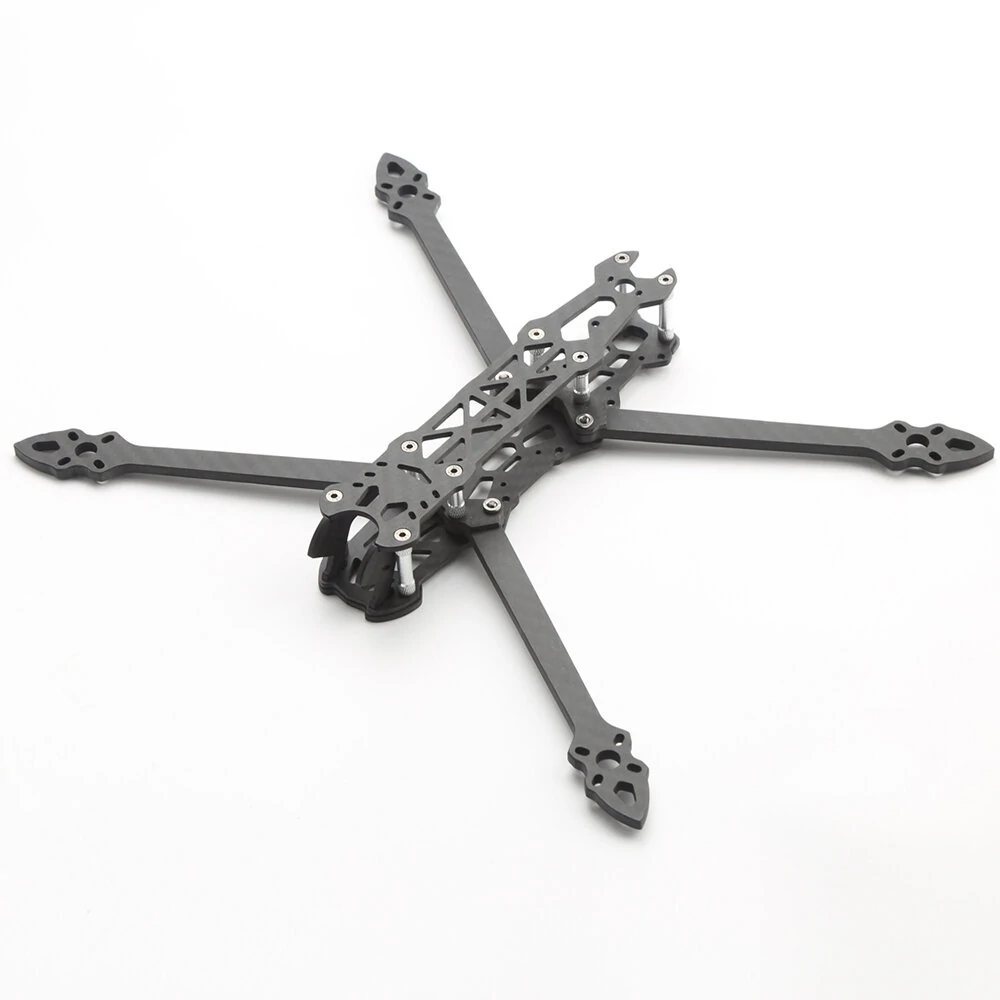

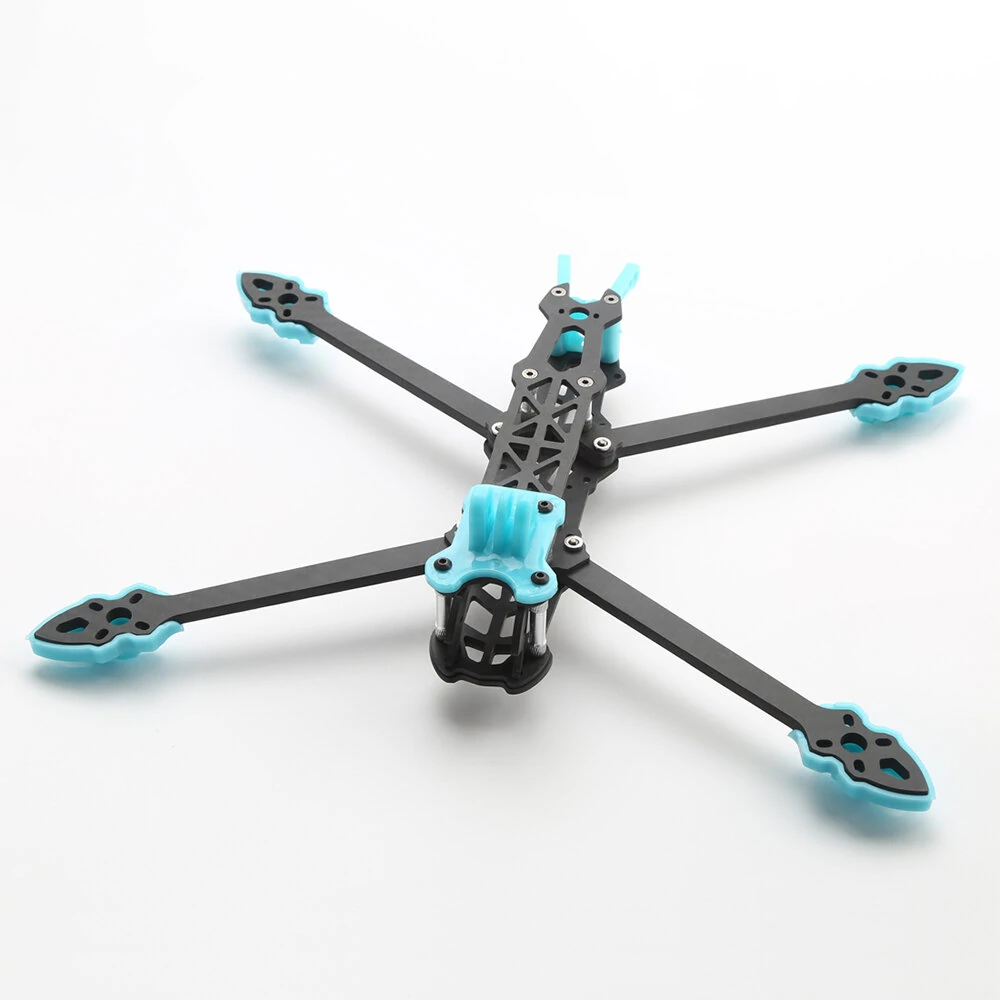

Mark4 7 Inch 295mm Wheelbasae 5mm Arm 3K Carbon Fiber Frame Kit for DIY RC FPV Racing Drone

Description

Notice:

Comes unassembled. Need build by Buyers.

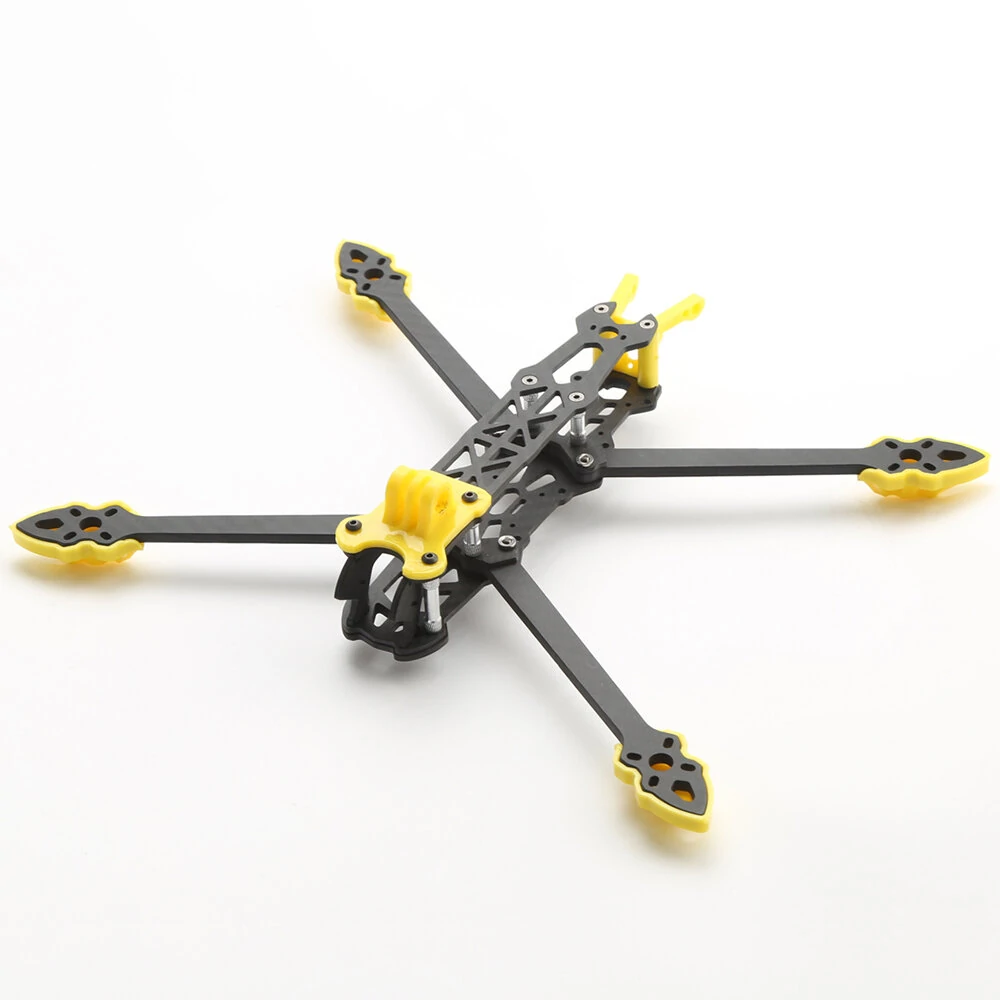

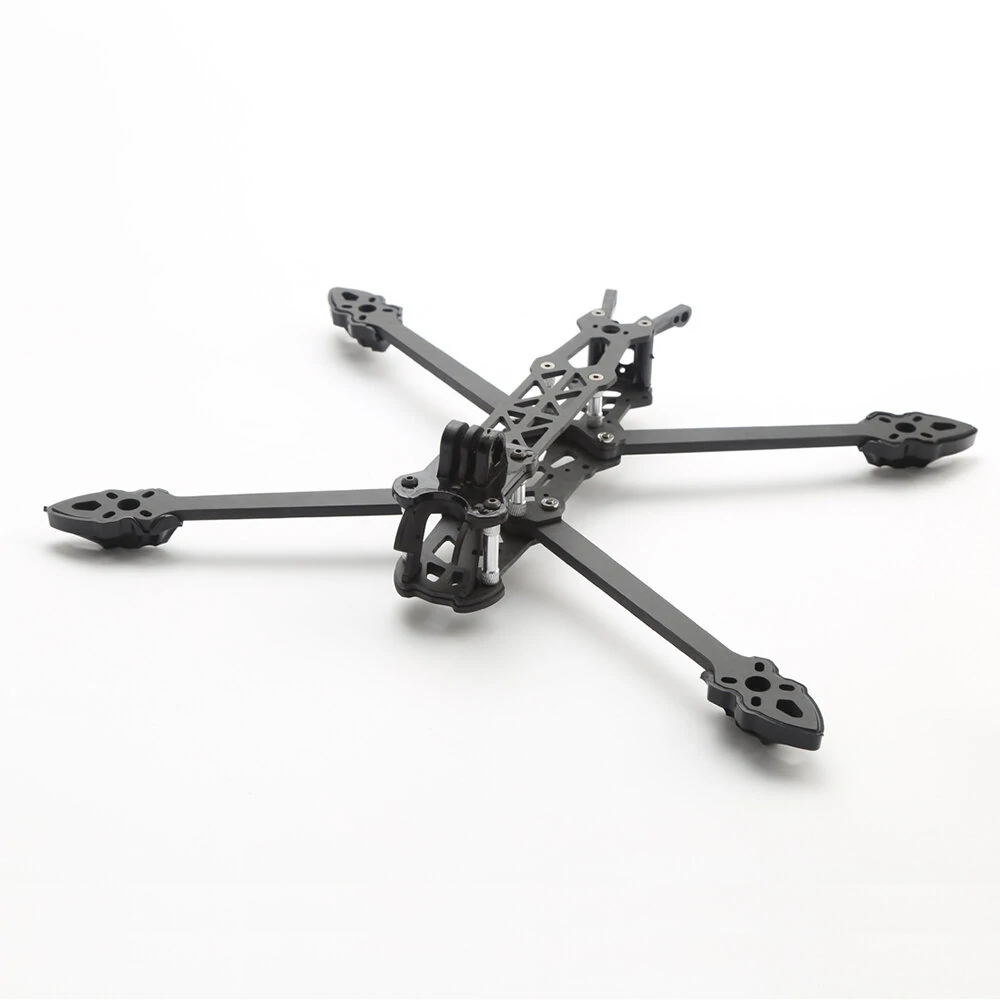

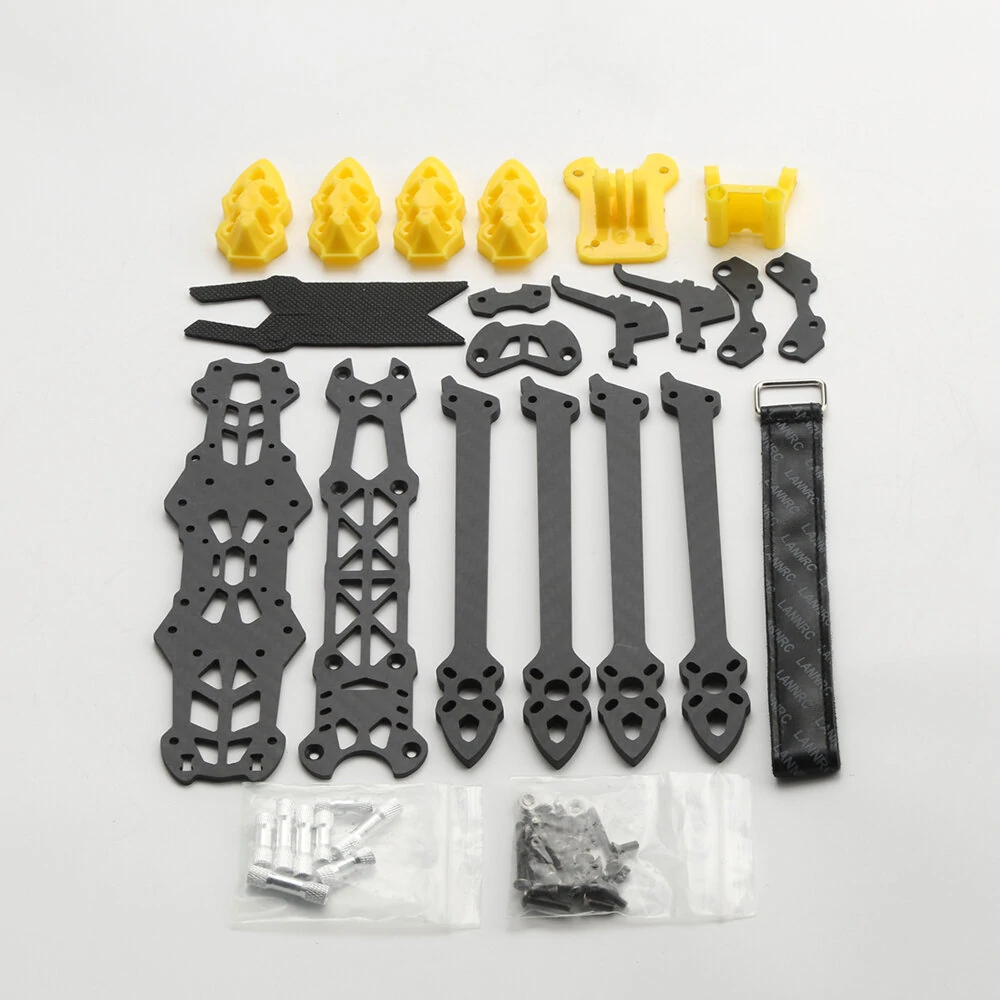

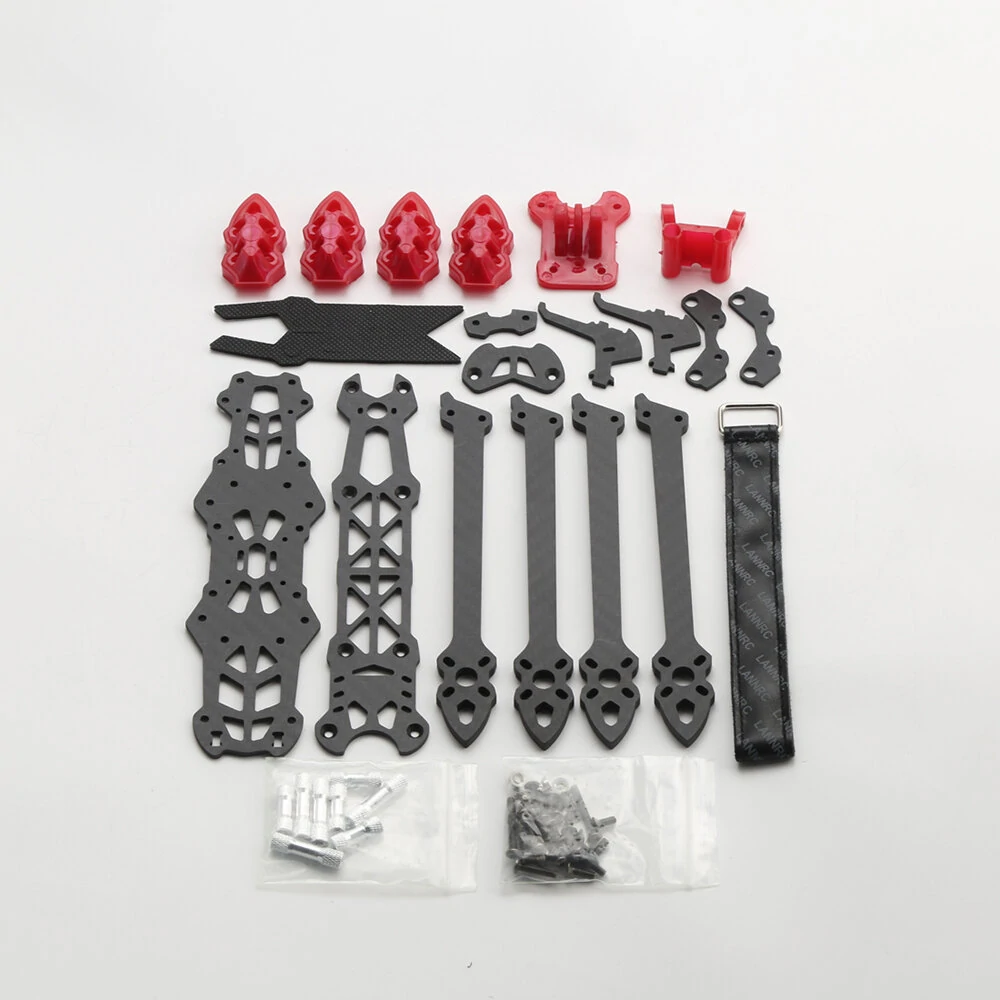

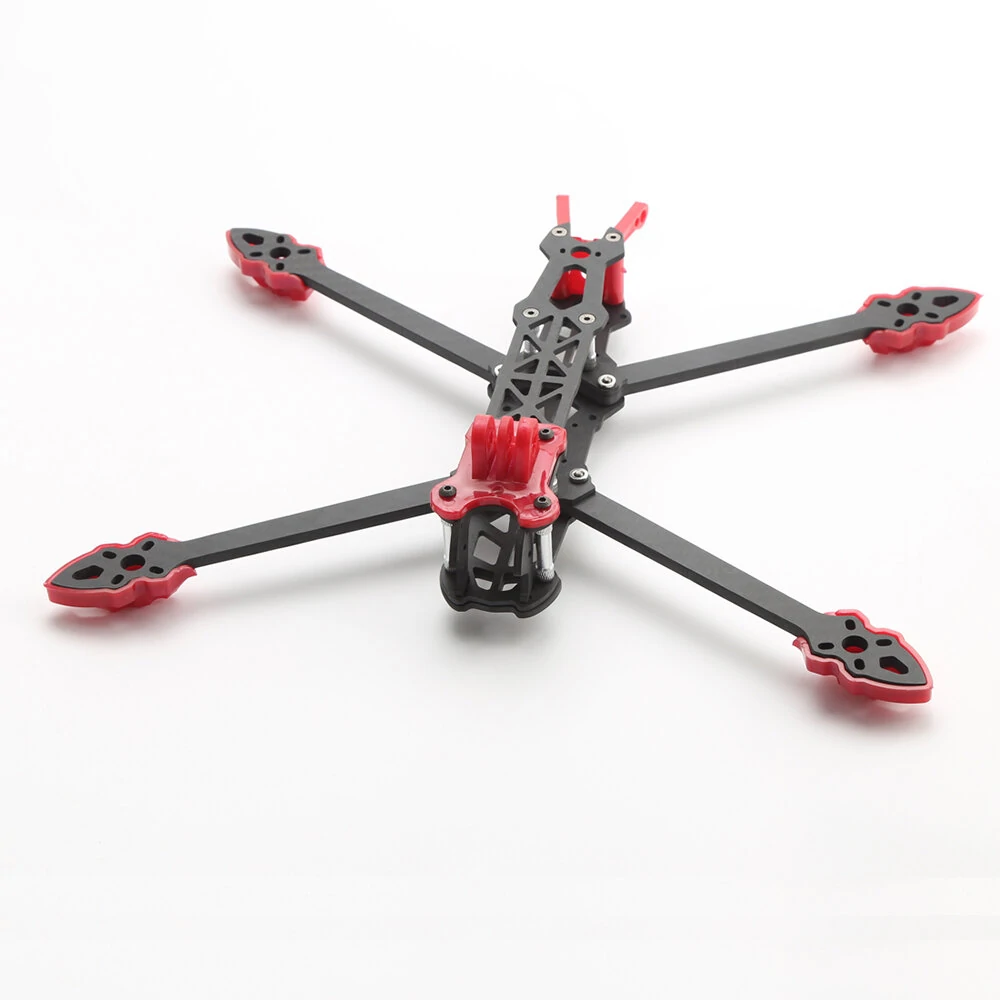

Diffirence: 01 Version comes without 3D Printing Parts. Others version comes with 3D Printing Parts in diffirenct color.

Specification:
Model: Mark4 7
Name: 295mm Wheelbasae 7 Inch Frame Kit
Wheelbase:295mm
Arms plate Thickness: 5mm
Top plate Thickness: 2.5mm

Bottom plate Thickness: 2.5mm

Side plateThickness:  2.5mm

Dimension: 193x223mm

Weight: 121g
Camera mount size: 19x19mm

Features:
1. Lightweight and durabl carbon fiber frame for enhanced flight performance.
2. FPV compatible design for immersive and thrilling flying experiences.
3. Equipped with printed parts for added customization and visual appeal.
4. 7-inch wheelbase offers stability and smooth maneuverability during flights.
5. Suitable for both experienced drone pilots and toy enthusiasts.

Recommended configuration: (not included)
Flight Controller:  F4 / F7 Flight Controller
Motors: 2305/2306/2407/2408/2507/2810/2812
ESC: 30A-70A
Propeller: 7 inch
Battery: 4S 1800mAh-6s 3300mAh

The fllowing Parts are Compatible: ( NOT Included)

FC & ESC Stack: 30.5×30.5mm SpeedyBee F405 V4 BLS 60A 4In1 ESC 3-6S Stack

Brushless Motor: EMAX Pro Series 2810 950KV 1150KV 3-6S Brushless Motor

Propeller: 6 Pairs Gemfan 7050 7.0×5.0 7 Inch 3-Blade Prop Propeller 5mm Hole

VTX: EWRF 5.8G 48CH Long Range Transmitter VTX 100/200/400/1000mW

FPV Camera: Caddx Ratel 2 1/1.8 Inch Starlight 1200TVL

Lipo Battery: ZOP Power 22.2V 3300mAh 100C 6S Lipo Battery XT60 Plug

Package included: (Send it as your choice)

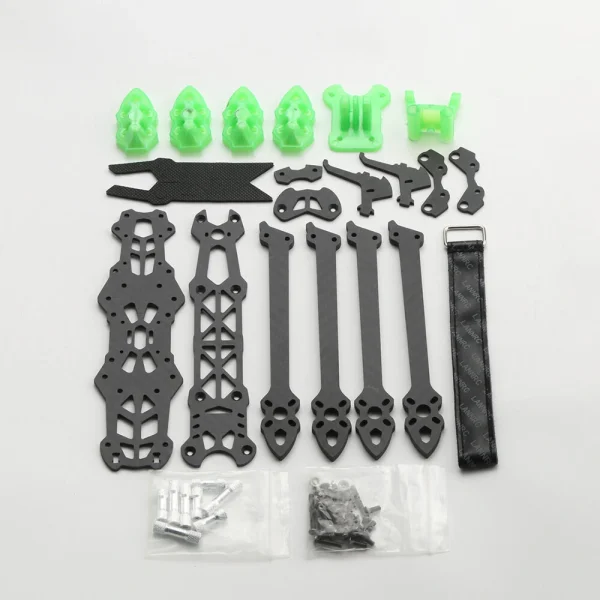

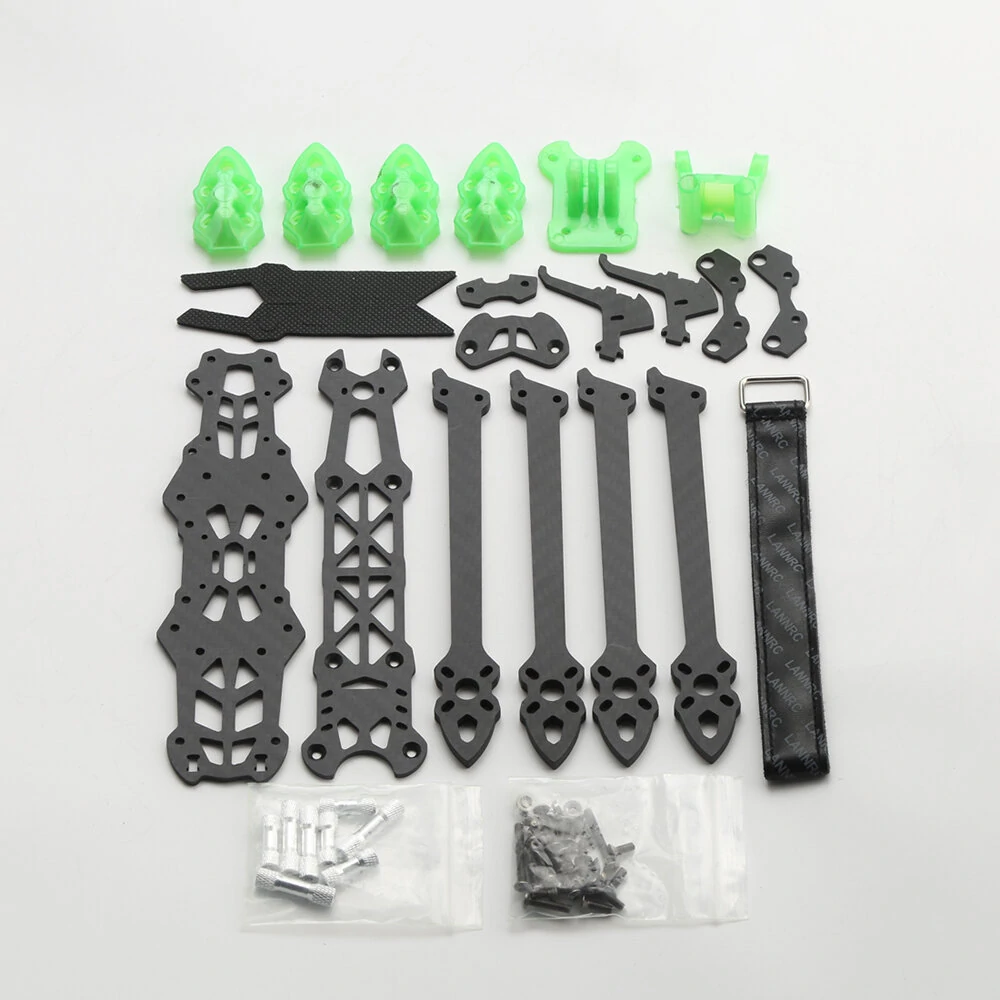

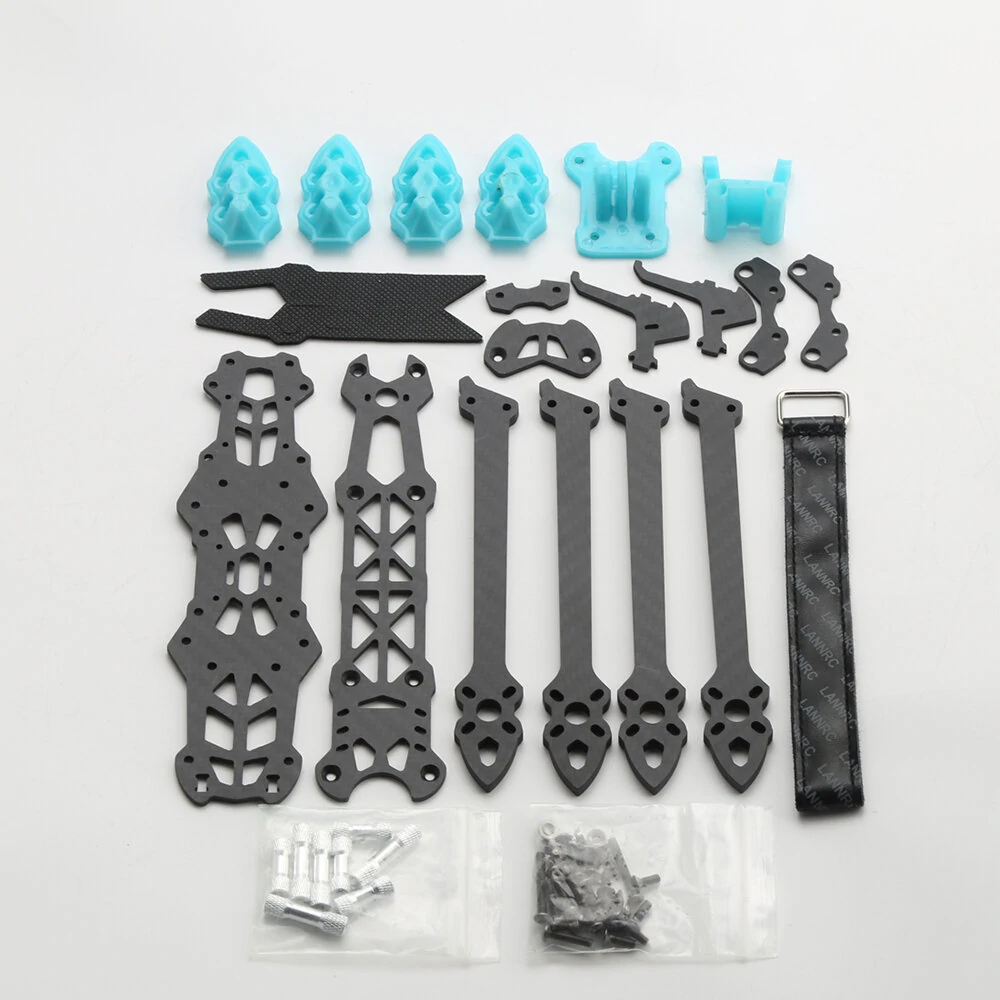

1 x Mark4 7 inch FPV Frame kit
