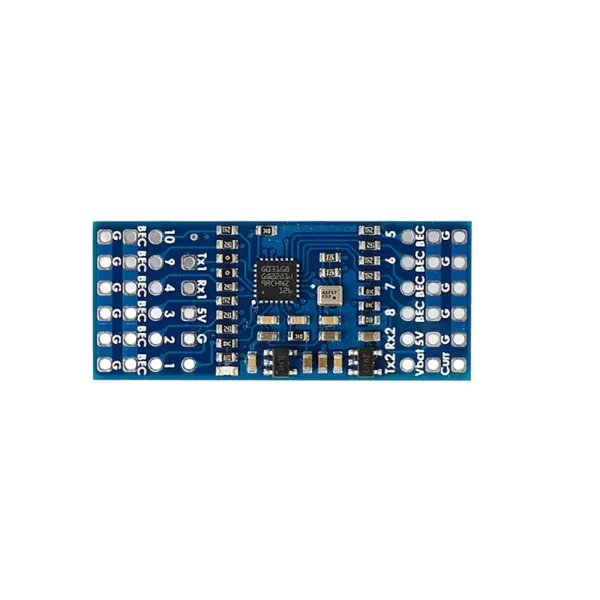

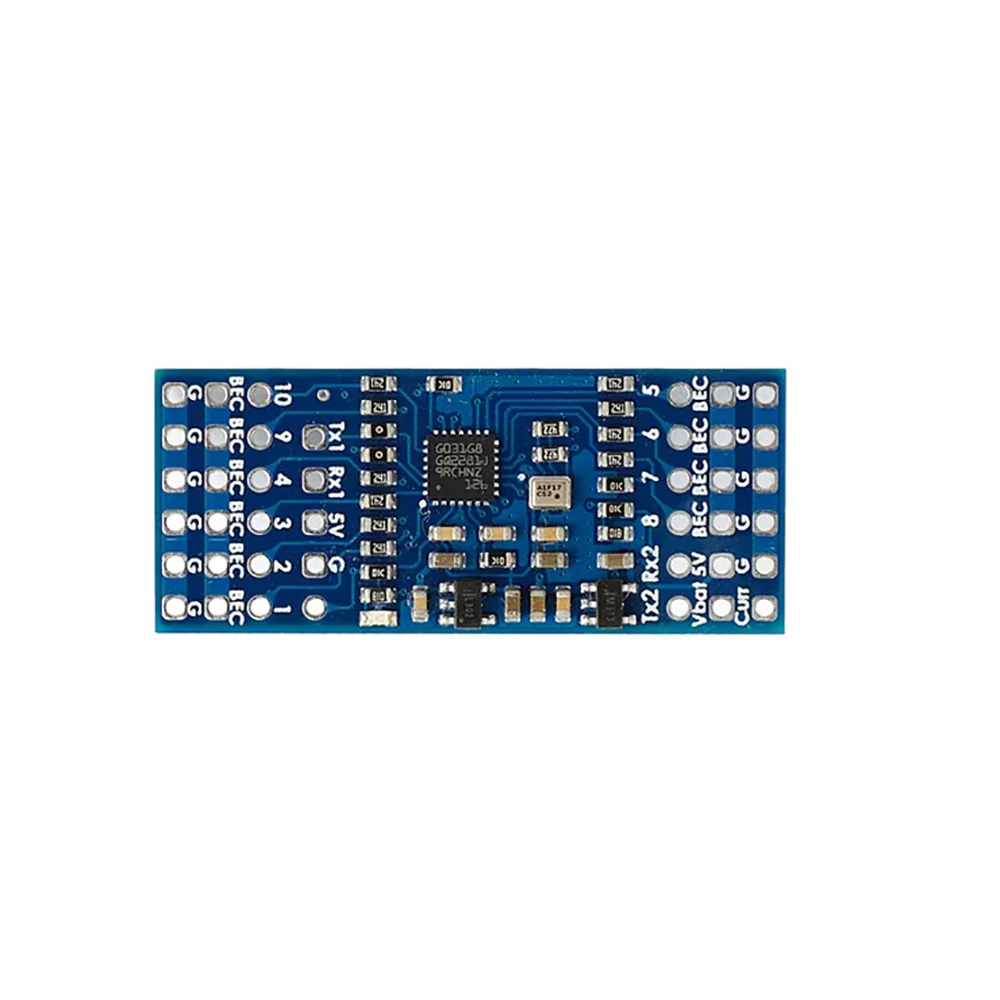

Matek CRSF-PWM-V10 CRSF to PWM Converter w/ Variometer 10CH PWM Output for TBS CRSF Protocol 2.4GHz 915MHz 868MHz 433MHz Receiver

Matek CRSF-PWM-V10 CRSF to PWM Converter w/ Variometer 10CH PWM Output for TBS CRSF Protocol 2.4GHz 915MHz 868MHz 433MHz Receiver

Features:

* Compatible with CRSF protocol receiver only

* Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)

* 10x PWM outputs

* PWM frequency configurable (50Hz default, 100,160,330, 400Hz)

* 2x UARTs (for Receiver and GPS)

* Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats, Vspd, Baro Alt (Start with EdgeTX 2.7.1/OpenTX 2.3.15 and ExpressLRS 2.5)36V Max. battery voltage sense (1K:10K voltage divider built-in)

* Compatible with external Current sensor (0~3.3V)

* Vbat and Current sensor scale configurable

* Failsafe value configurable

* Firmware upgradeable

* 5V LDO (300mA) integrated for GPS and external Receiver.

* Rated voltage: 4~9V @BEC pad, 0~36V @Vbat, 0~3.3V @Curr

* No regulator built-in for servos, Servos must be powered via BEC pad by external 5-9V source.

* 38mm x 16mm, 1.8g

* Packing: 1x CRSF-PWM-V10, Dupont 2.54 pins

Package Included:

1x Matek CRSF-PWM-V10 CRSF to PWM Converter
