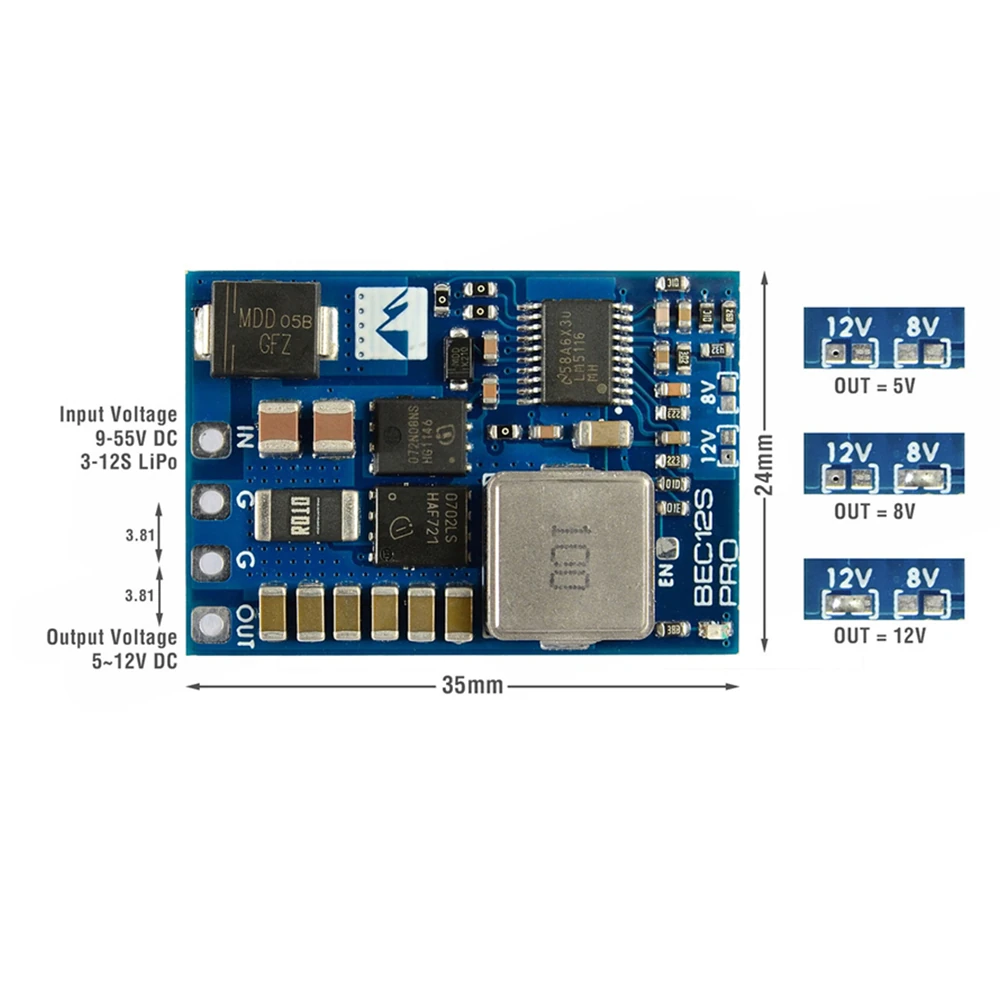

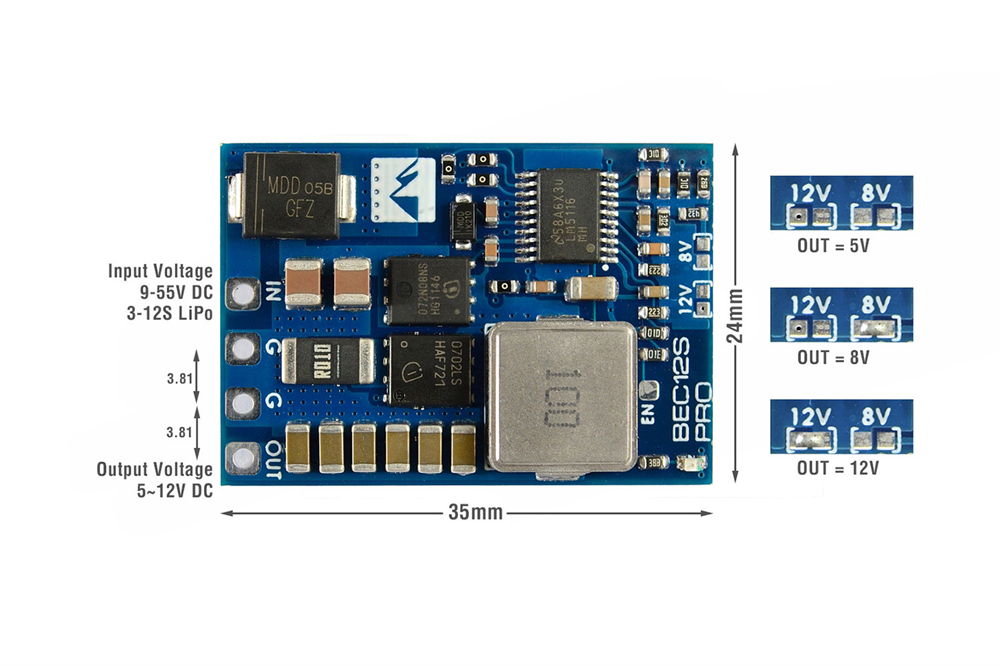

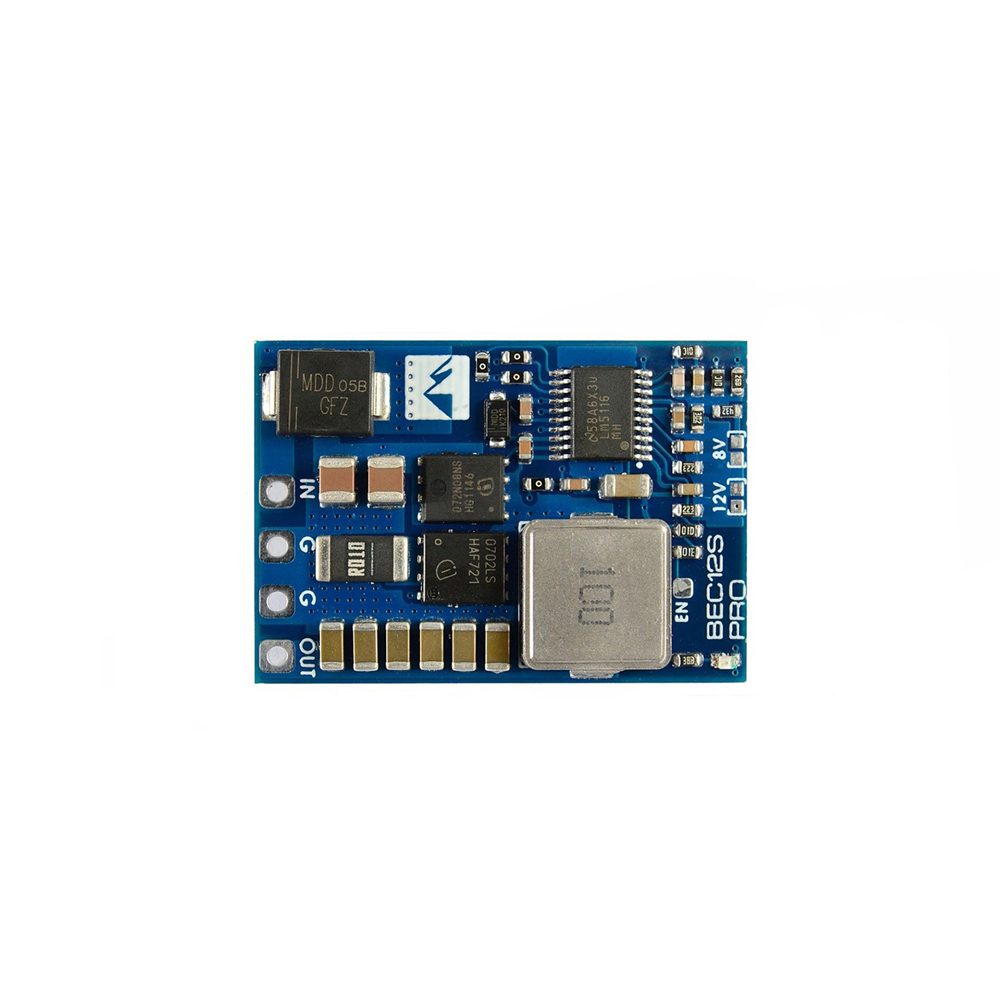

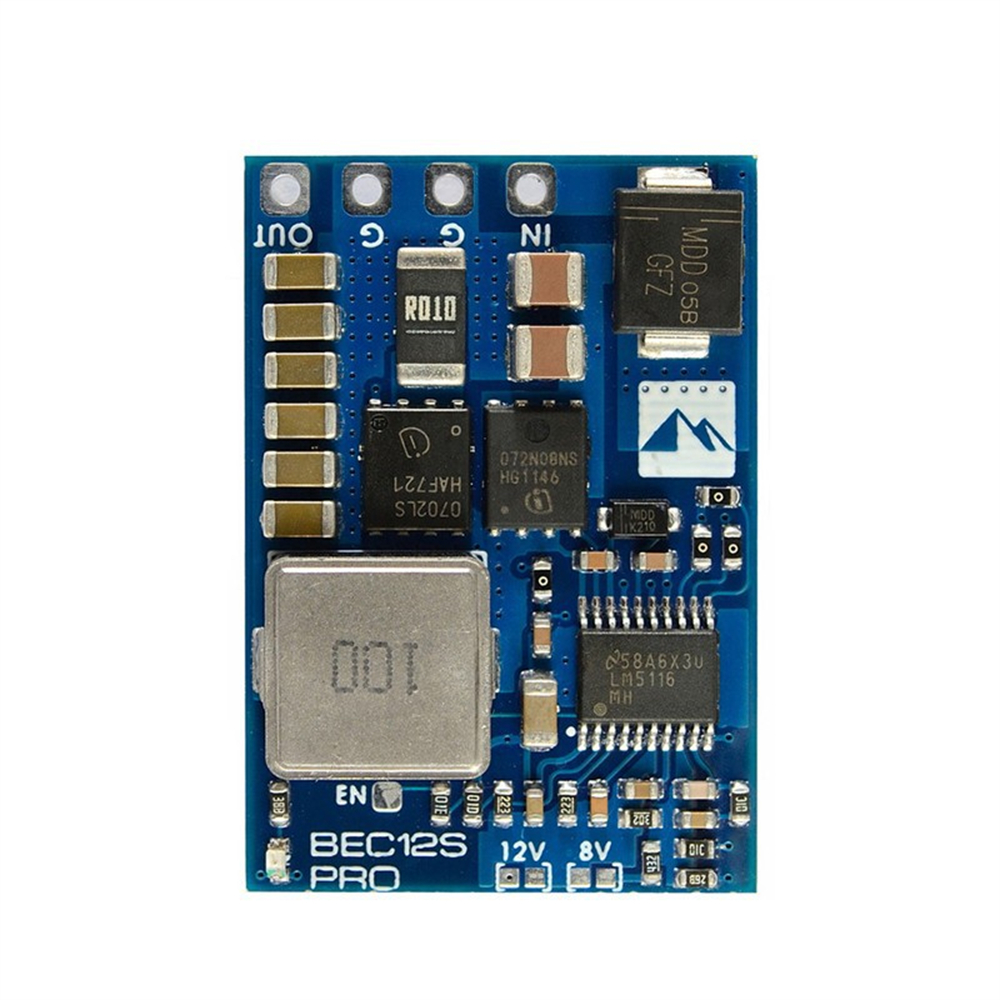

Matek Systems 12S Pro BEC Step-Down Module with TVS Protection 9V-55V To 5V/8V/12V-5A Input for FPV Drone

Feature:
-9V to 55V wide operating input voltage range with TVS protection.
-3× output voltage options, 5.2V, 8V or 12V, default 5.2V.
-Synchronous switching step-down (buck) regulator with typical efficiency of 88% to 96%
-Supports up to 5A continuous output current, 9A peak current.
– Output ripple 30mV (VIN=50V, output 5.2V@5A), 60mV (VIN=50V, output 12V@5A).
– No reverse input voltage protection.
– Thermal shutdown output short circuit tolerance (2 seconds).

Specifications:
Brand:MATEK
Item Name: BEC 12S-PRO Step-Down Module
Standby current: 5~10mA
Overcurrent protection & self-recovery dropout voltage: 2V (input>=14V is required for stable 12V output)
Pin spacing: 3.81mm
Dimensions: 35×24×5.5mm
Weight: 5g

Package included:
1x MATEK BEC 12S-PRO Step-Down Module
