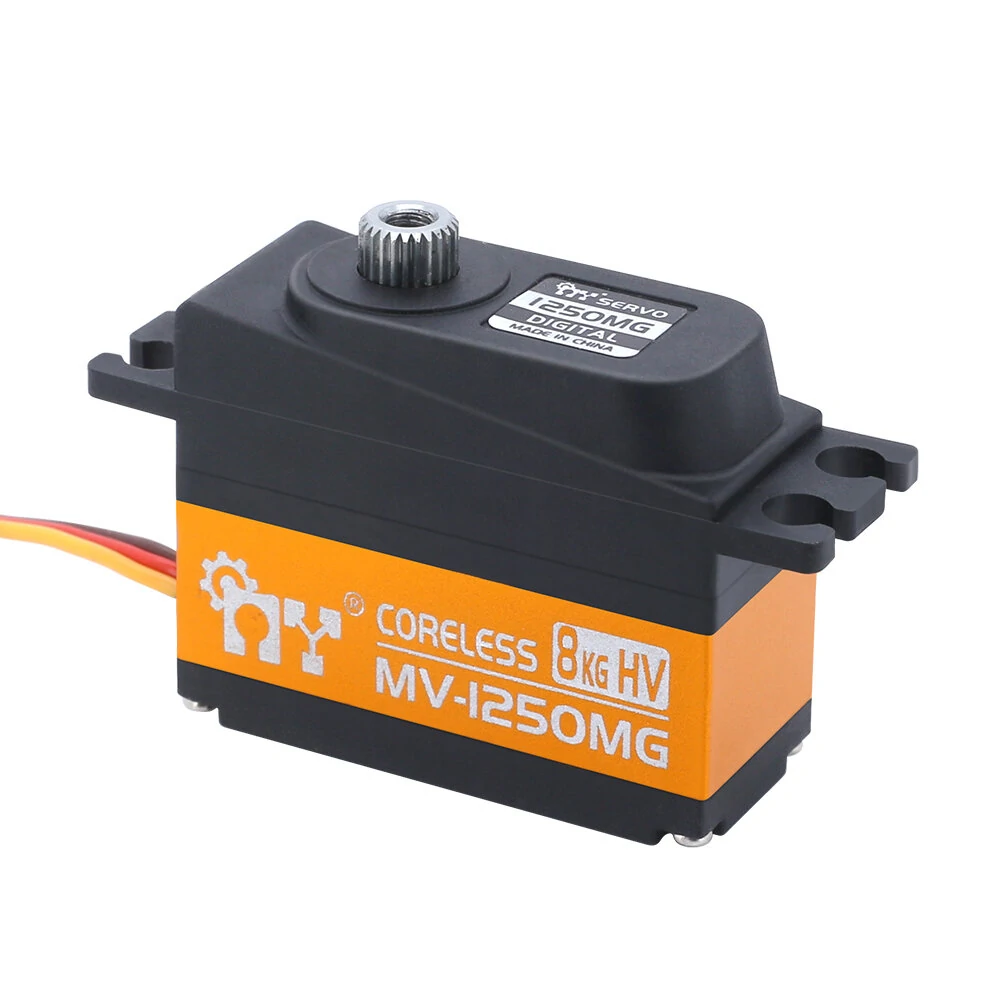

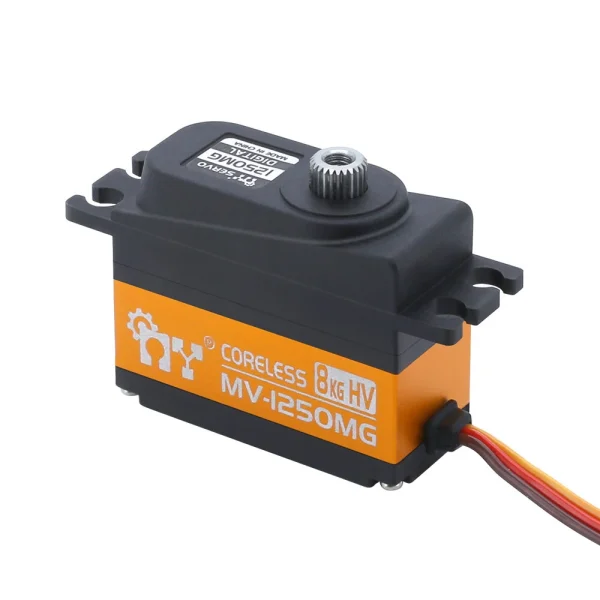

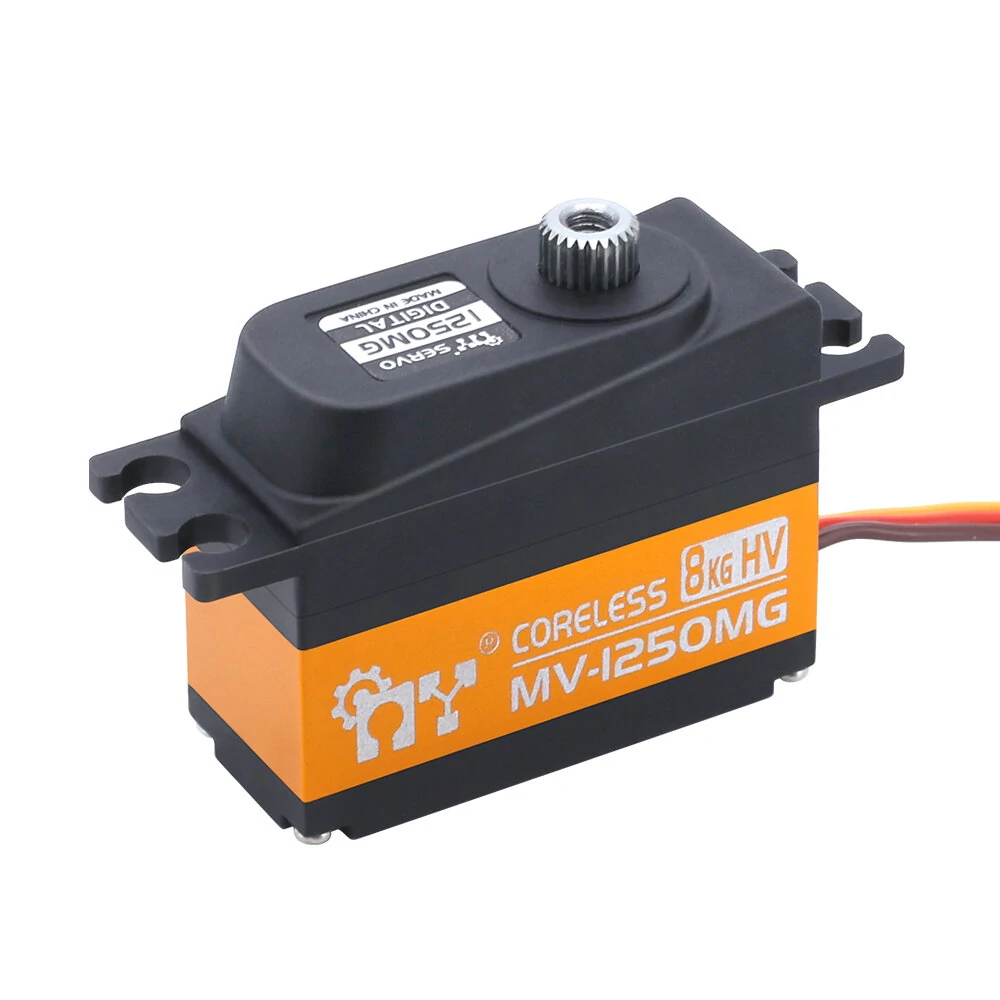

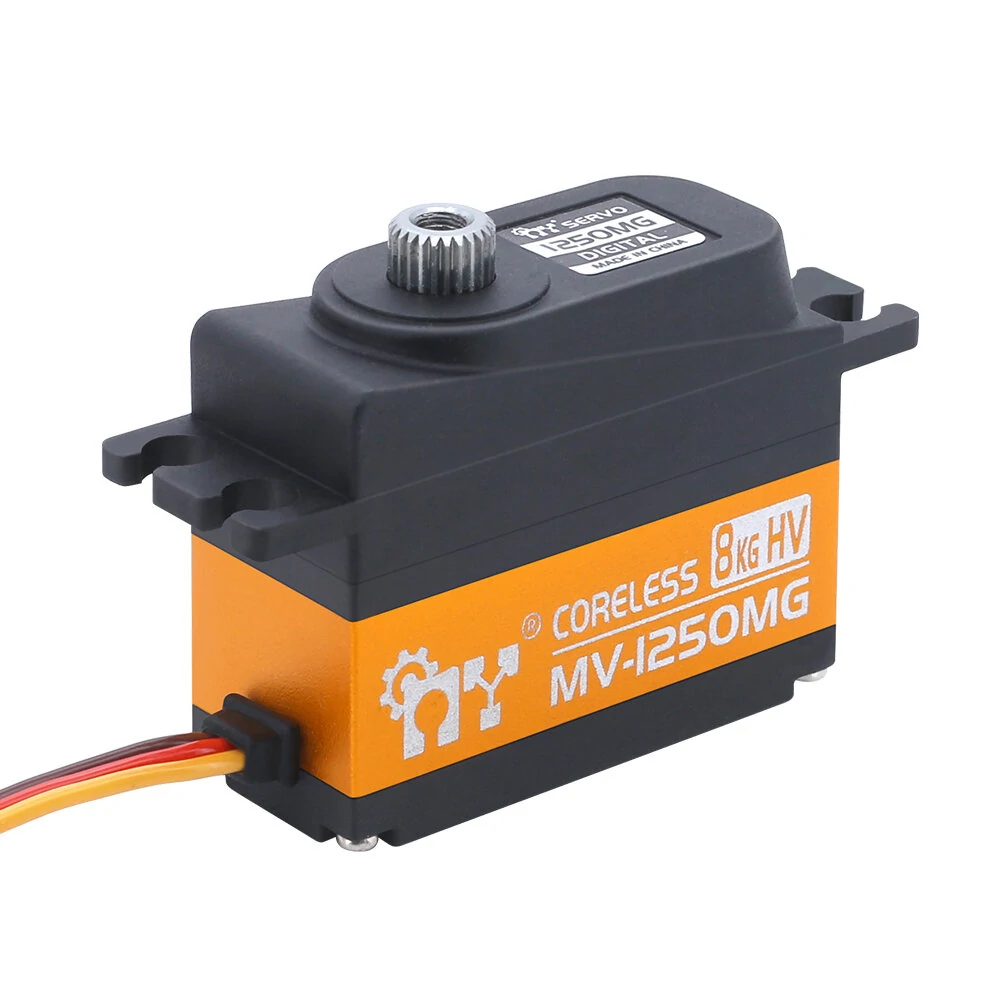

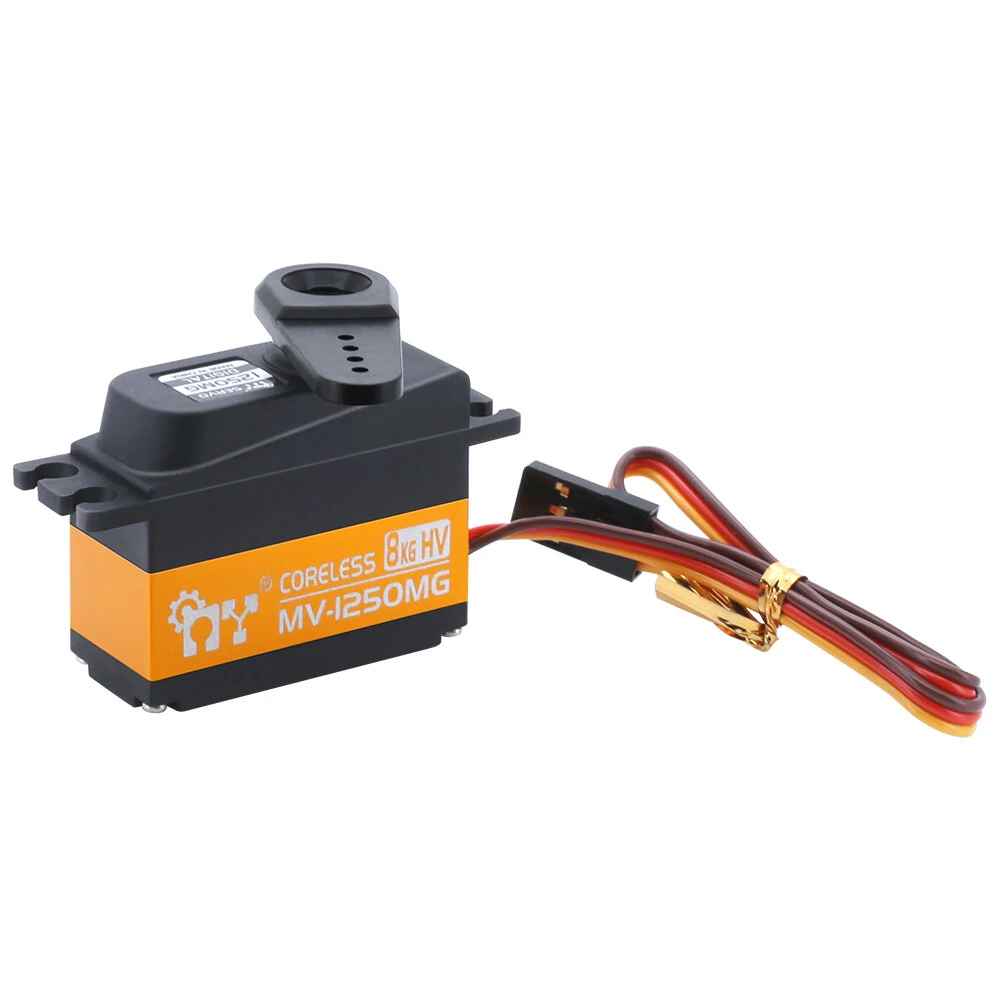

MV-1250MG 25T High Torque Digital Coreless Servo For 1/12 RC Model Helicopter Parts RC Car

Description

Specifications:

Dead band: 3μs
Working frequence: 1520μs / 330hz
Motor Type: Coreless
Motor Operating Speed (4.8V): 0.11sec/60°
Operating Speed (6V): 0.09 sec/60°
Stall Torque (4.8V): 4.6kg.cm
Stall Torque (6V): 8.0 kg.cm
Dimensions: 35X15X29.2mm Weight: 28 g
Connector Wire Length: JR 220 mm Bearing: 2BB
Output Gear Spline:25T

Features:

High Torque: This servo offers high torque which ensures brilliant performance and optimizes the functioning of your RC model helicopter or cars.

Fast Operating Speed: It operates at a quick speed of 0.11sec/60° at 4.8V and 0.09 sec/60° at 6V.

Coreless Motor: The Coreless motor type ensures smooth acceleration and deceleration for enhanced performance.

Compact and Lightweight: Its small size and light weight make it easy to install and do not add much weight to your device, improving the overall efficiency.

Long Connector Wire: The long 220mm JR connector wire gives ample flexibility in installation and use.

Package Included:

1x Servo
