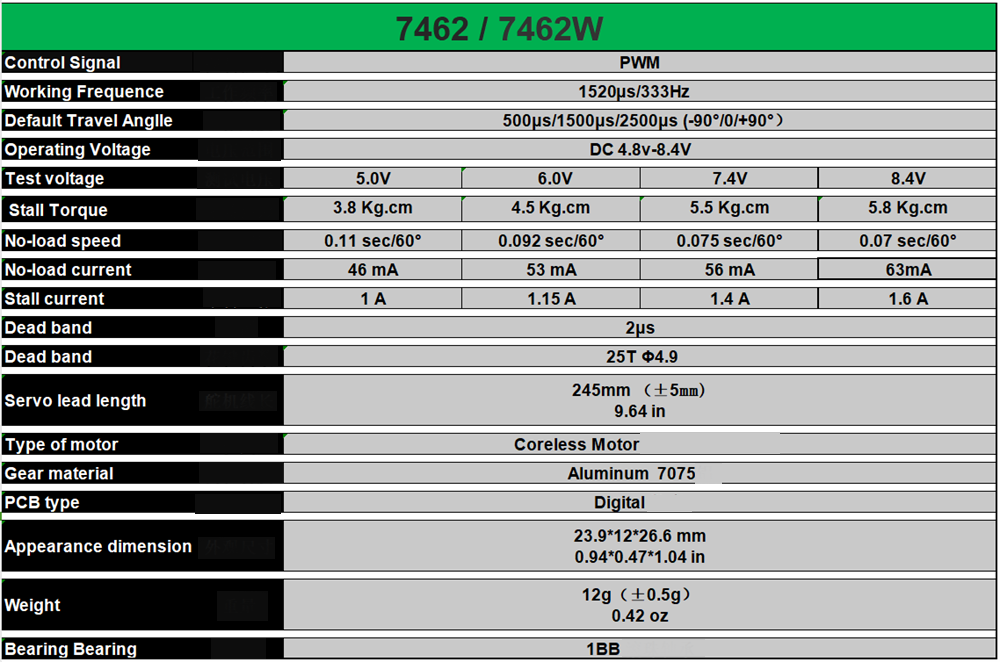

Specifications:
Control Signal: PWM
Working Frequence: 1520μs/333Hz
Default Travel Angle: 500μs/1500μs/2500μs (-90°/0/+90°)
Operating Voltage: DC 4.8V-8.4V
Test Voltage: 5.0V / 6.0V / 7.4V / 8.4V
Stall Torque: 3.8 Kg.cm / 4.5 Kg.cm / 5.5 Kg.cm / 5.8 Kg.cm
No-load speed: 0.11 sec/60° / 0.092 sec/60° / 0.075 sec/60° / 0.07 sec/60°
No-load current: 46 mA / 53 mA / 56 mA / 63 mA
Stall current: 1 A / 1.15 A / 1.4 A / 1.6 A
Dead band: 2μs
Bearings: 1BB
Motor Type: Coreless Motor
Gear Material: Aluminum 7075
PCB Type: Digital

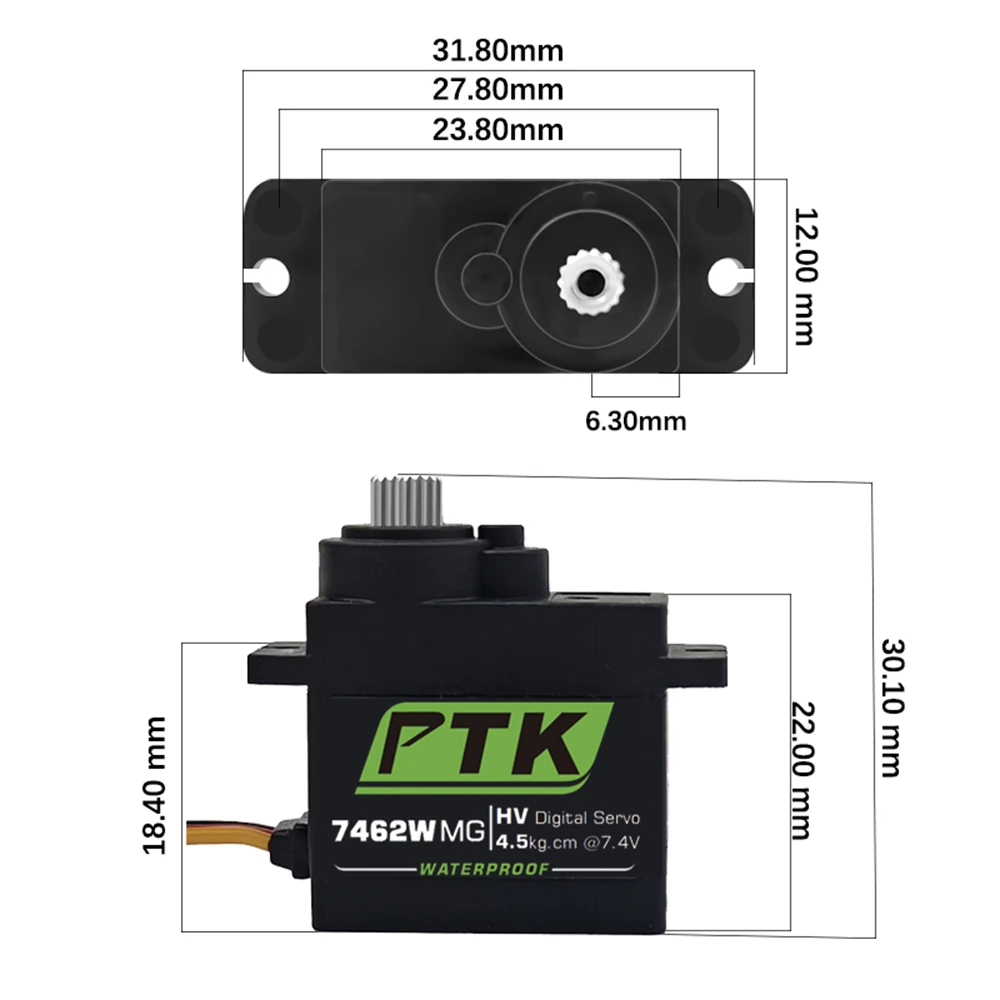

Appearance Dimension: 23.91226.6 mm / 0.940.471.04 in
Weight: 12g (±0.5g) / 0.42 oz

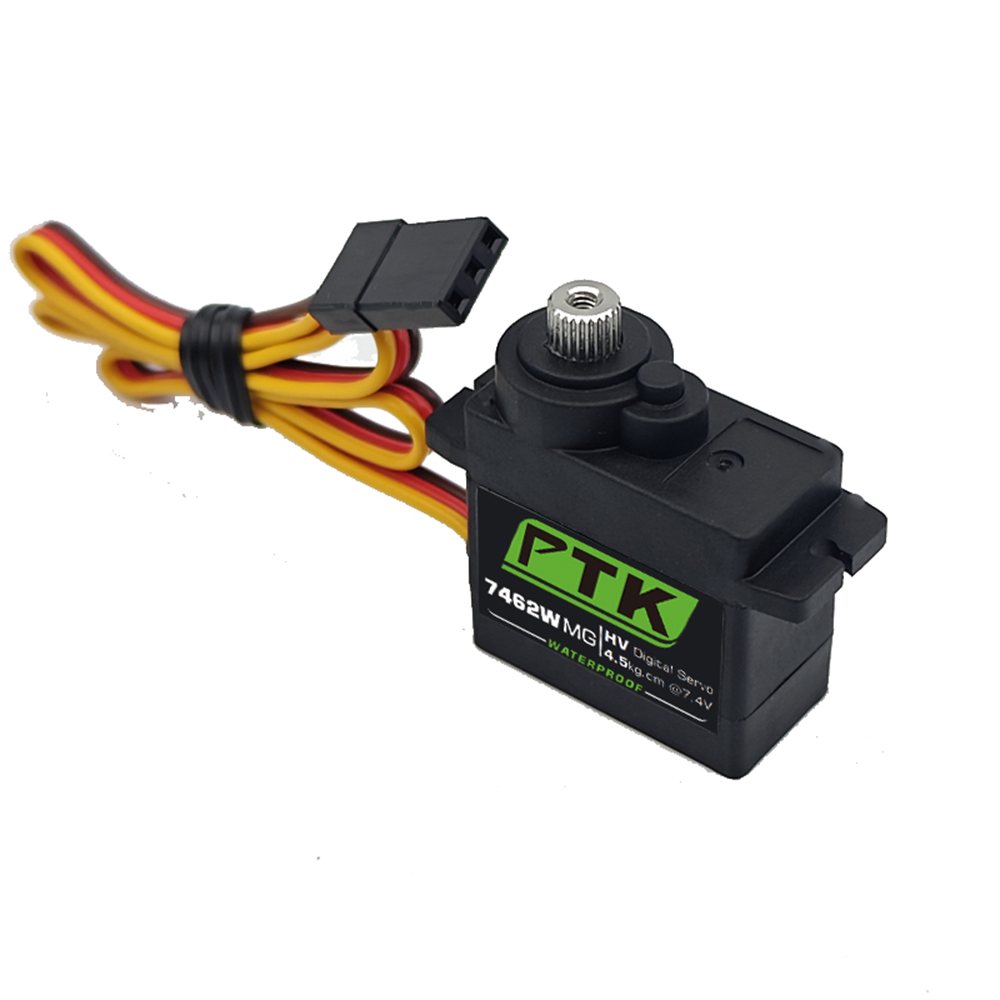

Servo Lead Length: 245mm (±5mm) / 9.64 in
Features:
1.High Torque Performance: With a maximum stall torque of 5.8 Kg.cm at 8.4V, this servo provides superior power and precision for various hobby applications.
2.Coreless Motor Technology: Features a coreless motor that ensures high efficiency, minimal noise, and longer lifespan, ideal for RC vehicles and robotics.
3.Wide Operating Voltage Range: Operates efficiently within a voltage range of 4.8V to 8.4V, adaptable to numerous power sources and setups.
4.High-Speed Operation: Exhibits exceptional speed with a no-load speed of 0.07 sec/60° at 8.4V, delivering swift and accurate movements.

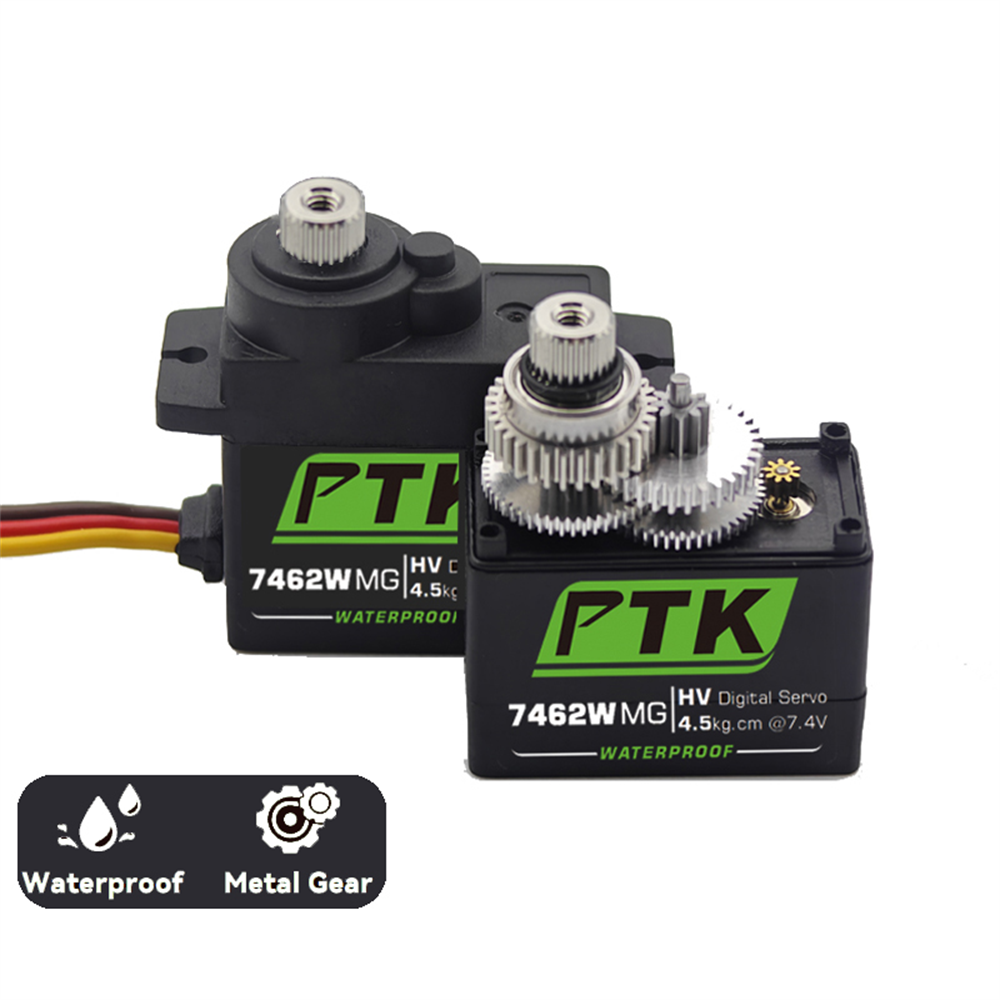

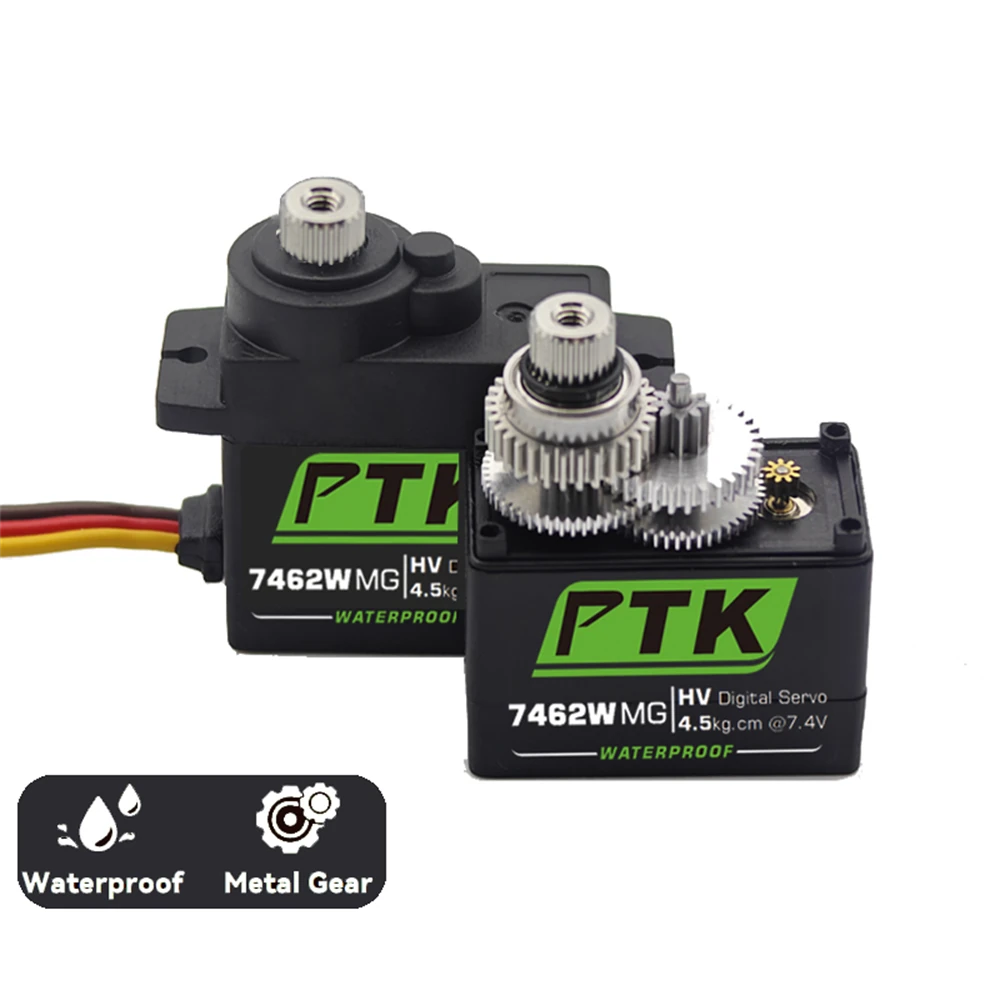

5.Aluminum 7075 Gear Material: Built with Aluminum 7075 gears, providing strong wear resistance and reliable transmission for long-term use.
Package included:

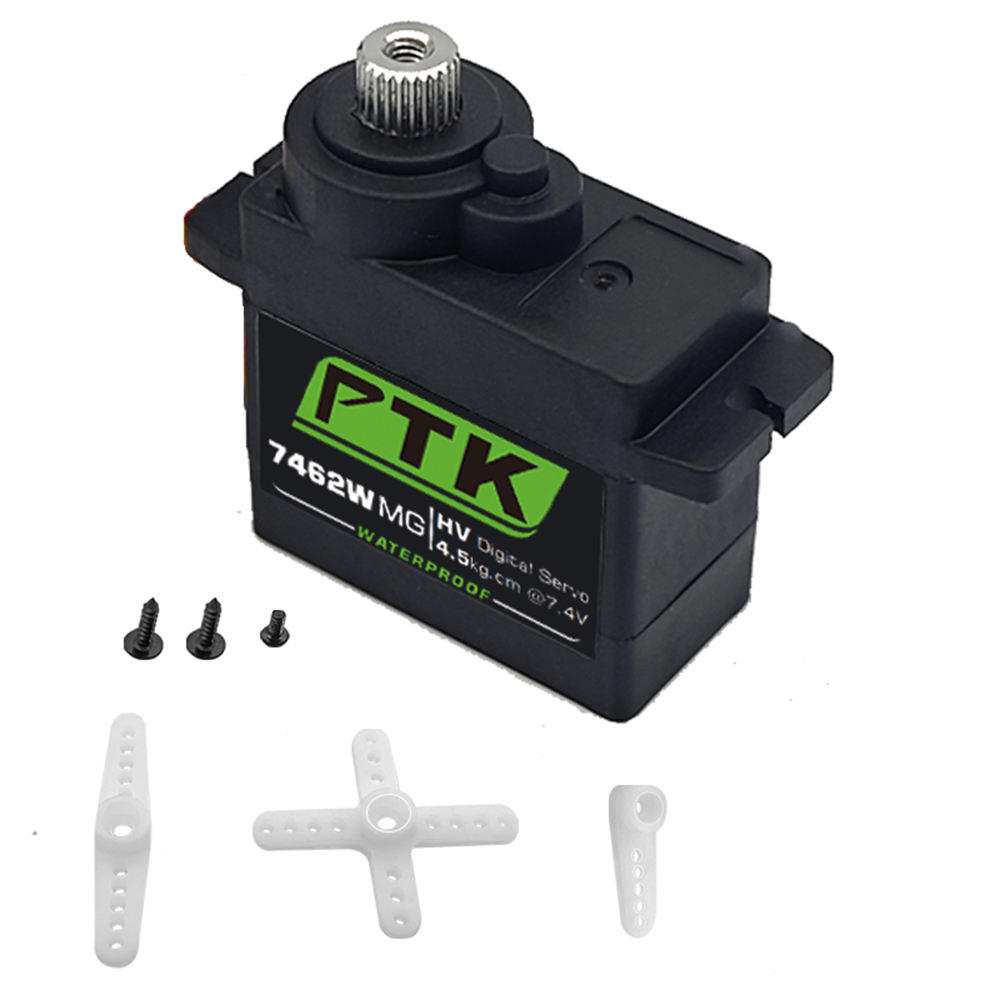

1x 9g Digital Waterproof RC Servo
