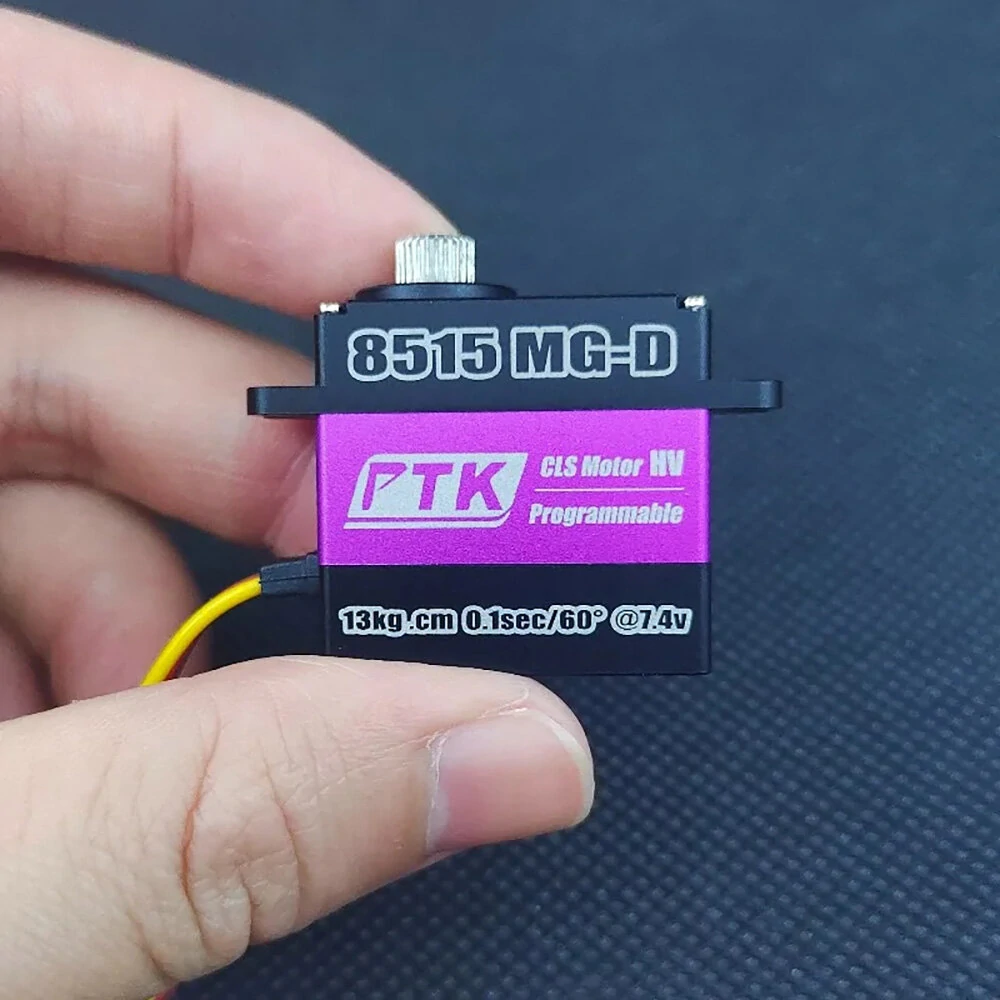

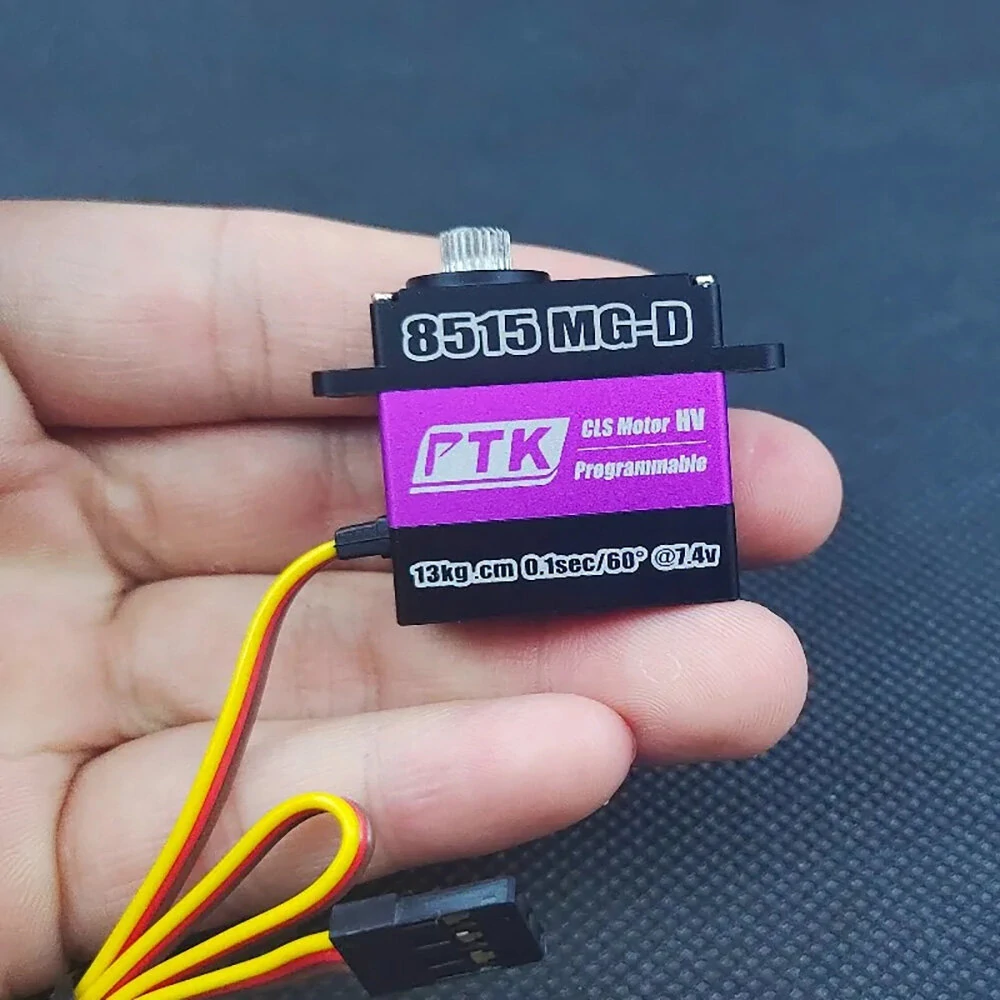

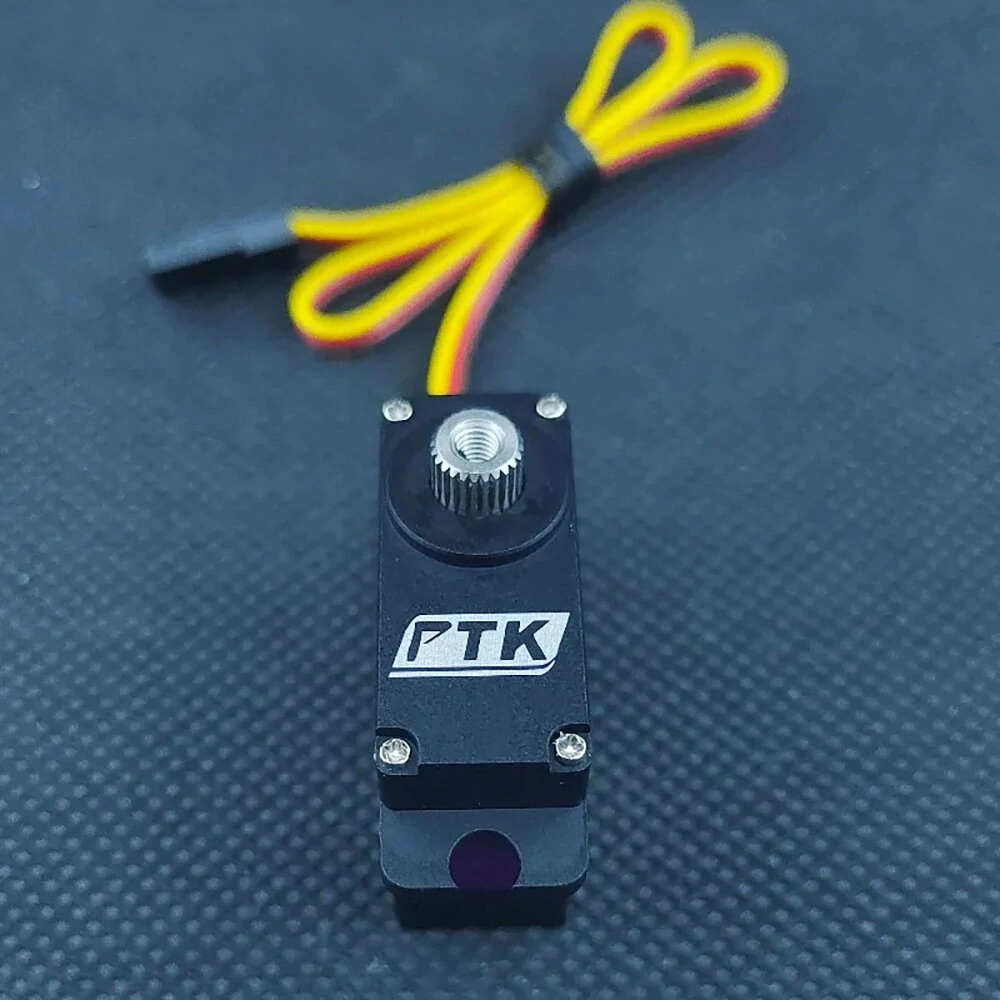

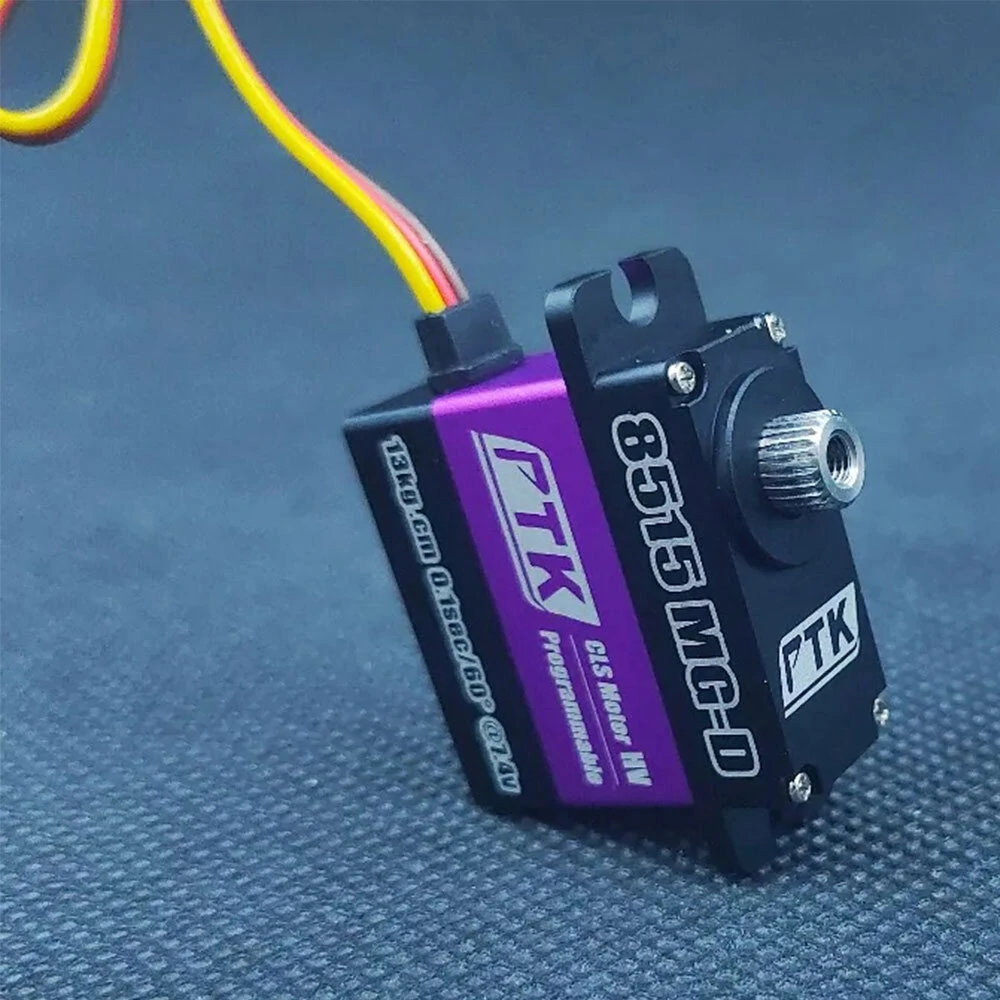

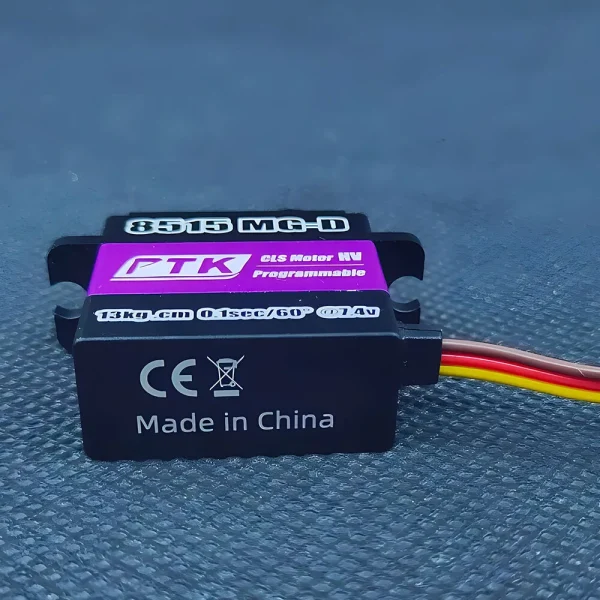

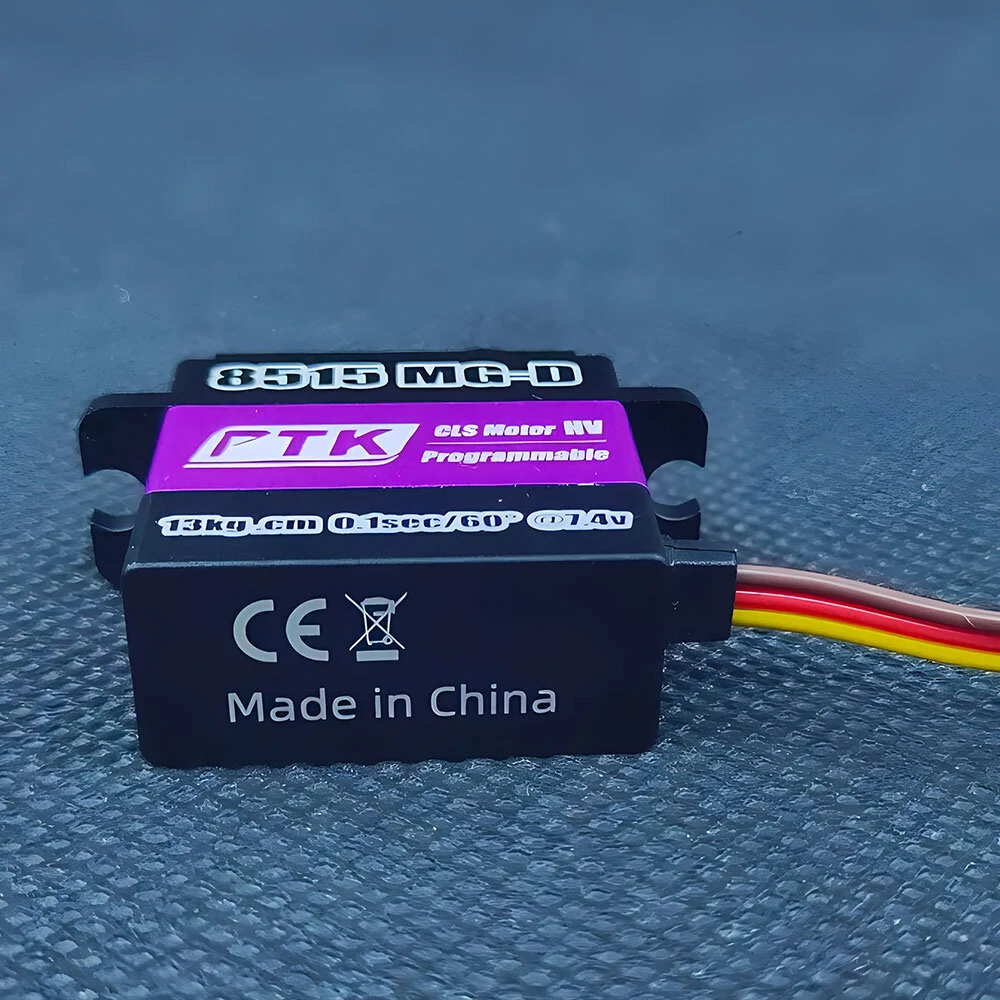

PTK 8515 MG-D 17g Mini Full Metal Digital Servo High Voltage 15KG Fixed Wing RC Car Servo

Description

Specifications:
Motor : CORELESS
Gears : Stainless Steel Gear
Gears Play : very low
Working Frequency : 1520us/333Hz
Test Voltage Range : 5.0V up to 8.4V
Test Temperature : -20℃ up to +60℃
Ball Bearing : 2
Weight : 25 g
Dimensions : 28 x 12.6 x 23mm
Speed/Torque@ 5.0V : 10kg/cm – 0,150s/60°
Speed/[email protected] :13.5kg/cm – 0,104s/60°
Speed/Torque@ 8.4V : 15kg/cm – 0,087s/60°
Input Voltage : 5.0V – 8.4V
Harness length : 250mm JR
Dead band : 2μs
Electric precision : 1.2μs

Features:
-Reliable Performance: Designed to deliver consistent and reliable performance during flights.
-Competition-Grade: Mades for competition-level flying, providing advanced features and capabilities.
-Full Metal Construction: Provides durability and strength for long-lasting performance.
-Digital Servo: Offers precise and accurate control for efficient operation.
-High Torque: With a maximum torque of 15KG, it provides strong and reliable power.

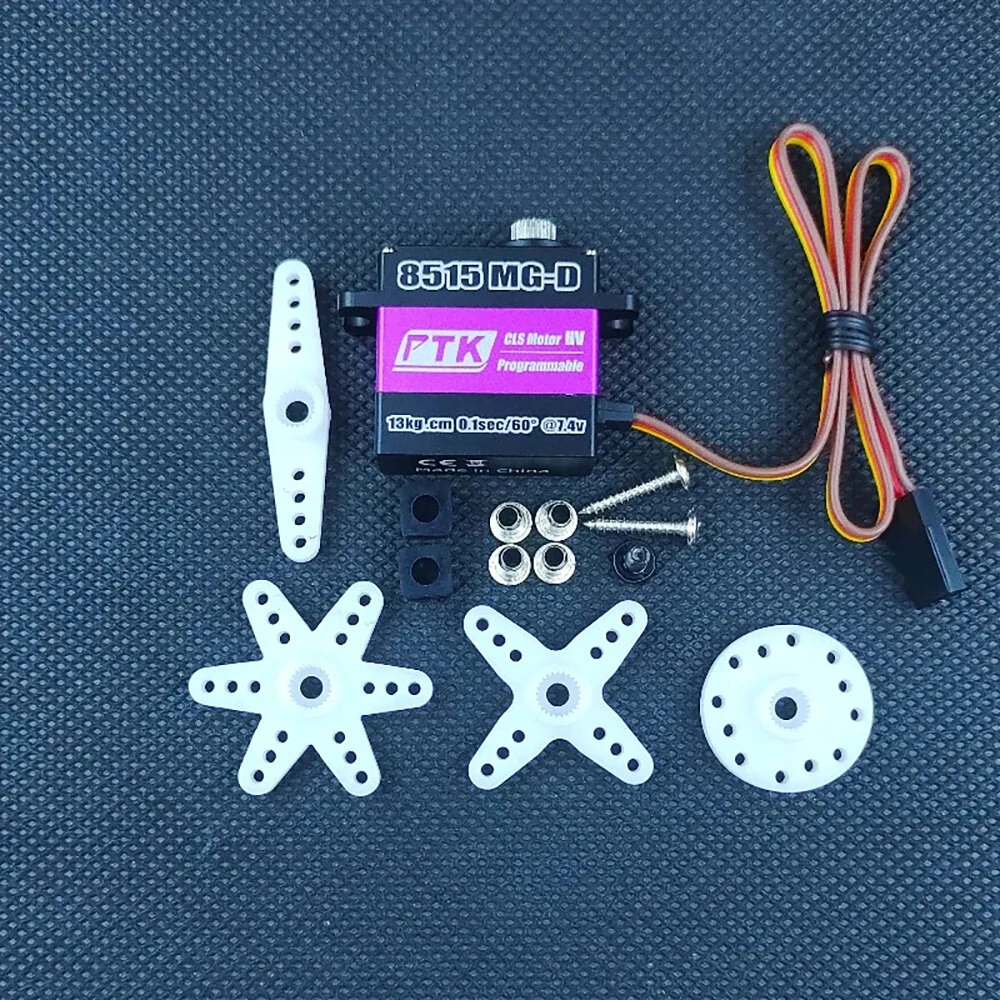

Package Included:
1x set Servo
