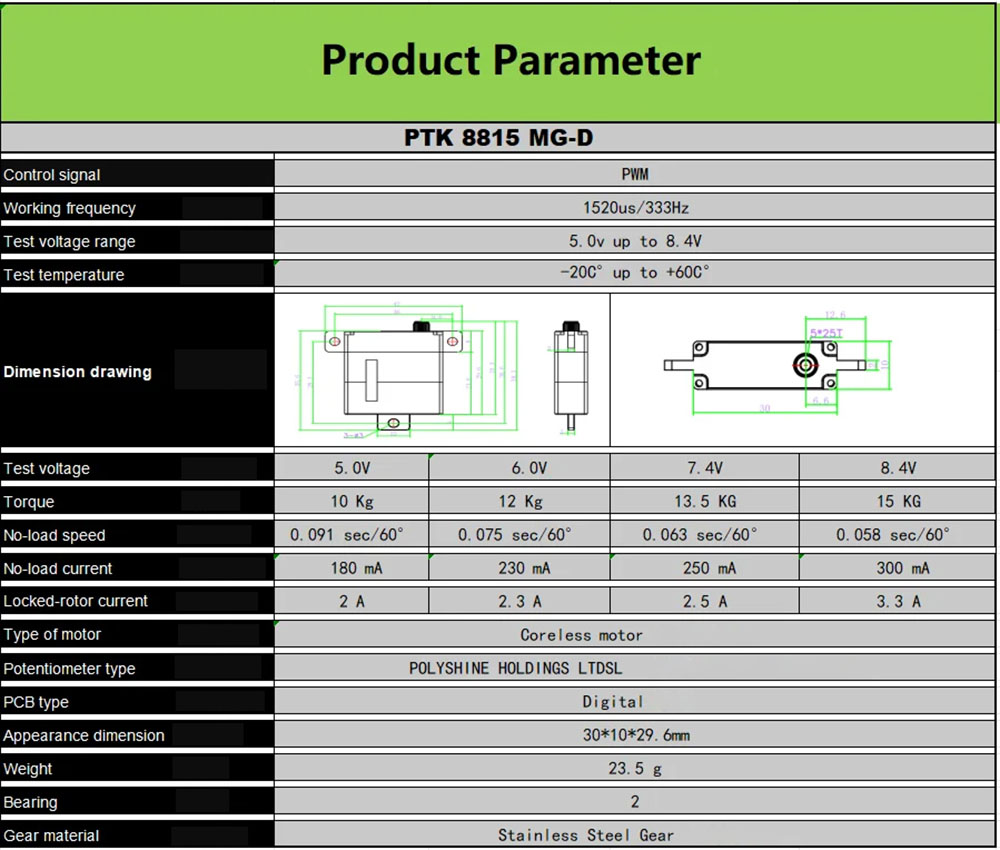

Specification:
Operation Voltage(rated): DC7.4V
Operation Voltage Range: DC5.0-8.4V
Torque:
10kg.cm 5.0V
12kg.cm 6.0V
13.5kg.cm 7.4V
15kg.cm 8.4V
Speed:
0.091 sec/60° 5.0V
0.075 sec/60° 6.0V
0.063 sec/60° 7.4V
0.058 sec/60° 8.4V

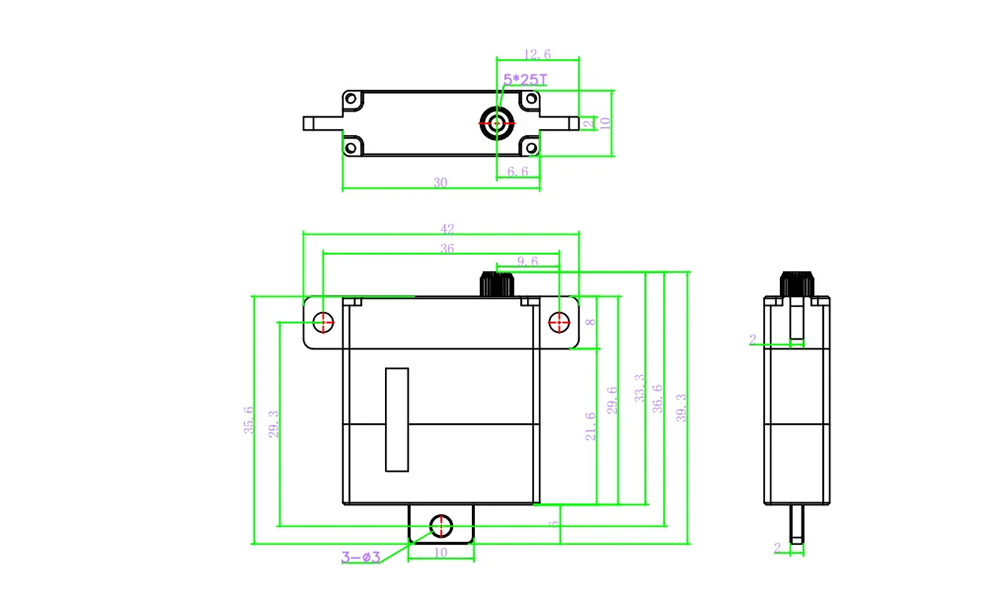

Size: 30*10*29.6mm
Weight: 23.5g
Motor: Coreless
Harness length : 220mm
Compatibility : Universal connector
Dead band : 2μs (adjustable)
Features:
High Torque: This servo has a maximum torque of 15kg, providing strong and reliable performance.
Programmable: It can be programmed to meet your specific requirements, adding flexibility to your projects.

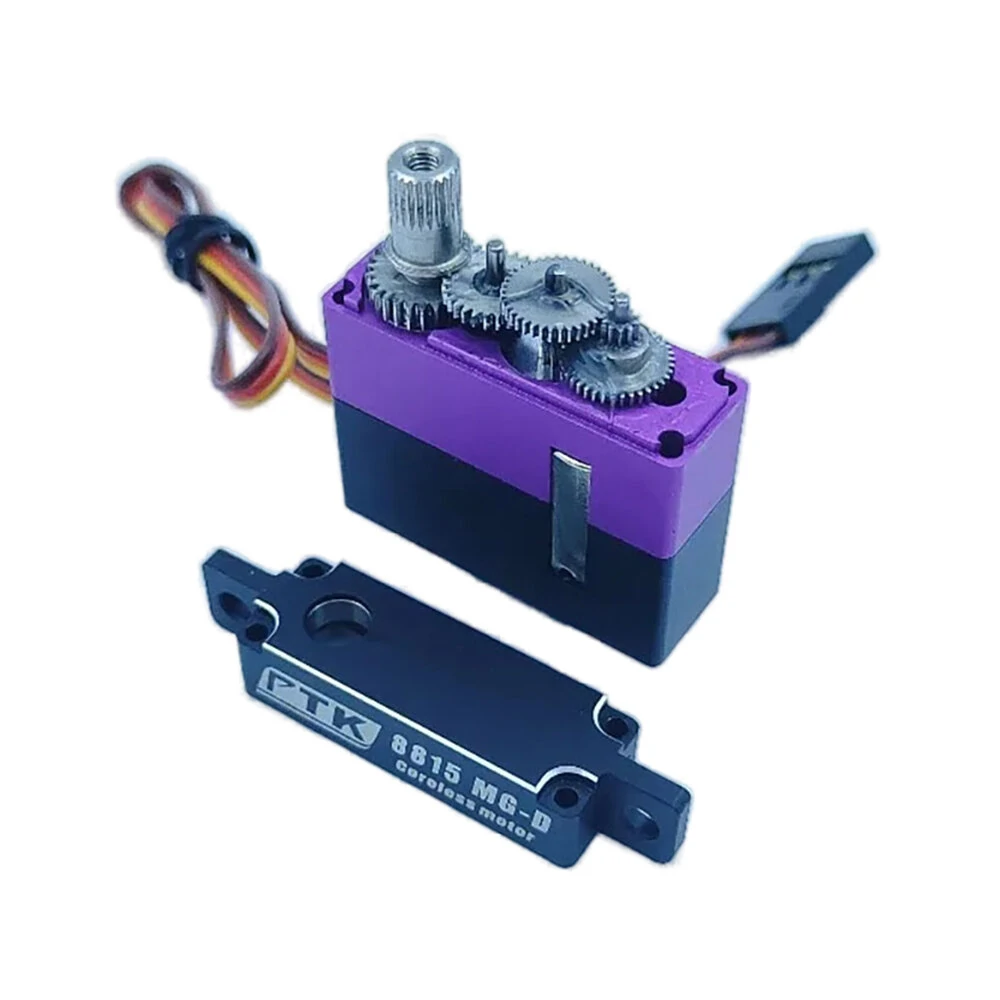

Full Metal Construction: Made with a full metal housing, this servo is durable and built to last.
Smooth Operation: With its precision gears and advanced motor, this servo offers smooth and precise movement.
Versatile Applications: Suitable for gliders, fixed-wing RC models, and other similar projects.

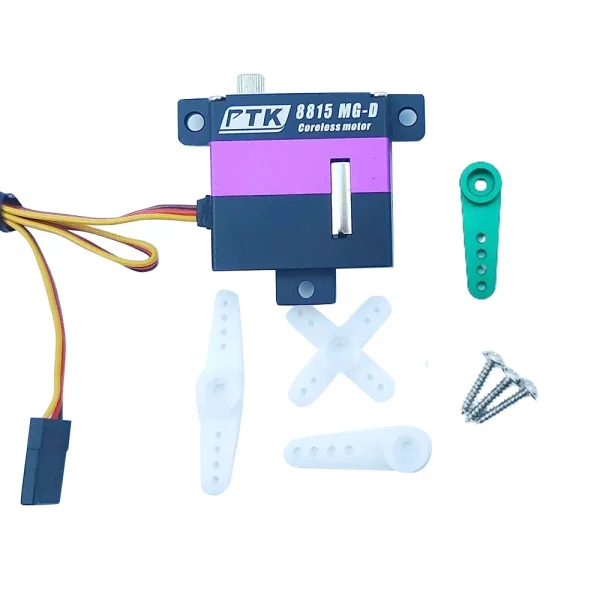

Package includes:

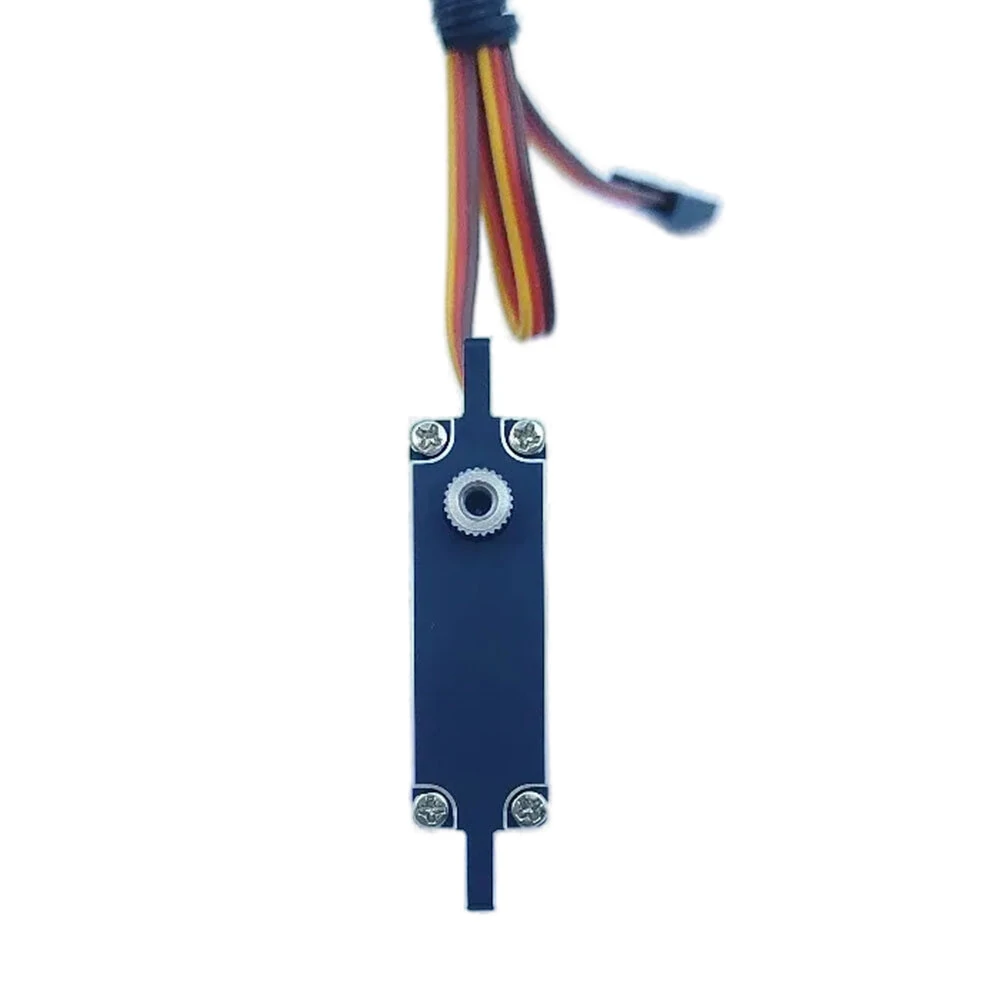

1 X PTK 8815 MG-D 15kg Programmable Full Metal Servo
1 X Rocker Arm
