QX-Motor 64mm 12-Blade Ducted Fan EDF Unit CW/CCW With QF2822 2100KV 2300KV 3300KV 4300KV Brushless Motor For RC Airplane Jet

Description

Specification:

Brand Name: QX-Motor

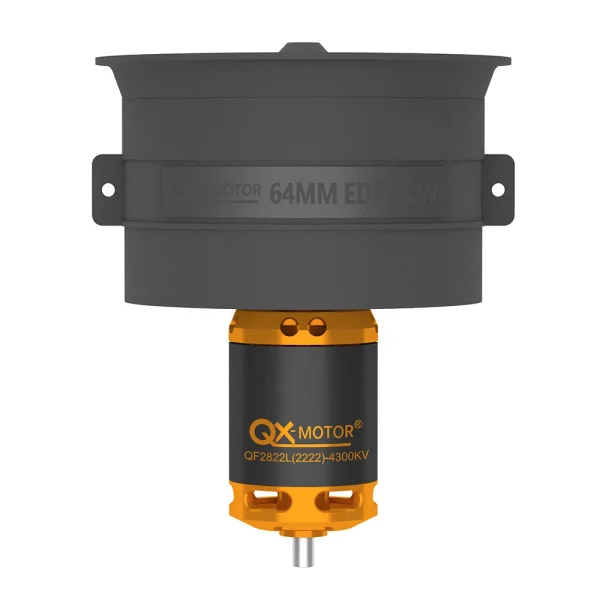

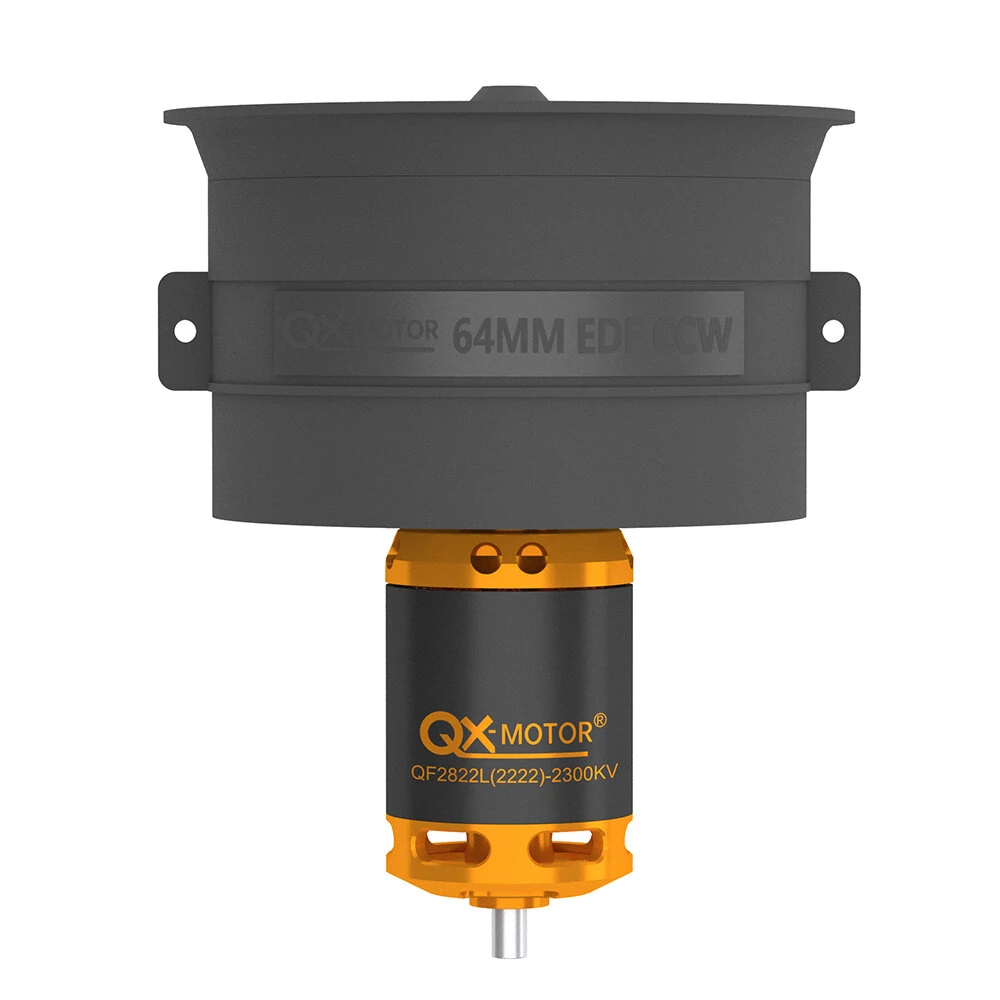

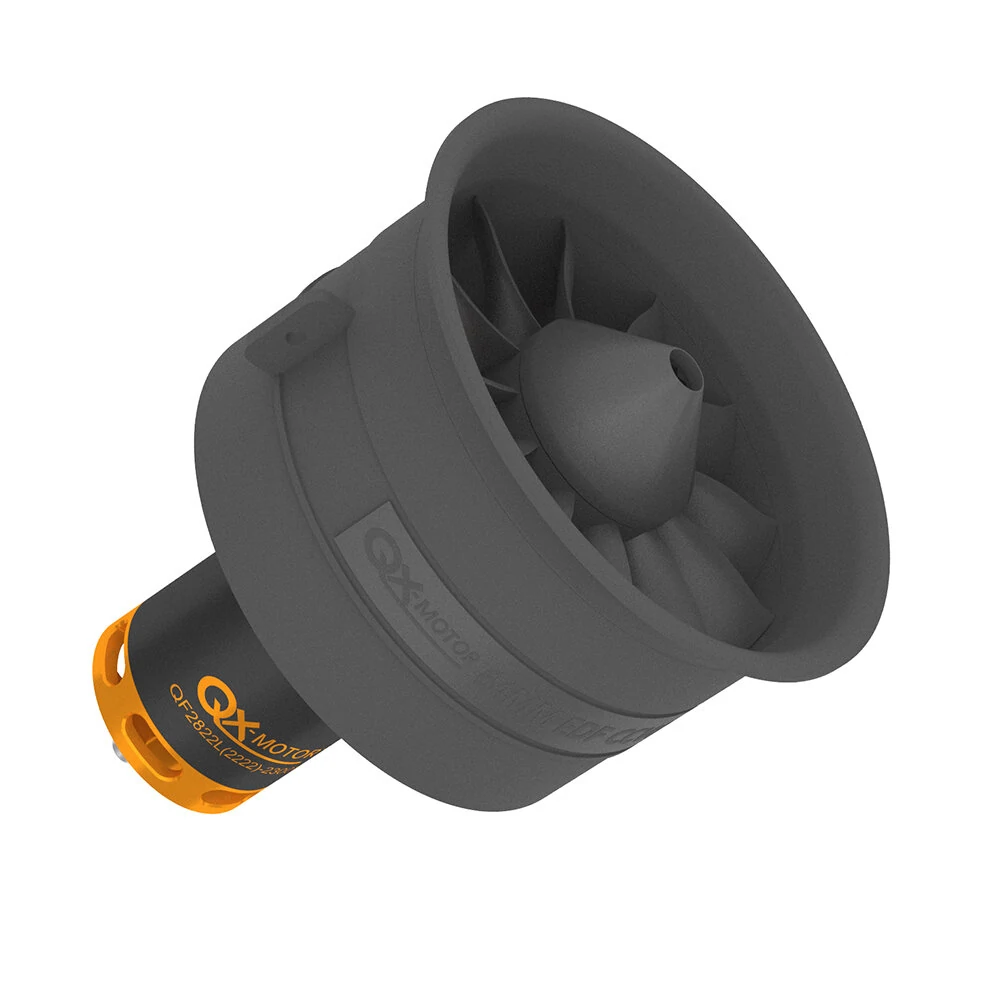

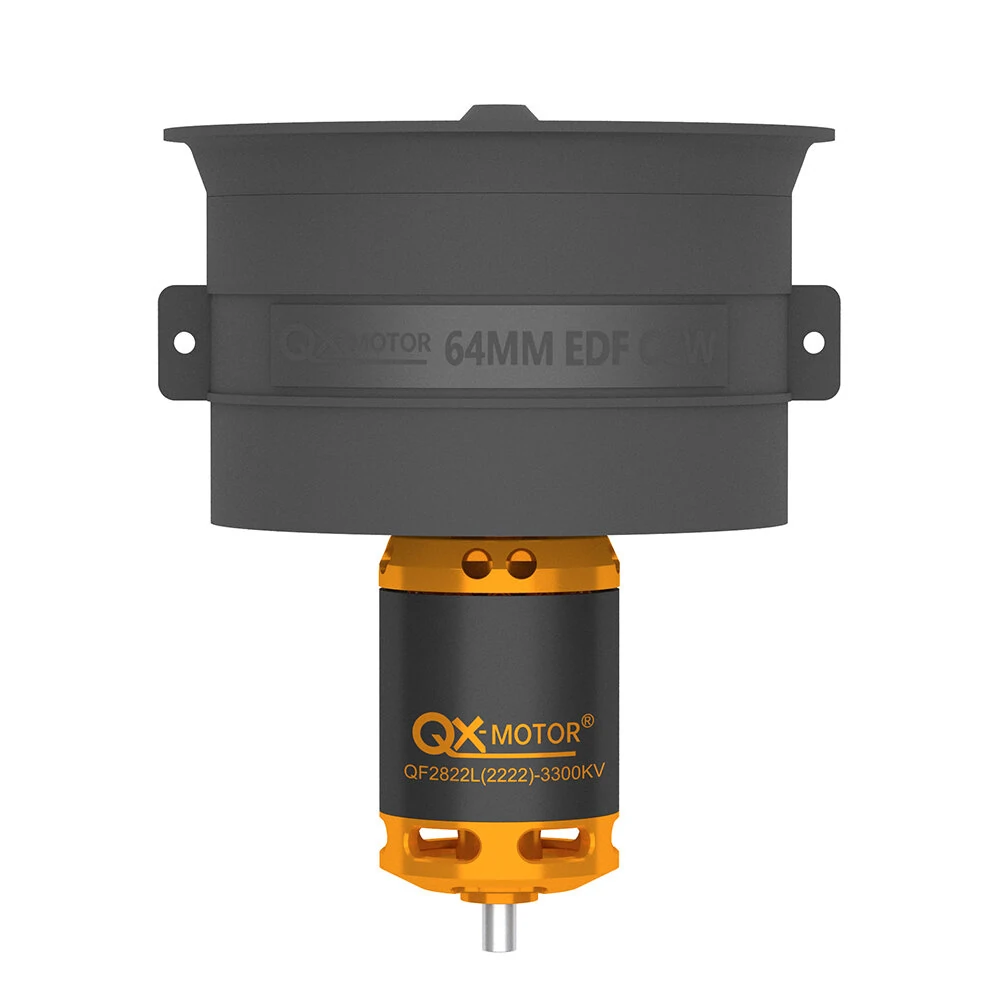

Item Name: 64mm 12-Blade Ducted Fan EDF Unit with QF2822 brushless motor

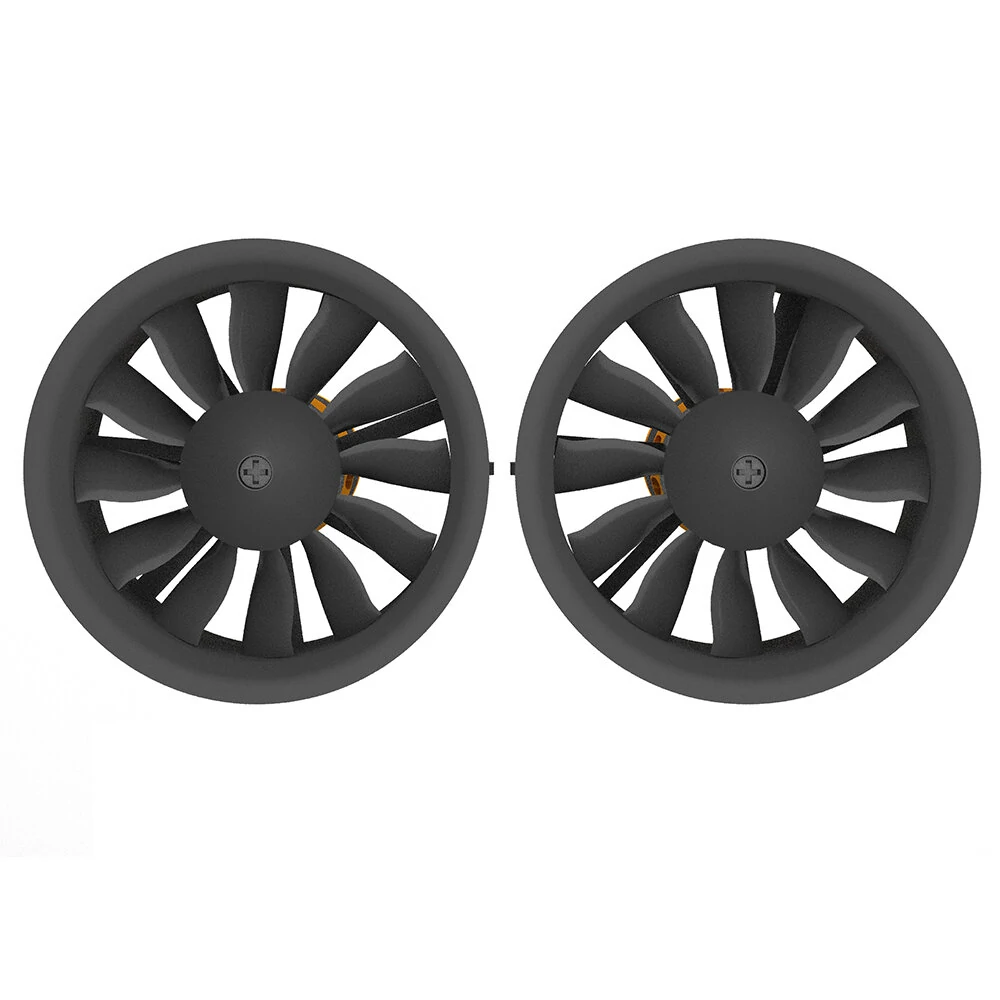

Version: CW, CCW (optional)

KV: 2100KV, 2300KV, 3300KV, 4300KV (optional)

Parameter:

Model (KV)	QF2822 2100KV	QF2822 2300KV	QF2822 3300KV	QF2822 4300KV
Configuration	9N6P	9N6P	9N6P	9N6P
Shaft Diameter	3.0mm	3.0mm	3.0mm	3.0mm
Motor Diameter	28mm	28mm	28mm	28mm
Weight	140g	140g	140g	140g
No.f Cells	3-6S Lipo	3-6S Lipo	3-4S Lipo	3S Lipo
Max Continuous Power/10S	1200W	1440W	1120W	1280W
Max Continuous Current/10S	50A	60A	70A	80A

English Manual, Click Here

Package Included:

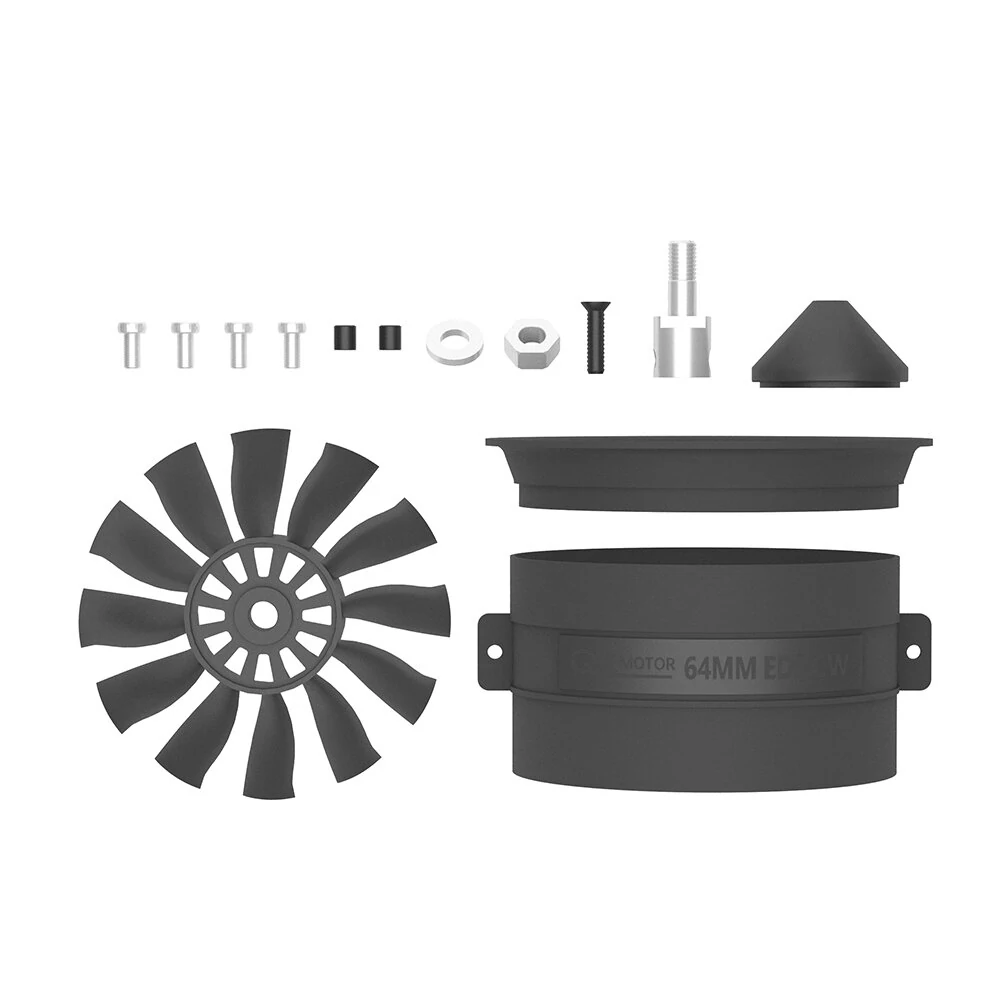

1x QX-Motor 64mm 12-Blade Ducted Fan EDF Unit With QF2822 Brushless Motor
