Radiolink F722 F7 2-8 Axis Multi-rotor Aircraft Flight Controller with DJI 6 Pin Port for FPV Racing Drone Support Betaflight INAV

Features:

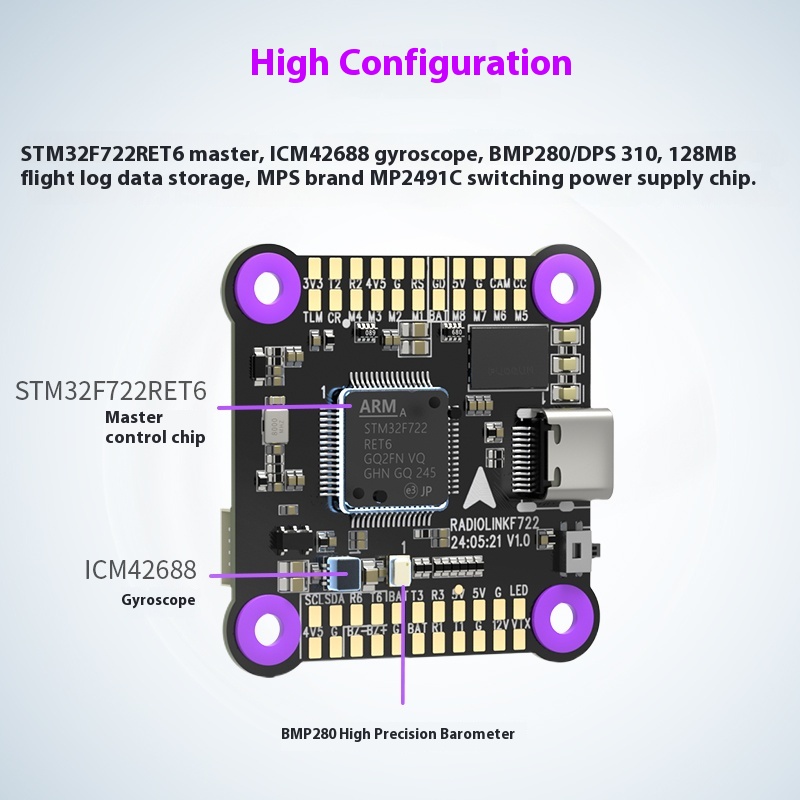

1. High-Performance Processor: Integrated STM32F722RET6 for ultra-fast processing and reliable performance.
2. Accurate Sensing: Equipped with ICM42688 gyroscope and BMP280 pressure sensor for precise flight control.

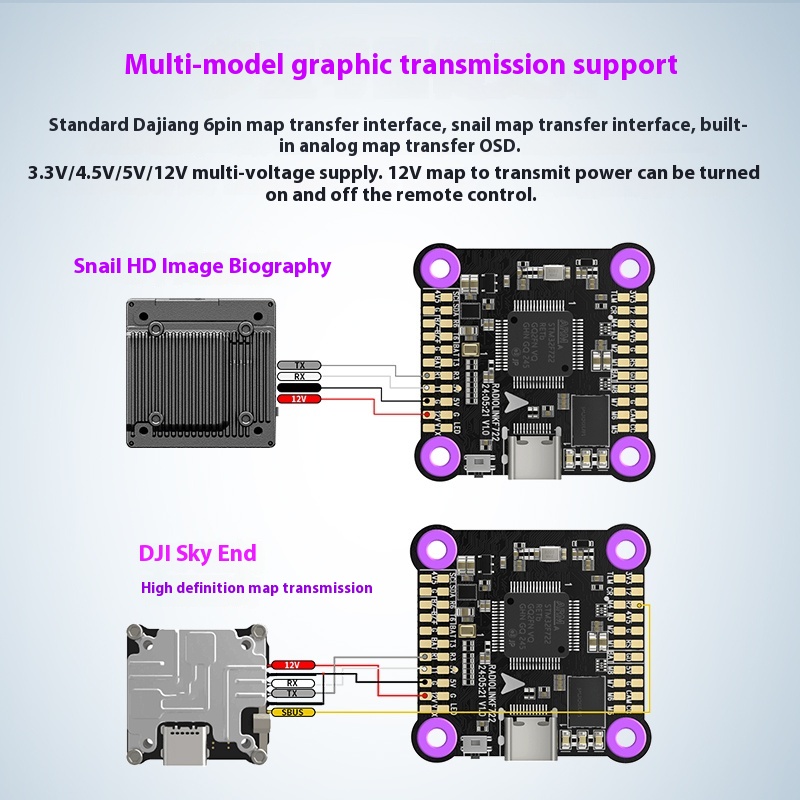

3. Enhanced Image Transmission: Supports DJI and CADDX high-definition digital image transmission for clear visuals.

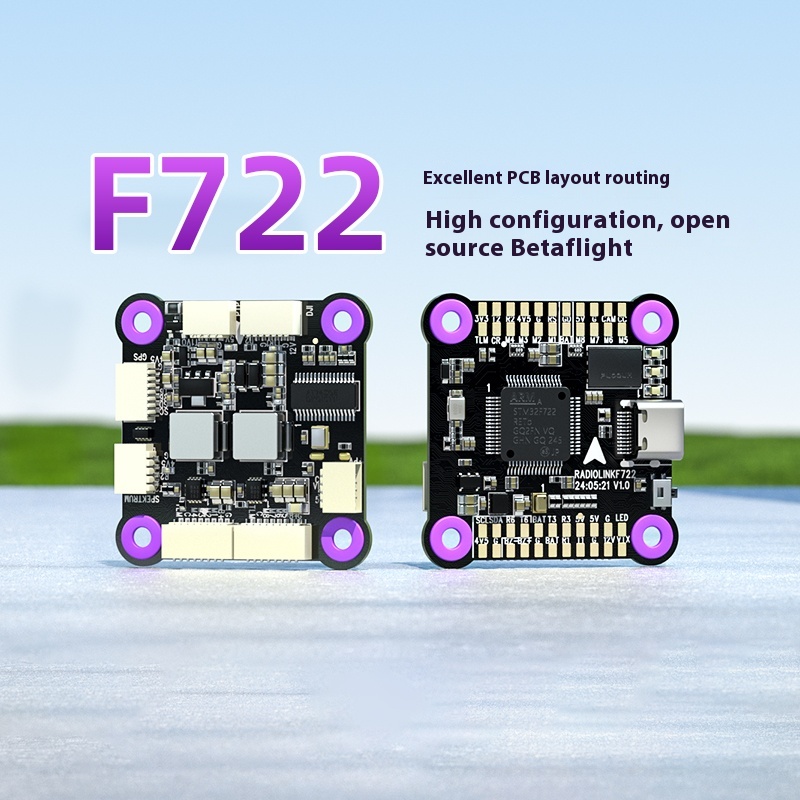

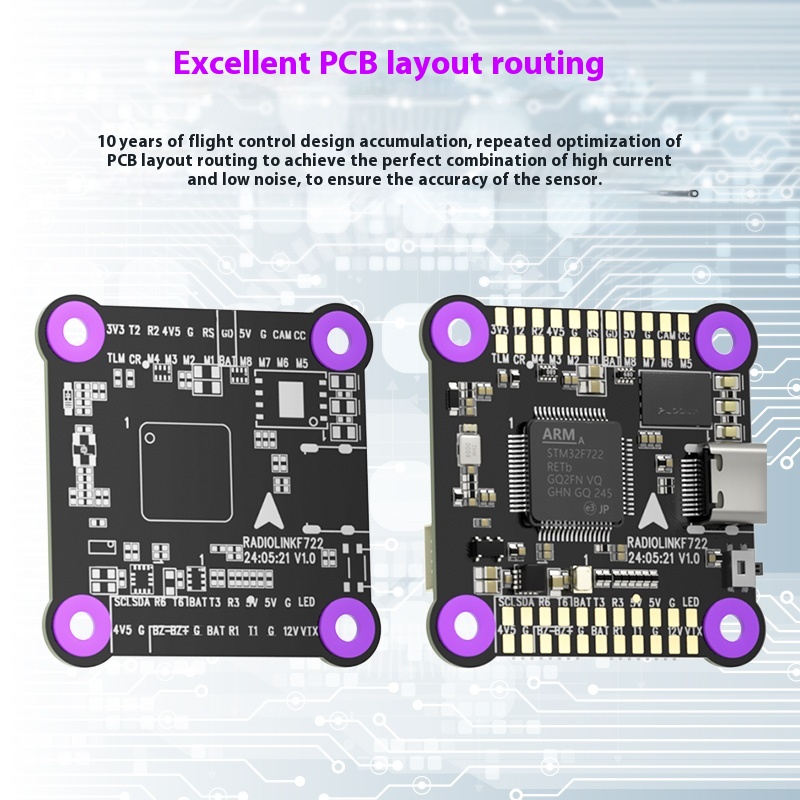

4. Efficient PCB Design: Optimized PCB layout ensures high current handling with low noise for accurate sensor data.

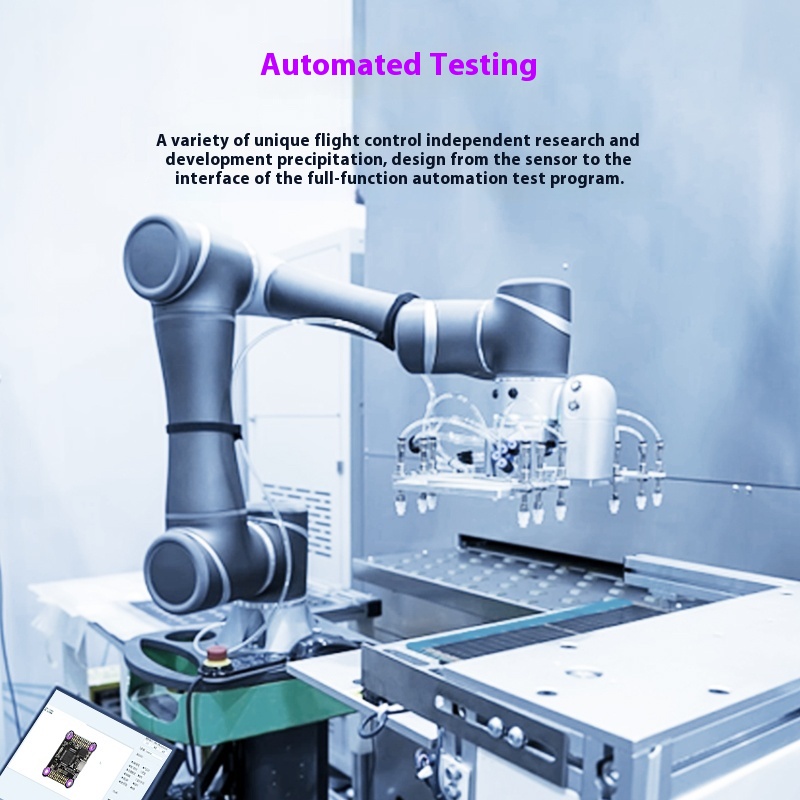

5. Comprehensive Testing: Unique automation software testing system ensures high efficiency and quality control.

Specifications:

Brand: Radiolink

Model: F722
Main Processor: STM32F722RET6
Gyroscope: ICM42688
Pressure Sensor: BMP280/DPS310
Black Box Capacity: 128MB
Power Supply: MP2491C (MPS)
BEC Output: 3.3V, 4.5V, 5V, 12V
Channels: Up to 8 Channels Output

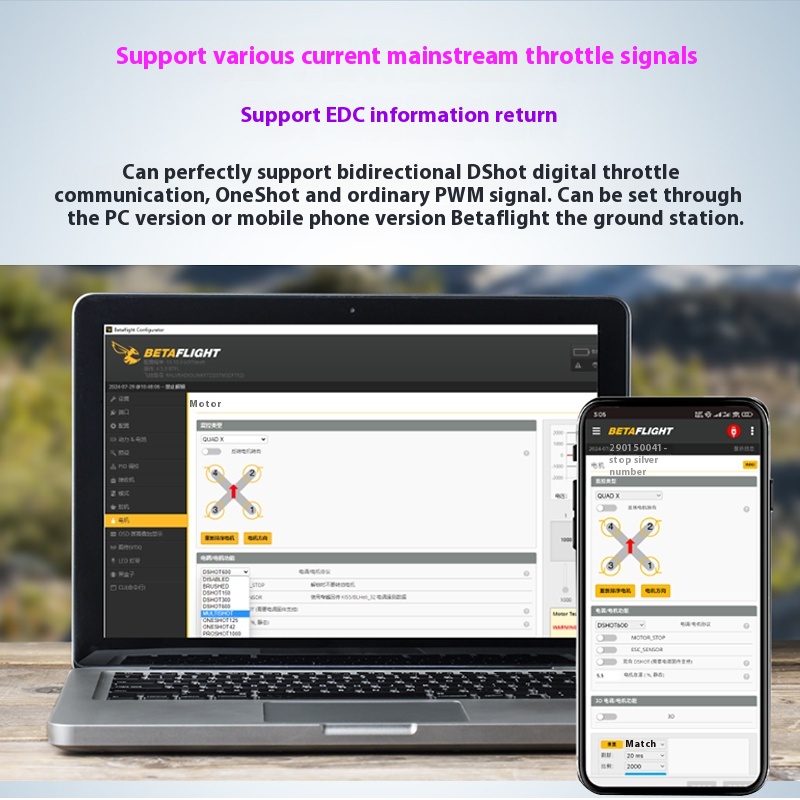

Throttle Signals: Supports DShot, OneShot, and PWM

Functions:
1. Real-time Flight Data: Display real-time flight direction and position via OSD without external modules.
2. Multiple Axis Support: Adaptable to 2-8 axis multi-rotor configurations, including X8 models.

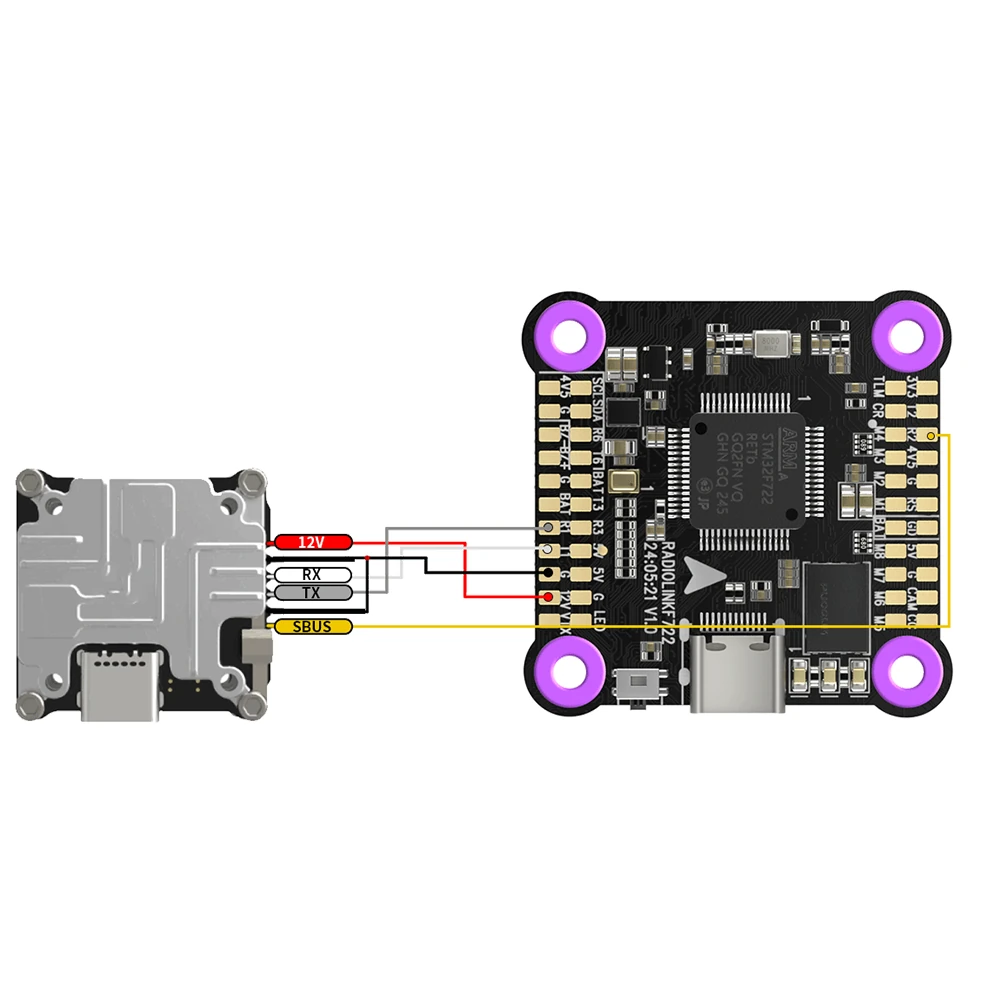

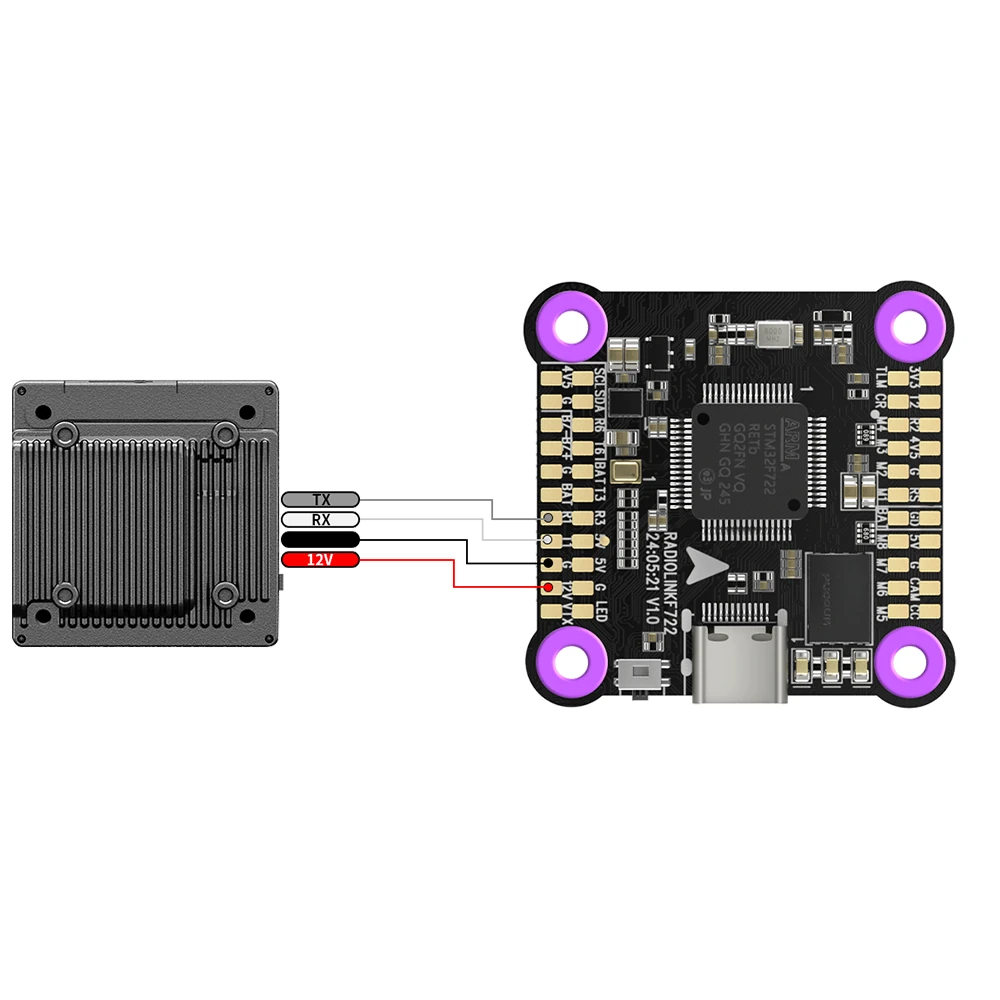

3. Plug-and-Play Imaging: Offers seamless plug-and-play support for DJI and CADDX image transmission.
4. Full Functionality Testing: Each unit undergoes extensive software-based testing for reliable operation.
5. Versatile Connectivity: Combines socket interface and solder pads for easy external device connections.

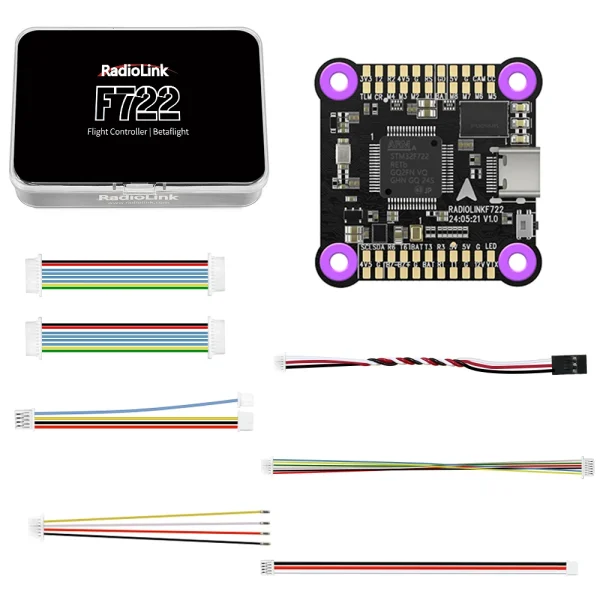

Package Included:
1x F722(Flight Controller)
2x ESC Connect Cable
1x Camera Connect Cable
1x ELRS Receiver Connect Cable
1x Analog Video Transmission Connect Cable*1
1x GPS Connect Cable
1x R8SM Receiver Connect Cable
1x Receiver Connect Cable
1x RadioLinkF722Package Box
