RX42BRB Multi-protocol 6CH Mini Compatible RC Receiver with Dual Brushed 7.5A ESC for Flysky Wfly Microzone Radio Transmitter

RX42BRB Multi-protocol 6CH Mini Compatible RC Receiver with Dual Brushed 7.5A ESC for Flysky Wfly Microzone Radio Transmitter

Specification:
Item Name: RX42BRB Receiver
ESC Type: Dual Channel Brushed ESC
Maximum ESC Output: 7.5A per channel
Supported Protocols: AFHDS, AFHDS2A, WLY2, MC6C
Voltage Range: 3.7V – 8.4V (1-2S Lipo)
Supported Signals: PPM, SBUS
LED Support: 30 WS2812B LED Strips
Dimensions: 18*35mm
Weight: 4.2g

Features:

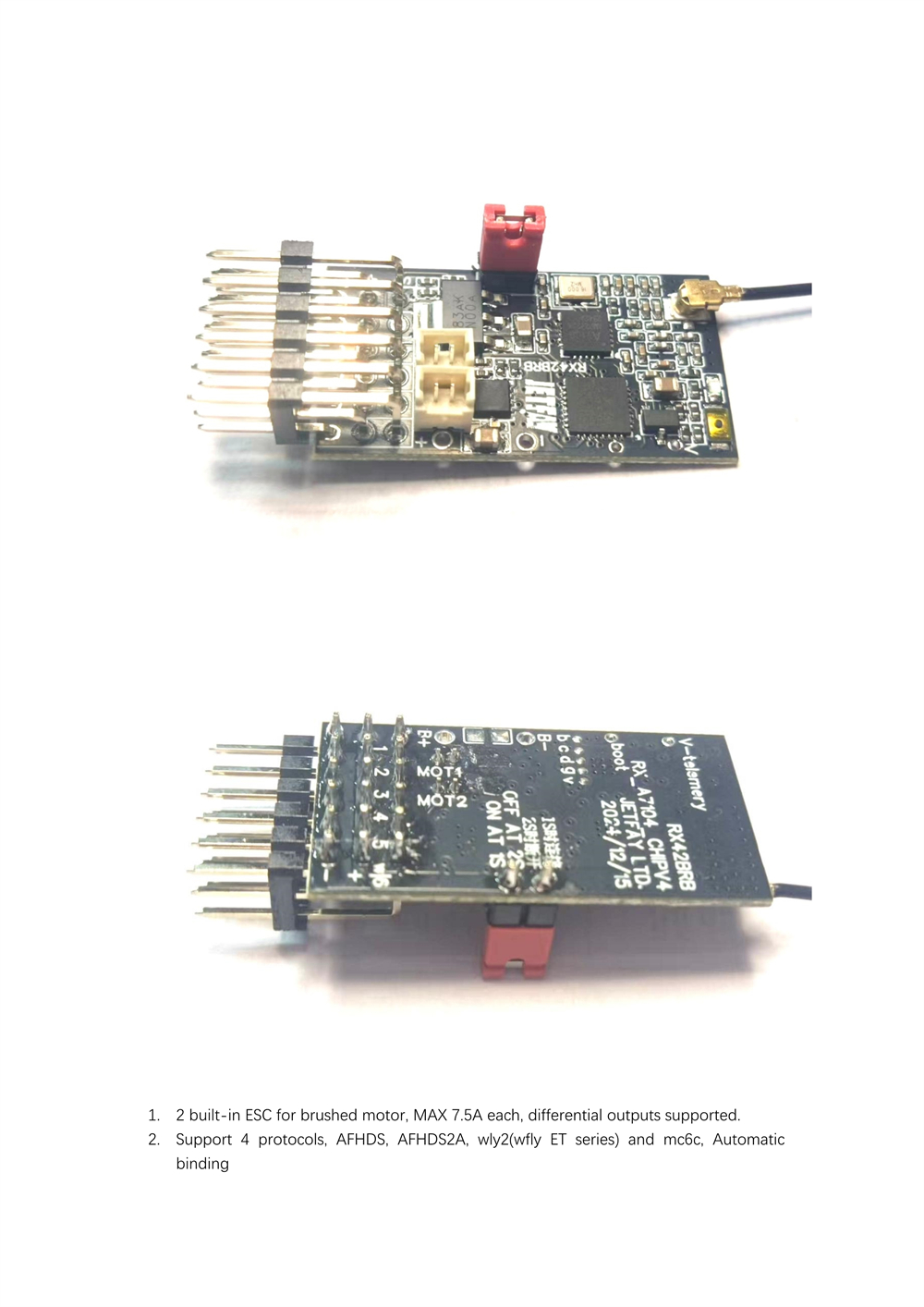

1. 2 built-in ESC for brushed motor, MAX 7.5A each, differential outputs supported.

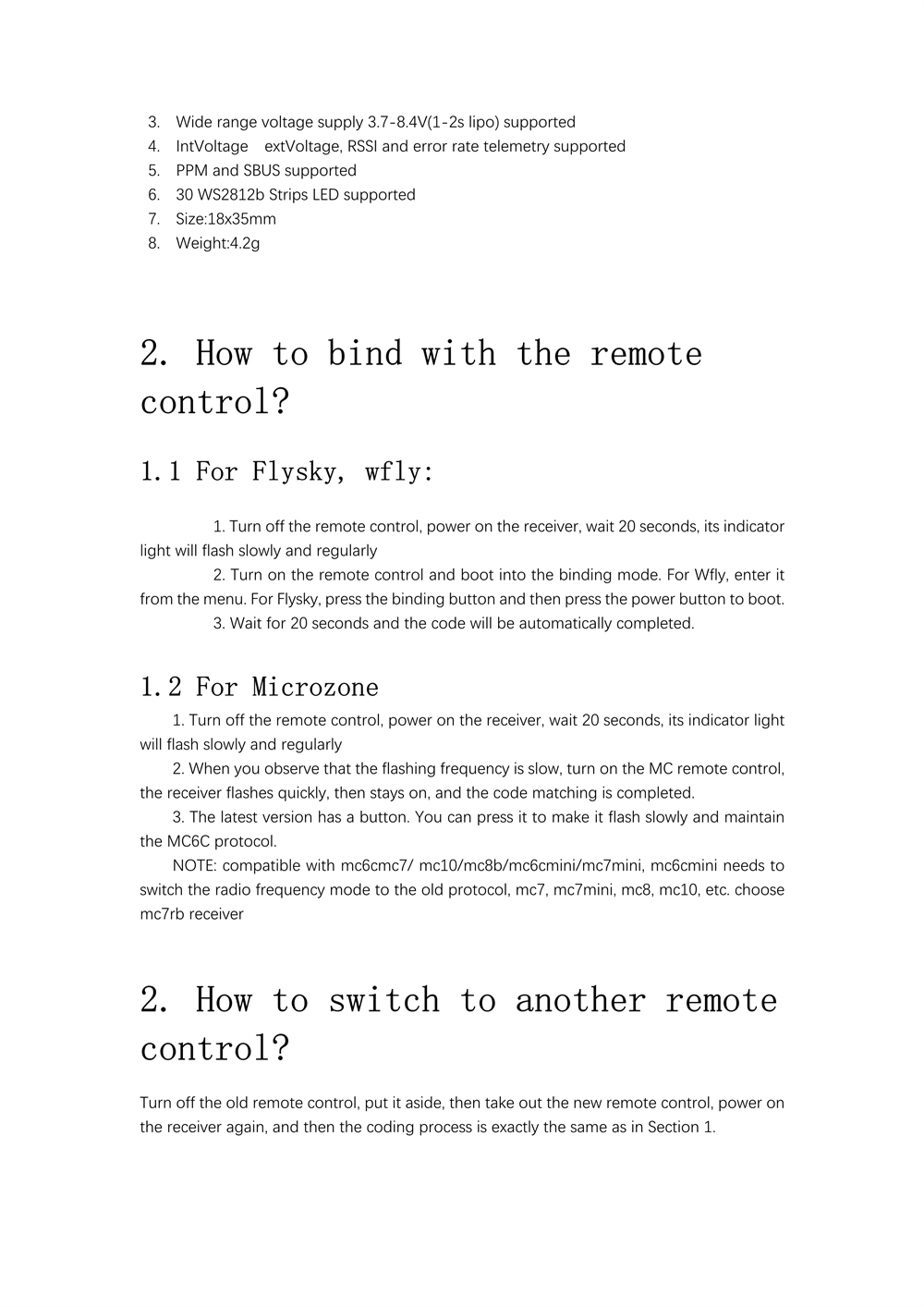

2. Support 4 protocols, AFHDS, AFHDS2A, wly2(wfly ET series) and mc6c, Automatic binding.
3. Wide range voltage supply 3.7-8.4V(1-2s lipo) supported.
4. IntVoltage ext’Voltage, RSSI and error rate telemetry supported.
5. PPM and SBUS supported.

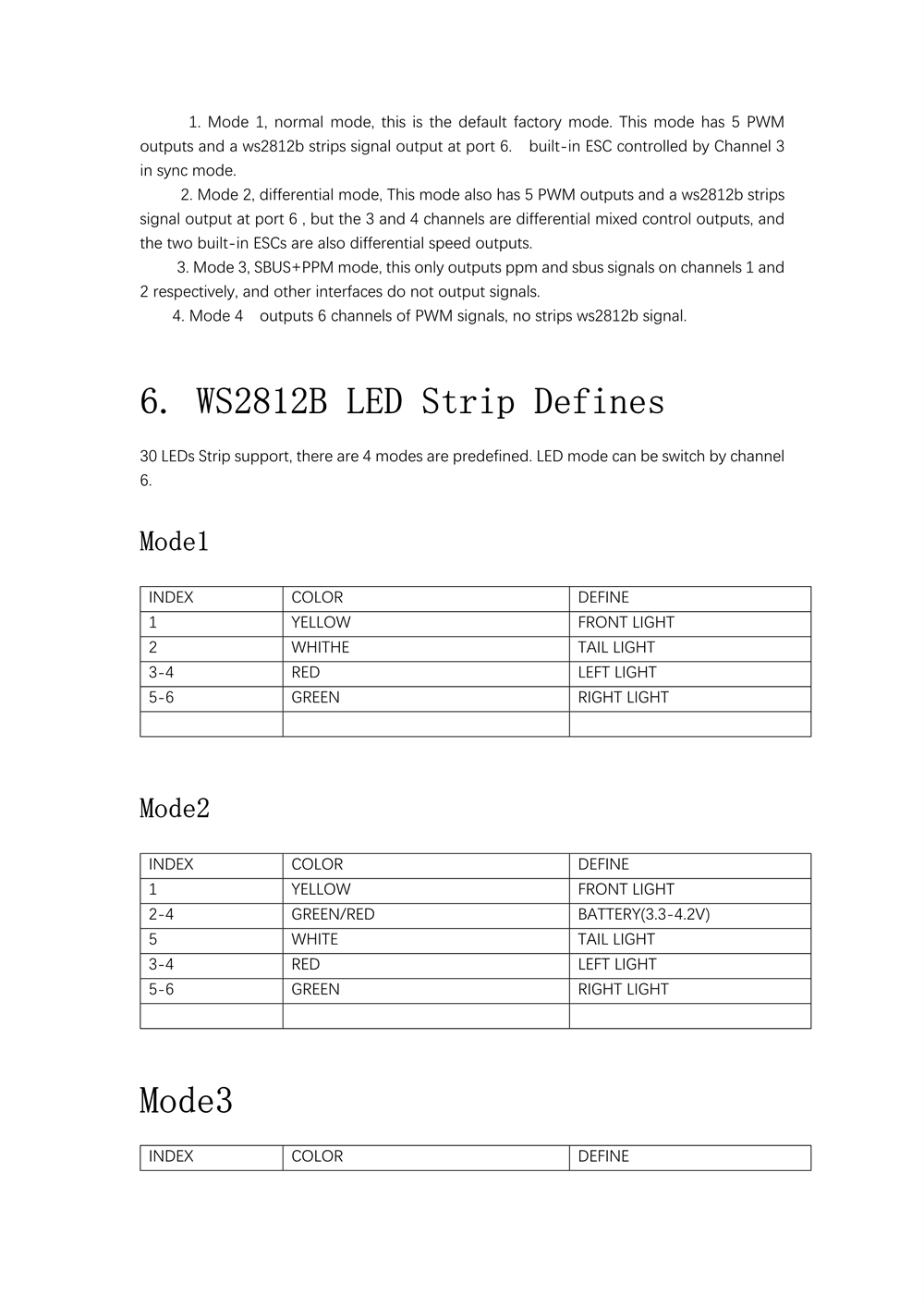

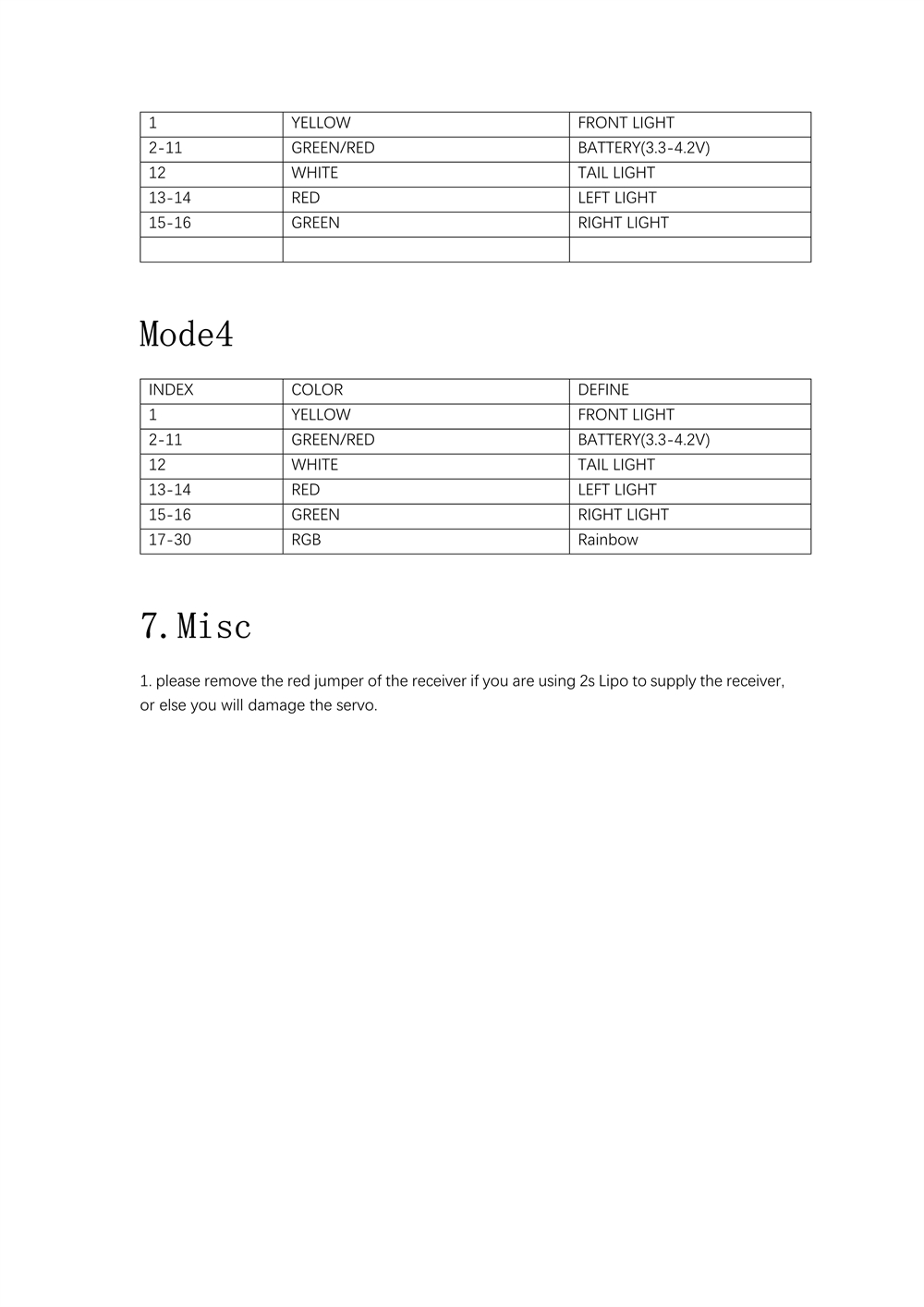

6. 30 WS2812b Strips LED supported.

Package included:
1x Receiver
