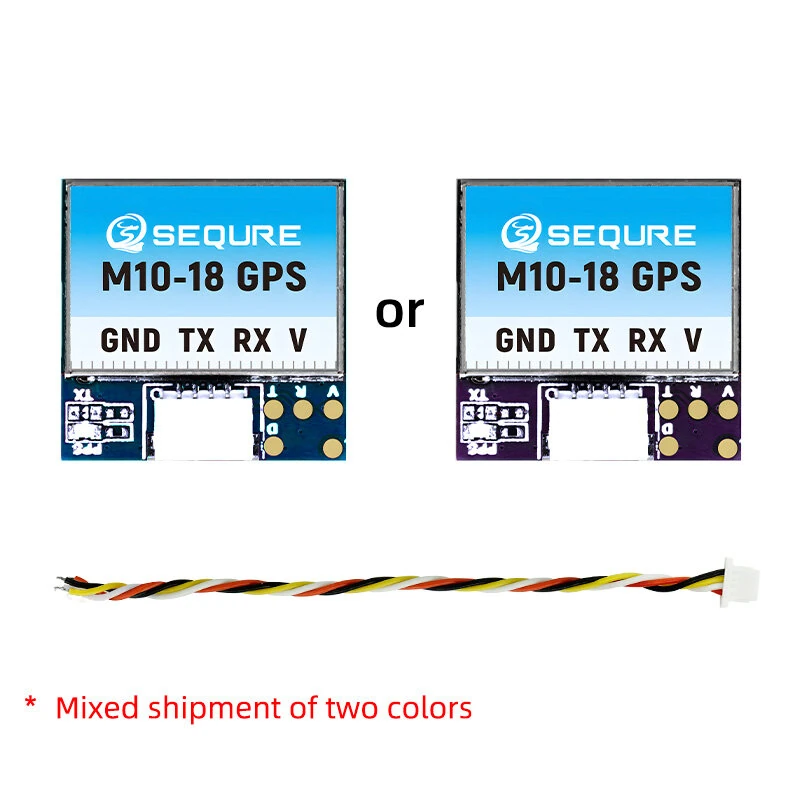

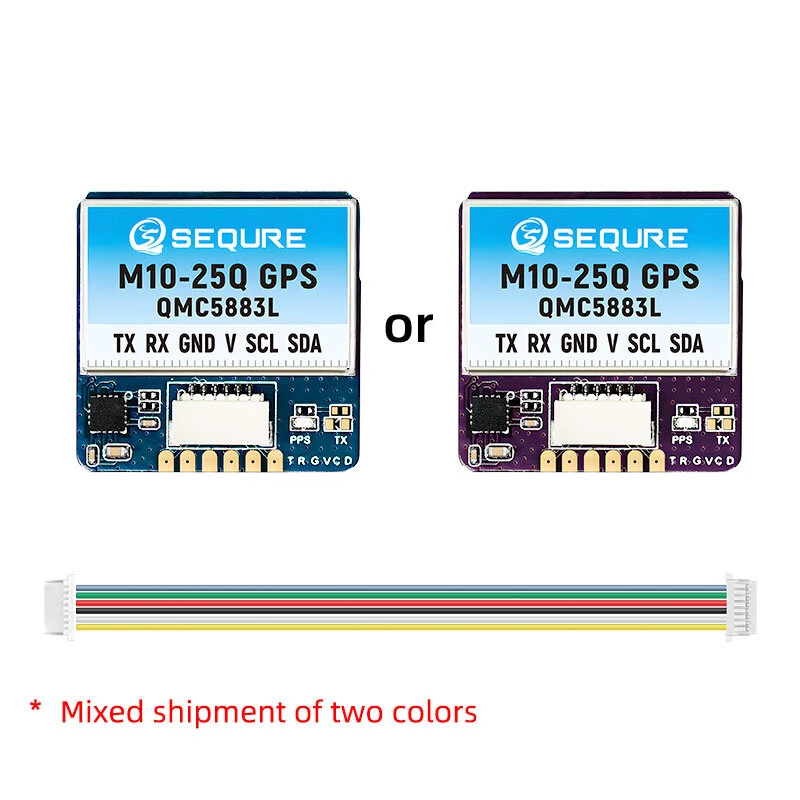

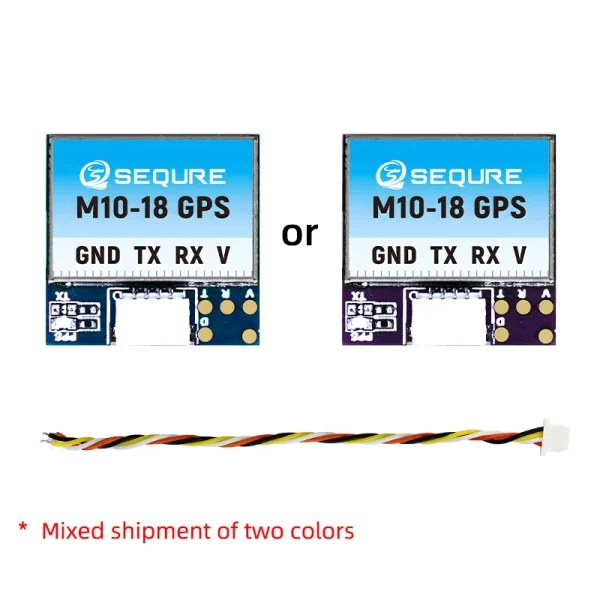

Note：GPS blue and purple PCBs for M10-18 and M10-25Q will be shipped randomly, with the same functions but different colors. M10-12 remains unchanged. – March 10, 2025.
Parameters of Product:
|
Optional Version |

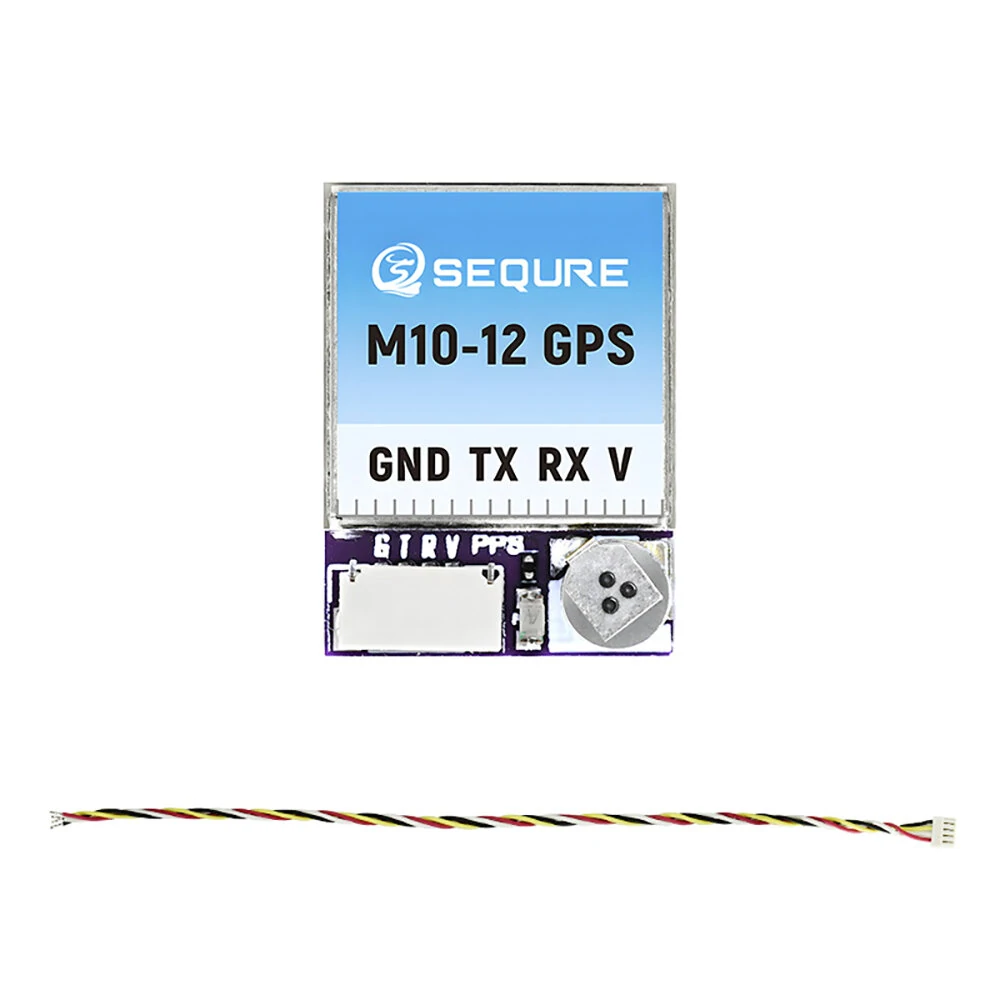

M10-12 GPS |

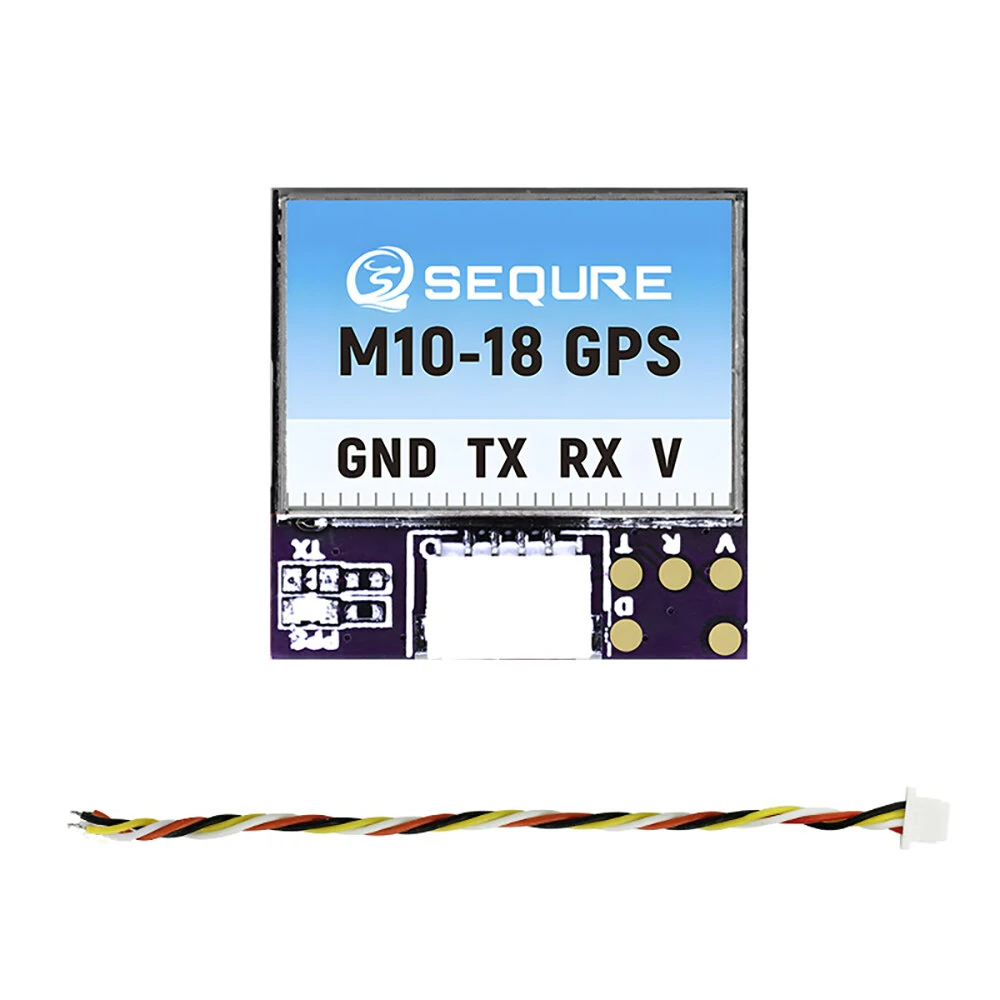

M10-18 GPS |

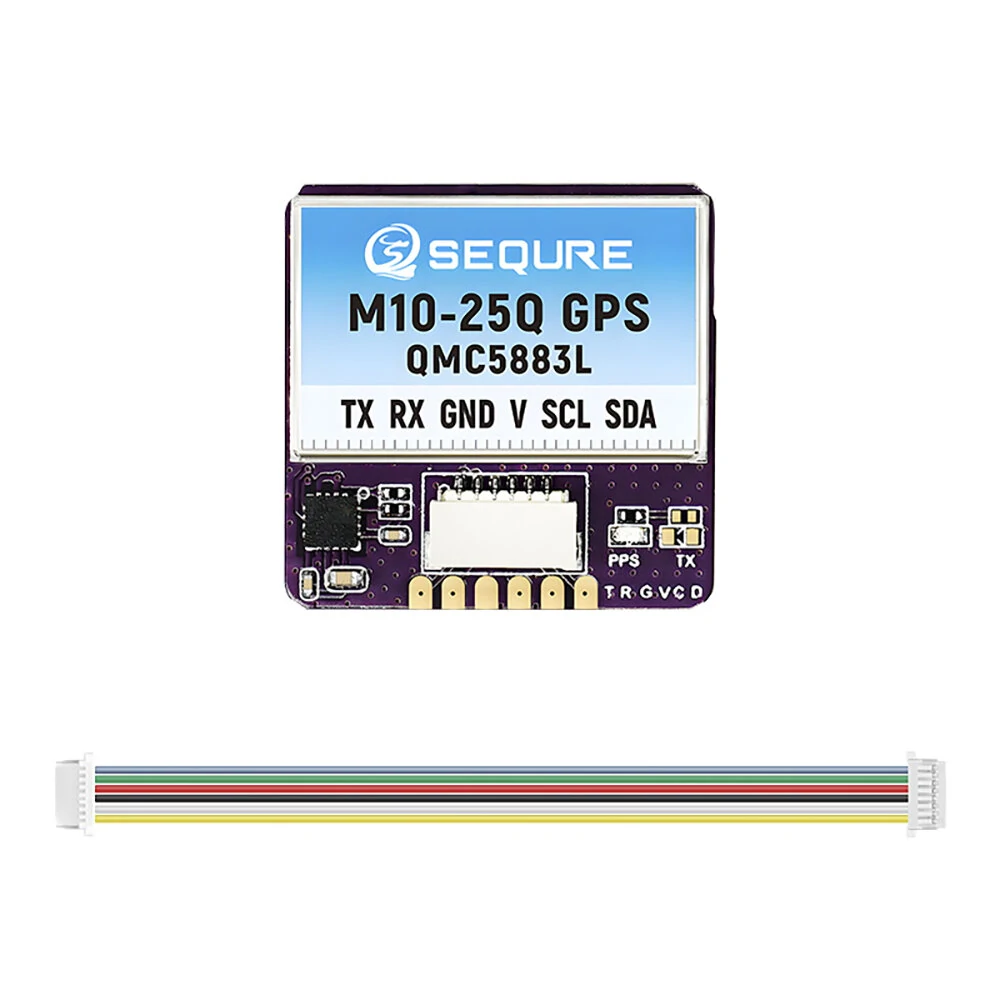

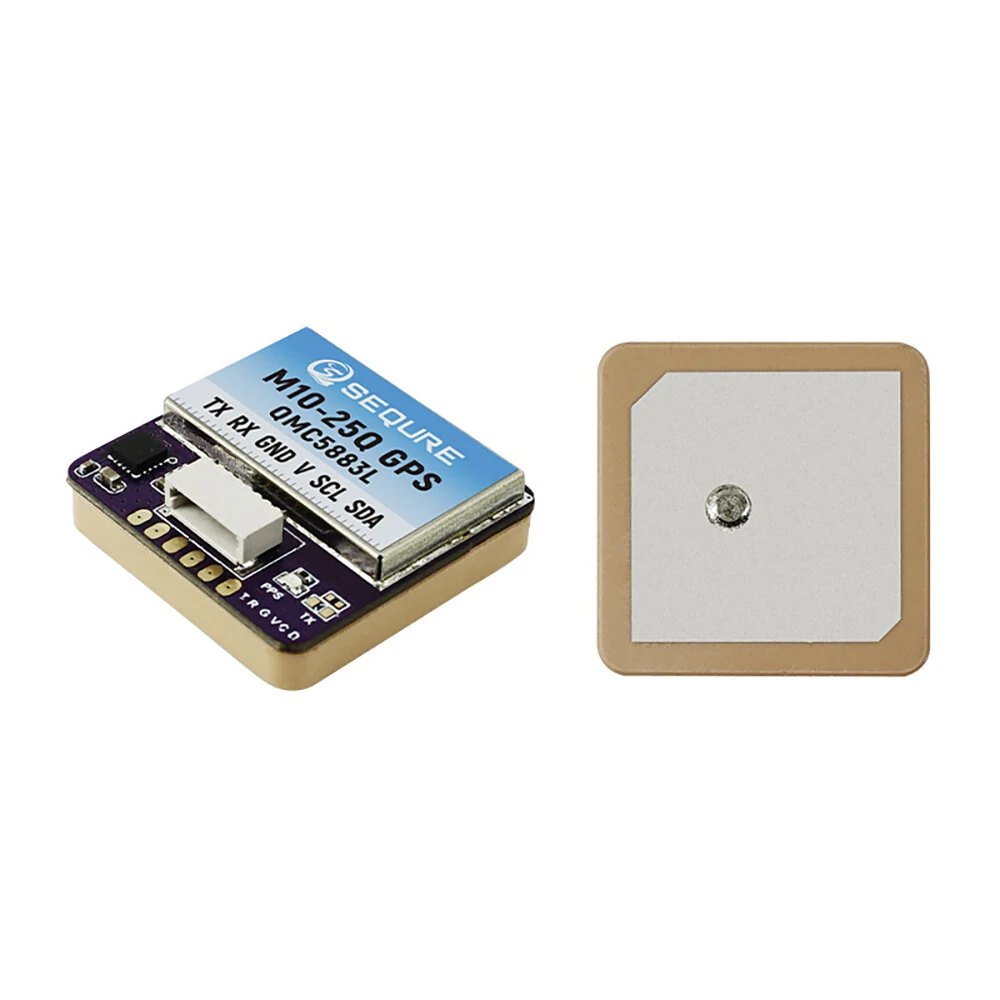

M10-25Q GPS |
|
Chip |
M10 |
M10 |
M10 |
|
Frequency |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
|
Power supply |
5V |
5V |
5V |
|
Size |
12*16*4.5mm |
18*18*8mm |
25*25*8mm |
|
Weight |
2.3g |
7.2g |
12.2g |
|
Interface |
SH0.8-4P connector,PCB pad |
SH1.0-4P connector,PCB pad |
SH1.0-6P connector, PCB pad |
|
Antenna |

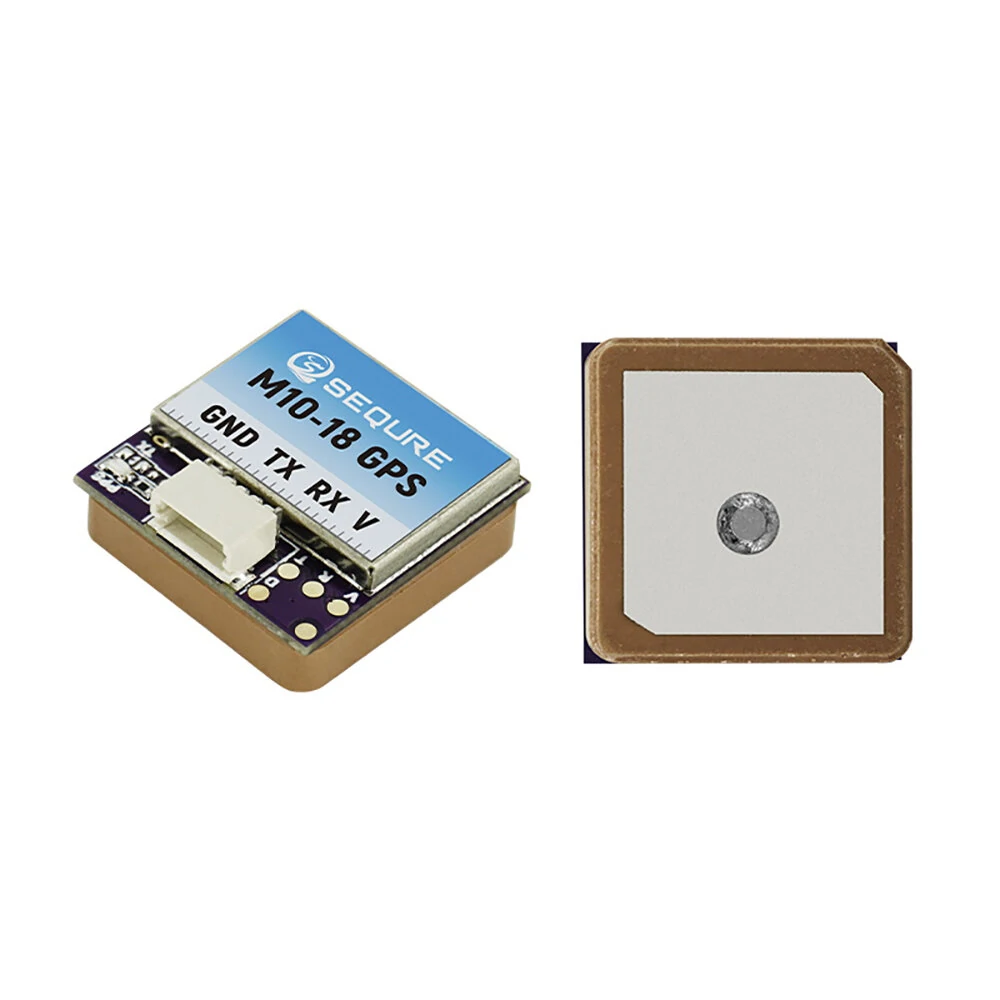

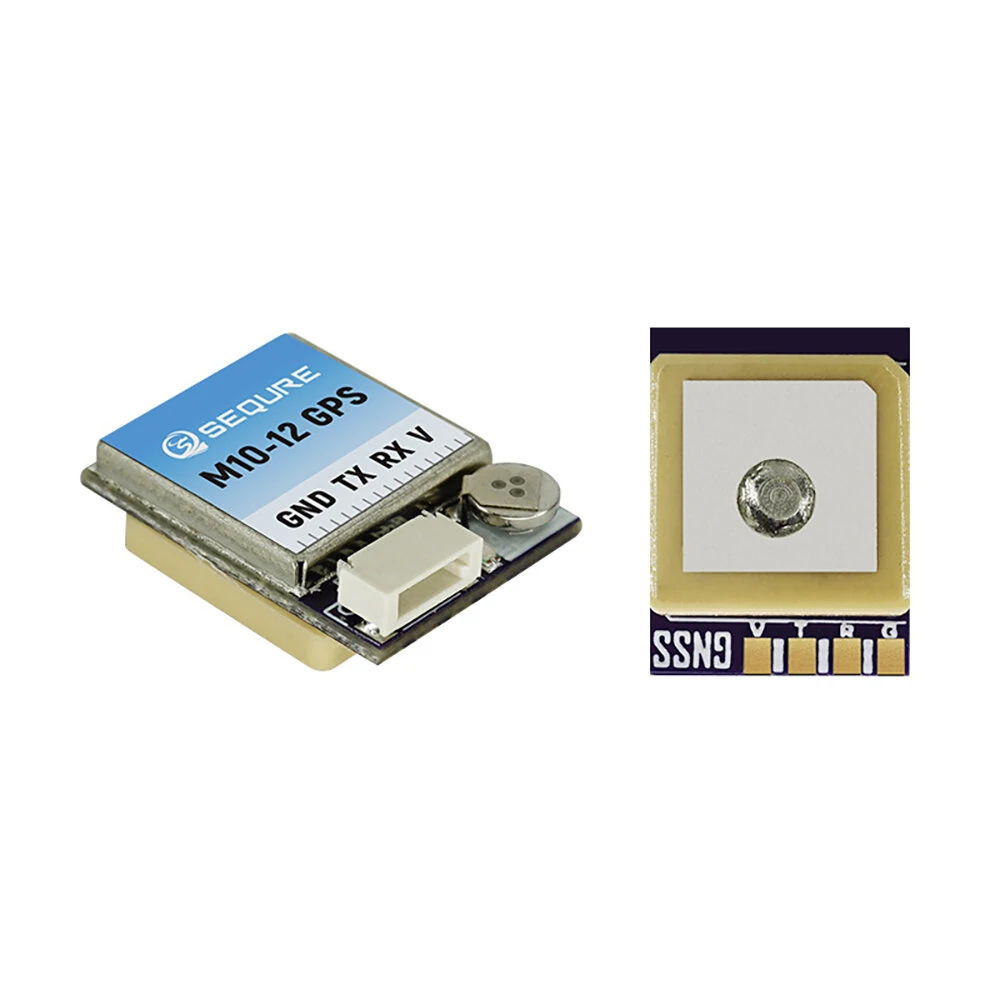

Ceramic Antenna |
Ceramic Antenna |
Ceramic Antenna |
|
Receiving channels |
72 search channels |
72 search channels |
72 search channels |
|
Baud rate |
115200 |
115200 |
115200 |
|
Output protocol |
UBLOX |
UBLOX |
NMEA、UBLOX dual protocol, |
|
Compass |
NO |
NO |
QMC5883L |
|
Output frequency |
1Hz-10Hz，default 10Hz |
1Hz-10Hz，default 10Hz |
1Hz-10Hz，default 10Hz |
