Specification:
1.work voltage : 2-6S (due to temperature different , recommend 2-3S)
2. 6 types work modes:
(1) Fighter blinking mode
(2) Civil aviation flashing mode
(3) Flash mode
(4) Slow flash mode
(5) Full light mode
(6) Close mode
3.Function switching method

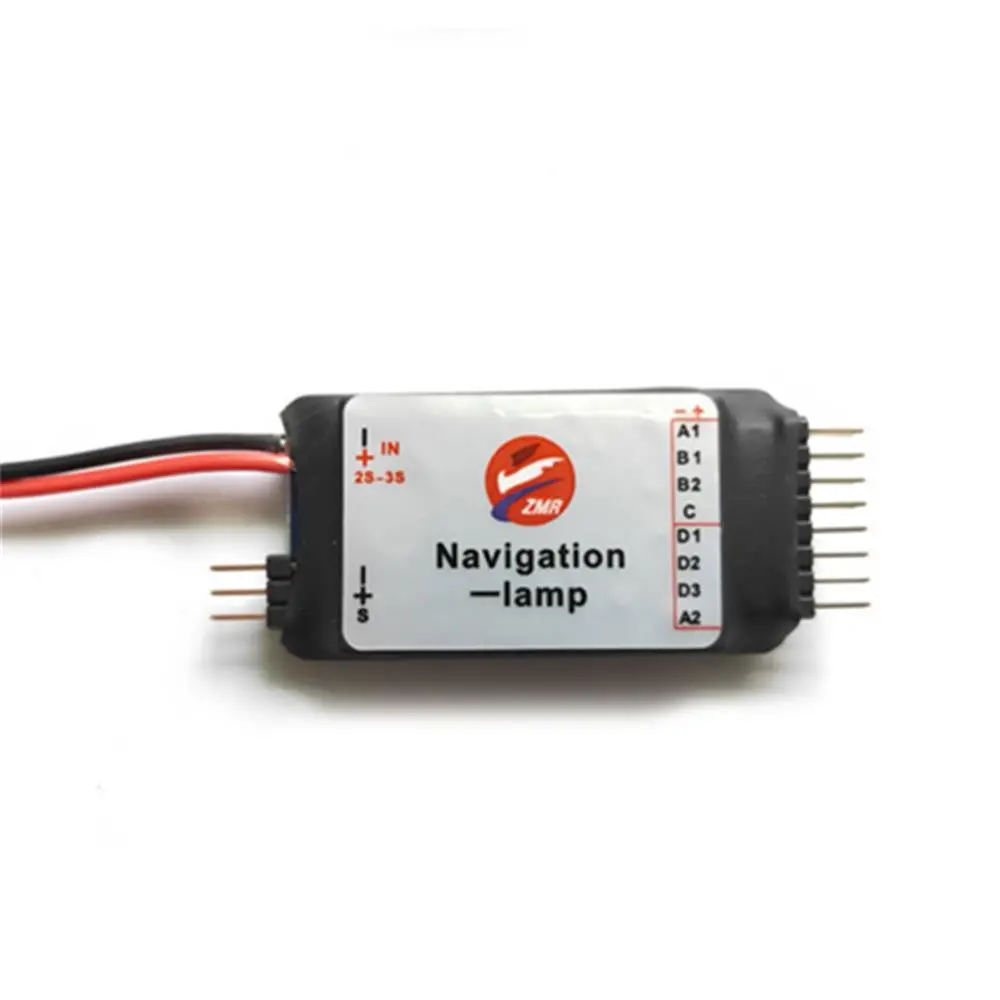

After the module signal line connected to the receiver switch channel,the corresponding channel switch on the remote controller can be switched from A — Ｂ — A (the switch is toggled one cycle) ,Then ,Switch between different working modes .
4. Light input Voltage : 3V
5. Each time the navigation module is powered back on, the module will be in the first mode of operation.
Please Note :

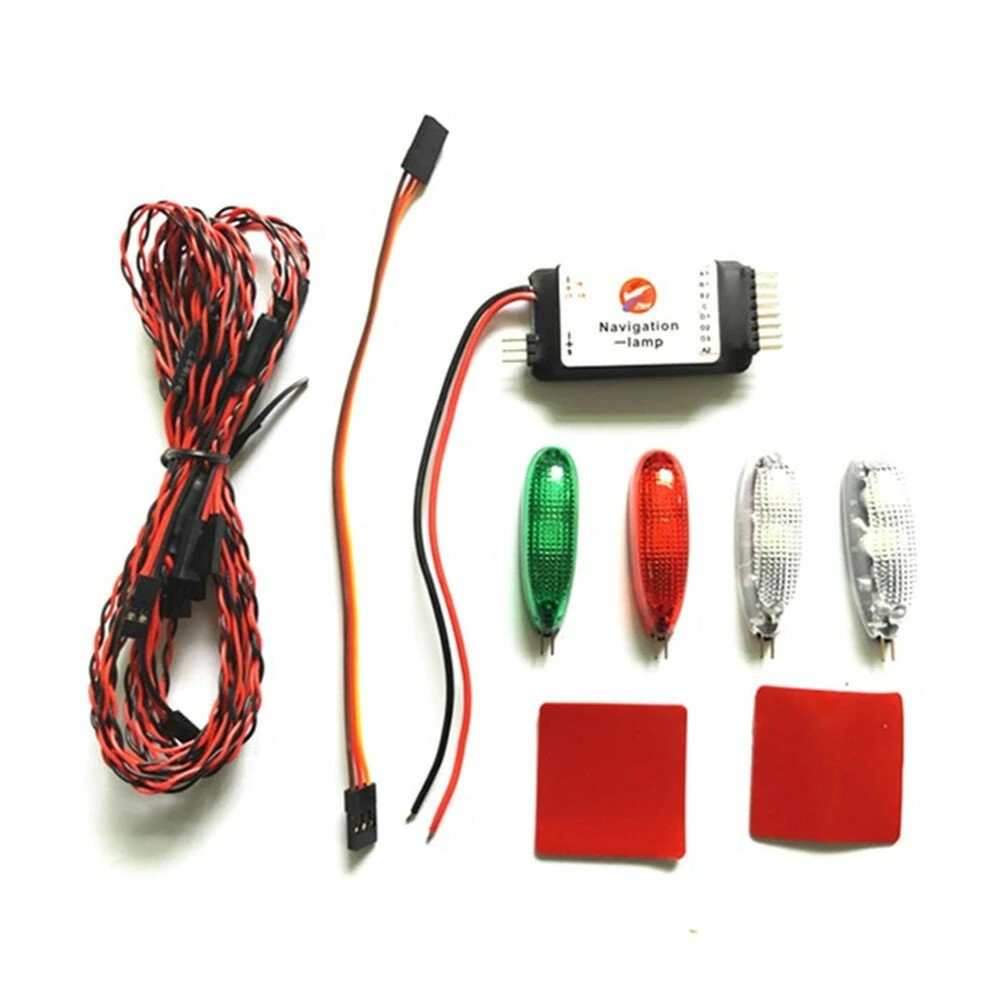

Basic Version with 4pcs LED Lights ,suit for Single vertical tail and haven’t 3pcs beacon lights.

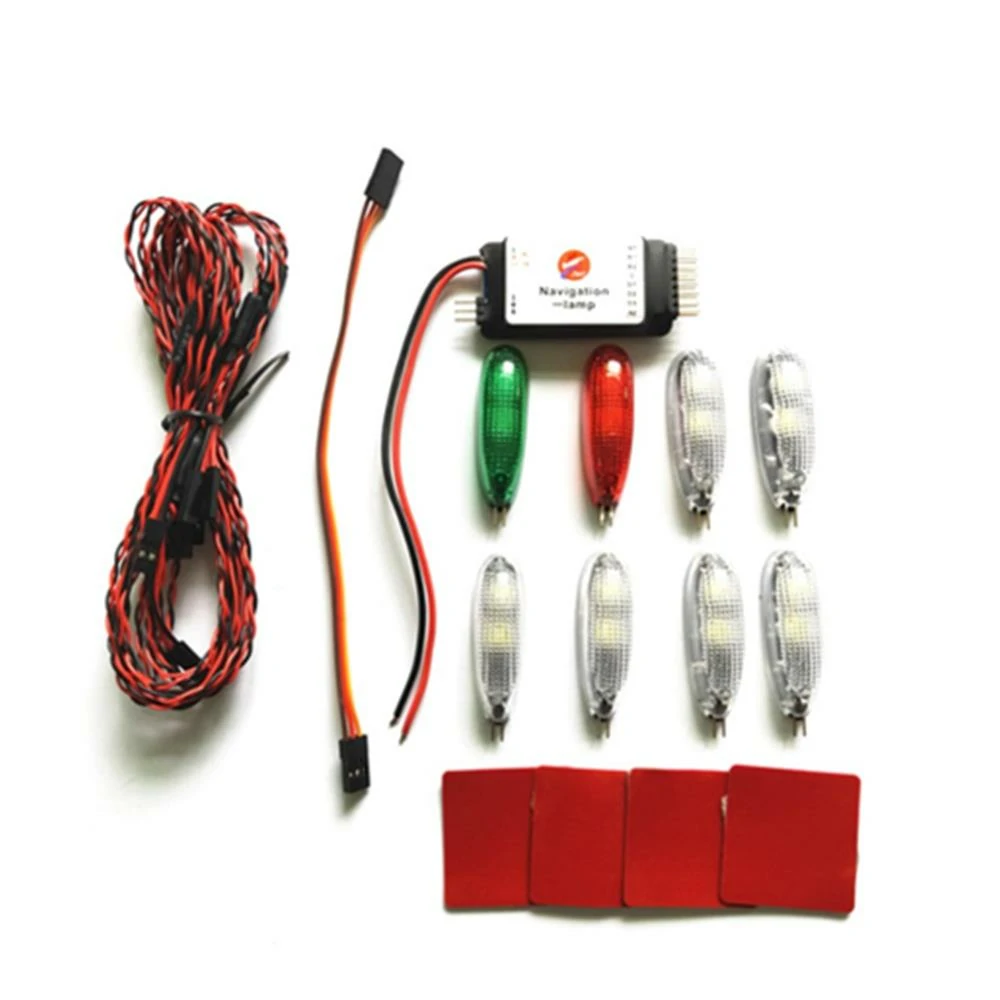

Upgrade Version with 8pcs LED Lights ,suit for double vertical tails and with 3pcs beacon lights .
