Note:

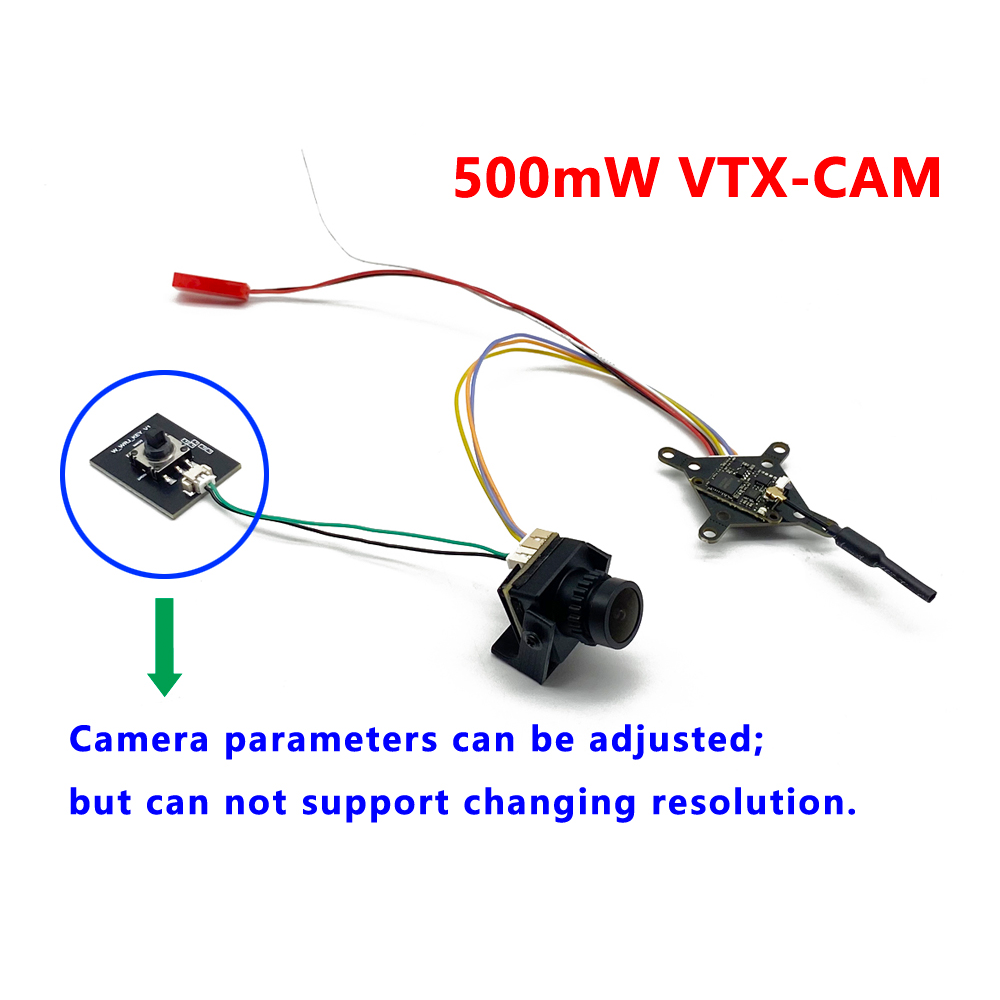

– Camera parameters can be adjusted; but can not support changing resolution.

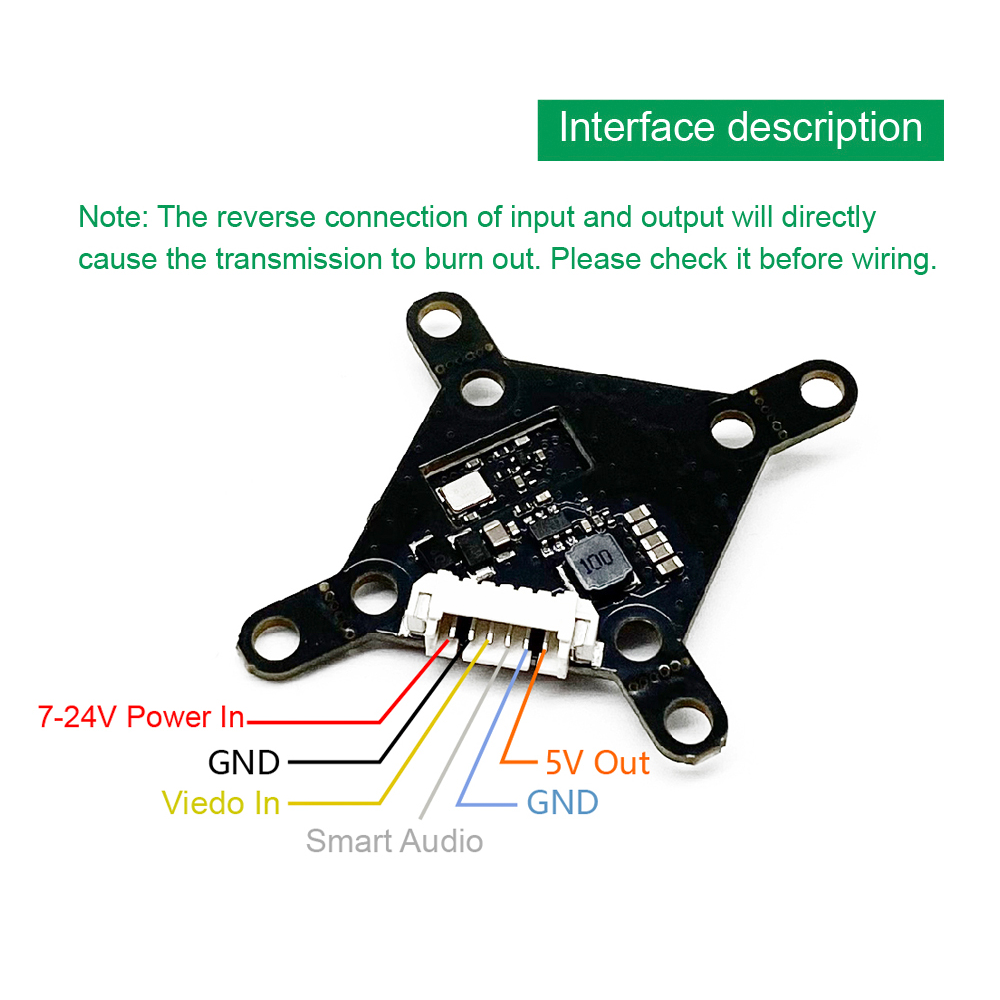

– The reverse connection of input and output will directly cause the transmission to burn out. Please check it before wiring.
Specification:

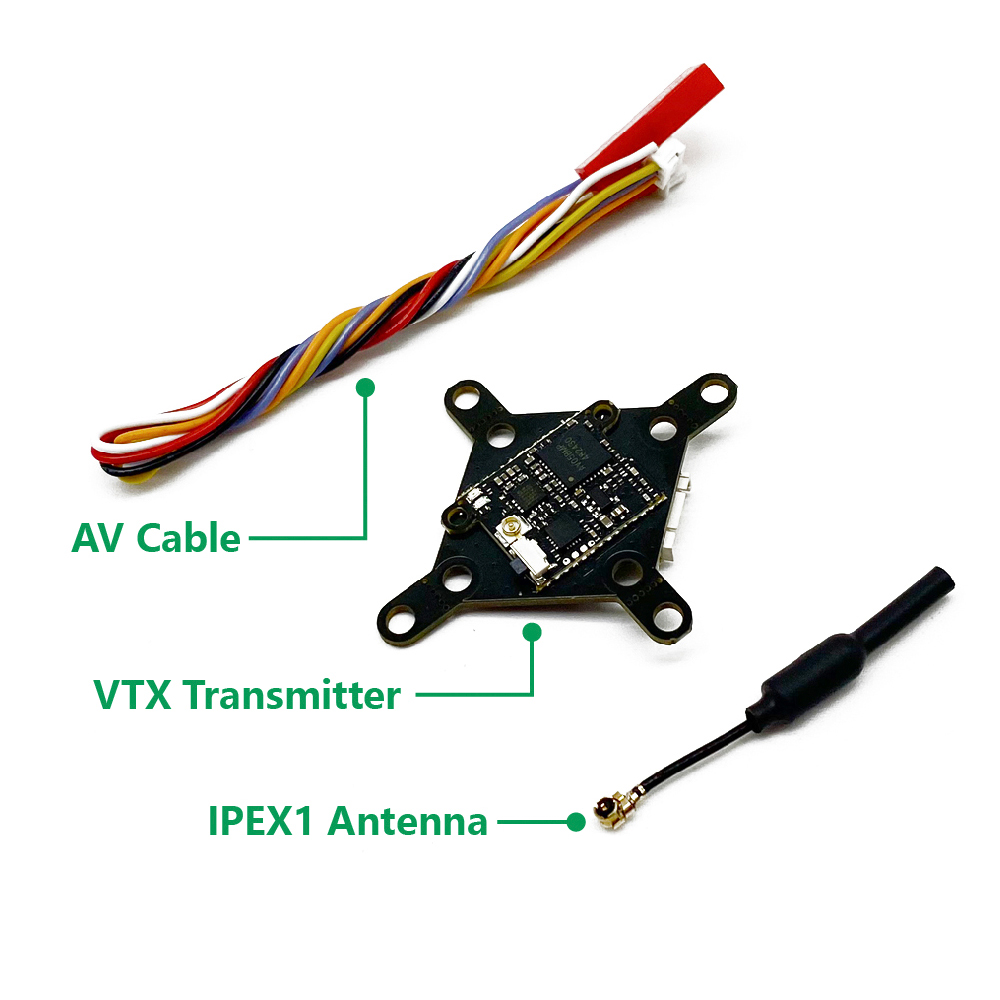

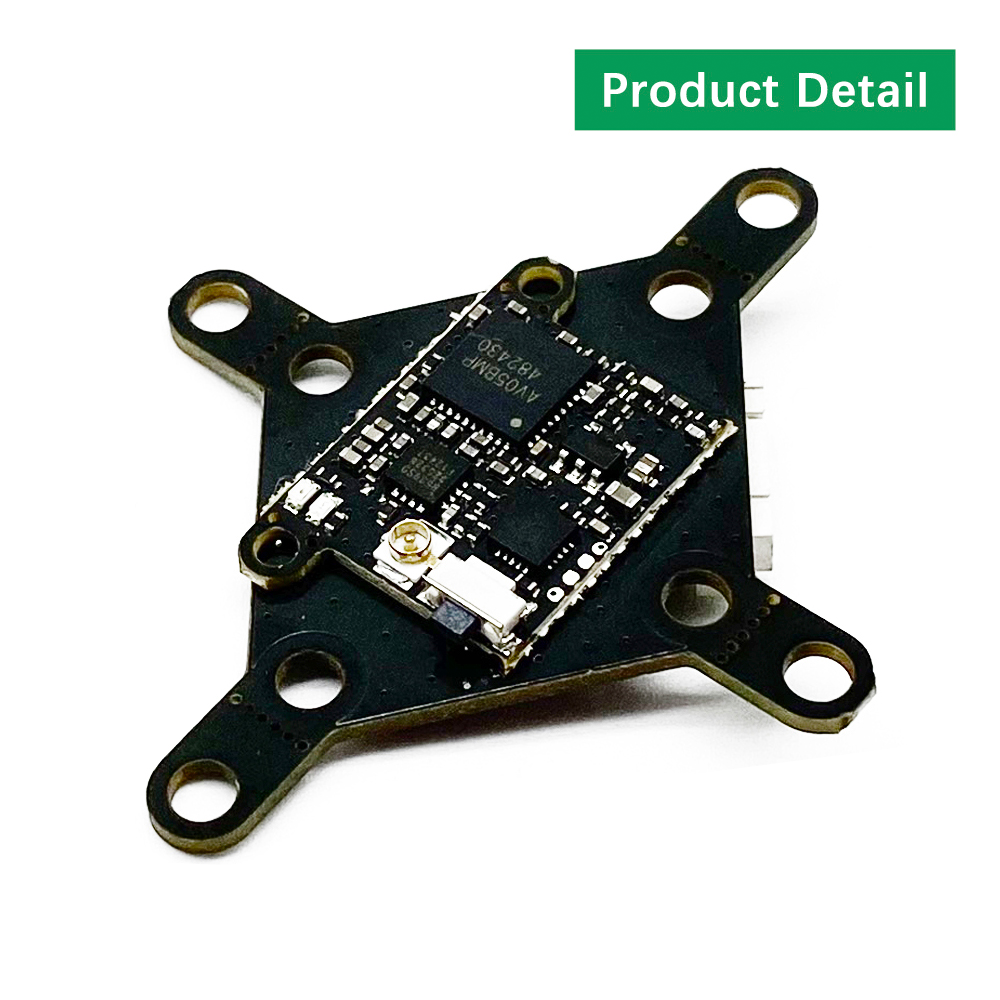

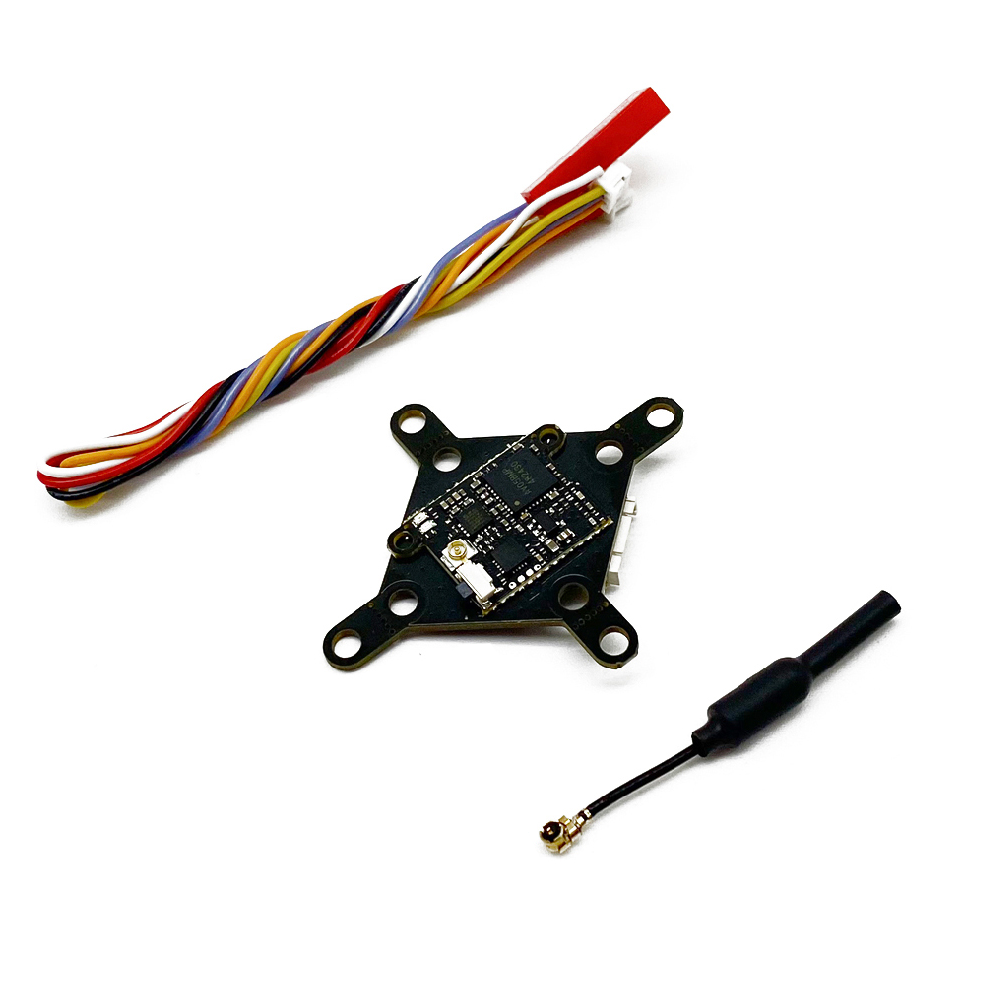

VTX Transmitter
| Model: | 500mW VTX with 1200TVL Camera Kit |
| Frequency: | 5.8G |
| Channel: | 48CH |
| Power: | 25mW/100mW/200mW/500mW/Pit |
| Power supply: | 7-24V |
|

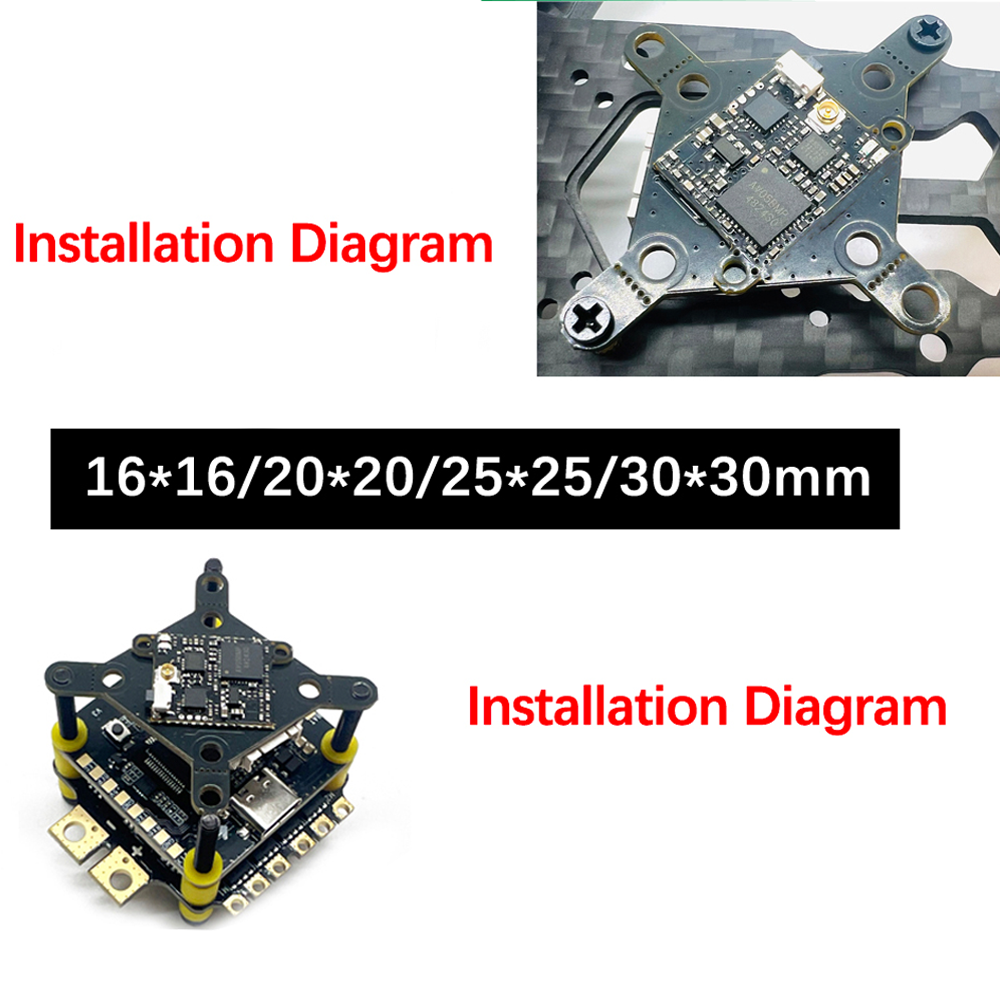

Installation Holes Dimension: |
16*16/20*20/25 *25/30*30mm |

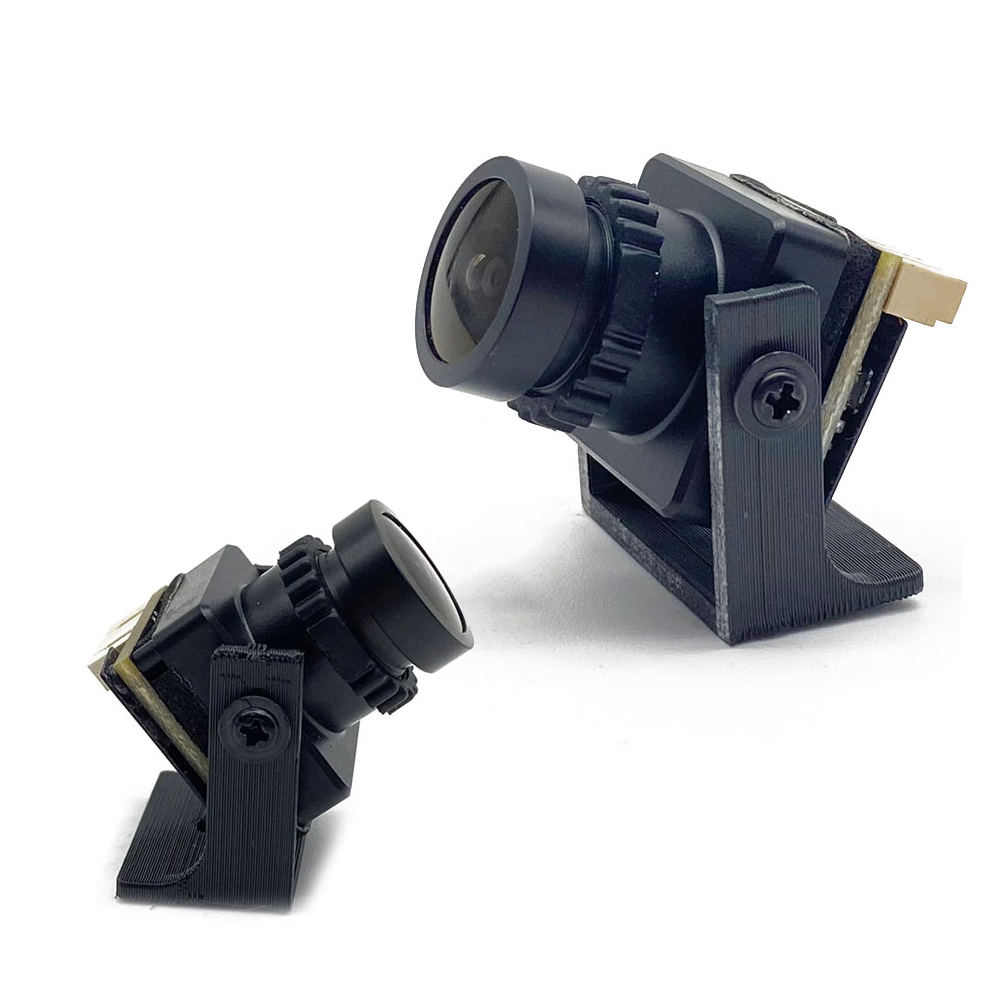

FPV Camera
| Image Sensor: | 1/4′ CMOS Sensor |
| Horizontal Resolution: | 1200TVL |
| Resolution Point: | 3.0μm |
| Image: | 16:9 |
| TV System: | PAL/NTSC Optional |
| FOV: | H100° V70° |
| Electronic Shutter: | Auto |
| Min.Illumination: | 0.05Lux |
| Image Color: | Auto |
| Work volts: | 5V-40V |
| Working Current: | 60mA@12V |
| DNR: | 2D |
| Day/Night: | COLOR |
| Menu: | NO |
| Work Temperature: | -20℃-70℃ |
| Size: | 19mm*19mm |
Package included:

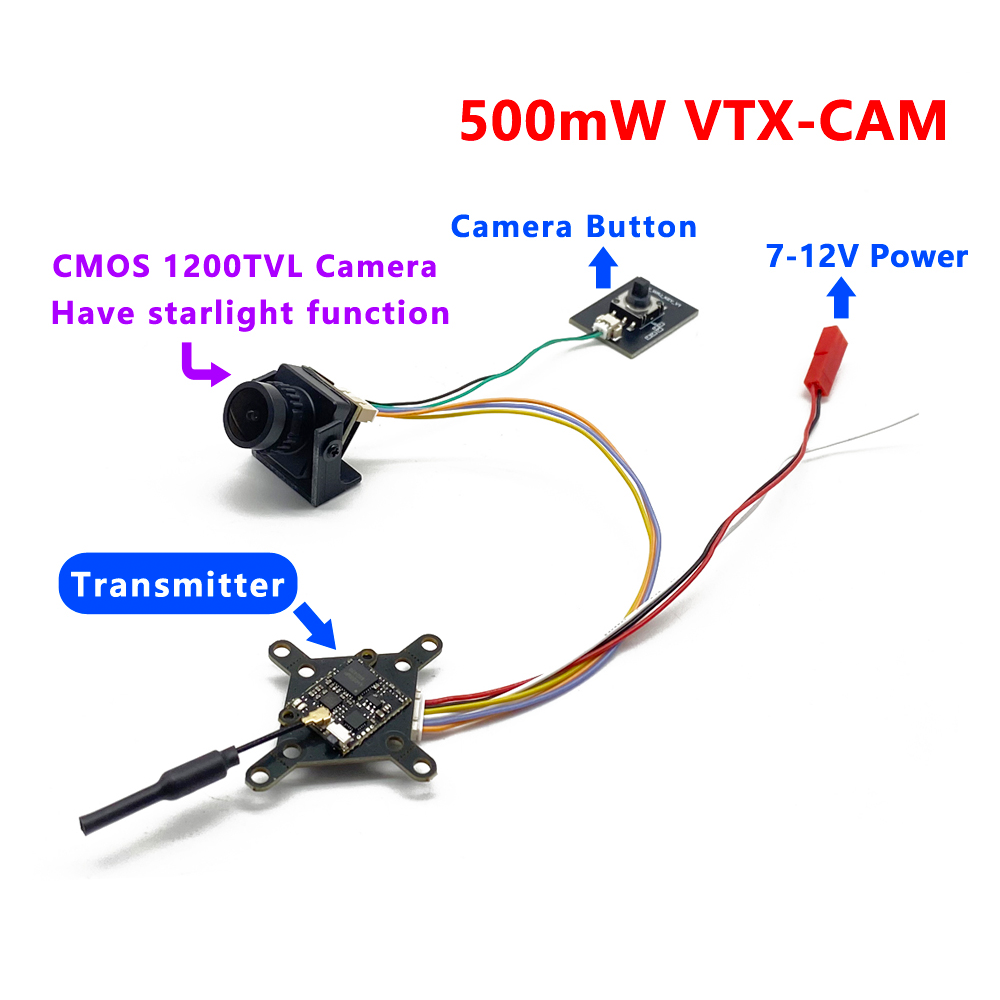

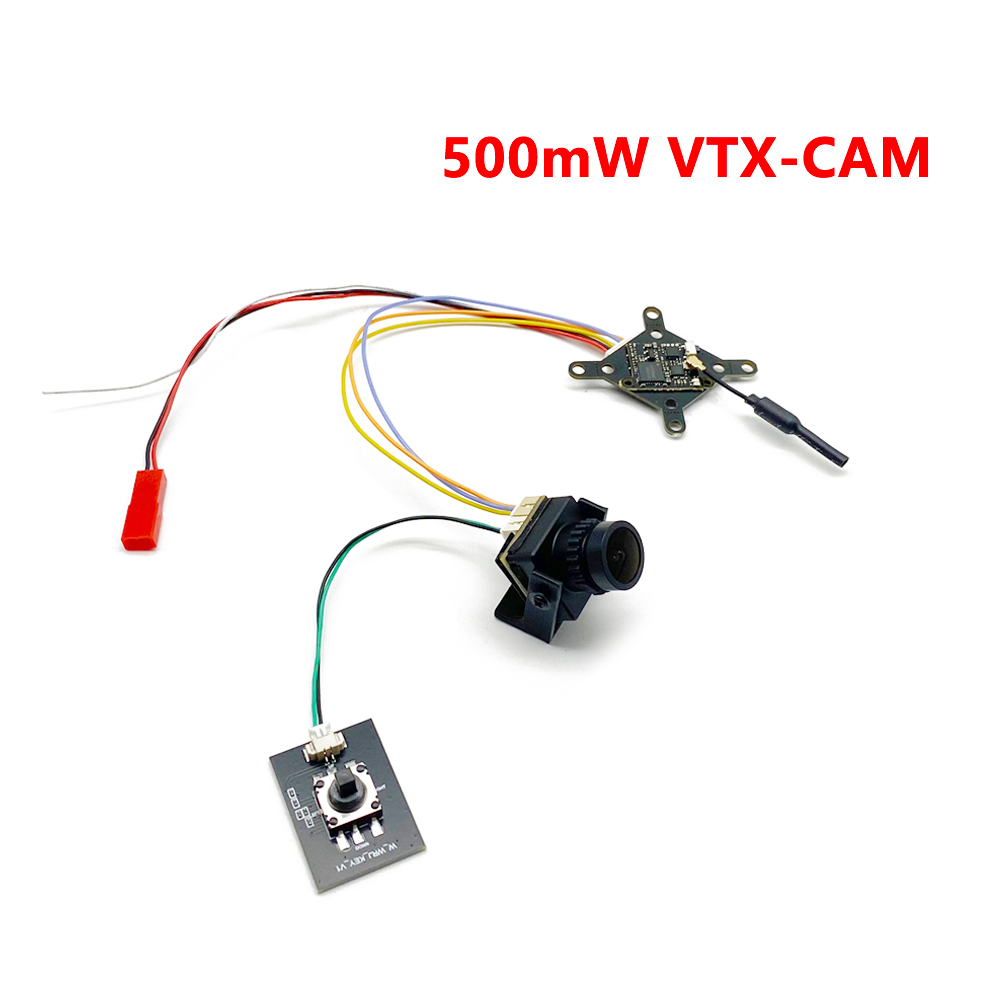

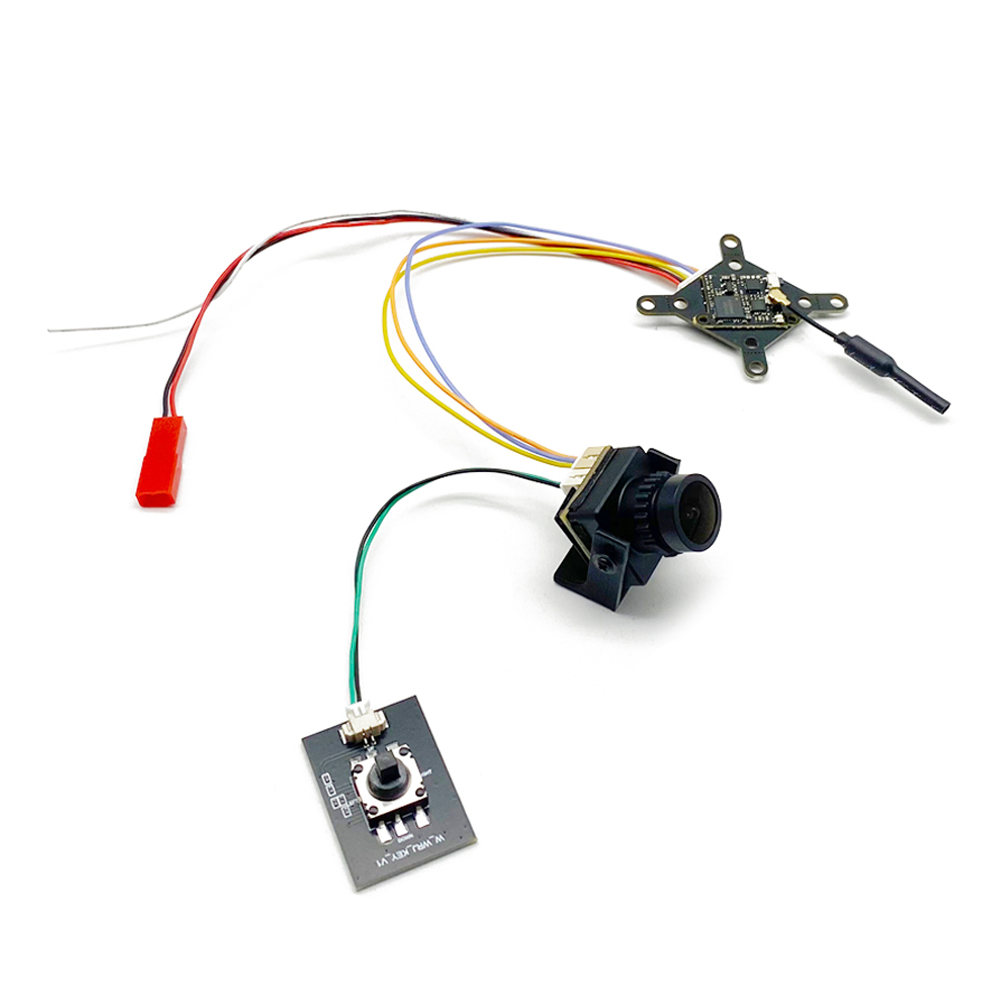

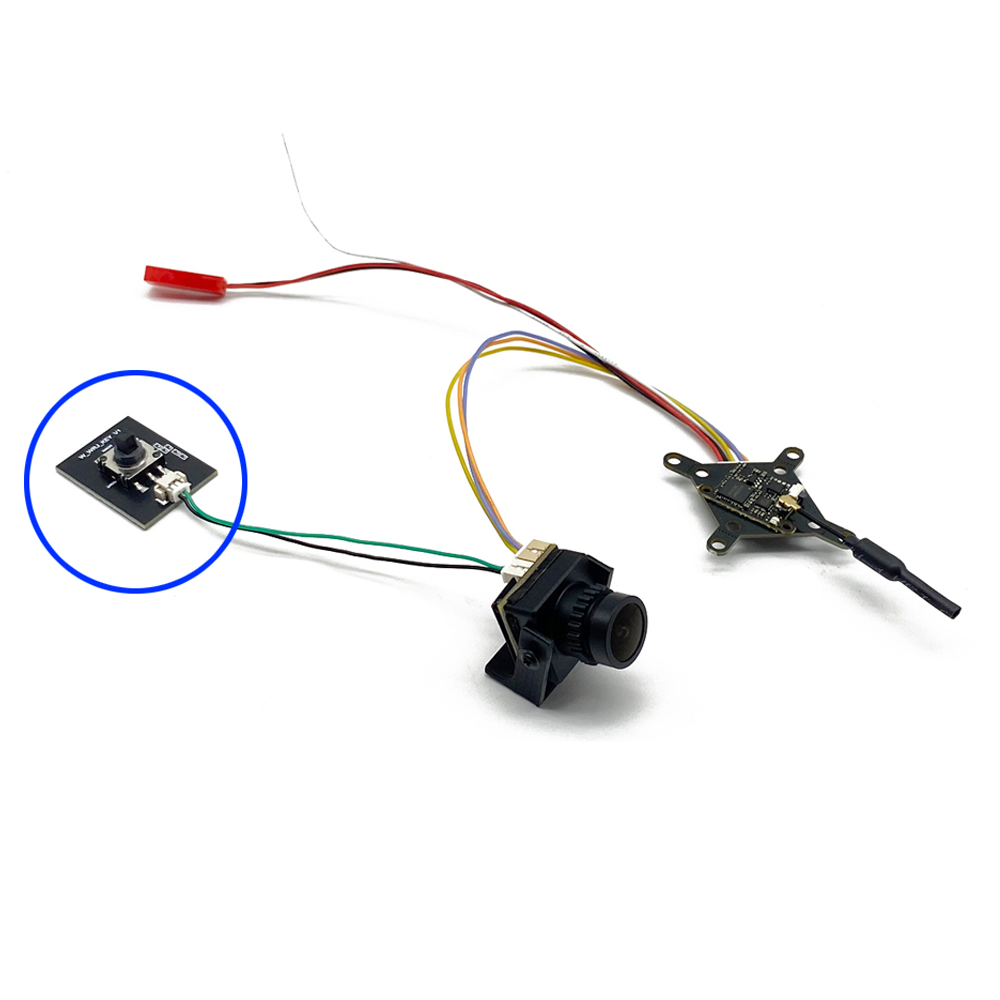

1x 500mW VTX with 1200TVL Camera Kit
