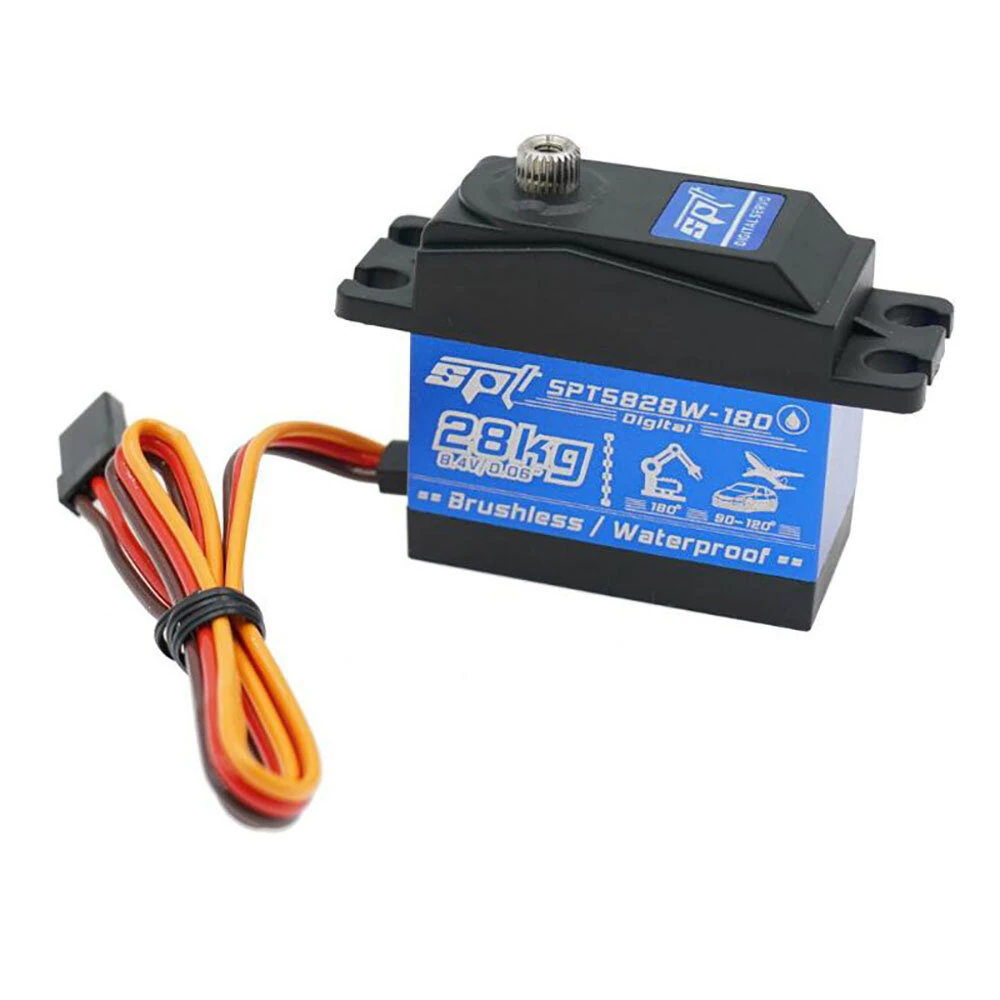

SPT5828W-180 Waterproof Brushless High-Speed Servo 28kg Torque Digital Servo for RC Cars and Robots

Specification:
Brand: SPT Servo
Potentiometer: Mechanics
Motor: Brushless
Voltage Range: 4.8V/6.0V/8.4V
Neutral Point: 1500μs
Signal Frequency: 330Hz
PWM Voltage: 3.3V-5.0V
PWM Voltage: 3.3V-5.0V
Feedback Angle: No
Operating Temperature: -10℃-50℃
Cycle: 20ms
Dead band:2μs
Default Direction: CCW
Yes / no Lock: Lock
Remote control Angle: 90°
500-2500μs Angle: 180° / PWM
Quiescent Current: 10mAh
Rated Current: 1.4A
Blocking Current: 2.5A
Weight / Dimensions: 67g / 40.5*20*37.5mm
Output Gear: Futabas 25T

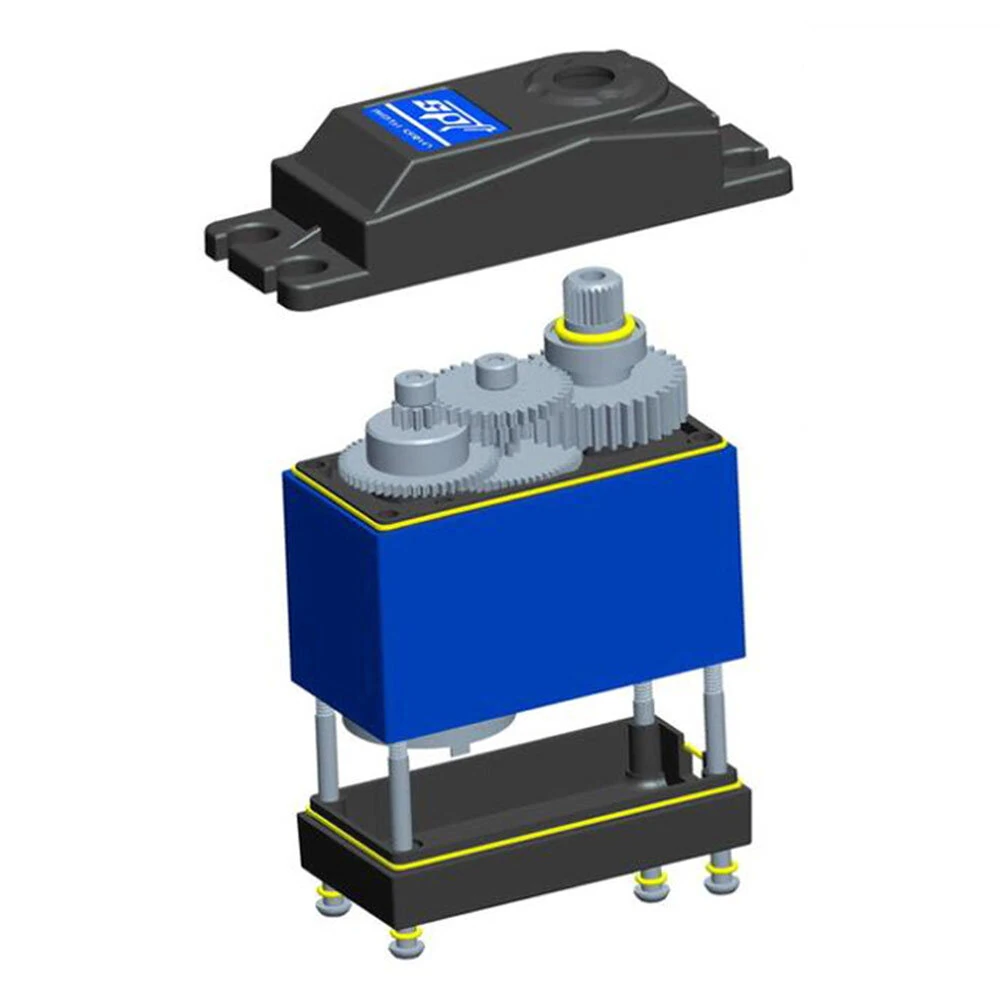

Gear Material: All Metal Gear
Shell Material: Half Aluminum Shell
Bearing: 2BB
Connector Wire Length: 260MM
line Definition: Brown-/Red+/Oranges
Operating Speed:
4.8V/ ”/60° 6.0V/ ”/60° 8.4V/ ”/60°
Stall Torque:
4.8V/ kg.cm 6.0V/ kg.cm 8.4V/ kg.cm

Features:
1. Powerful Torque: With a torque of 28kg, this servo motor provides strong and reliable performance for your remote control cars and robots.
2. Brushless Design: The brushless technology ensures a longer lifespan and reduces the need for maintenance.
3. High-Speed Performance: This servo motor is designed for high-speed applications, allowing for quick and precise movements.
4. Waterproof: The waterproof feature protects the servo motor from water damage, making it suitable for outdoor use.
5. Digital Control: The digital servo provides more accurate and responsive control, enhancing the overall performance of your vehicles.

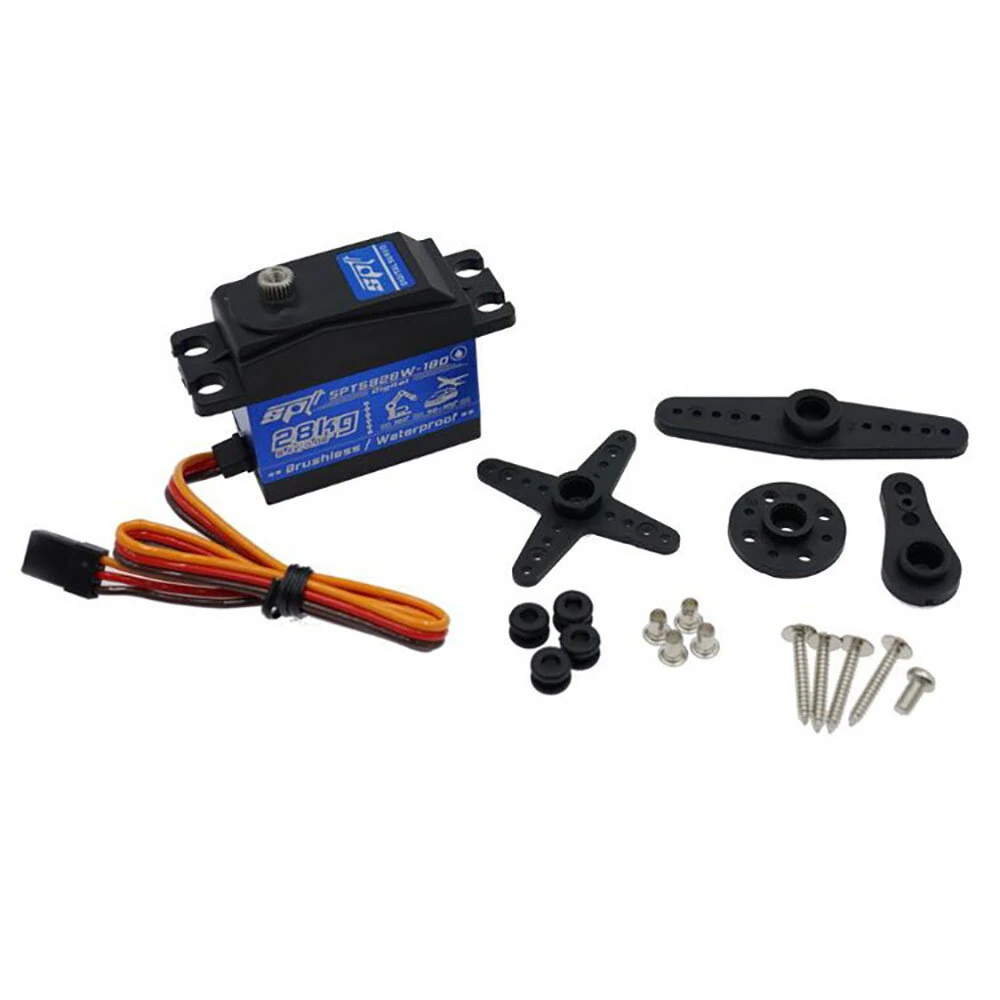

Package Included:
1x Servo

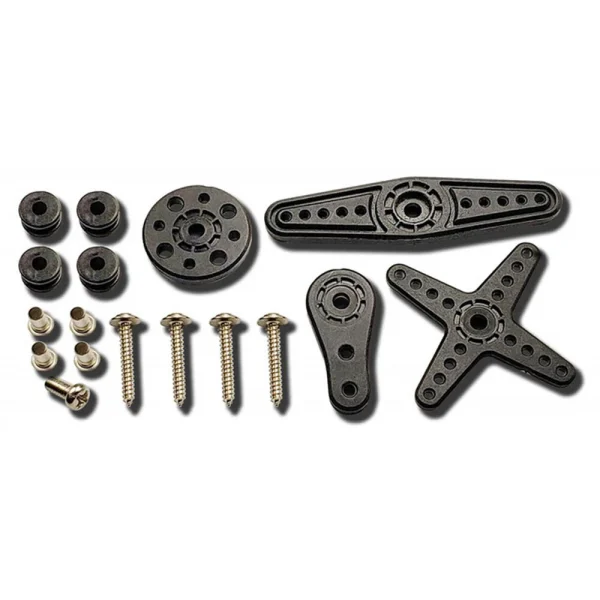

1 set x Accessories
