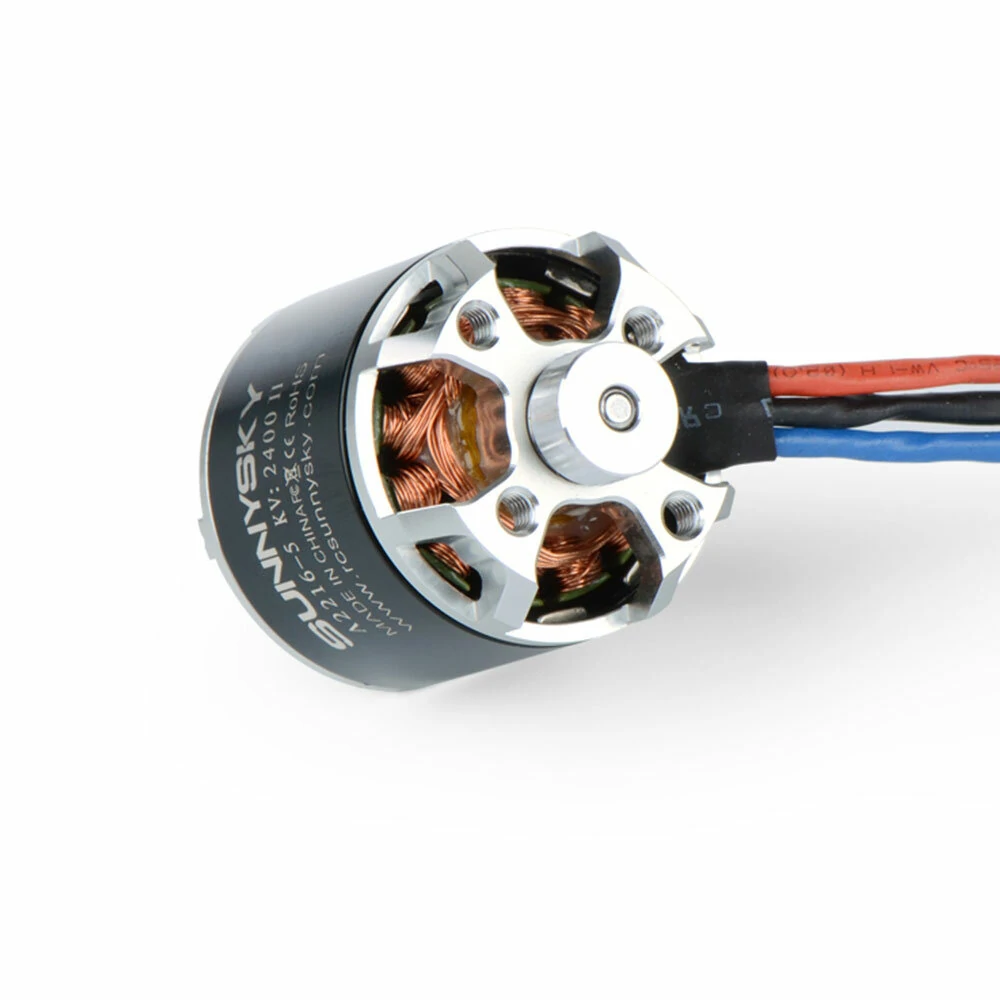

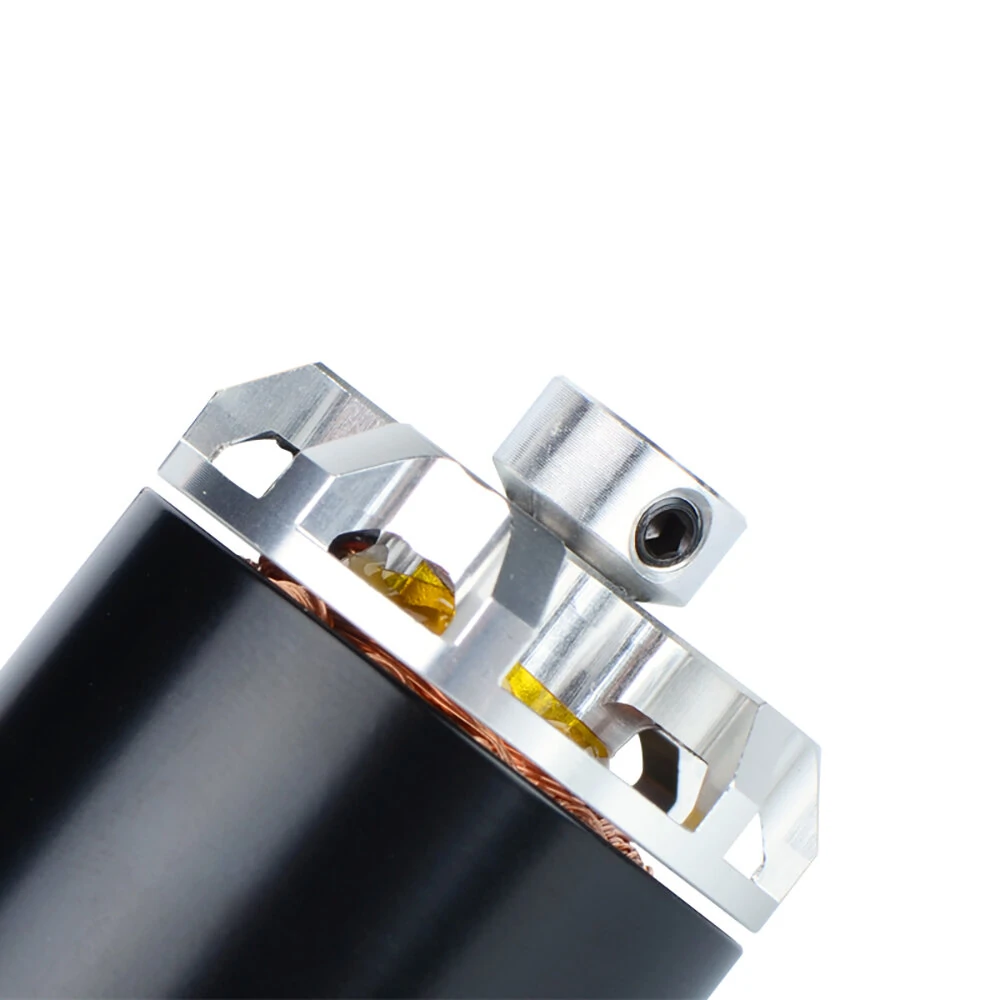

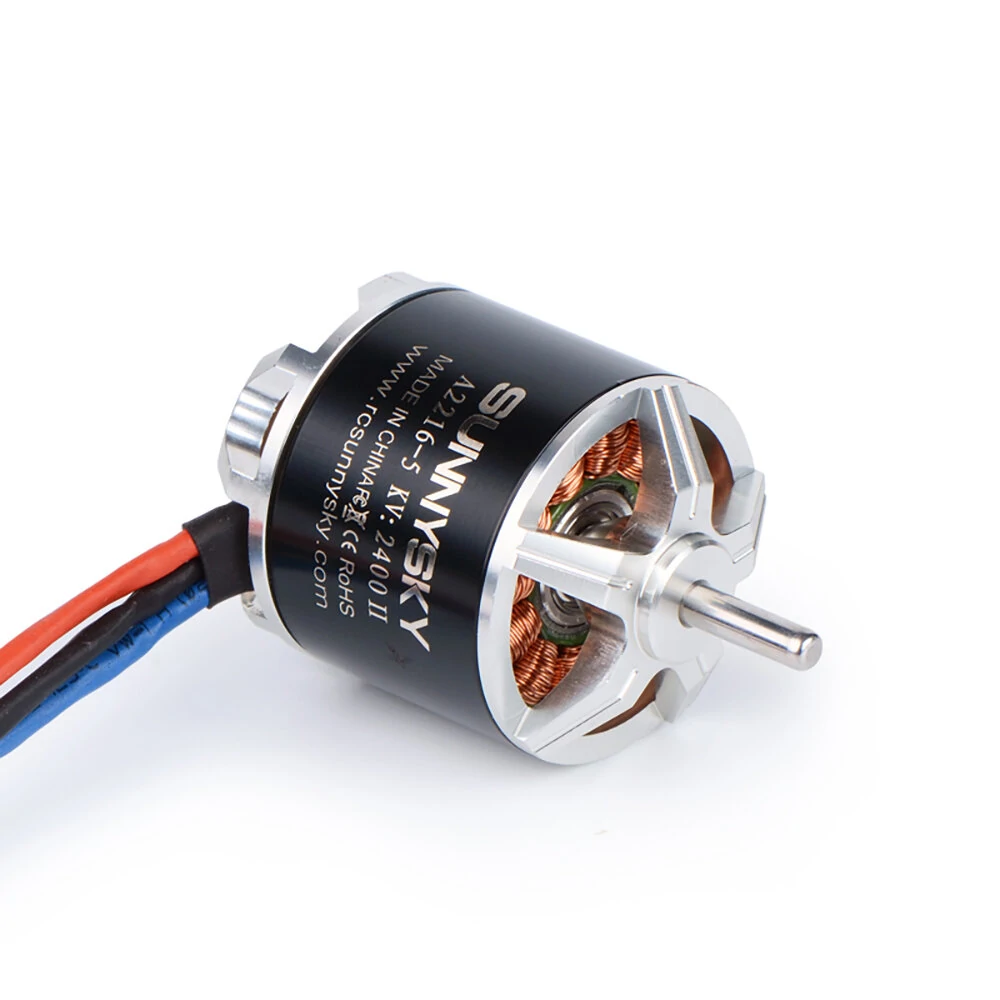

SunnySky A2216 880KV 1250KV 1400KV 2400KV 3-4S Angel Series Brushless Motor For Fixed-Wing RC Airplane

0 out of 5

$12.00

SKU: POA0376283 Categories: , ,
Add to wishlist

Description

Overview:

Brand Name: SunnySky

Item Name: A2216

KV: 880KV, 1250KV, 1400KV, 2400KV (optional)


Specifications:

KV KV880 KV1250 KV1400 KV2400
Poles 12N14P 12N14P 12N14P 12N10P
Interphase Internal Resistance 112mΩ 66mΩ 32mΩ 28mΩ
Motor Length 34mm 34mm 34mm 34mm
Shaft Diameter 27.7mm 27.7mm 27.7mm 27.7mm
Motor Weight (including wire) 68g 67g 71g 65g
Rated Working Voltage (Lipo) 3-4S 3-4S 3-4S 3-4S
No-load Current 0.5A 0.9A 1.2A 1.6A
Maximum Continuous Power 370W 487W 425W 437.5W
Maximum Continuous Current 22A/30s 29A/30s 34A/30s 35A/30s
Recommended ESC 30A 30-40A 30-40A 40A
Recommended Propeller  1038/1047 8060/9060 7050/7060/8060/9060 6040

Package Included:
1x SunnySky A2216 Motor
Test Data:
KV880:
KV1250:
KV1400:
KV2400:

Additional information

Weight 0.03 lbs
KV
