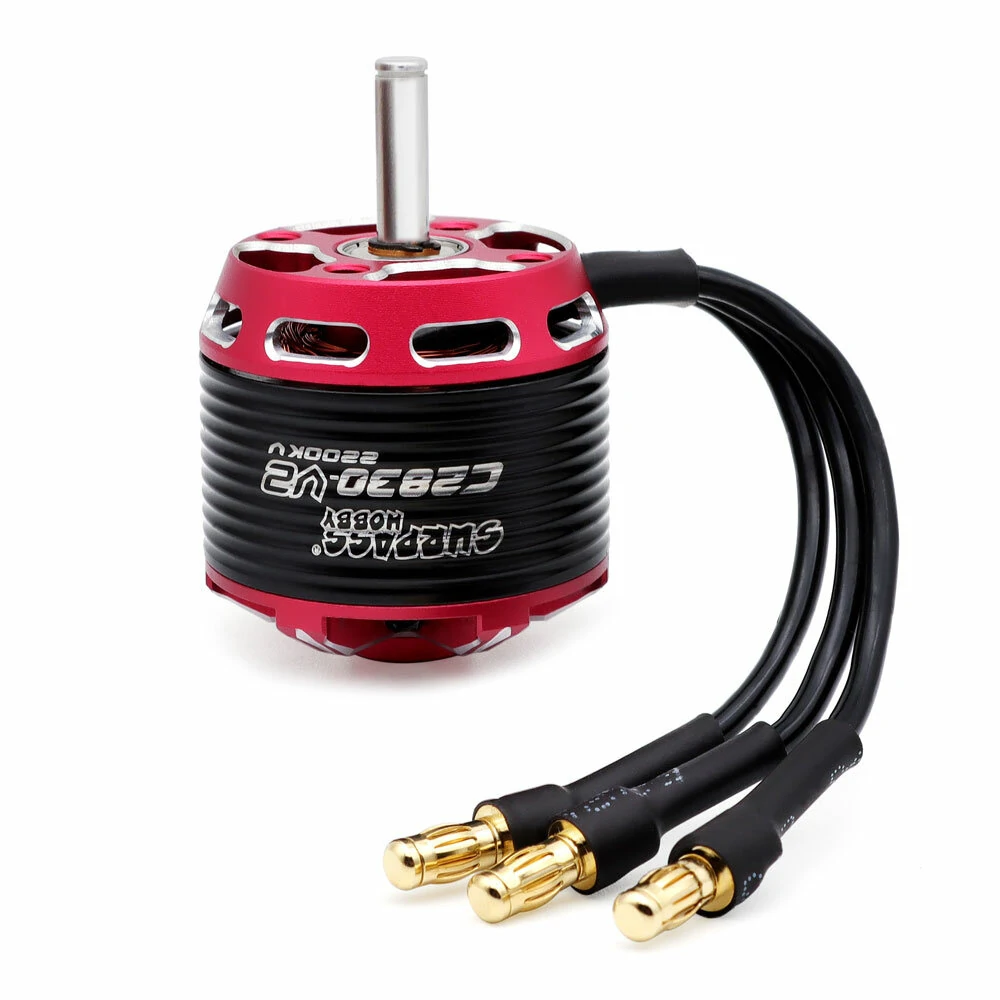

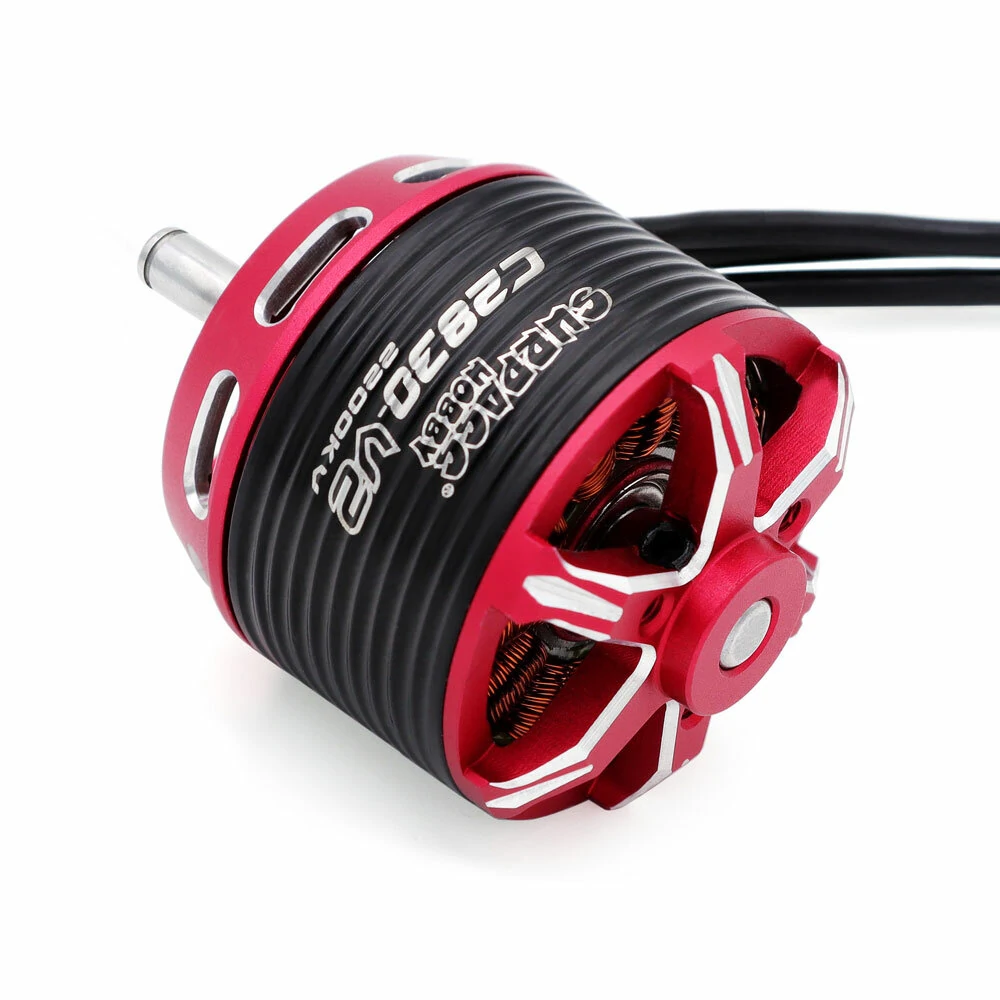

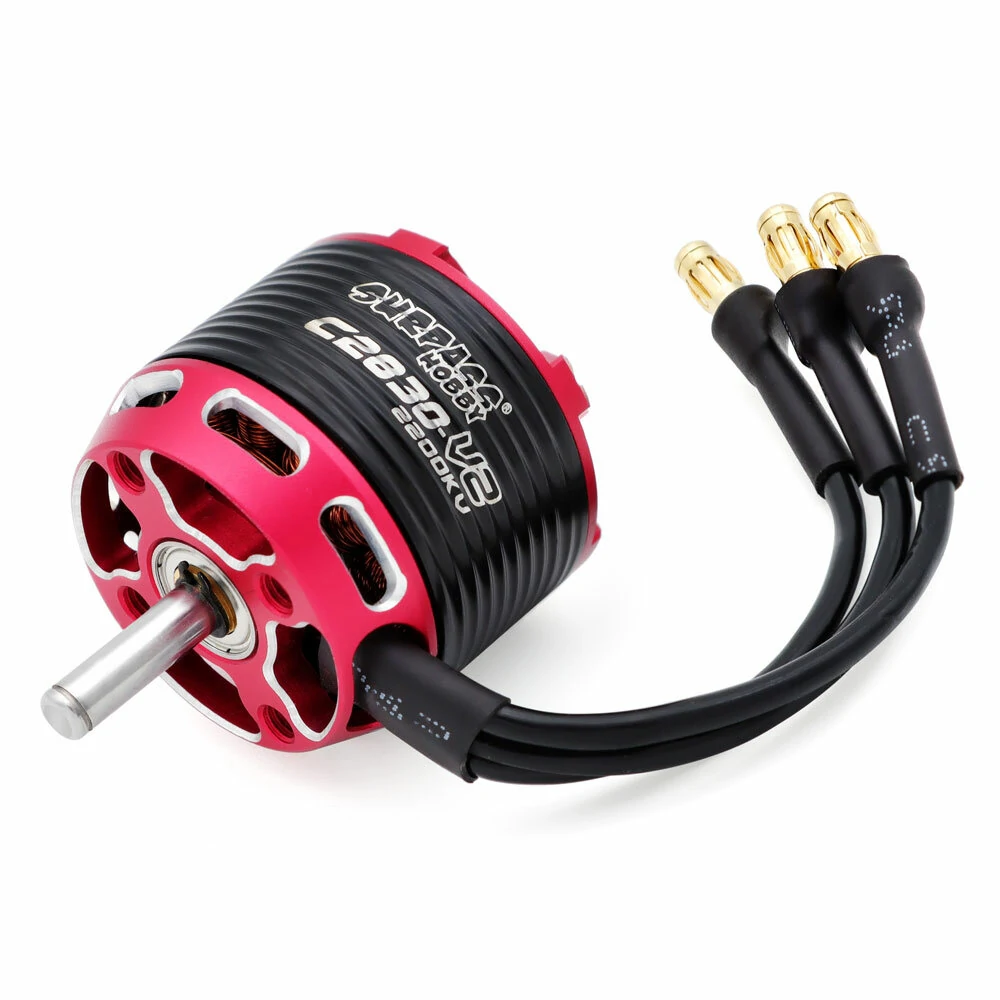

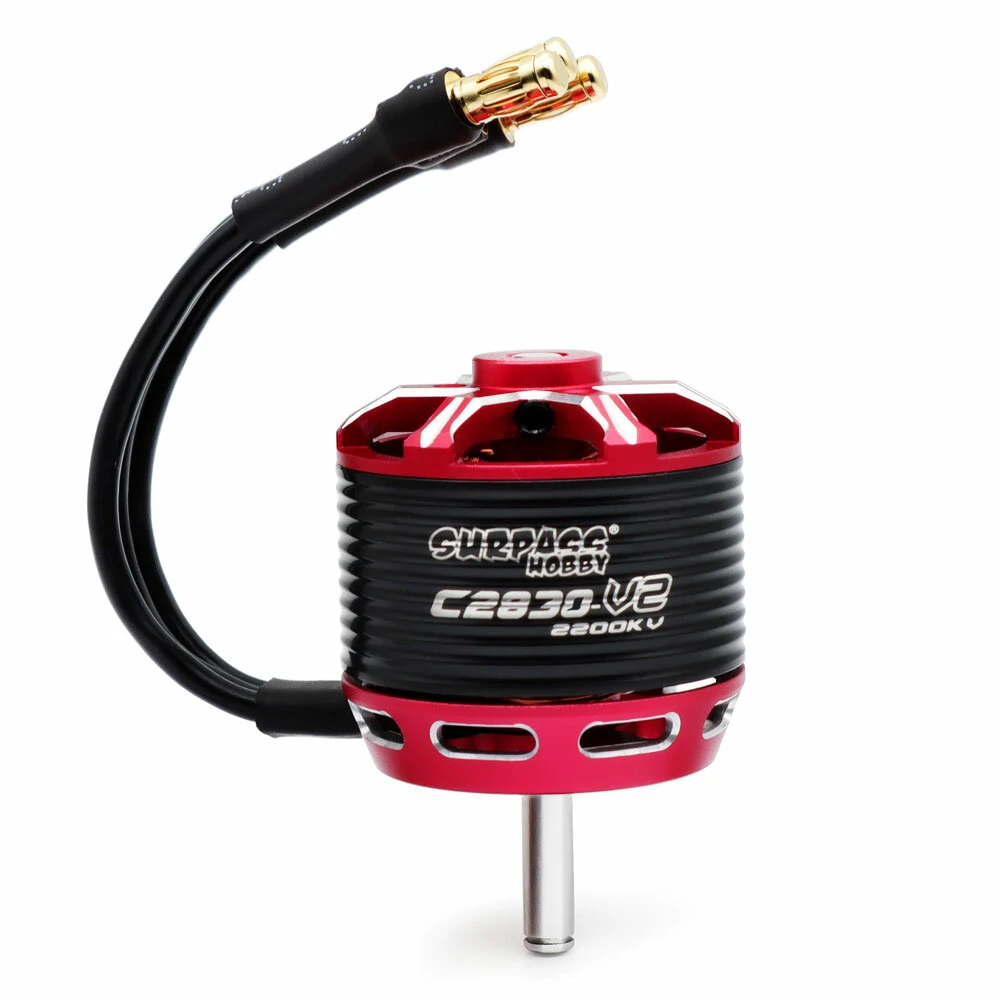

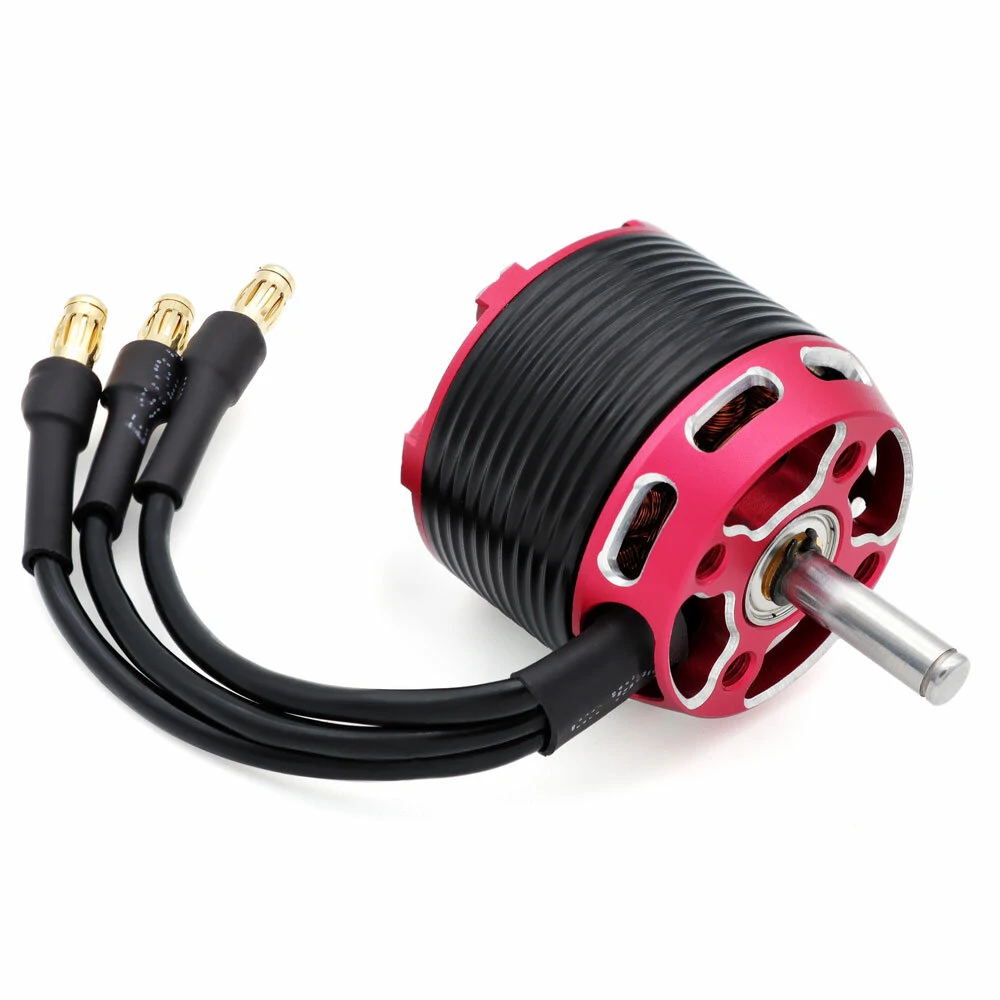

SURPASS-HOBBY C28 Series V2 C2830 850KV/ 1000KV/ 1300KV/ 2200KV Outrunner Brushless Motor for RC Airplane
$14.50
- Description
- Additional information
Description
Overview:
Brand: SURPASS-HOBBY
Model: C2830-V2
Item Number: SP-228300-01
KV(RPM/Volt): 850V, 1000KV, 1300KV, 2200KV (optional)
Specifications:
| KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
| 2200 | 340 | 7~12 | 28 | 14 | 1.4 | 0.035 | ∅28×28 | ∅22×12 | 57 | 9×6/10×5/10×6 |
| 1300 | 300 | 7~12 | 25 | 14 | 1.2 | 0.085 | ∅28×28 | ∅22×12 | 57 | 9×6/10×5/10×6 |
| 1000 | 260 | 7~15 | 21 | 14 | 0.9 | 0.152 | ∅28×28 | ∅22×12 | 57 | 9×4.5/10×6/10×5 |
| 850 | 240 | 7~15 | 19 | 14 | 0.6 | 0.189 | ∅28×28 | ∅22×12 | 57 | 11×5.5/9×6/10×4 |
Features:
– 14 Pole Hi-torque rotor design, stable output power.
– Fits all fixed wing aircraft model.
– CNC machine 6061 T-six aluminum front and rear cover.
English Manual, Click Here
Package Includes:
1x SURPASS-HOBBY C2830 V2 Brushless Motor
Additional information
| Weight | 0.095 lbs |
|---|---|
| KV |
