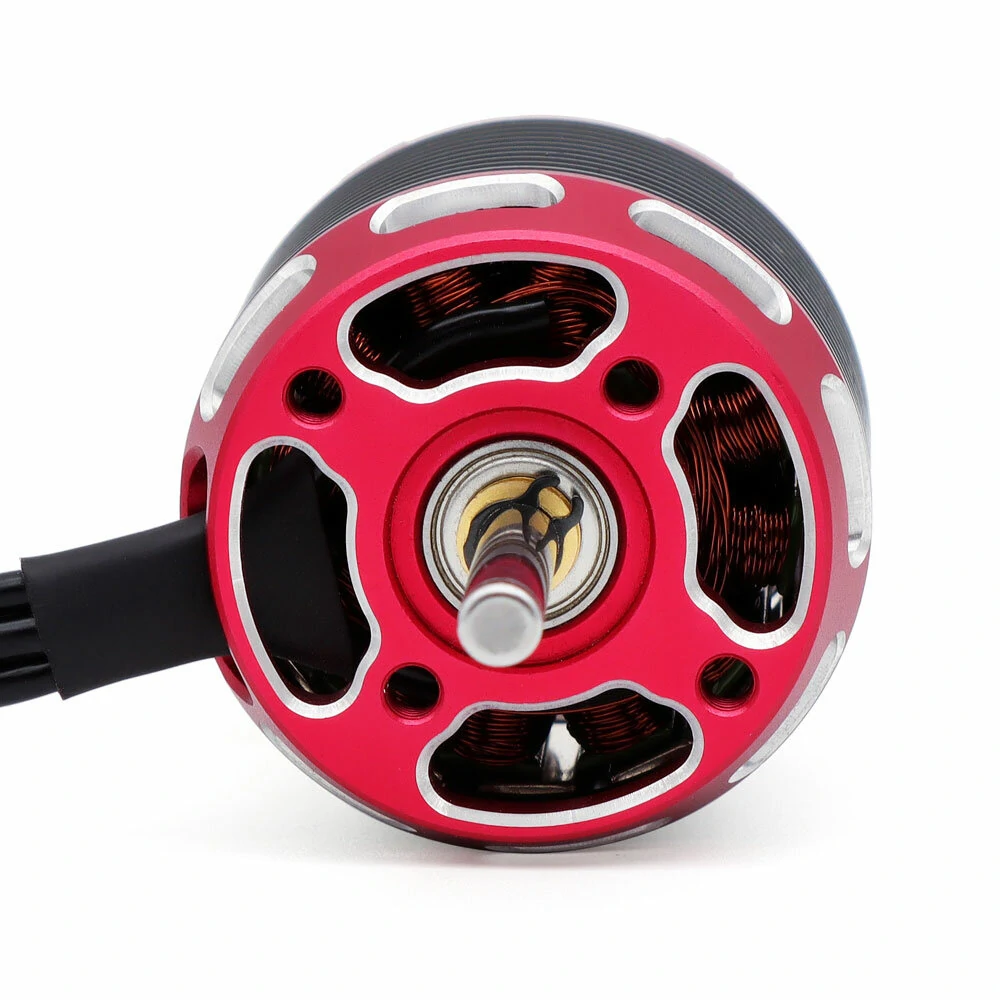

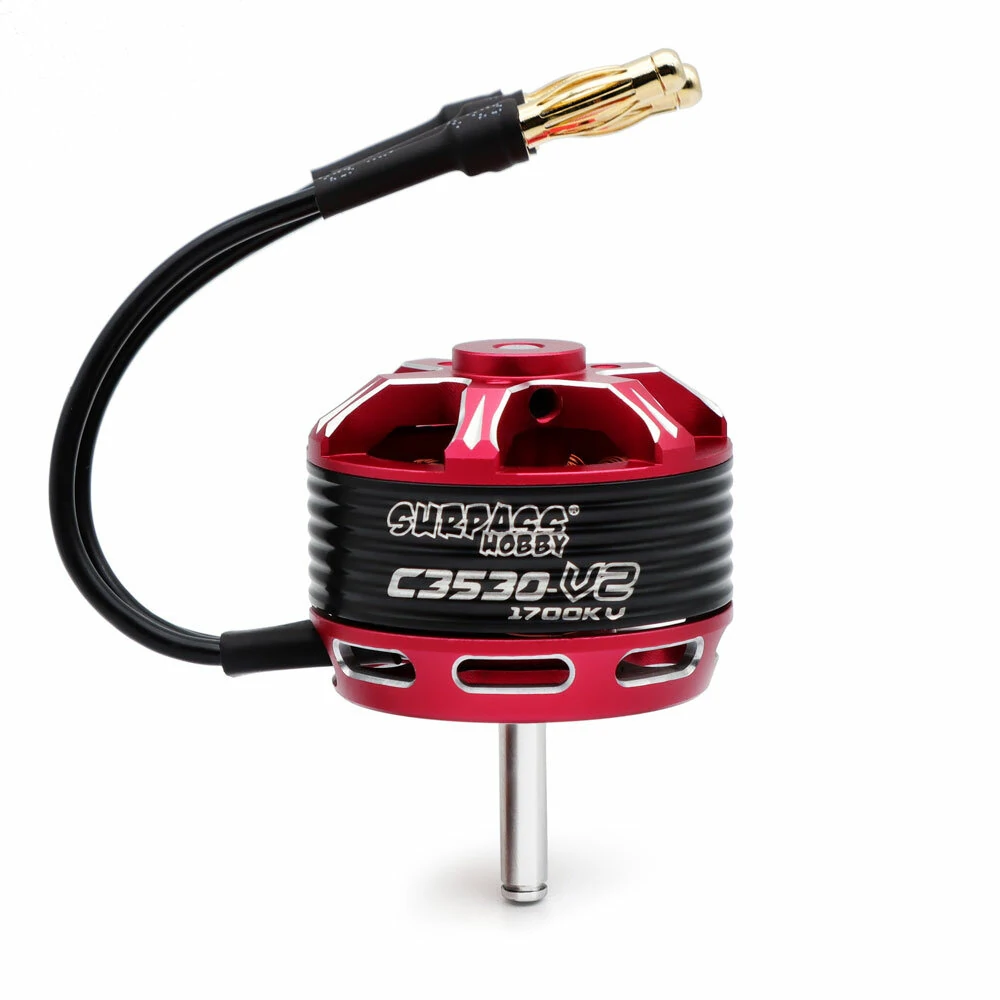

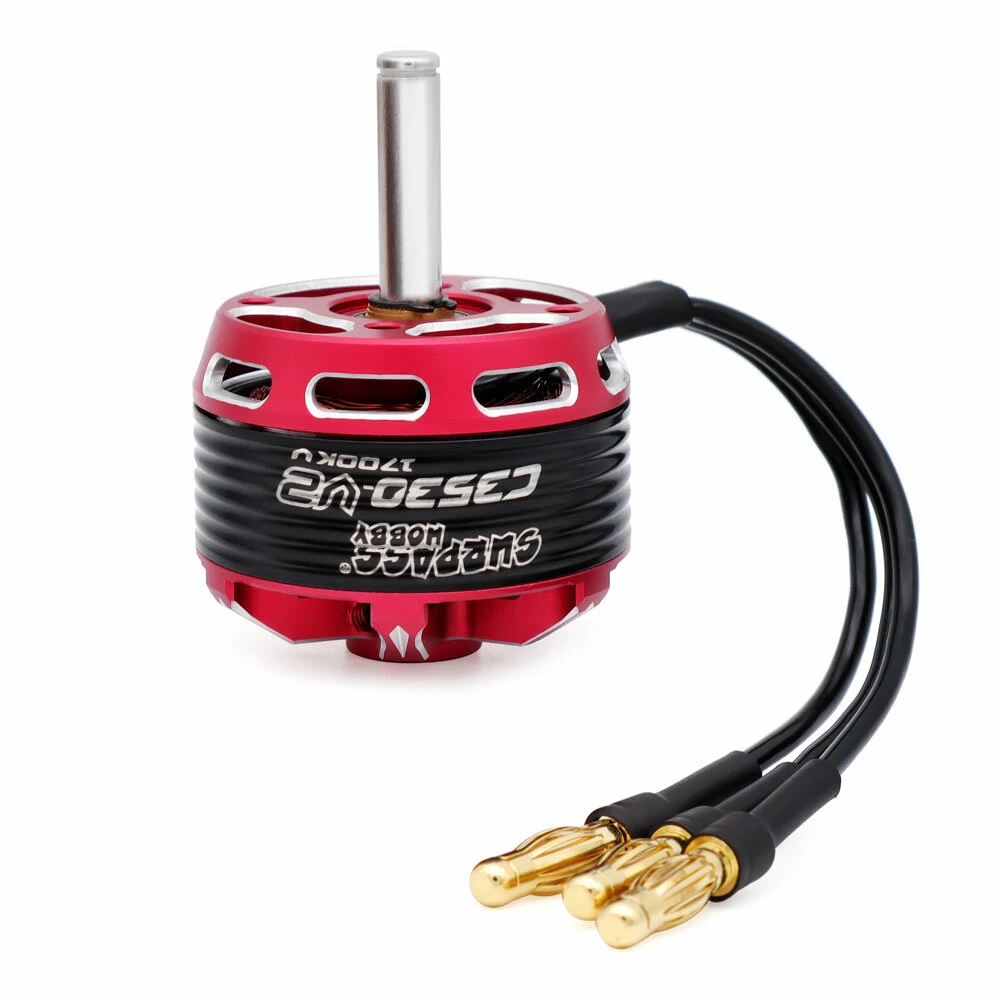

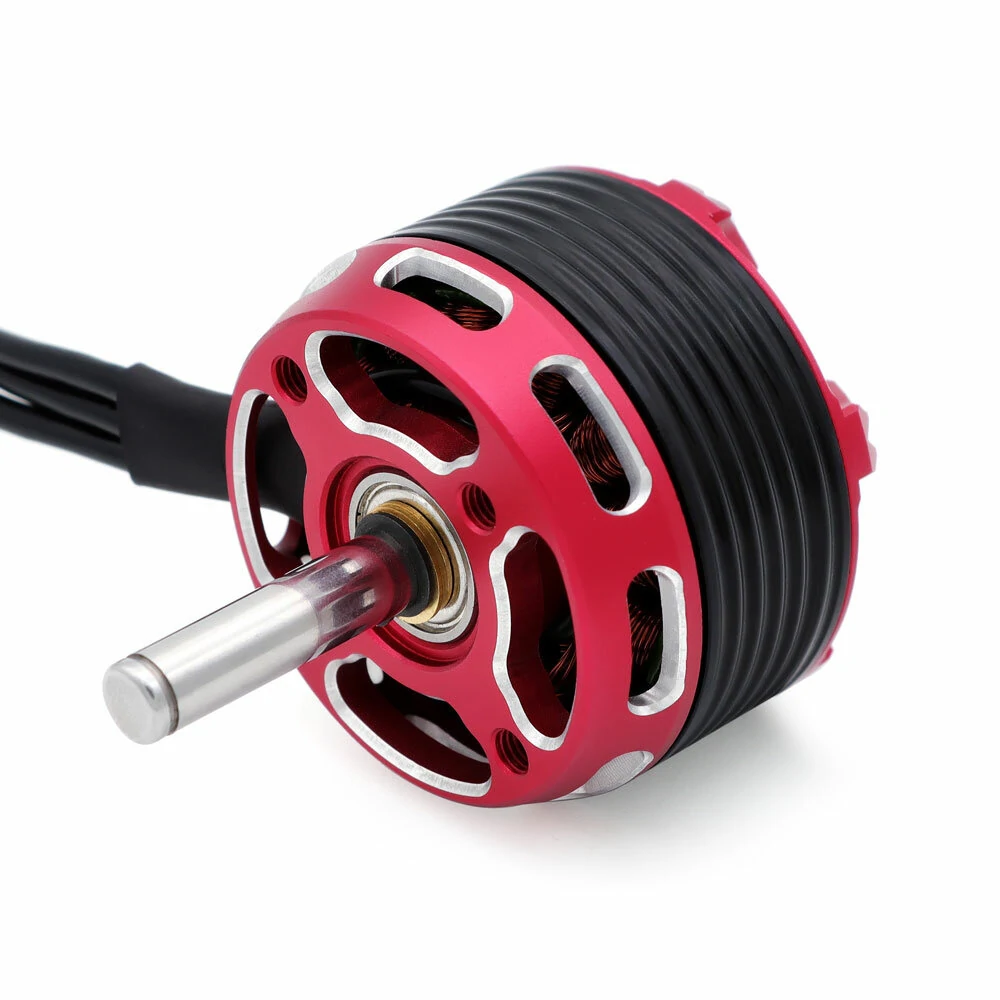

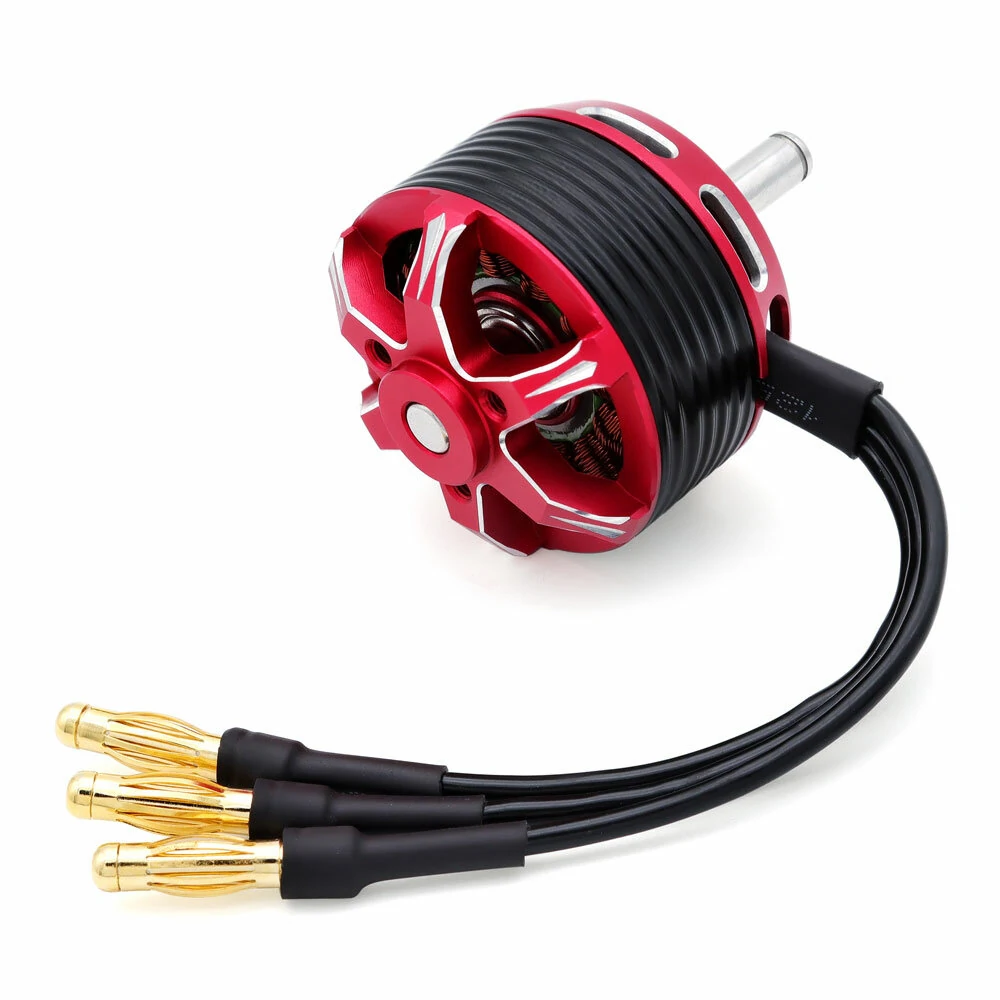

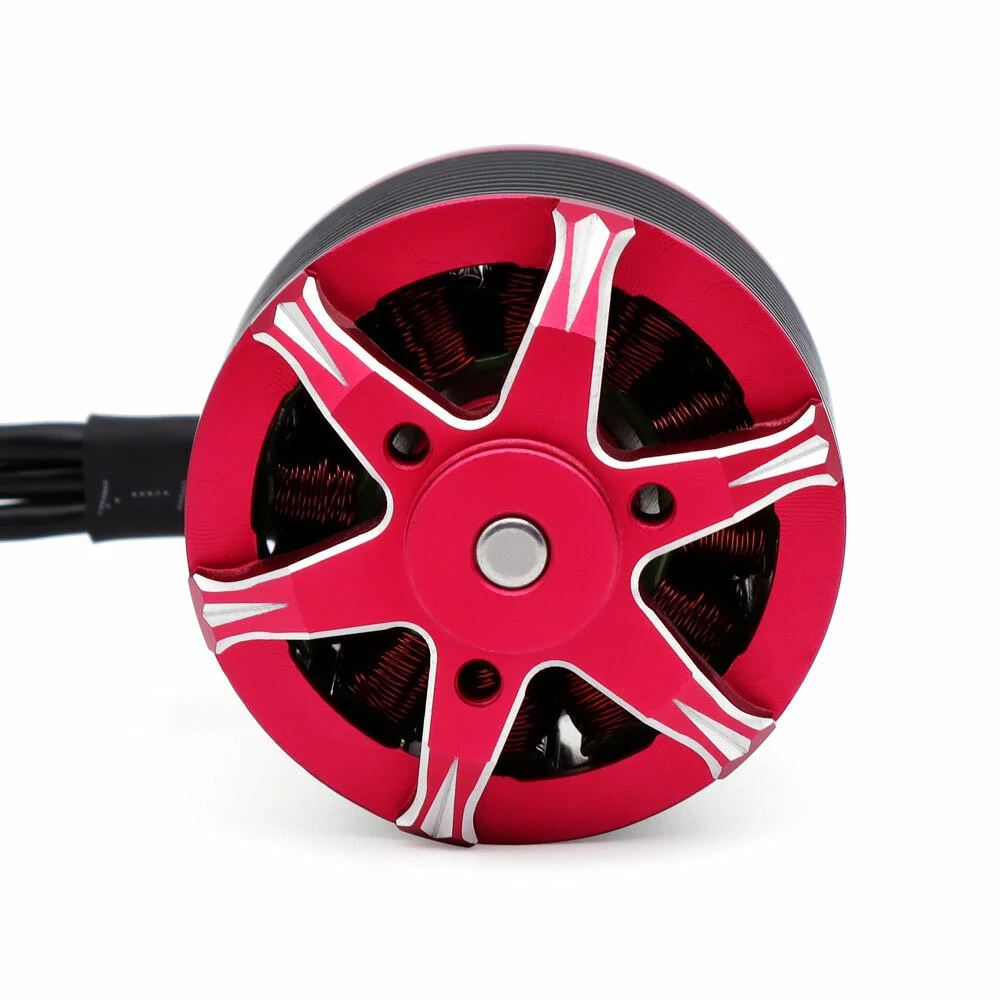

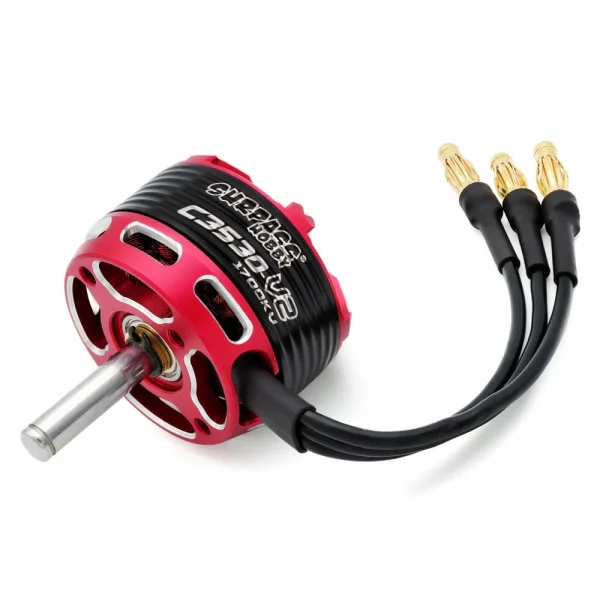

SURPASS-HOBBY C35 Series V2 C3530 1100KV/ 1400KV/ 1700KV Outrunner Brushless Motor 2-4S for RC Airplane
$17.99
- Description
- Additional information
Description
Overview:
Brand: SURPASS-HOBBY
Model: C3530-V2
Item Number:SP-235300-01
KV(RPM/Volt): 1700, 1400, 1100KV (optional)
Specifications:
| KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
| 1700 | 420 | 7~15 | 42 | 14 | 1.8 | 0.041 | ∅35×28.5 | ∅28×08 | 78 | 7×4/6×6 |
| 1400 | 350 | 7~15 | 35 | 14 | 1.2 | 0.059 | ∅35×28.5 | ∅28×08 | 78 | 9×4.5/8×4/7×7 |
| 1100 | 310 | 7~15 | 30 | 14 | 0.7 | 0.113 | ∅35×28.5 | ∅28×08 | 78 | 9×5/10×4.7 |
Features:
– 14 Pole Hi-torque rotor design, stable output power.
– Fits all fixed wing aircraft model.
– CNC machine 6061 T-six aluminum front and rear cover.
English Manual, Click Here
Package Includes:
1x SURPASS-HOBBY C3530 V2 Brushless Motor
Additional information
| Weight | 0.12 lbs |
|---|---|
| KV |
