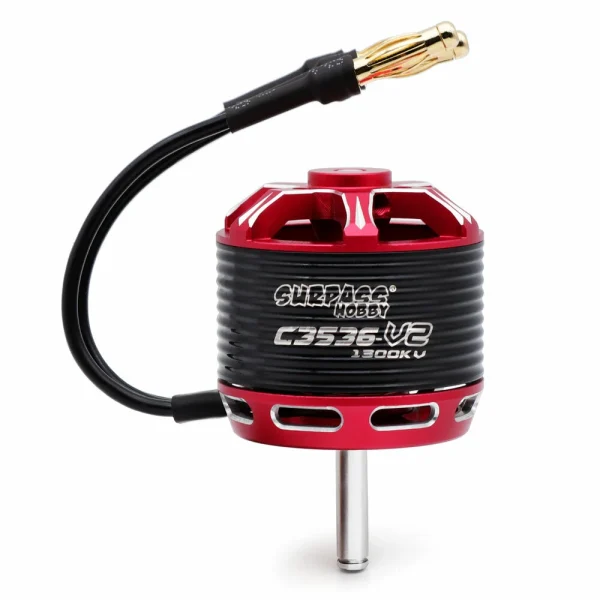

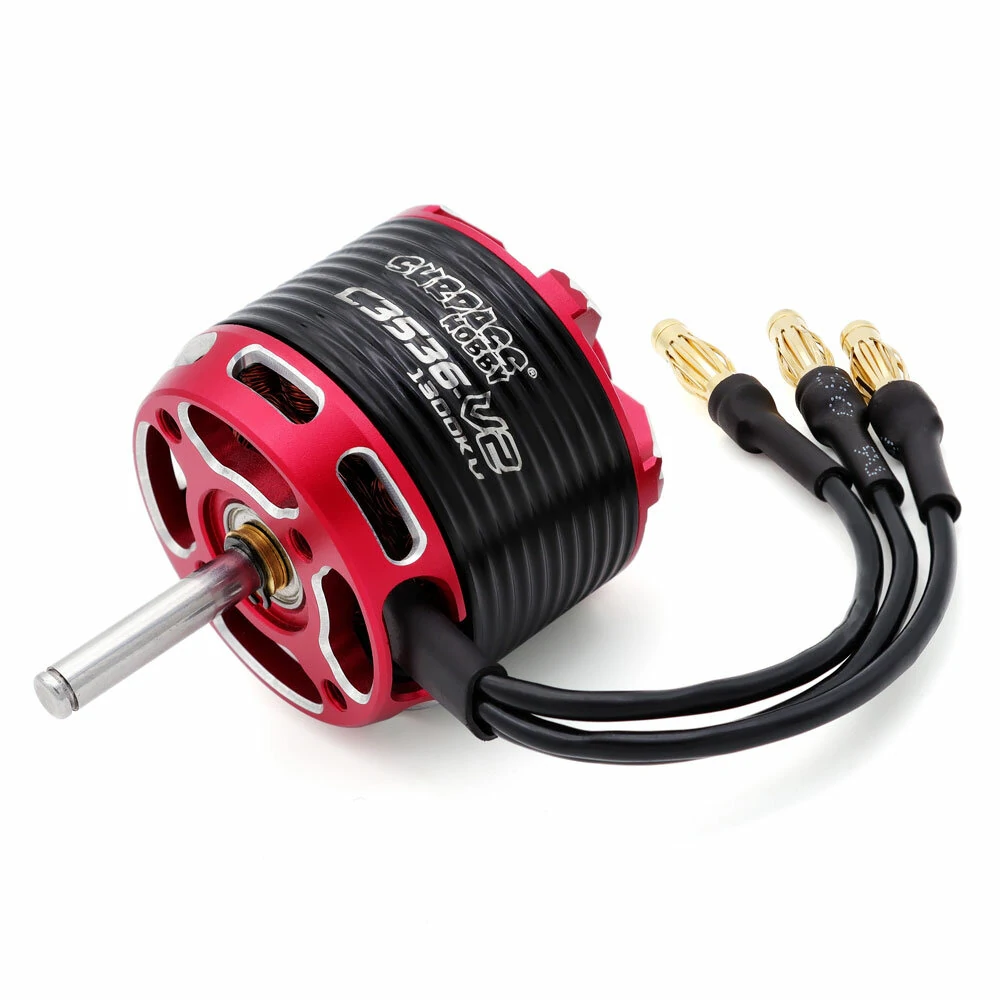

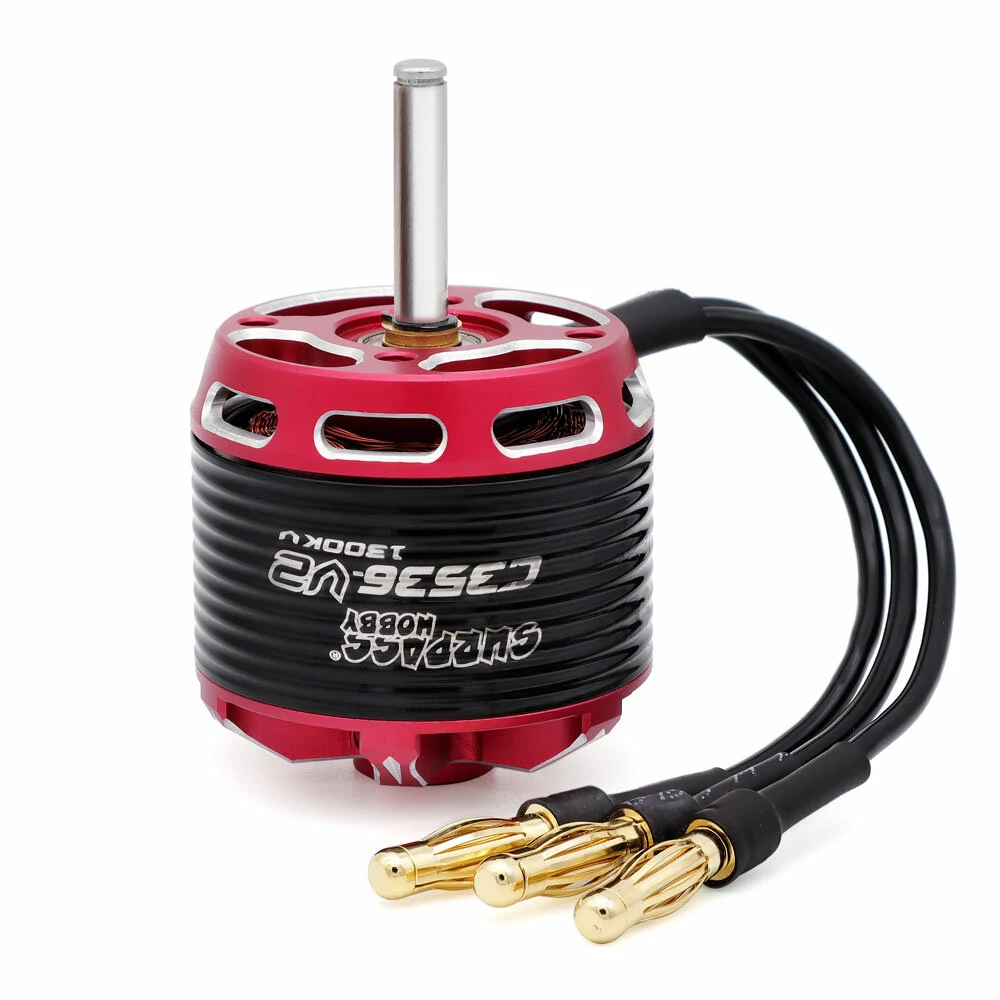

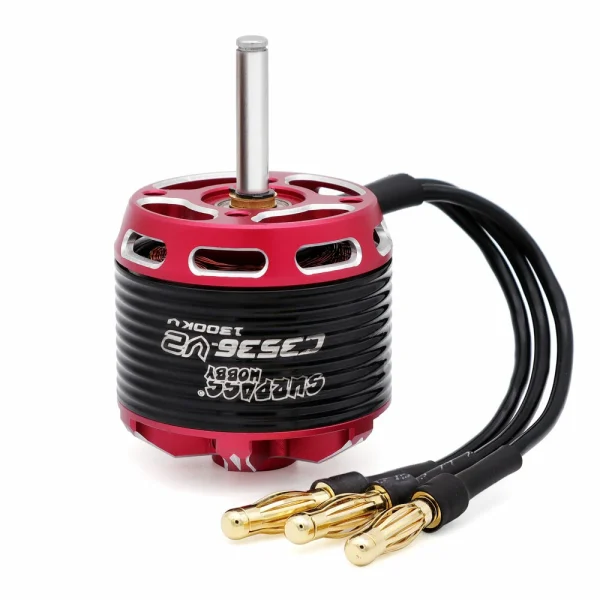

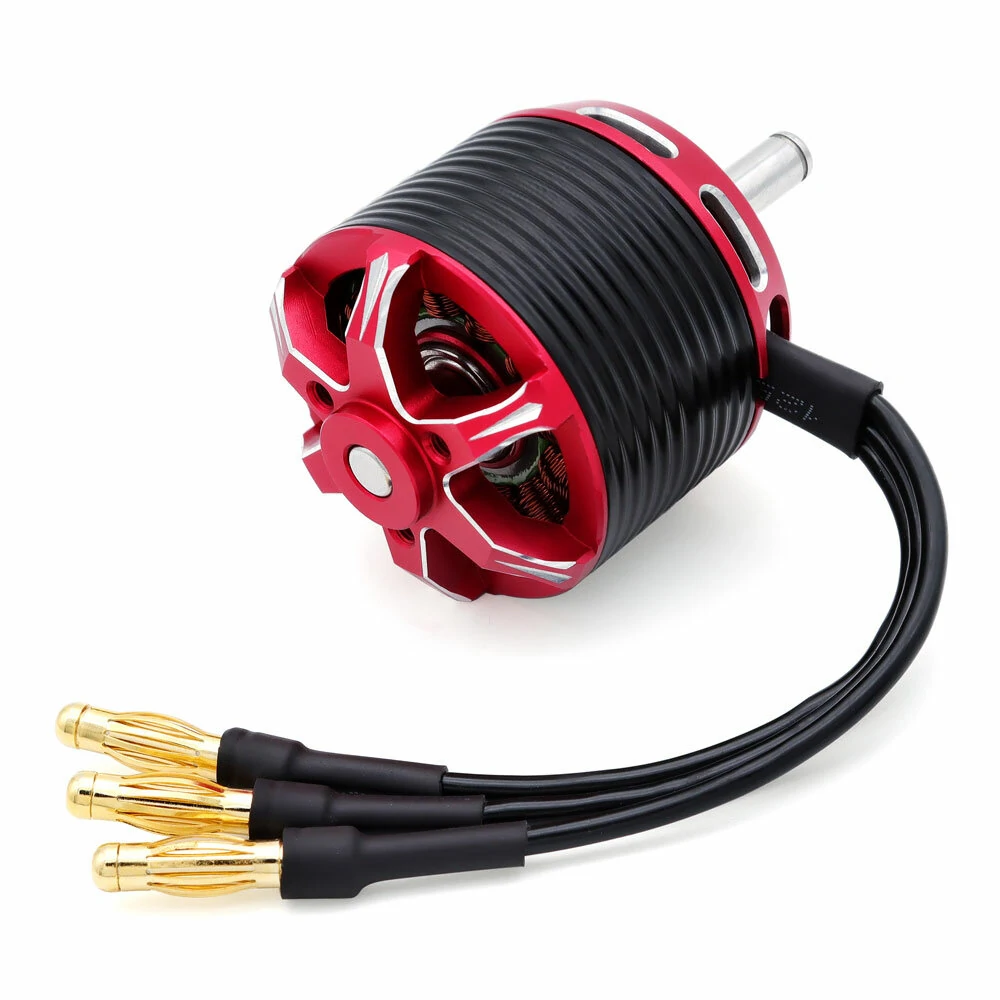

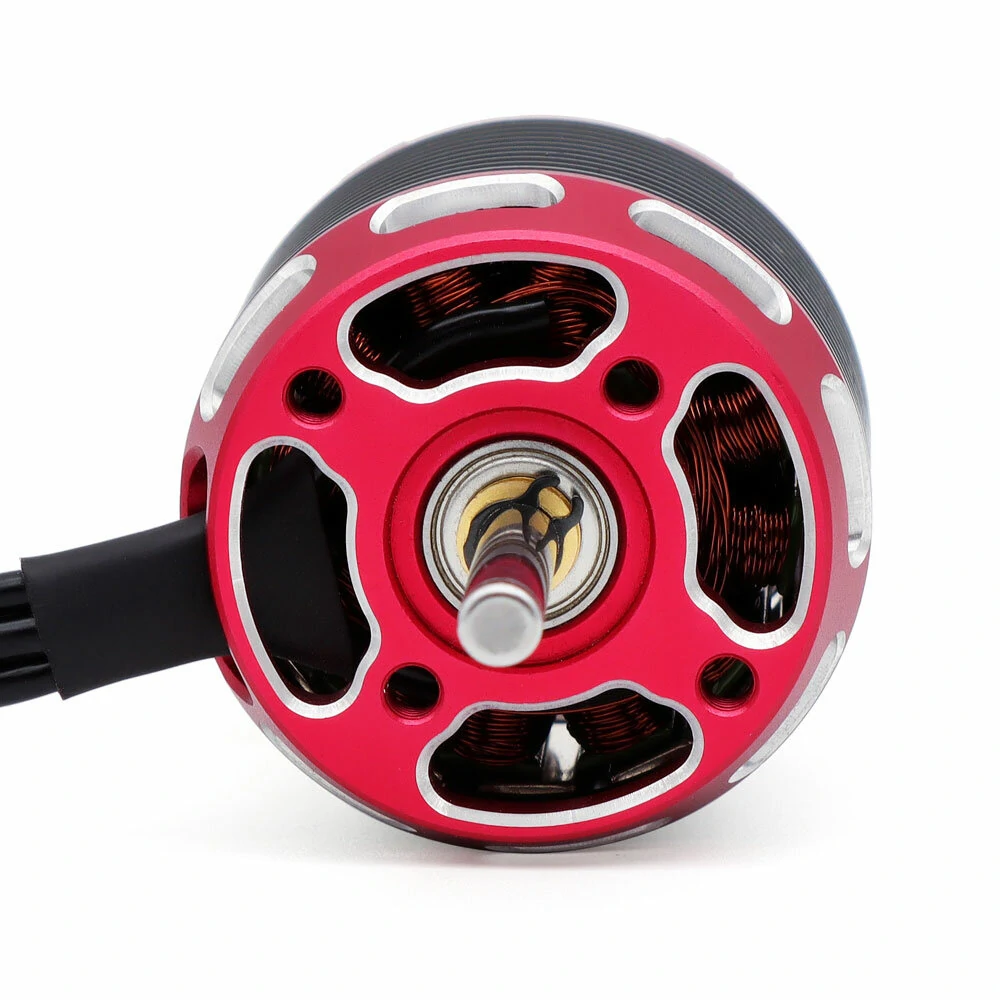

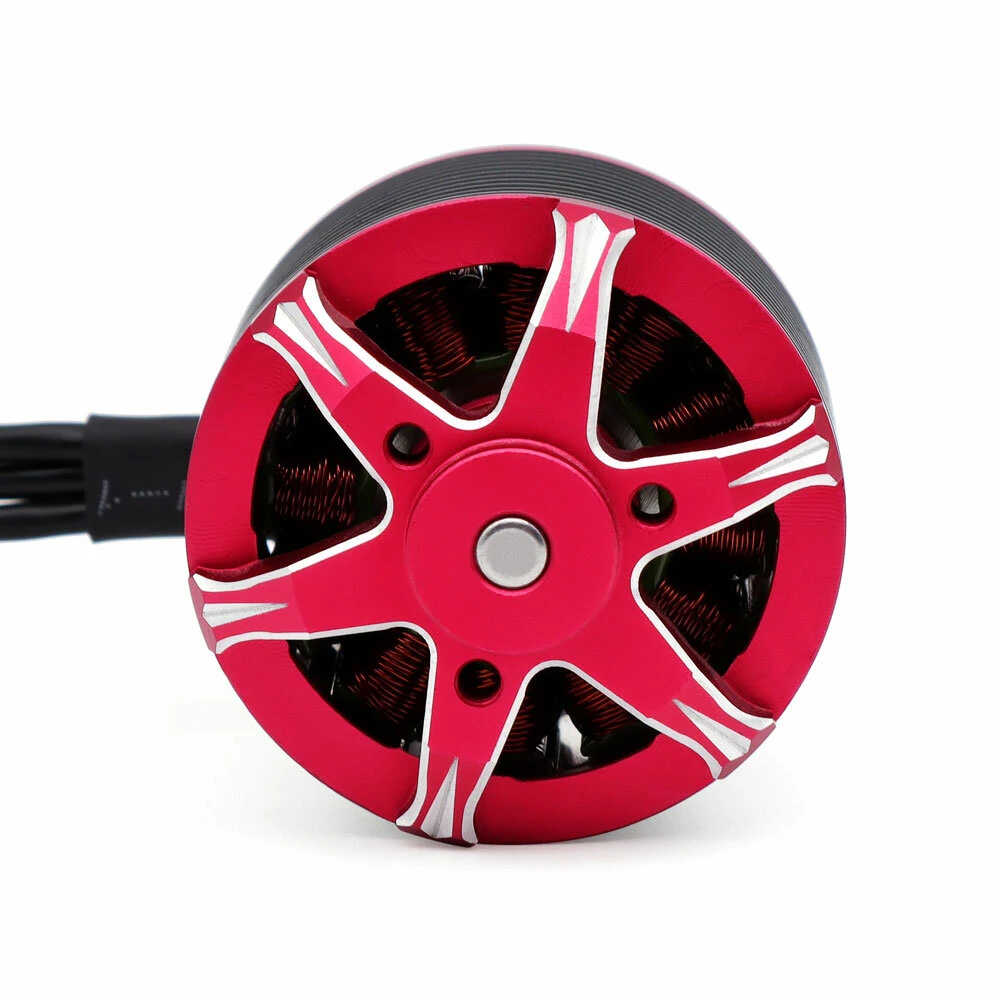

SURPASS-HOBBY C35 Series V2 C3536 910KV/ 1050KV/ 1300KV/ 1500KV Outrunner Brushless Motor 2-4S for RC Airplane
$21.00
- Description
- Additional information
Description
Overview:
Brand: SURPASS-HOBBY
Model: C3536-V2
Item Number: SP-235360-01
KV(RPM/Volt): 910KV, 1050KV, 1300KV, 1500KV (optional)
Specifications:
| KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
| 1500 | 750 | 7~15 | 55 | 14 | 2.5 | 0.025 | ∅35×34.5 | ∅28×14 | 109 | 8×4/9×6/10X6 |
| 1300 | 680 | 7~15 | 50 | 14 | 1.8 | 0.038 | ∅35×34.5 | ∅28×14 | 109 | 9×4.5/10×4.7/9×5 |
| 1050 | 500 | 7~15 | 38 | 14 | 1.5 | 0.055 | ∅35×34.5 | ∅28×14 | 109 | 9.5×5/10×6/11×5 |
| 910 | 400 | 7~15 | 30 | 14 | 1.2 | 0.1072 | ∅35×34.5 | ∅28×14 | 109 | 10×7/11×8.5x12x5 |
Features:
– 14 Pole Hi-torque rotor design, stable output power.
– Fits all fixed wing aircraft model.
– CNC machine 6061 T-six aluminum front and rear cover.
English Manual, Click Here
Package Includes:
1x SURPASS-HOBBY C3536 V2 Brushless Motor
Additional information
| Weight | 0.15 lbs |
|---|---|
| KV |
