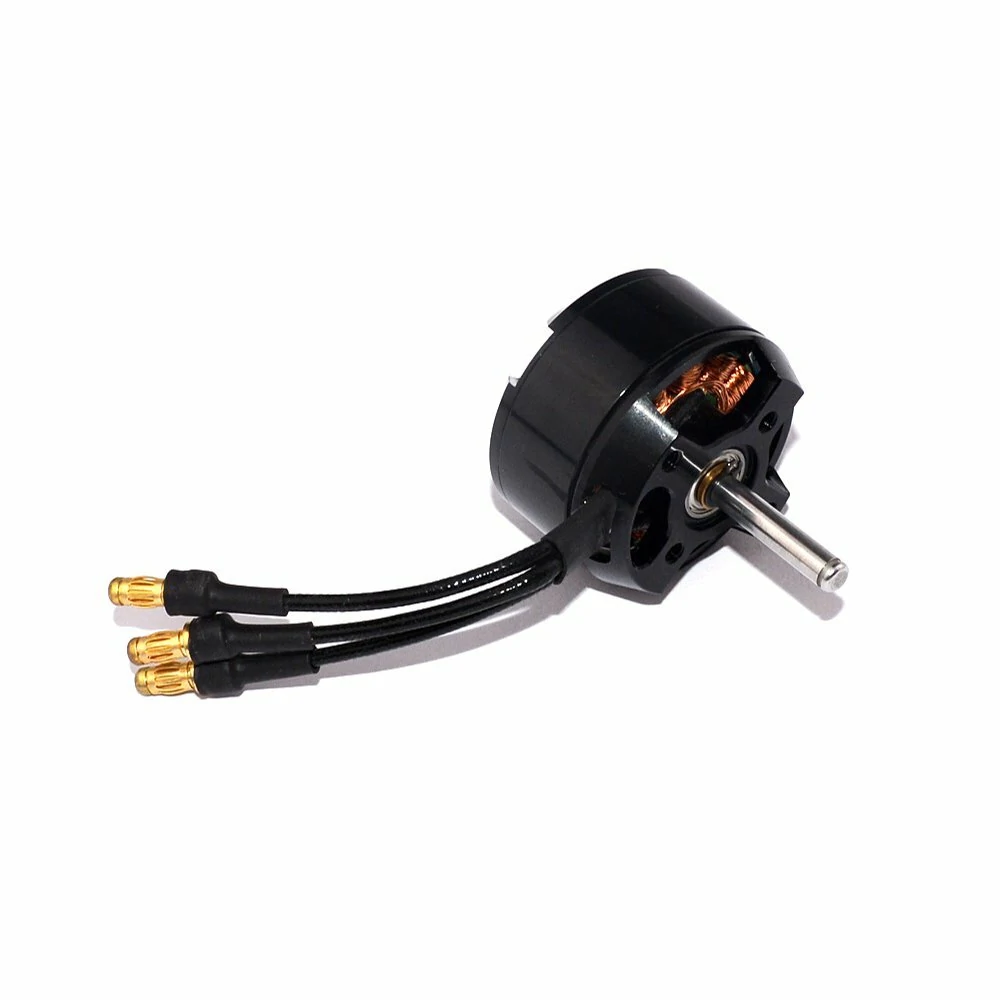

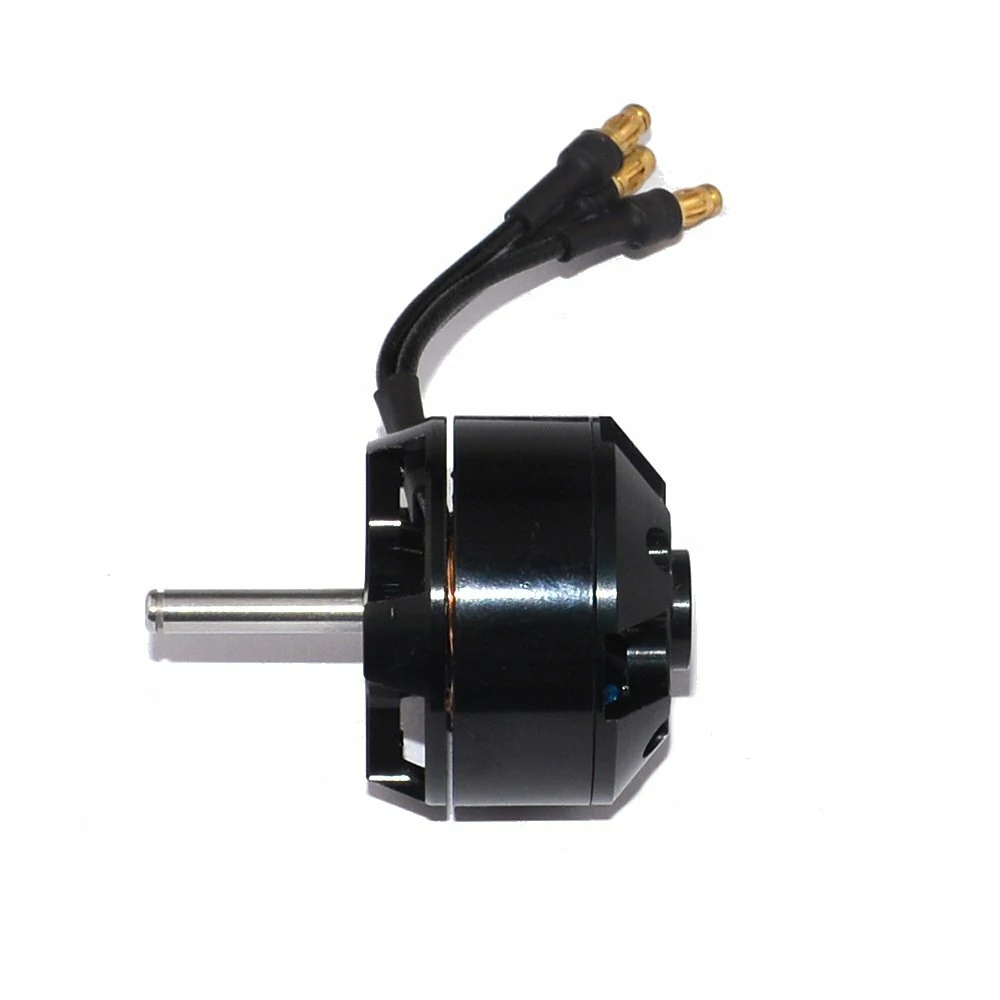

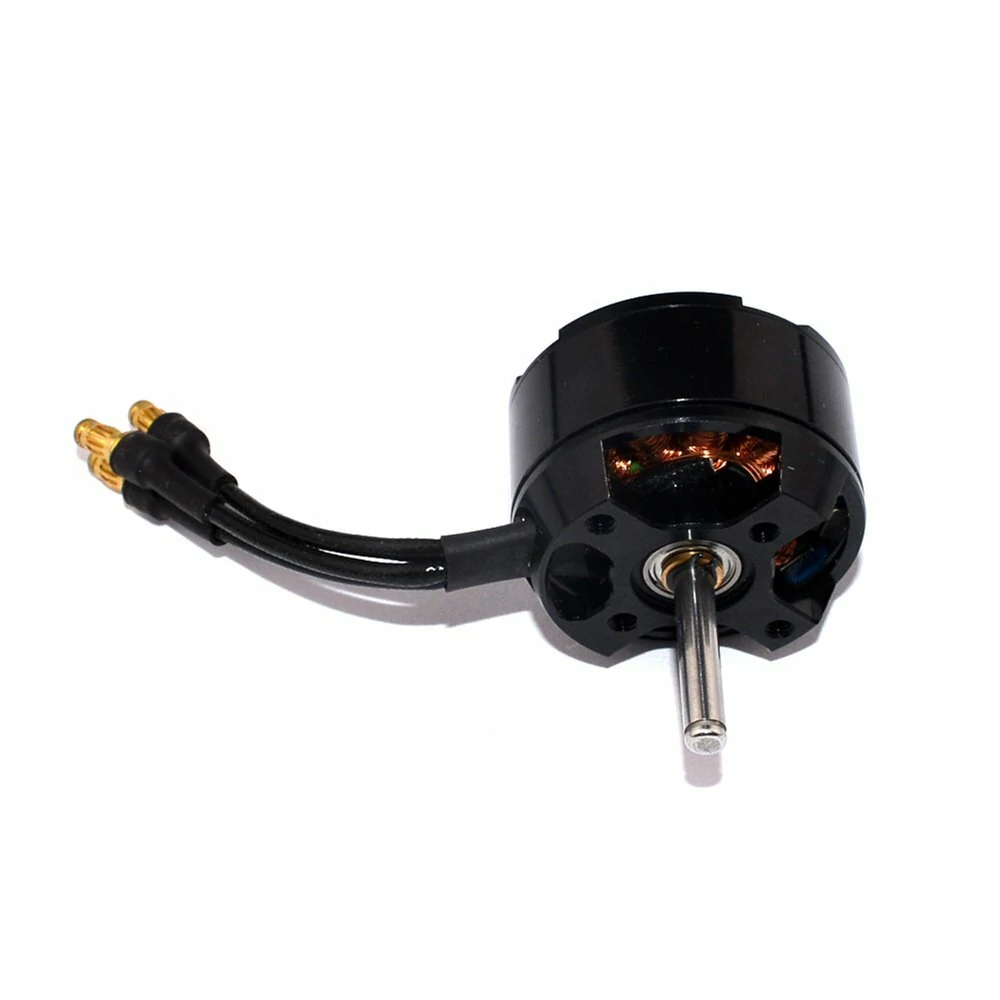

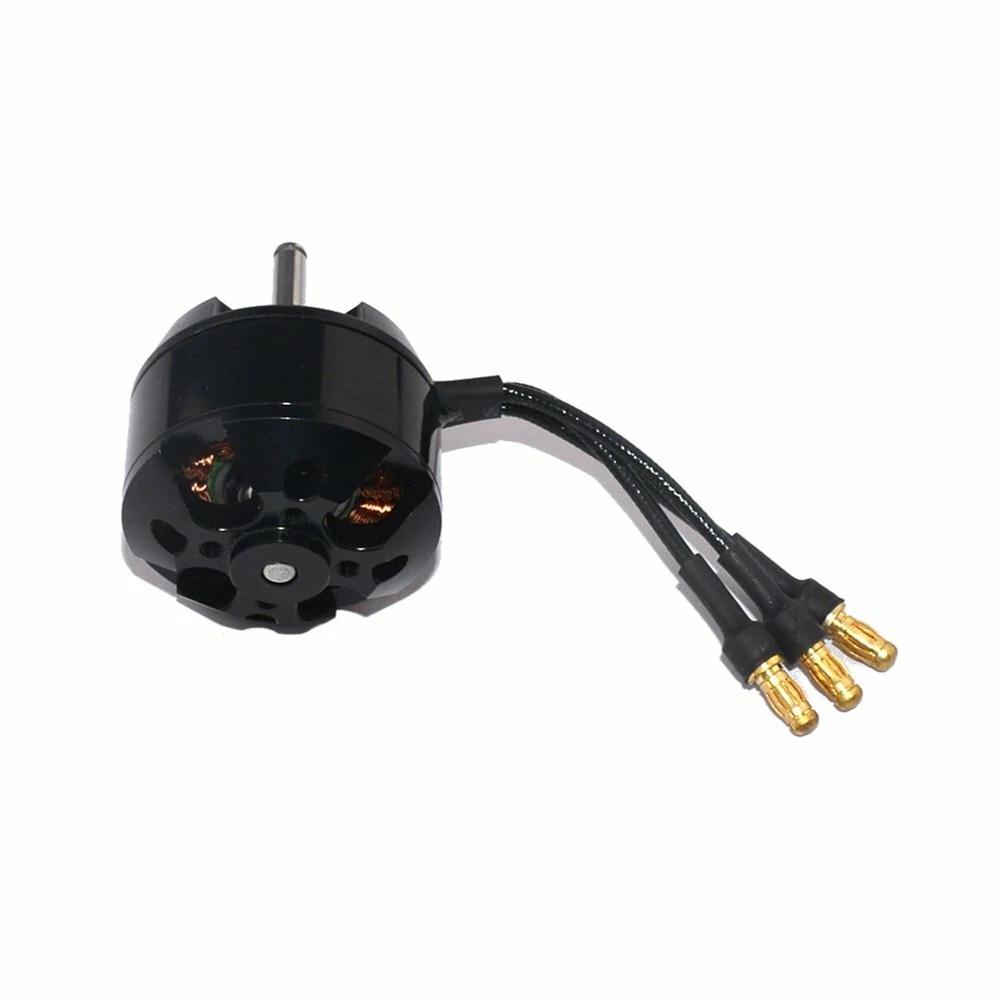

SURPASS Hobby C3530 1100KV/1400KV/1700KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit
$13.00
- Description
- Additional information
Description
Description:Brand Name: SURPASS Hobby Item Name: C3530(2808) MotorItem NO.: SP-028080-01KV: 1100KV, 1400KV, 1700KV (optional) Color: BlackApplication: Suitable for RC Airplane Fixed-wing EDF Ducted Fan Unit
Specifications:
| Model | KV | Max Watt (W) |
Voltage Range (V) |
Max Current (A) |
Rotor Poles | No Load Current (A) |
Resistance (Ω) |
Motor Size (mm) |
Stator Size (mm) |
Weight (g) |
Prop (inch) |
| C2808-08 | 1700 | 420 | 7-15 | 42 | 14 | 1.8 | 0.041 | 35×30 | 28×8 | 78 | 7*4/6*6 |
| C2808-10 | 1400 | 350 | 35 | 1.2 | 0.059 | 9*4.5/8*4/7*7 | |||||
| C2808-14 | 1100 | 310 | 30 | 0.7 | 0.113 | 9*5/10*4.7 |
Features:
– 14Pole 12Slot Hi-torque Motor Design.
– CNC Machined 6061 Billet Aluminum Heatsink Can.
– High Purity Copper Windings Maximizes Efficiency.
– High RPM ABEC5 Oversized Bearings.
– Precision balanced rotor, smoothness for best reliability and maximum RPM.
– Stator, Super Thin (0.2mm) Laminations.
– Precision Engineered for Maximum Energy Conversion.- The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.- The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.

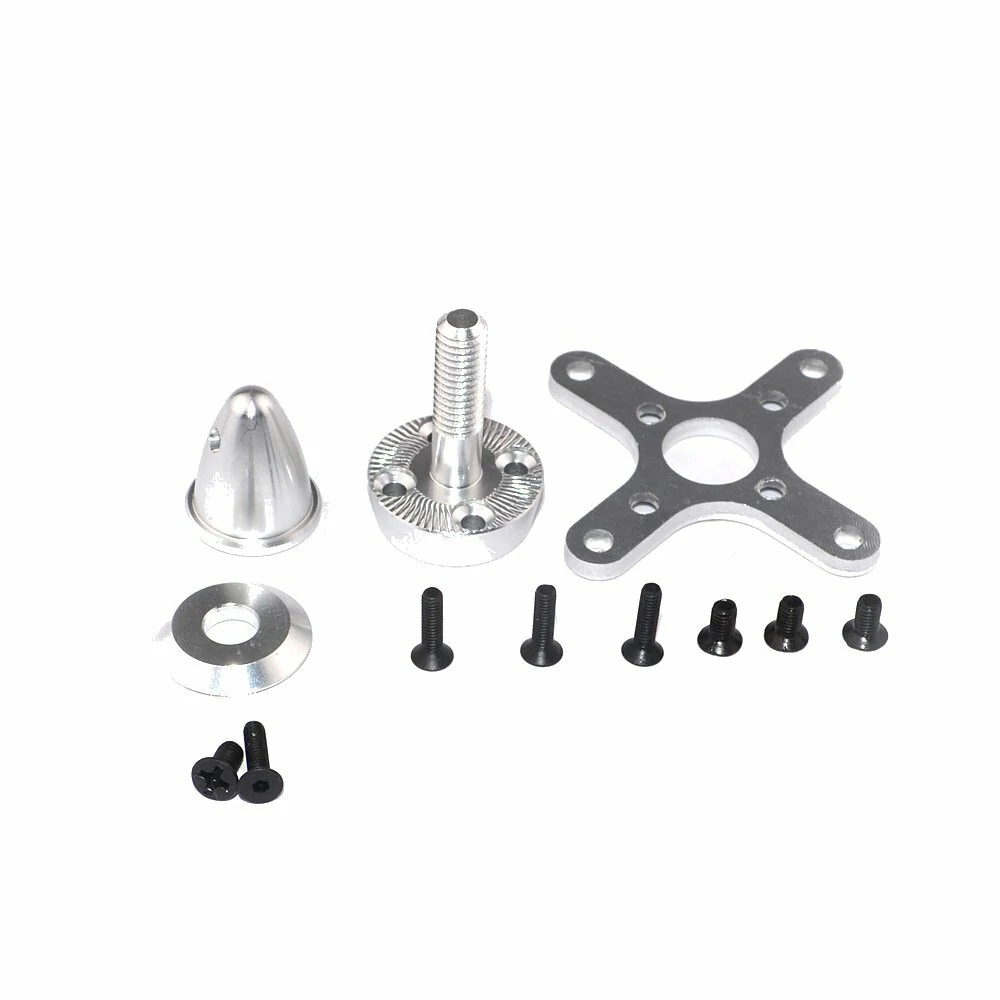

Package Included:1x SURPASS Hobby C3530 Outrunner Brushless Motor1x Accessories
Package Included:1x SURPASS Hobby C3530 Outrunner Brushless Motor1x Accessories
Additional information
| Weight | 0.078 lbs |
|---|---|
| KV |
