Note:
– Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
– Comes unassembled. Need build by buyers.
Specification:
Brand: TEOSAW
Model: APEX D5 / D7

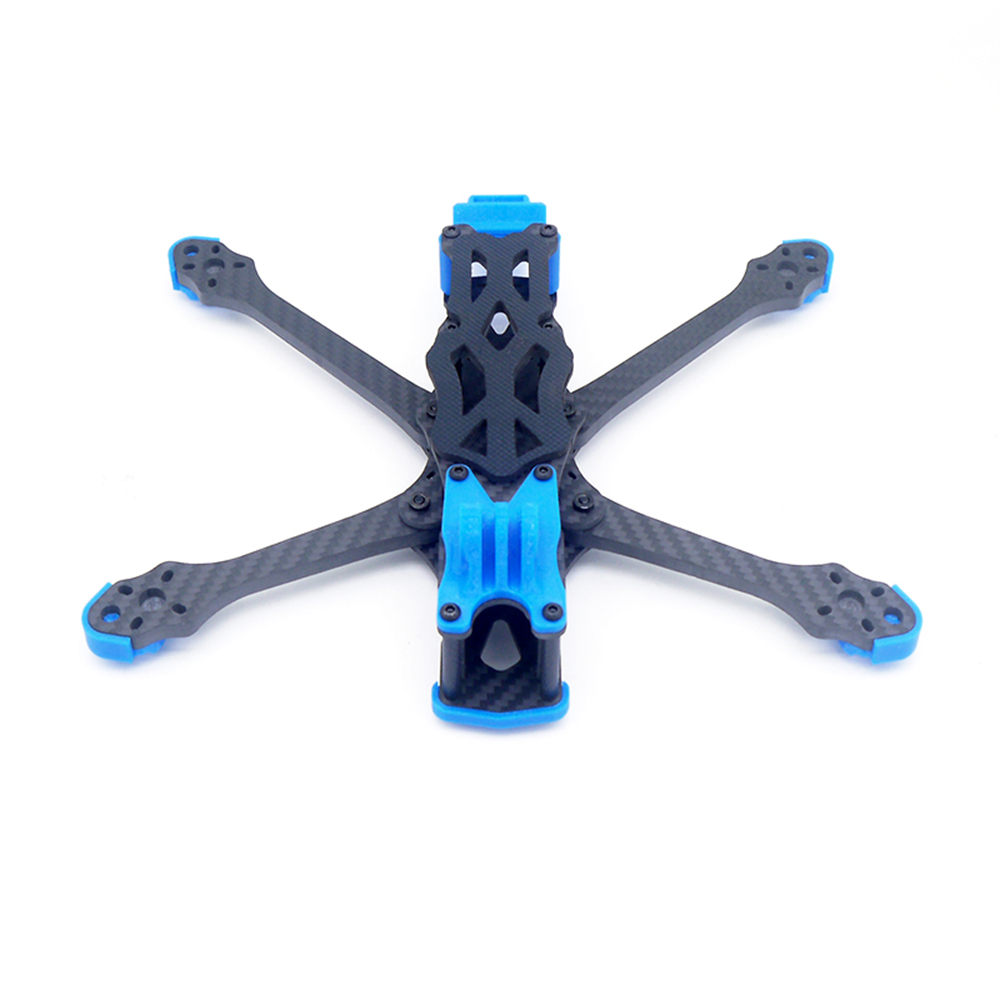

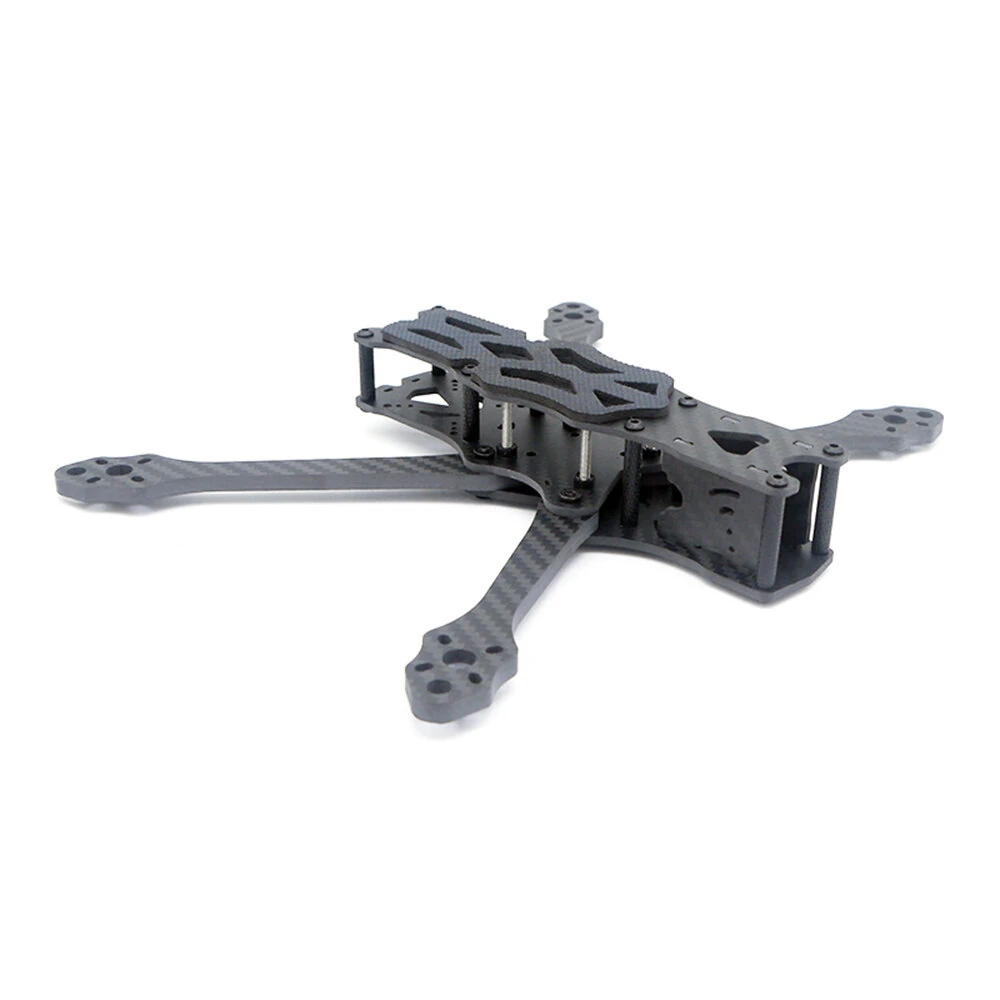

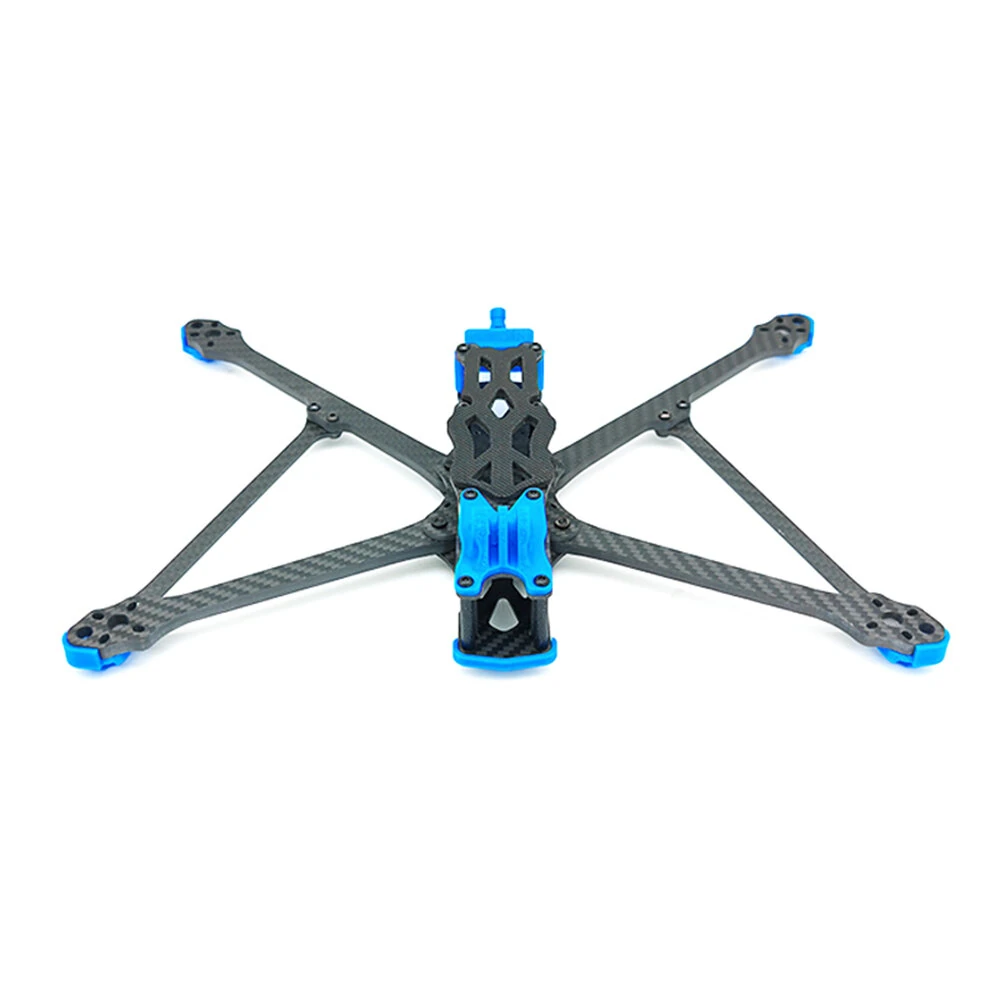

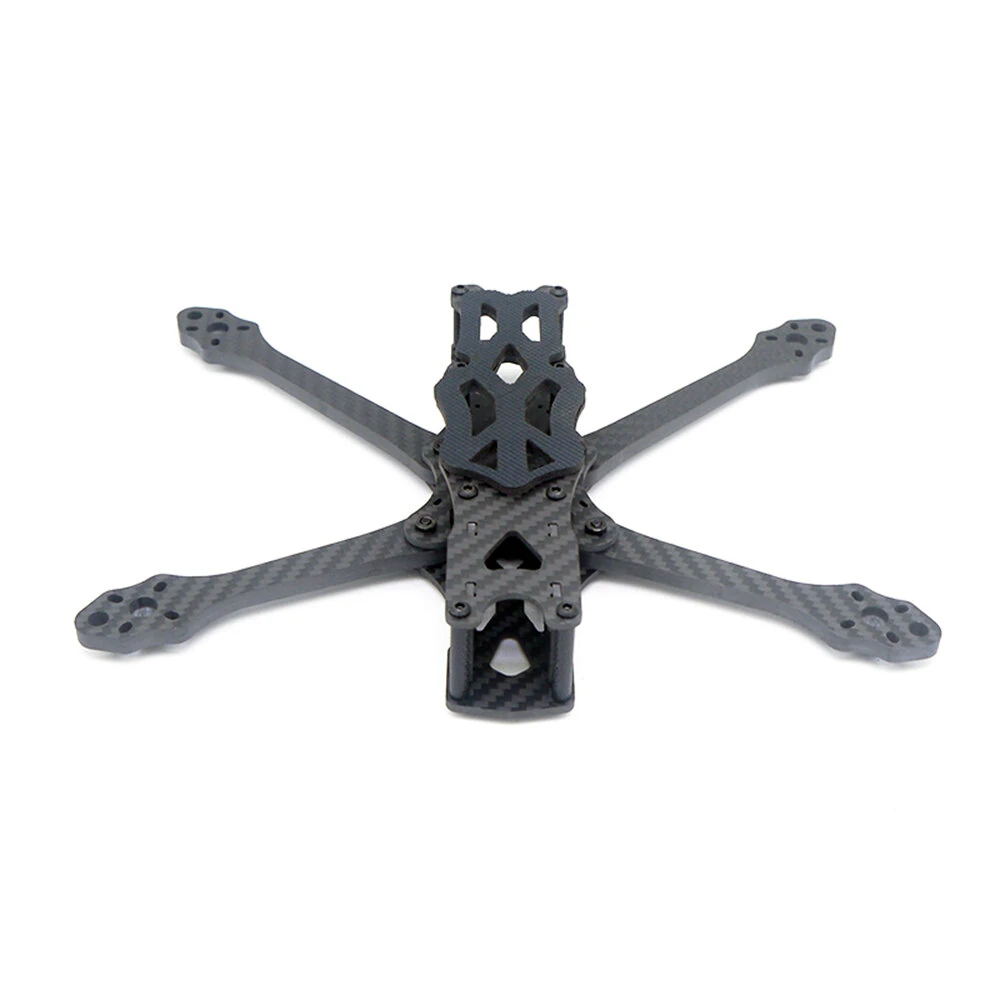

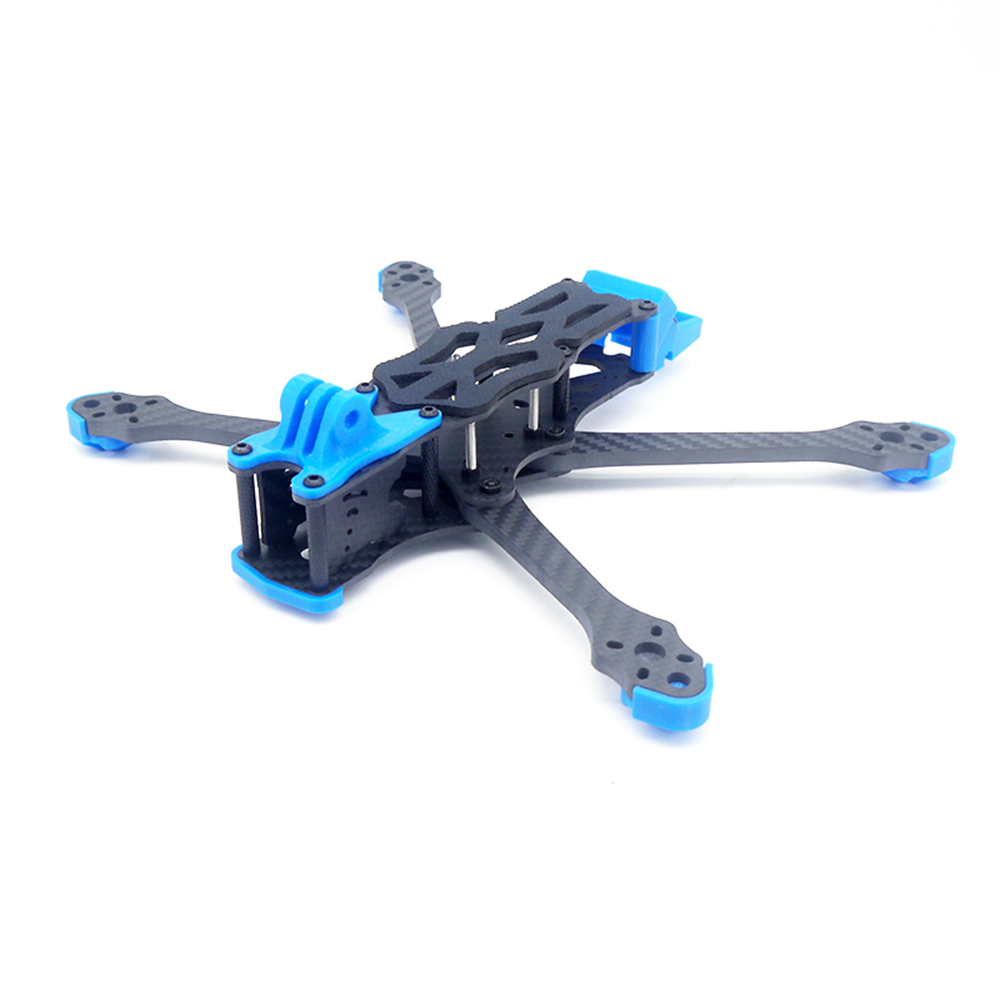

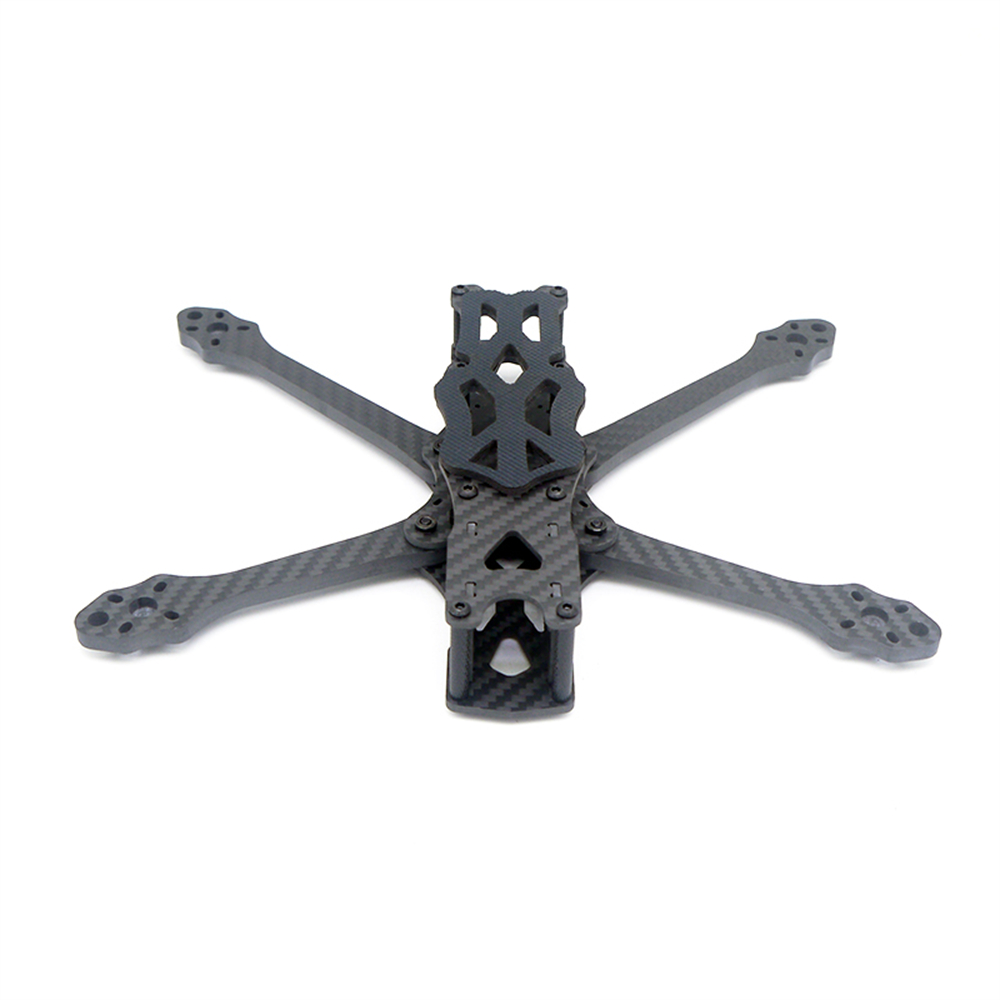

Item Name: 5 Inch / 7 Inch Frame Kit
|
Model |
APEX DC5 (Supports O4 Pro) |
APEX DC5MAX (Supports O4 Pro) |
APEX DC7 (Supports O4 Pro) |
APEX DC7MAX (Supports O4 Pro) |
|
Wheelbase: |
245mm |
340mm |
||
|
Dimensions: |
Approx. 187mm (Length) x 230mm (Width) x 35mm (Height)Not Including 3D Printed Parts |
Approx. 222mm (Length) x 309mm (Width) x 35mm (Height)Not Including 3D Printed Parts |
||
|
Weight: |
Approx. 138g |
Approx. 166g |
Approx. 170g |
Approx. 198g |
|
Structure: |
DC Structure |
|||
|
Thickness: |
Arm Plate 5.5mm, Bottom Plate 2.5mm, Middle Plate 2.5mm, Top Plate 2.0mm |
|||
|
Supported Propeller Size: |
5-5.1 inch |
7 inch |
||
|
Flight Controller Mounting Holes: |
20×20mm (M3), 30.5×30.5mm (M3) |
|||
|
VTX Mounting Holes: |
20×20mm (M2), 25.5×25.5mm (M2), 30.5×30.5mm (M2) |
|||
|
Camera Mounting Width: |
20mm/19mm |
|||
|
Internal Space Height: |
Approx. 20-28mm |
|||
|
Motor Mounting Holes: |
16×16mm (M3), 19×19mm (M3) |
|||
|
Supported VTX: |
DJI O4 Pro Air Unit |
|||
|
Board Material: |
3K (T700 Grade) |
|||
|
GPS Mounting: |
None |
BZ181 |
None |
BZ181 |
|

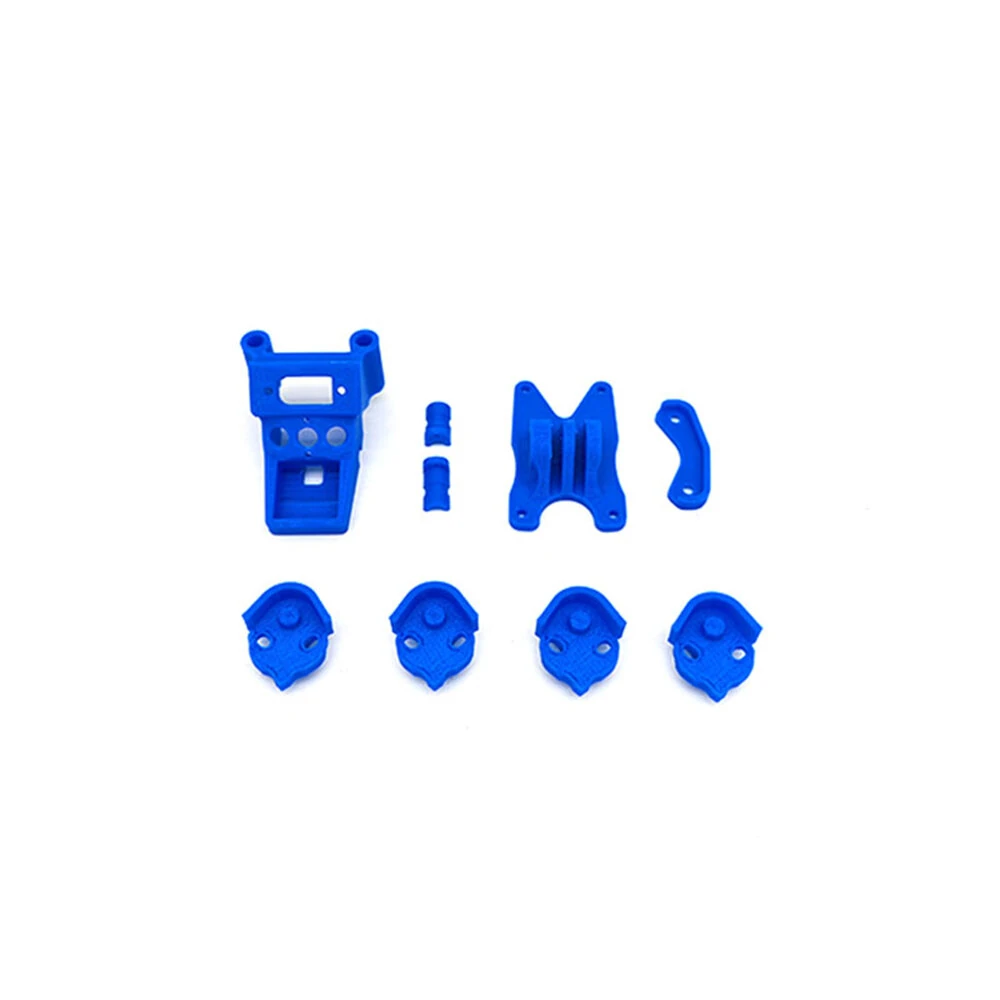

3D Printing Parts List: |
None |

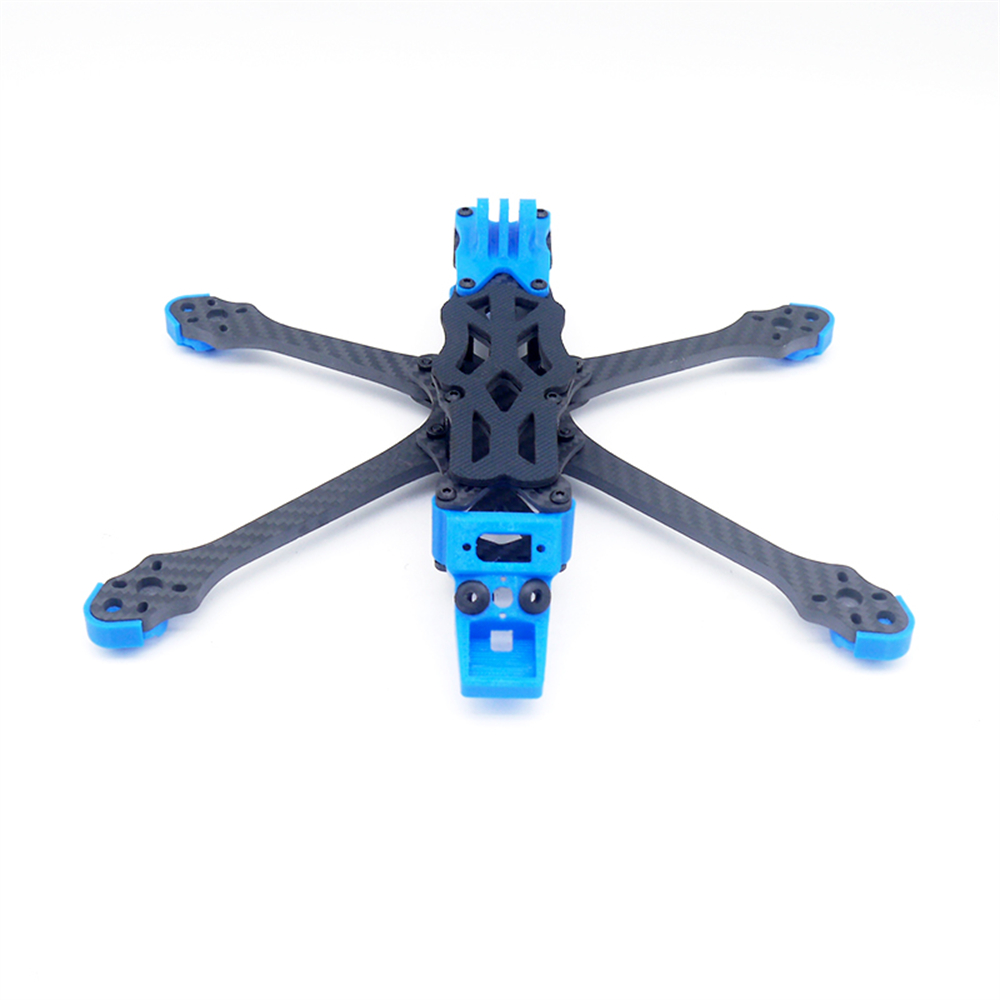

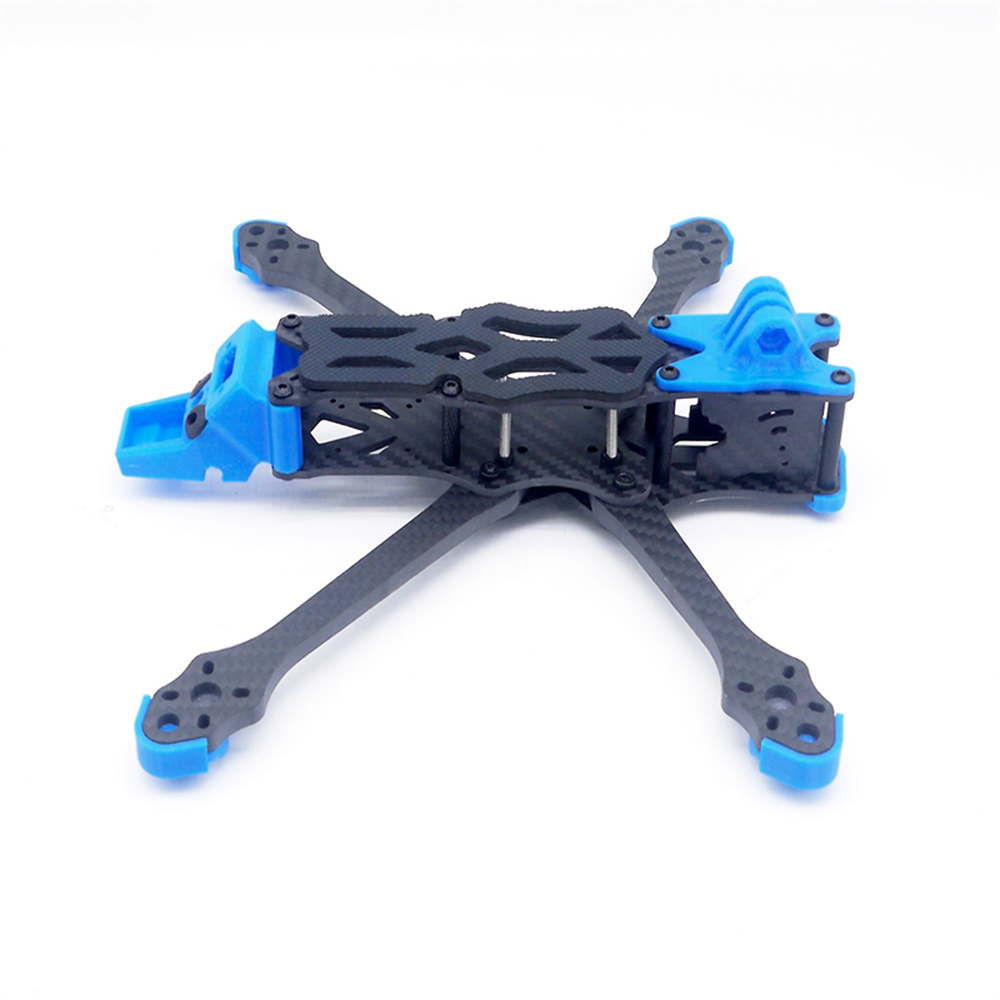

1 universal base for sports cameras (such as Gpro), 4 arm protection bases, 1 front lip protection base, 1 universal antenna base (compatible with XT60 power head, BZ181GPS, ELRS915/2.4, SMA dual-hole, O4 dual antenna, DJI O3 antenna, VISTA antenna, SMA single-hole antenna, etc.) |
None |
1 universal base for sports cameras (such as Gpro), 4 arm protection bases, 1 front lip protection base, 1 universal antenna base (compatible with XT60 power head, BZ181GPS, ELRS915/2.4, SMA dual-hole, 04 dual antenna, DJI O3 antenna, VISTA antenna, SMA single-hole antenna, etc.) |
|
Note: |

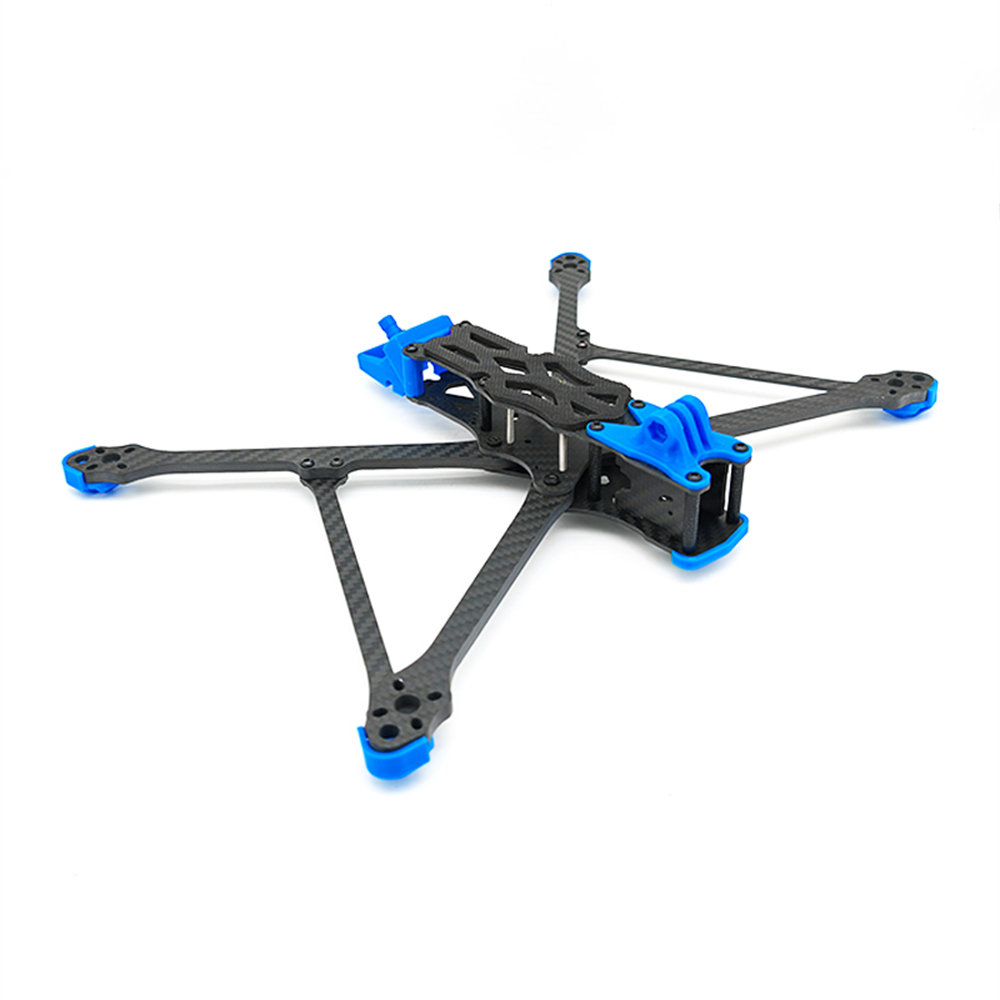

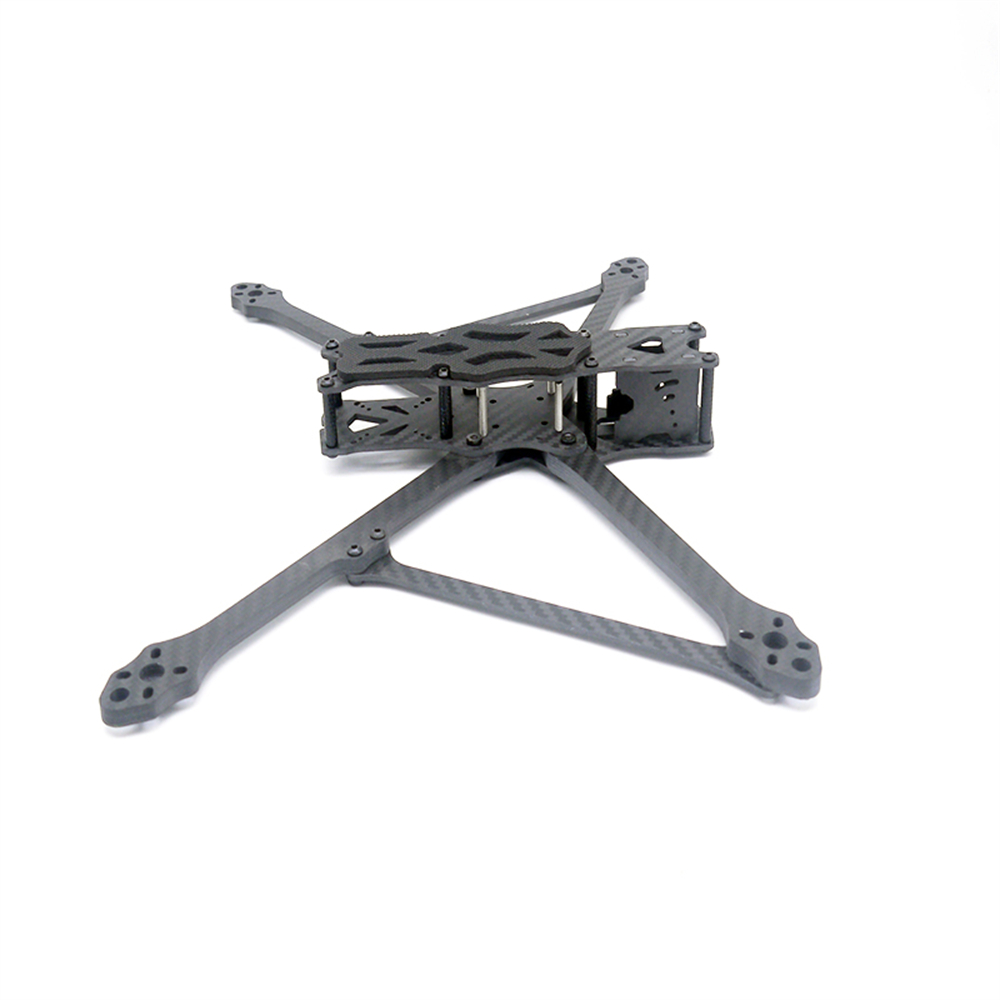

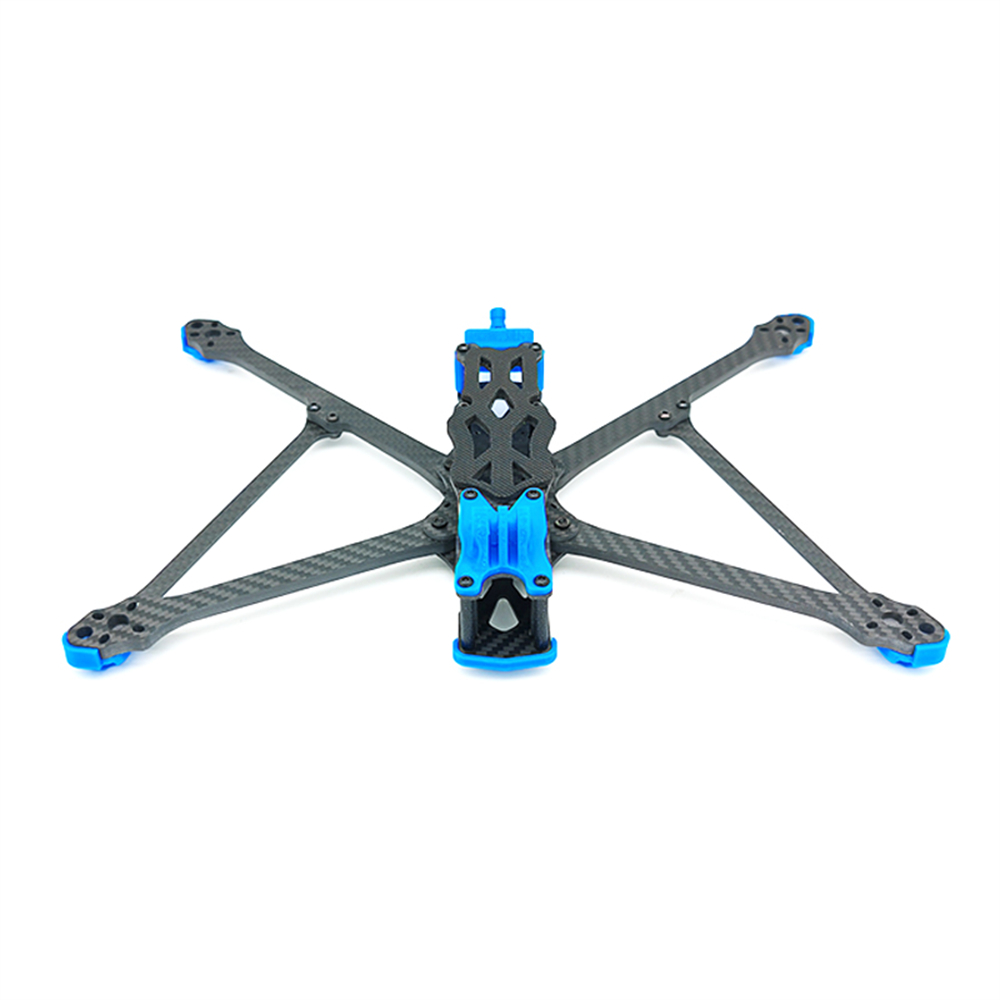

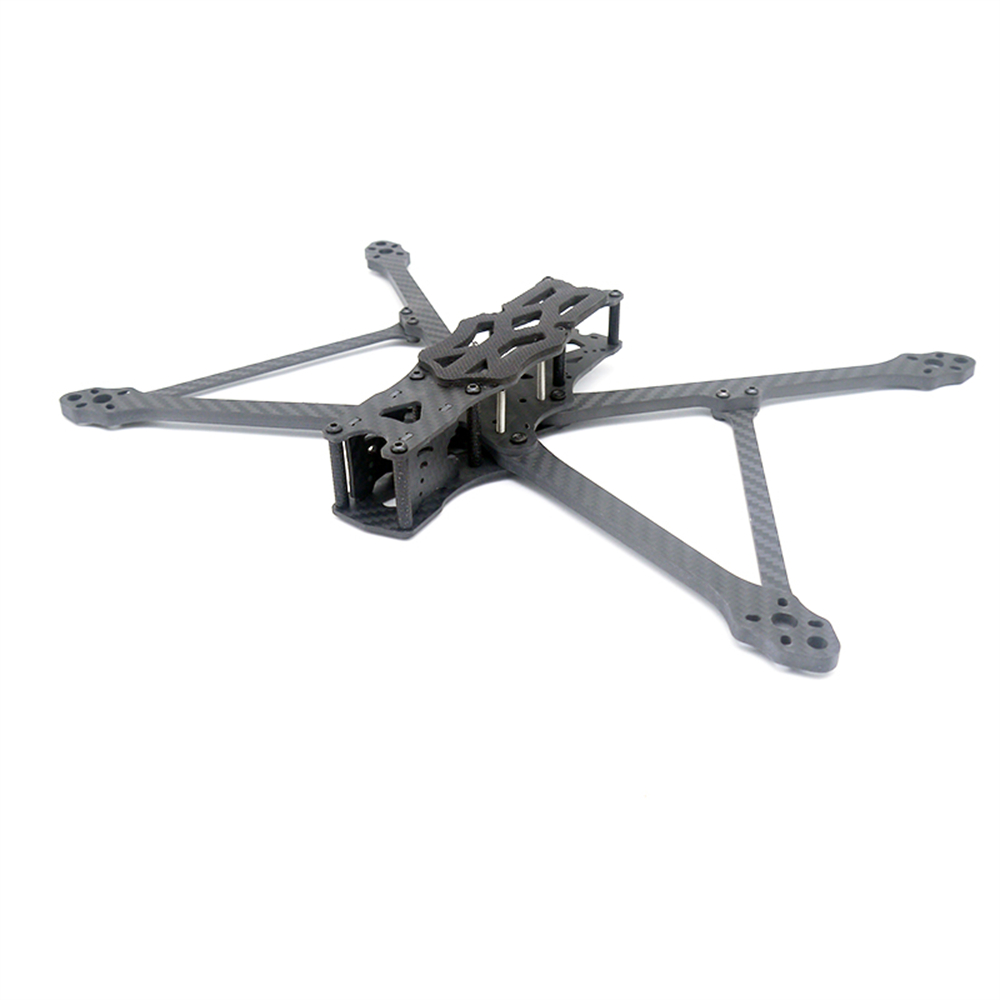

APEX DC7 and APEX DC7 MAX (Supports O4 Pro) are equipped with reinforcement bars. |
|||
Recommend Parts: ( NOT Included)
FC & ESC: 20x20mm SpeedyBee F405 Mini F4 / 30.5×30.5mm SpeedyBee F405 V4VTX & Camera: DJI O4 PRO Air Unit Brushless Motor: MAMBA TOKA 2306.5 1650KV 1770KV 4-6S 2770KV 3-4S / Emax ECO II 2807 6S 1300KV 5S 1500KV 4S 1700KVPropeller: 6 Pairs Gemfan 5128 5.1×2.8 5.1 Inch 3-Blade PC Propeller / Gemfan F7036 7inch 3-Blade / 2-Blade Foldable Propeller
Package Included:
1x TEOSAW APEX Frame Kit
