ToolkitRC M8AC AC 200W DC 600W 65W IPS 2.4 Inch LCD Screen Chargerfor 1-8S LiPo LiHV LiFe Lilon LTO 1-12S Pb 1-20S NiMH Battery

Specification:
CHARGE
Input Voltage: AC [email protected]
DC 7-35V@MAX25A
Battery Type: LiPo LiHV LiFe Lilon LTO @1-8S
NiMH@1-20S Pb@1-12S
Balance Current: [email protected]
Balance Accuracy: <0.005V
Charging Power: 0.1-20A@600W
Discharging Power: 0.1-20A@600W Recyle mode
0.1-3A@20W Normal mode
USBC Output: MAX 20.0V@65W Upgrade
Voltage: 1.0V-5.0V@1-8S
Internal Resistance: 1-99mΩ@1-8S

MEASURER
PWM: 880us-2200us@20-400Hz
PPM: 880us-2200us×8 CH@20-50Hz
SBUS: 880us-2200us×16 CH@20-100Hz

OUTPUT
PWM: 500us-2500us@20-1000Hz
PPM: 880us-2200us×8CH@50Hz
SBUS: 880us-2200us×16CH@74Hz
Power Supply: 1-20A@1-35V Mode: CC+CV

GENERAL

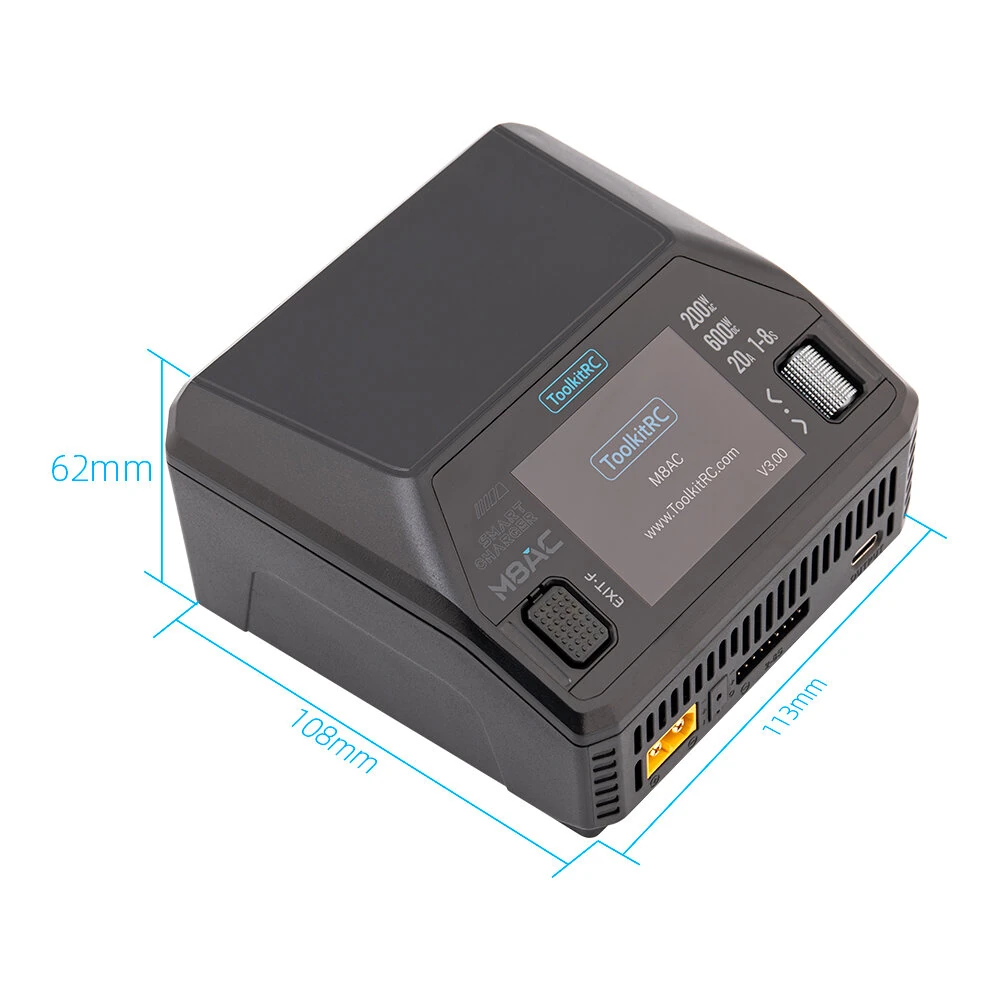

Product Size: 108×113×62mm
Product Weight: 500g
Packing Size: 136×153×67mm
Packaging Weight: 600g
LCD: IPS 2.4″ LCD 320×240px

Caution：The UK and AU plug versions are actually shipped with EU plug, and we will send UK or AU adapters with them.

Package included:
1x M8AC Charger
1x AC Input Cable
1x USB Cable
1x Quick Manual
1x Screen Protector

or

The UK and AU plug versions are actually shipped with EU plug, and we will send UK or AU adapters with them
