Bullet Points:
– Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.
– Feature starlight sensor, to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.
– Built-in EIS and supports Gyroflow technology, taking you a smooth and stable video quality, to facilitate and enjoy freestyle fly.
– Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.
– Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.
– The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.

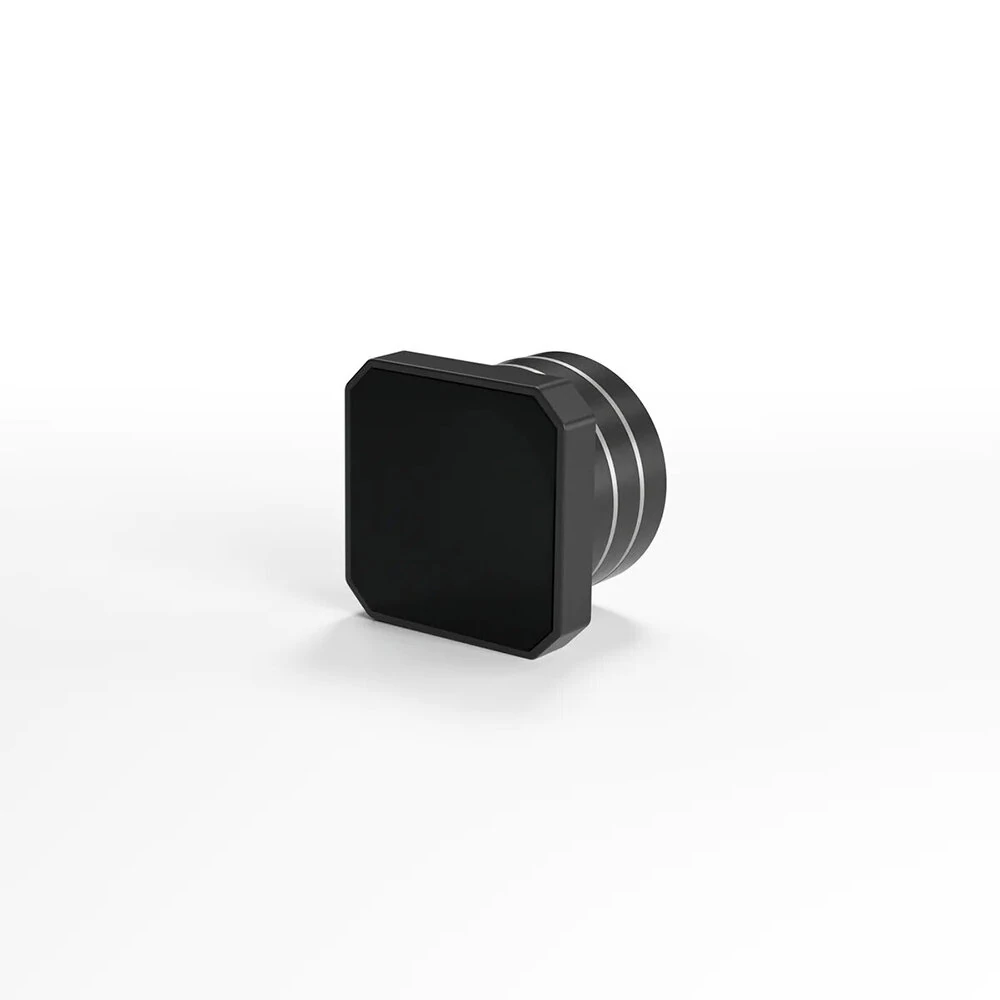

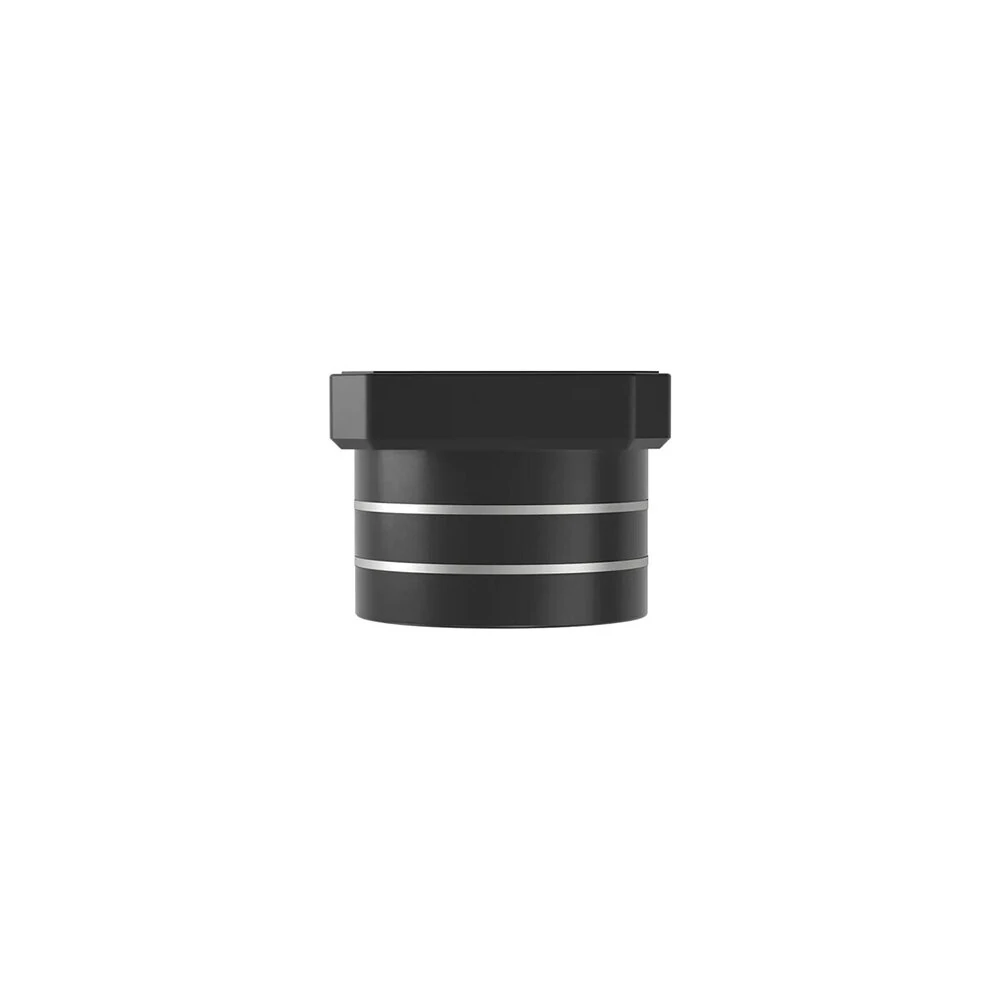

– Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.
Specification:
| Model: | Moonlight kit |
| Firmware name: | AvatarMoonlight_Sky_X.X.X |
| Communication Frequency: | 5.725-5.850GHz |
| Transmitter Power (EIRP): | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface: |
JST1.0*4(Power in)JST0.8*6(USB)， Micro SD card Slot；IPEX-1 |
| Sensor: | Starlight sensor |
| FOV: | Max 160° |
| Aperture: | F2.1 |
| Shutter: | Rolling shutter |
| ISO: | 100-25600 |
| Recording resolution: |
4K@30/60fps, 2.7K@30/60fps, 1080p@100/60fps, 720p@60fps |
| Max Mbps: | 150Mbps |
| Video format: | MP4 (H.264) |
| 3D DNR: | Support |
| Gyroflow: | Support |
| Built-in EIS: | Support |
| Wide Power Input: | 7.4V-25.2V |
| Power consumption: | [email protected], [email protected] |
| Memory card type: | U3 MicroSD, Max 256G |
| Camera size: | 19.6mm*19mm*24mm |
| VTX size: | 15.3mm*34.5mm*34.5mm |
| VTX Installation hole distance: | 20*20mm/25*25mm (M2) |
| Weight : | 38.5g(Antenna not included) |
| OSD: | Canvas mode |
| Latency: | Average delay 22ms |
| Antenna: | 2 (IPEX) |
VTX Antenna
| Model: | Avatar V2 Antenna |
| Polarization: | LHCP |
| Frequency range: | 5600MHz-6000MHz |
| Average Gain: | 1.9dBi |
| VSWR: | ＜1.5 |
| Input Impedance: | 50Ω |
| Interface: | IPEX-1 |
| Dimension: | R15 X 45mm (without cable ) |
| Weight: | 2g |

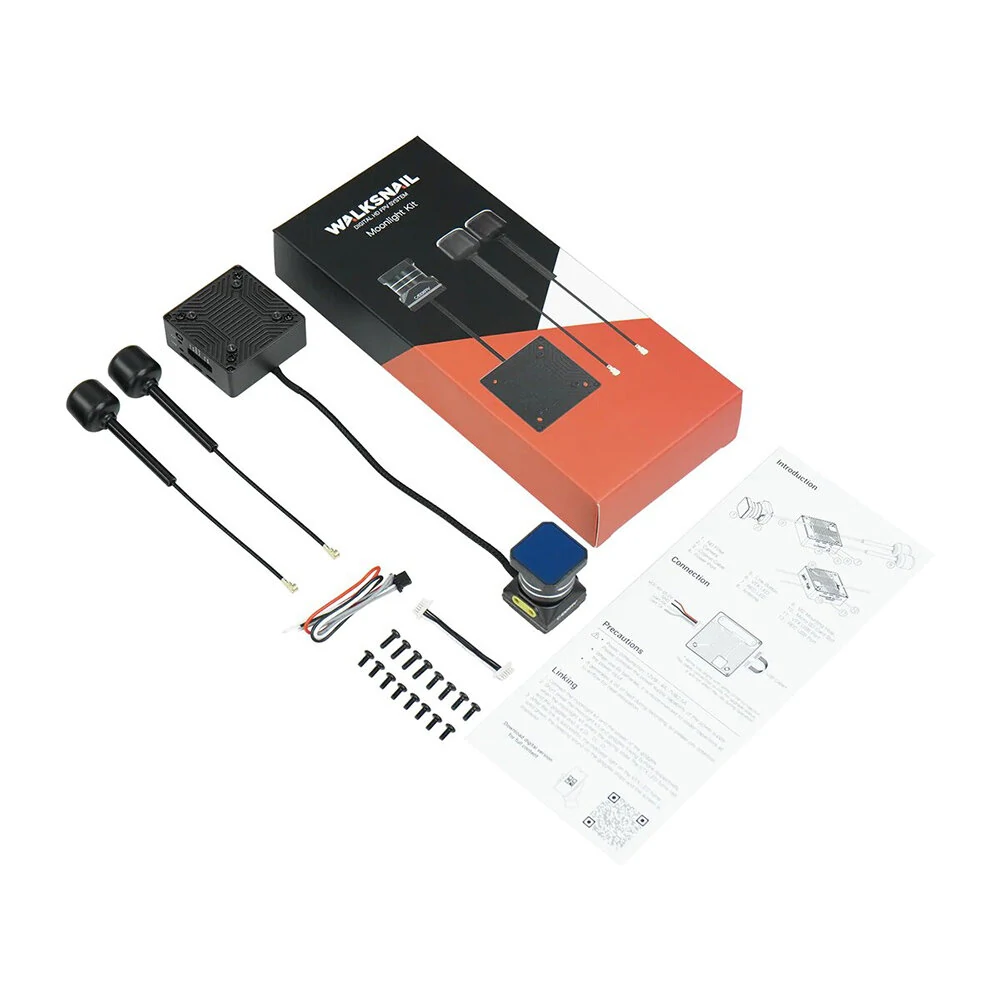

Packing List：

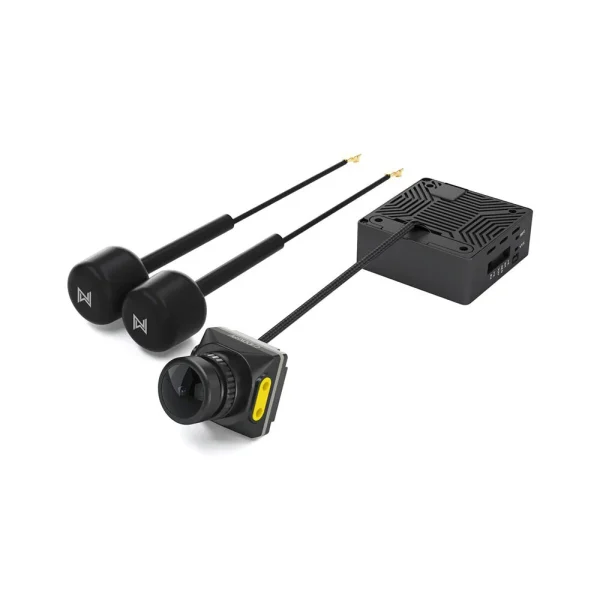

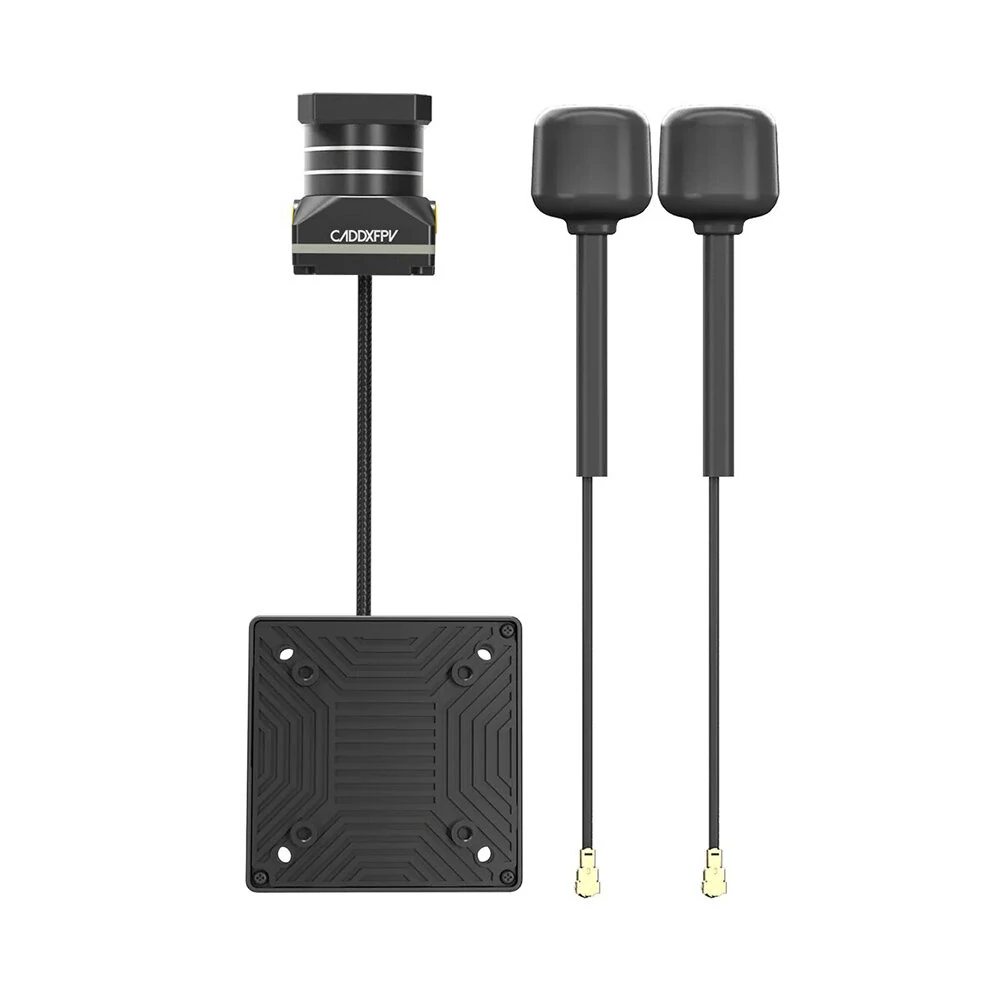

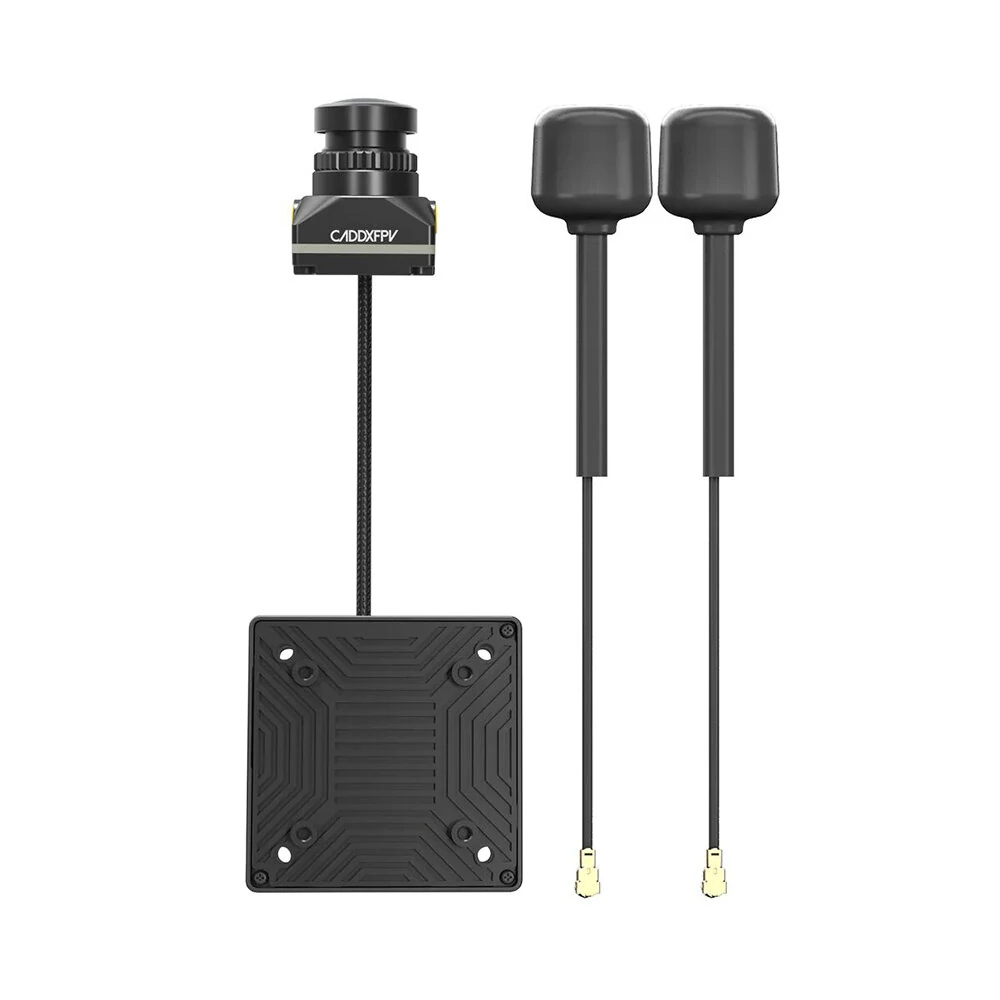

1X set Walksnail Moonlight Kit
