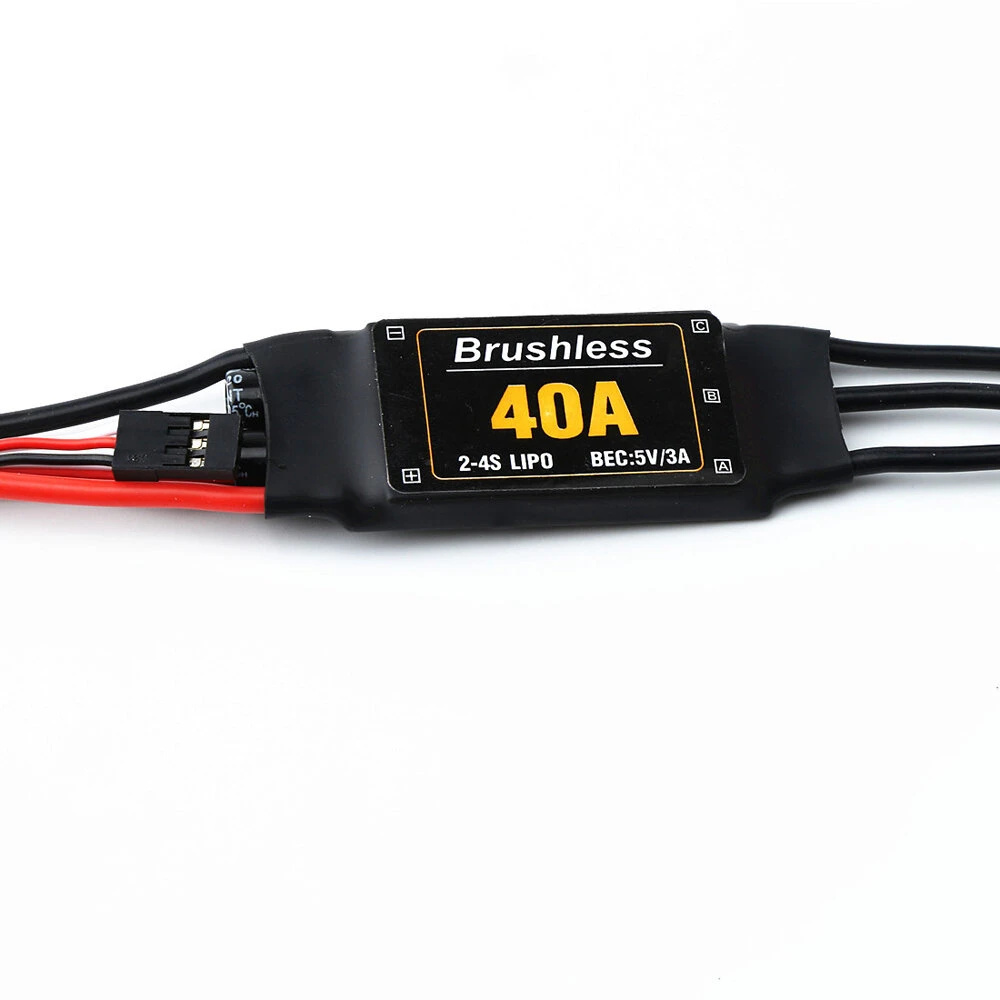

XXD 2-4S 40A Brushless ESC Speed Controller with 5V/3A BEC T lug for RC Airplane Fixed-wing
 
 Description:
 Brand: XXD

Current: 40A

Output capacity: Continuous current 40A, short-time current 55A (not less than 10 seconds)

Power input: 2-4 lithium batteries (Not Included)

BEC output: 5V@3A (linear regulator mode – linear mode)

Maximum speed: 210,000 rpm for 2-pole motor, 7000 rpm for 6-pole motor, 35,000 rpm for 12-pole motor

Size: (Approx) 68x25x8mm

Features:

* Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.

* Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.

* User programmable.

* Multiple procedure methods supported: transmitter stick, LED procedure Card. Very easy to procedure the ESC at home or at the flying field.

* Compatible with Lipo and NiMH battery.

* Timing can be changed to be suitable for different brushless motors.

* Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.

Note:

1. Due to the light and screen difference, the item’s color may be slightly different from the pictures.

2. Please allow 0.5-2 cm differences due to manual measurement.

Package Included:

1 x 40A Speed Controller ESC
