XXD A2212 2212 2450KV KV2450 Brushless Motor+HTIRC 40A ESC+5030 Prop Blade Propeller RC Power System Combo for RC Drone Airplane Support 2s-4s





The imported three-terminal voltage regulator or high-quality power supply management module is adopted to provide the BEC voltage, which has strong load capacity and the protection of the BEC output short circuit



Compared with similar products, this product is smaller in size, lighter in weight and lower in power consumption



Adopt high performance N channel MOS tube



Automatically adjust the throttle stroke



Support for programming Settings





Brand Name : HTIRC

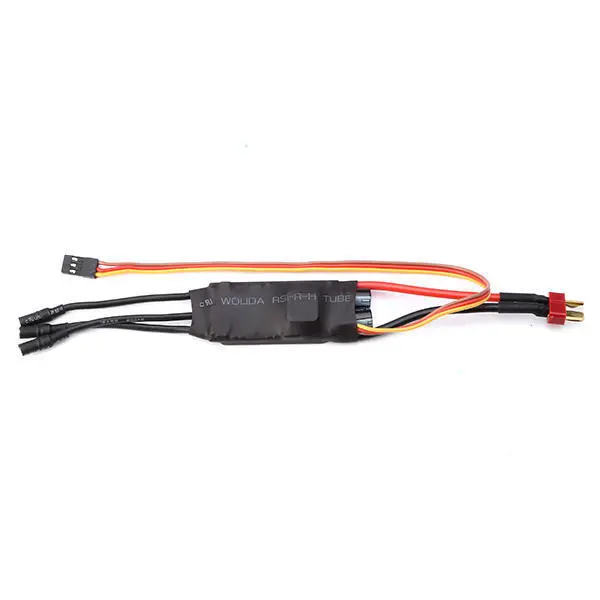

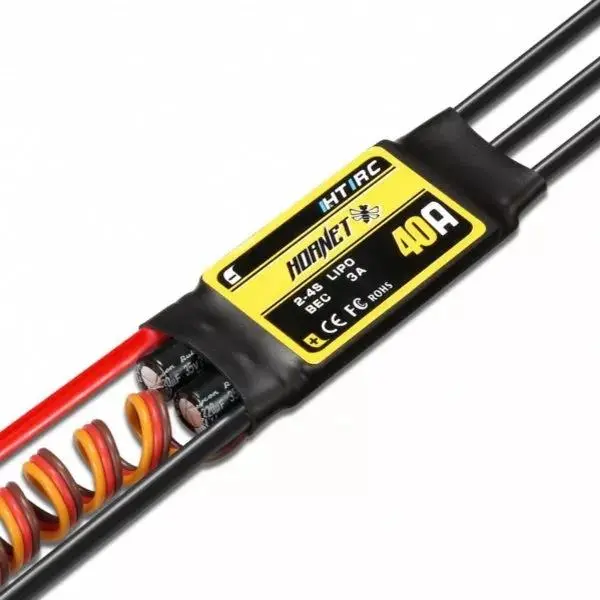

Item Name : 40A Brushless ESC

Continue current : 40A

Instantaneous current : 50A (10s)

Recommanded lipo : 2-4S Lipo / 5-12NC

BEC: Linear

BEC Output :5 v / 3

Size : 52 * 26.3 * 11mm

Weight : 43g

Programmable : Yes

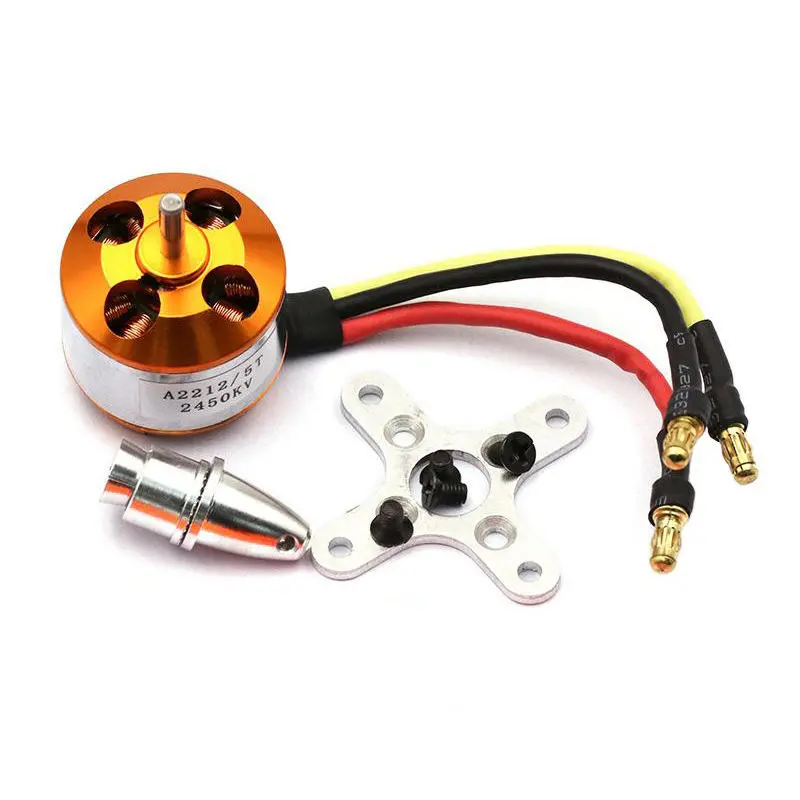

Brand Name:XXD

Item NO.: XXD A2212

KV: KV2450

Size:27.8 x 27mm

Shaft Dia.:3.17mm

LiPo:2-4s LiPo

Efficiency :80%

Current :4-10A(efficiency >75%)

Non-load current:10 v / 0.4 a

Max Instantaneous current:12/60 times

Propeller :5030

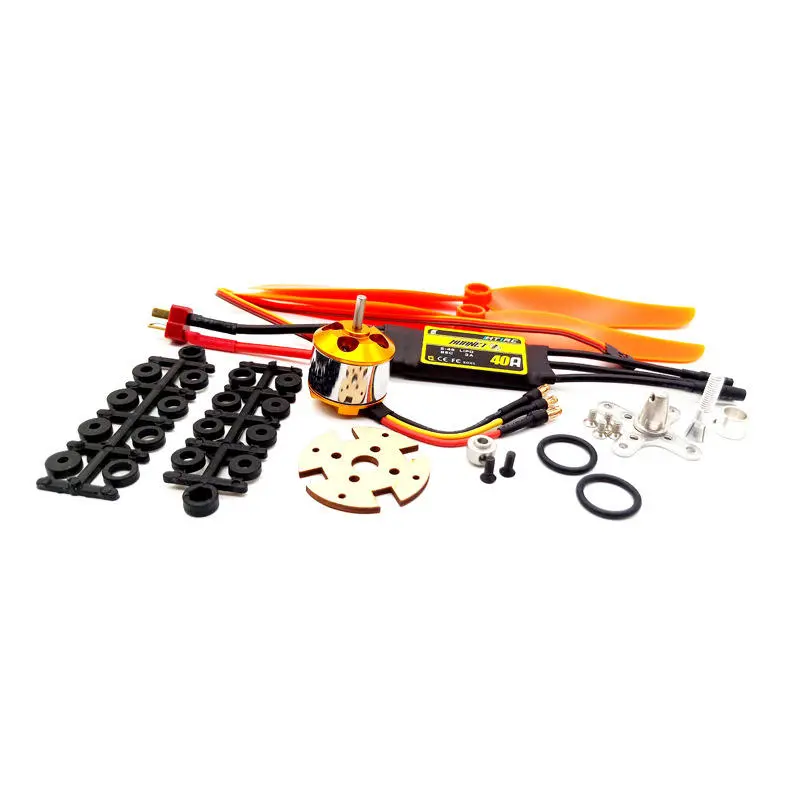

1 x XXD 2212 Brushless Motor

1 x Htirc 40A ESC

2 x Propeller

1 x Accessories Pack
