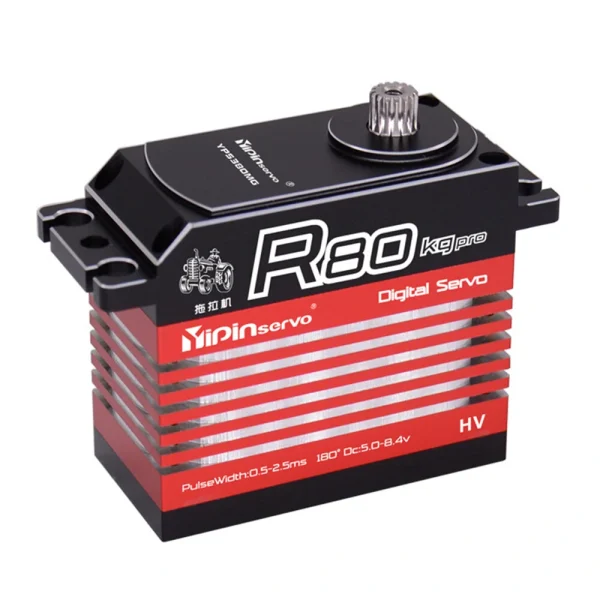

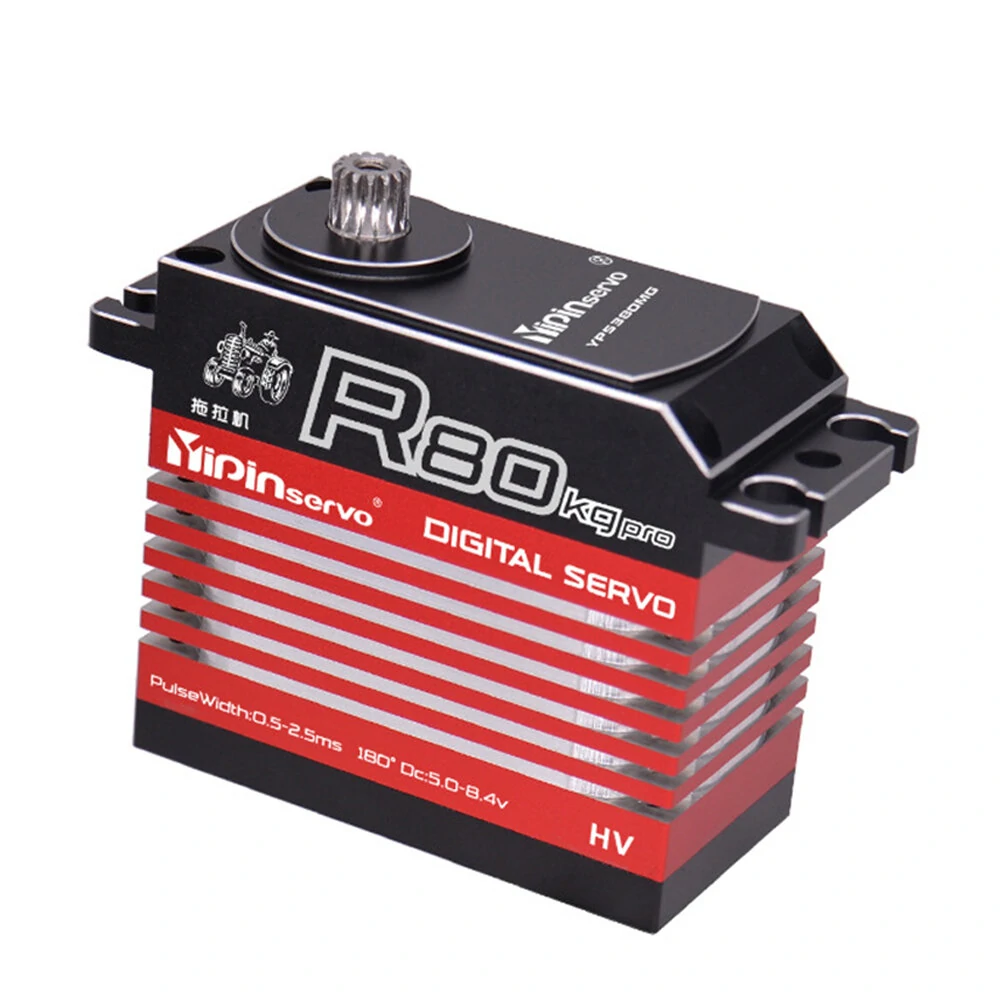

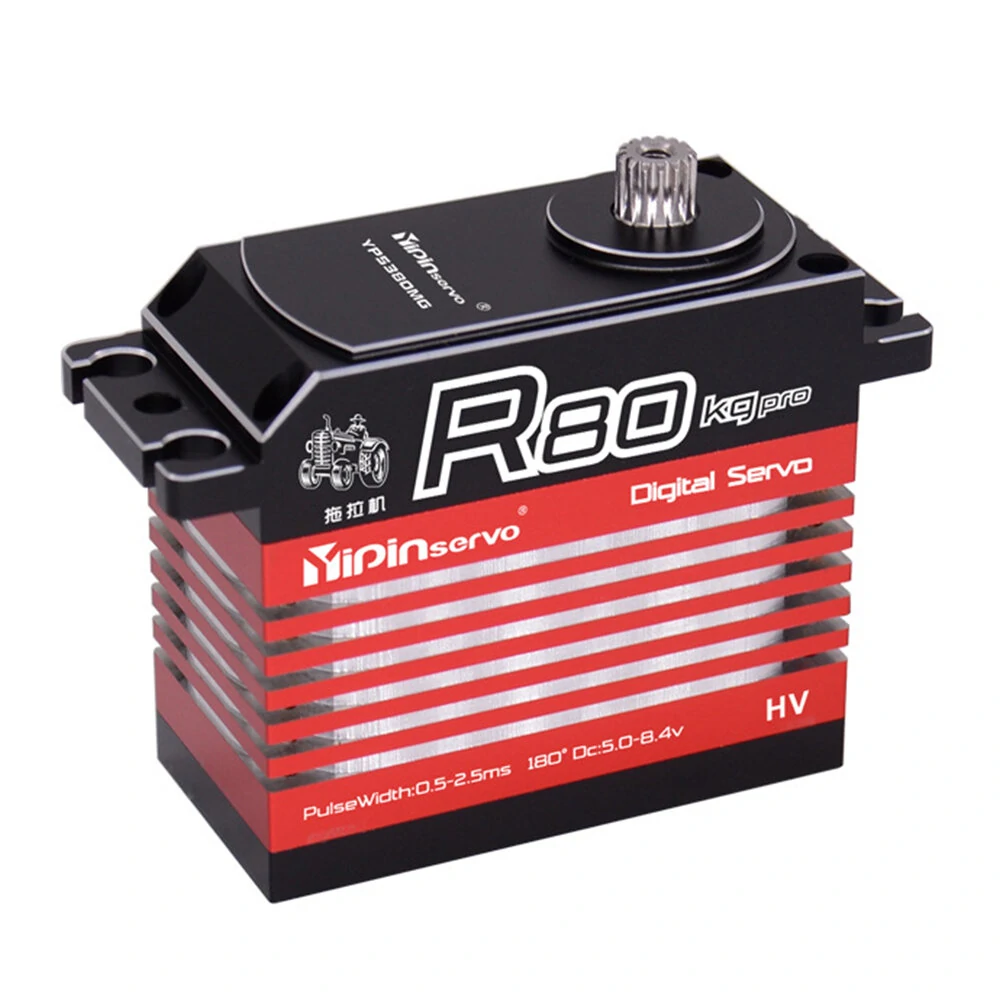

Yipinservo 80KGPRO Coreless Digtal Servo Full Metal Gear Waterproof Large Torque Motor For RC Crawler Car Boat Truck Helicopter

Description

Specification:
Control System: PWM Pulse Width Modulat Ion Contrd 1520uS/333Hz
Optrating Voltage: 5.0-8.4V
Temperature: -20C°~+60C°
Testing voltage:
6V:
Motor: Core Motor
Locked Rotor Torque: 68kg
Unload Speed: 0.17/60°
Locked Rotor Current: 8A
Load Current: 2A
Dead Band: 3μsec
7.4V:
Motor: Core Motor
Locked Rotor Torque: 75kg
Unload Speed: 0.15/60°
Locked Rotor Current: 9A
Load Current: 3A
Dead Band: 3μsec
8.4V:
Motor: Core Motor
Locked Rotor Torque: 80kg
Unload Speed: 0.14/60°
Locked Rotor Current: 10A
Load Current: 4A
Dead Band: 3μsec
Pulse Width Angle: 500μs-2500μs=180°
Direction: CCW
Waterproof: IP67
Angle Sensor: Magnetic Coding
Signal: Digtal
Programmable: Support
Net Weight: 210g(No including accessory)
Wire Length: 300mm
Size: 65x30x58mm

Features:
1. High Torque: With a maximum torque of 80KG, this servo provides strong power for RC models.

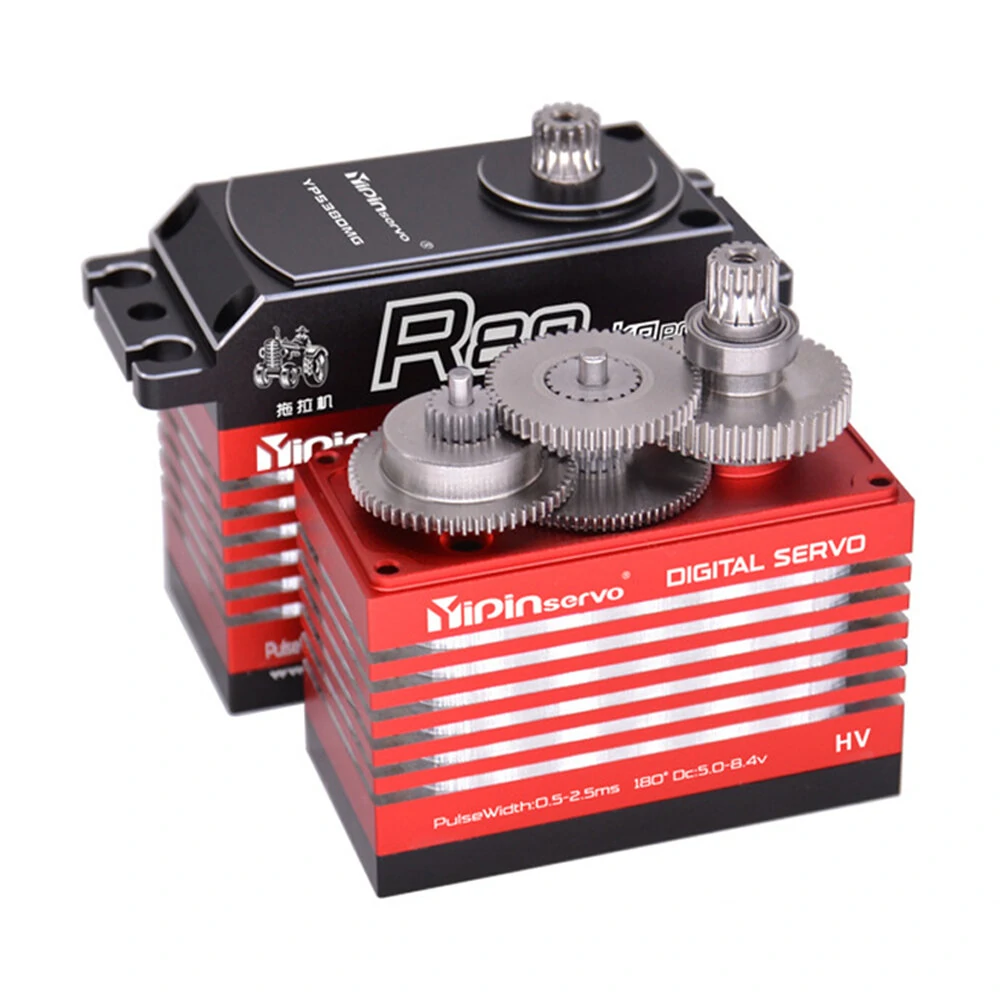

2. Full Metal Construction: Made with high-quality metal, the servo is durables and can withstand heavy use.
3. Digital Control: The servo uses digital control technology for accurate and precise movements.
4. Waterproof Design: The servo is waterproof, making it suitable for use in various weather conditions.
5. Industrial Grade: Designed for industrial applications, this servo is reliable and performs consistently.

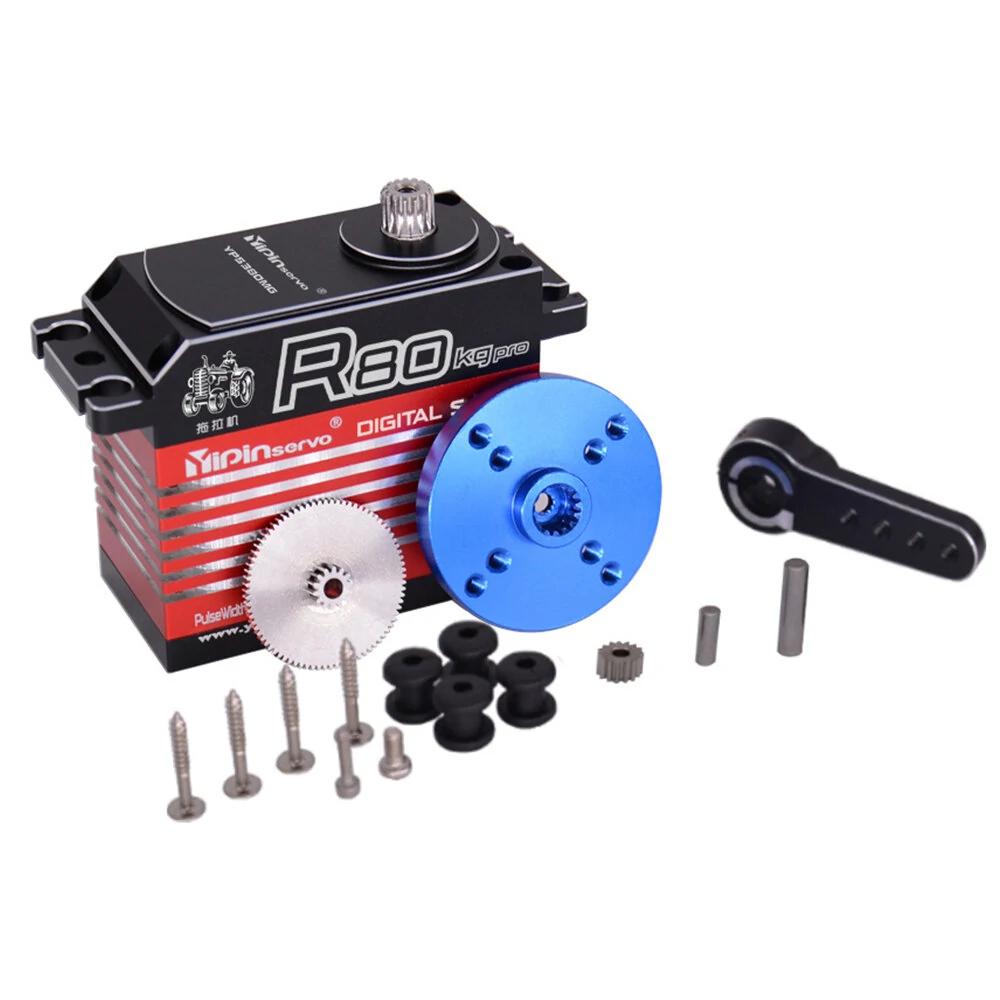

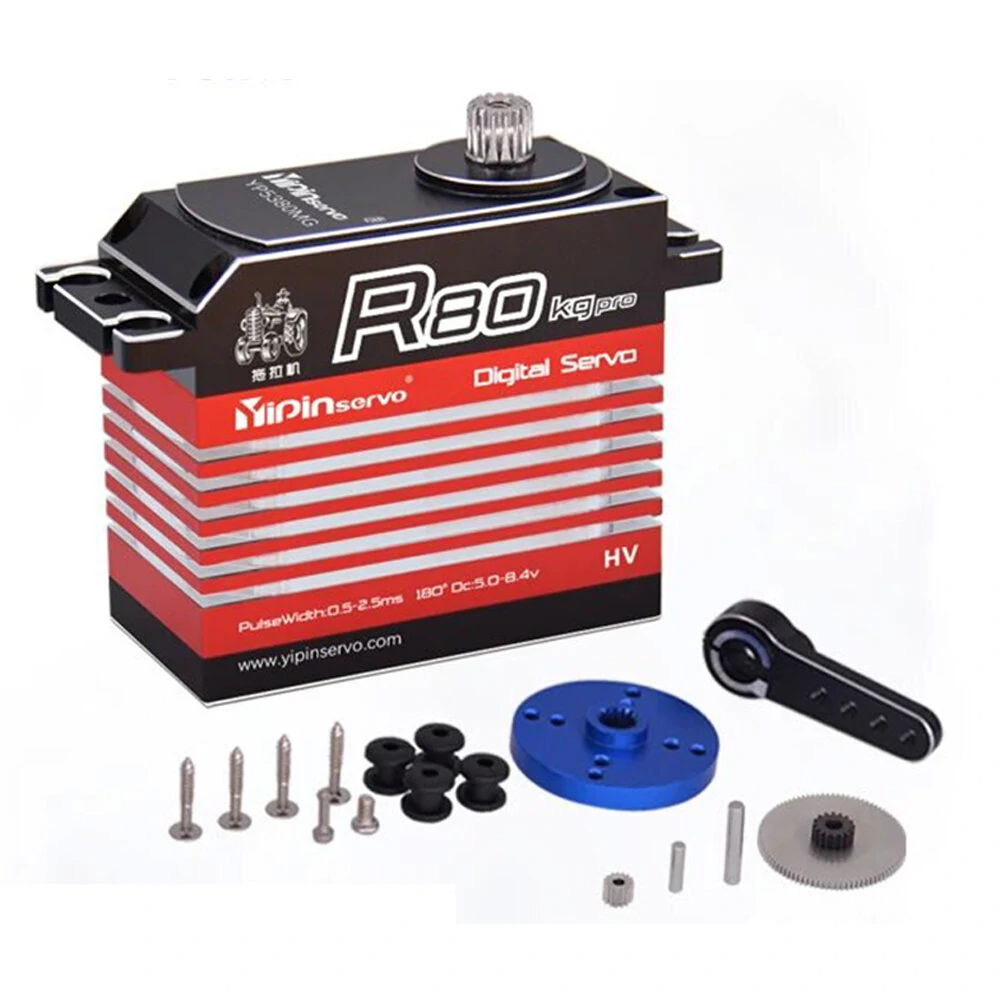

Package includes:
1 X YIPINSERVO R80 80KGPRO Digital Servo
